SX70Y-YEMRS (1984)

Toyota Cresta

Production Aug 1984 - Aug 1988
Engine 1SU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )GX71,MX71,SX70

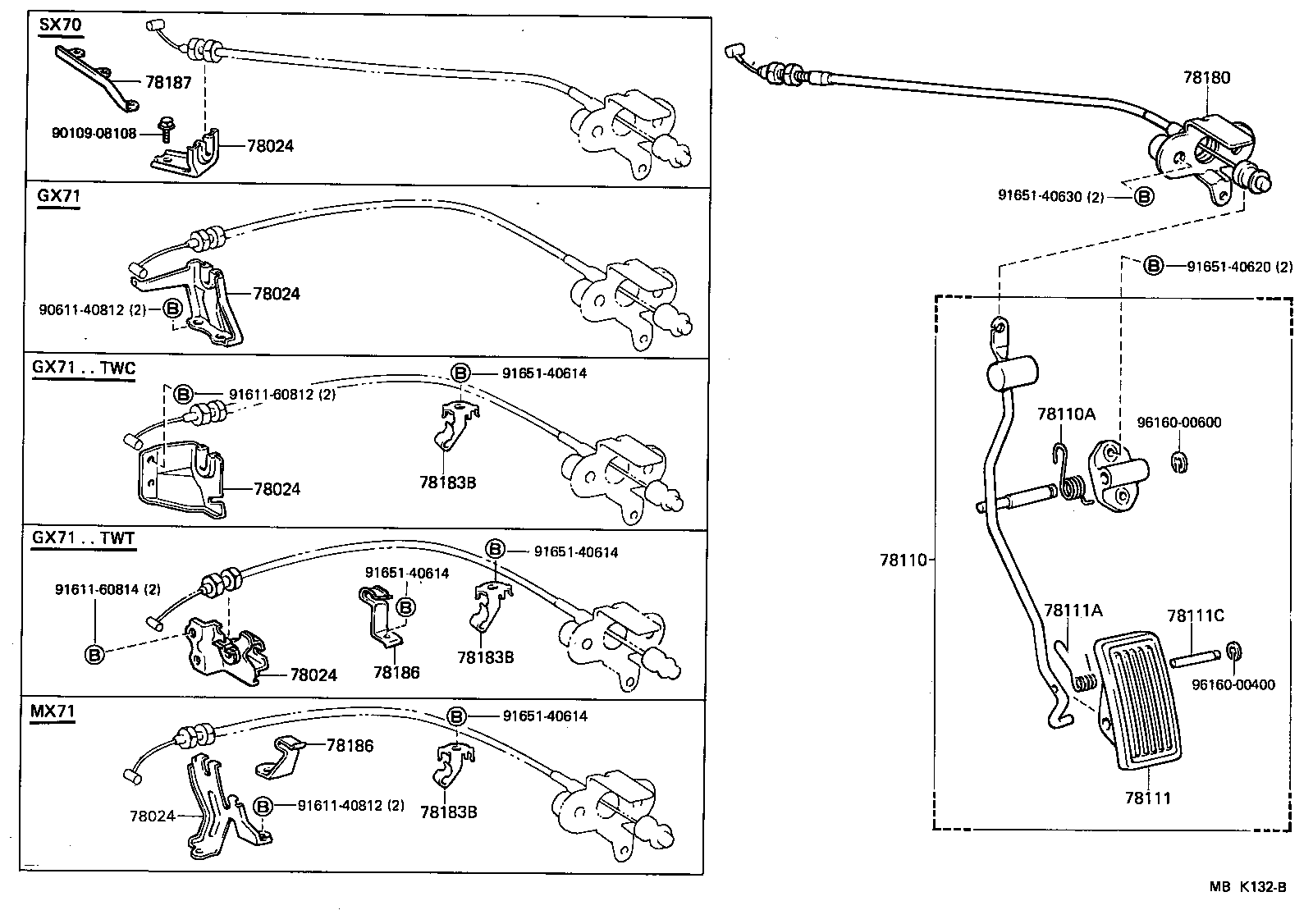

Click highlighted areas on diagram

diagram 78024 78024 78024 78024 78024 78110 78110A 78111 78111A 78111C 78180 78183B 78183B 78183B 78186 78186 78187 9010908108 9061140812 9161140812 9161160812 9161160814 9165140614 9165140614 9165140614 9165140614 9165140620 9165140630 9616000400 9616000600
Part # Description Qty Price
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-22020

SX70

 1
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-22020

SX70

 1
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-22020

SX70

 1
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-22020

SX70

 1
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-22020

SX70

 1
78110 - ROD ASSY, ACCELERATOR PEDAL
78120-22220

MX71;GX71,LX70,SX70..5F

 1
78120-22220

GX71,LX70,SX70..5F..(CBR,DSL,EFI,TWC)

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-26054

MX71;GX71,LX70,SX70..5F

 1
90508-26054

GX71,LX70,SX70..5F..(CBR,DSL,EFI,TWC)

 1
78111 - PEDAL, ACCELERATOR
78111-12100

GX71,LX70,MX71,SX70

 1
78111A - SPRING (FOR ACCELERATOR PEDAL)
90508-23088

GX71,LX70,MX71,SX70

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90249-05001

GX71,LX70,MX71,SX70

 1
78180 - WIRE ASSY, ACCELERATOR
78180-22560

SX70

 1
78187 - BRACKET, ACCELERATOR PULL BACK SPRING
78187-14020

SX70

 1
Common parts
90109-08108
90611-40812
91611-40812
91611-60812
91611-60814
91651-40614
91651-40620
91651-40630
96160-00400
96160-00600
