SX70Y-YEMRS (1984)
Toyota Cresta
ILLUST NO. 1 OF 4(8408-8502)KYO,SCM,SDX ; (8502-8510)SX70 ; (8502-8510)LX70..KYO ; (8502- )SDX ;
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-22430 |
SX70..KYO *41 |
1 | ||
| 04443-22491 |
LX70,SX70..KYO *42 |
1 | ||
| 04443-22490 |
LX70,SX70..KYO *42 |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44606-12520 |
LX70,SX70..KYO |
1 | ||
| 44606-12520 |
GX71,LX70,SX70..KYO,SCM,SDX |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-22470 |
LX70,SX70..KYO *41 |
1 | ||
| 44610-22560 |
LX70,SX70..KYO *42 |
1 | ||
| 44618 - SEAL, BOOSTER BODY | ||||
| 44621-28120 |
GX71,LX70,SX70..KYO,SCM,SDX |
1 | ||
| 44621-28120 |
LX70,SX70..KYO |
1 | ||
| 44629 - RING, CIRCULAR INTERNAL | ||||
| 44628-28120 |
LX70,SX70..KYO |
1 | ||
| 44628-28120 |
GX71,LX70,SX70..KYO,SCM,SDX |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-16050 |
LX70,SX70..CBR,DSL |
1 | ||
| 44642-16050 |
LX70,SX70..KYO |
1 | ||
| 44642-16050 |
SX70;LX70..KYO |
1 | ||
| 44663 - KEY, VALVE STOPPER | ||||
| 44635-28120 |
LX70,SX70..KYO |
1 | ||
| 44635-28120 |
GX71,LX70,SX70..KYO,SCM,SDX |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-32010 |
GX71,LX70,MX71,SX70 |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||

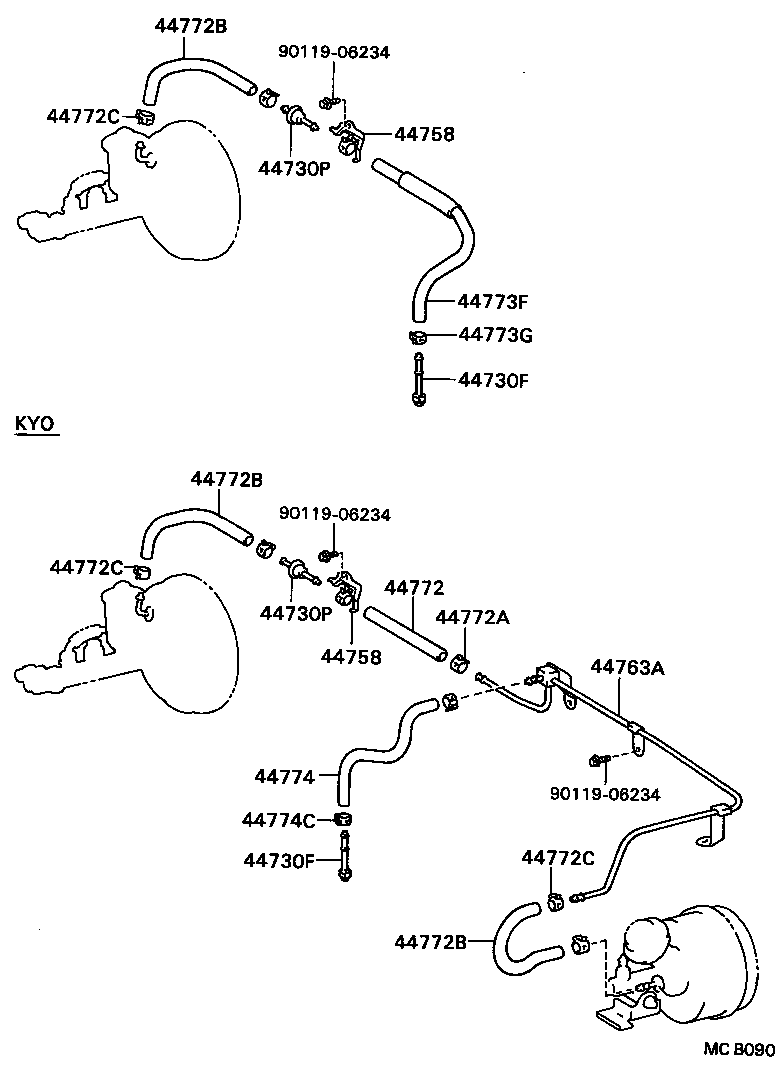

ILLUST NO. 4 OF 4(8408- )SX70
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51007 |
SX70 |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51007 |
SX70 |
1 | ||
| 44730P - VALVE ASSY, VACUUM CHECK, NO.1 | ||||
| 44730-10010 |
GX71,SX70..CBR,EFI,TWC |
1 | ||
| 44730P - VALVE ASSY, VACUUM CHECK, NO.1 | ||||
| 44730-10010 |
GX71,SX70..CBR,EFI,TWC |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-22170 |
GX71,SX70..CBR,EFI,TWC |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-22170 |
GX71,SX70..CBR,EFI,TWC |
1 | ||
| 44763A - TUBE, HOSE TO HOSE, NO.1 | ||||
| 44763-22090 |
SX70..KYO |
1 | ||
| 44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE | ||||
| 95445-09150 |
GX71,SX70..(KYO,SLU)..(CBR,TWC) |
1 | ||
| 44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE) | ||||
| 90467-16002 |
GX71,LX70,MX71,SX70..(GT,KYO,SLU)..(CBR,DSL,TBO,TWC,TWT) |
2 | ||
| 44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER | ||||
| 44772-22060 |
GX71,SX70..CBR,EFI |
1 | ||
| 44772-22060 |
SX70 |
1 | ||
| 44772-22130 |
LX70,SX70..KYO *42 |
1 | ||
| 44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER | ||||
| 44772-22060 |
GX71,SX70..CBR,EFI |
1 | ||
| 44772-22060 |
SX70 |
1 | ||
| 44772-22130 |
LX70,SX70..KYO *42 |
1 | ||
| 44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER | ||||
| 44772-22060 |
GX71,SX70..CBR,EFI |
1 | ||
| 44772-22060 |
SX70 |
1 | ||
| 44772-22130 |
LX70,SX70..KYO *42 |
1 | ||
| 44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE) | ||||
| 90467-16002 |
GX71,LX70,MX71,SX70 |
4 | ||
| 44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE) | ||||
| 90467-16002 |
GX71,LX70,MX71,SX70 |
4 | ||
| 44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE) | ||||
| 90467-16002 |
GX71,LX70,MX71,SX70 |
4 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-22100 |
SX70..KYO |
1 | ||
| 44774C - CLIP(FOR UNION TO CONNECTOR TUBE HOSE) | ||||
| 90467-16002 |
GX71,MX71,SX70..(GT,KYO,SLU)..(CBR,TBO,TWC,TWT) |
2 | ||
| Common parts | ||||
| 90119-06234 | ||||

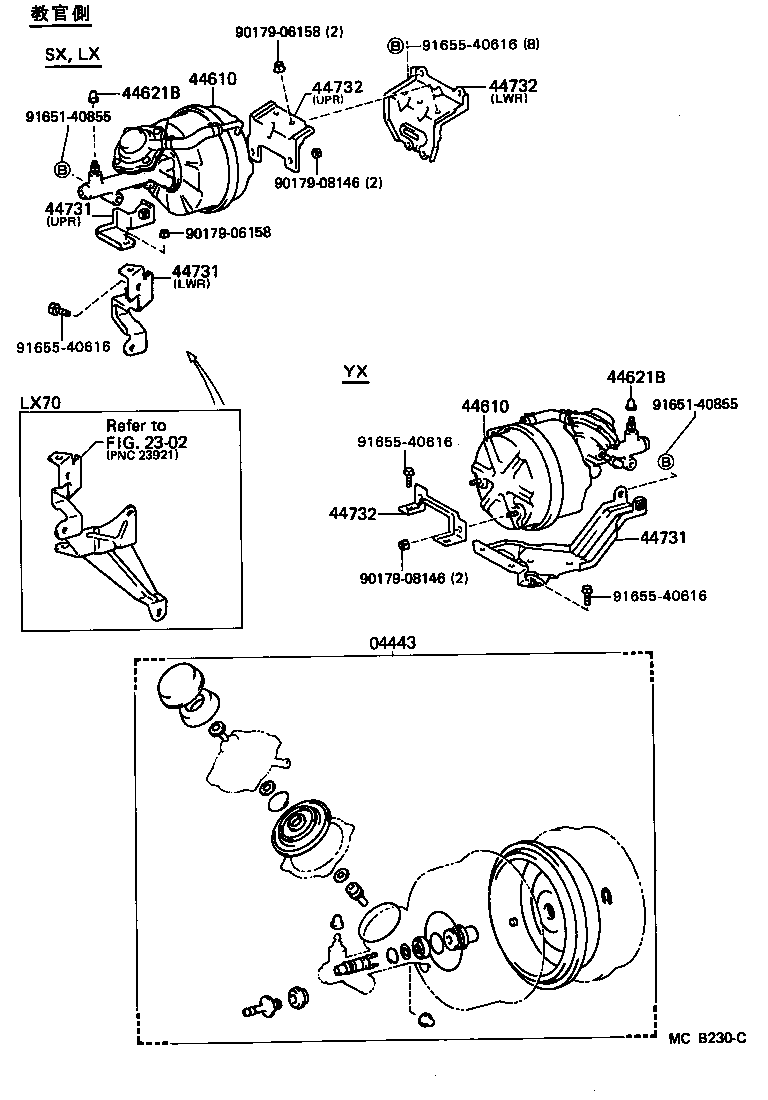

ILLUST NO. 2 OF 4(8408- )KYO
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-22430 |
SX70..KYO *41 |
1 | ||
| 04443-22491 |
LX70,SX70..KYO *42 |
1 | ||
| 04443-22490 |
LX70,SX70..KYO *42 |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-22470 |
LX70,SX70..KYO *41 |
1 | ||
| 44610-22560 |
LX70,SX70..KYO *42 |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-22470 |
LX70,SX70..KYO *41 |
1 | ||
| 44610-22560 |
LX70,SX70..KYO *42 |
1 | ||
| 44621B - CAP, BLEEDER PLUG(FOR BRAKE BOOSTER) | ||||
| 47548-20010 |
LX70,SX70..KYO *41 |
2 | ||
| 31478-30010 |
LX70,SX70..KYO *42 |
2 | ||
| 44621B - CAP, BLEEDER PLUG(FOR BRAKE BOOSTER) | ||||
| 47548-20010 |
LX70,SX70..KYO *41 |
2 | ||
| 31478-30010 |
LX70,SX70..KYO *42 |
2 | ||
| 44731 - BRACKET, BRAKE BOOSTER, FRONT | ||||
| 44731-22050 |
SX70..KYO LWR |
1 | ||
| 44731-22040 |
SX70..KYO UPR |
1 | ||
| 44731 - BRACKET, BRAKE BOOSTER, FRONT | ||||
| 44731-22050 |
SX70..KYO LWR |
1 | ||
| 44731-22040 |
SX70..KYO UPR |
1 | ||
| 44731 - BRACKET, BRAKE BOOSTER, FRONT | ||||
| 44731-22050 |
SX70..KYO LWR |
1 | ||
| 44731-22040 |
SX70..KYO UPR |
1 | ||
| 44732 - BRACKET, BRAKE BOOSTER, REAR | ||||
| 44732-22010 |
LX70,SX70..KYO UPR |
1 | ||
| 44732-22020 |
LX70,SX70..KYO LWR |
1 | ||
| 44732 - BRACKET, BRAKE BOOSTER, REAR | ||||
| 44732-22010 |
LX70,SX70..KYO UPR |
1 | ||
| 44732-22020 |
LX70,SX70..KYO LWR |
1 | ||
| 44732 - BRACKET, BRAKE BOOSTER, REAR | ||||
| 44732-22010 |
LX70,SX70..KYO UPR |
1 | ||
| 44732-22020 |
LX70,SX70..KYO LWR |
1 | ||
| Common parts | ||||
| 90179-06158 | ||||
| 90179-08146 | ||||
| 91651-40855 | ||||
| 91655-40616 | ||||
| Linked diagrams | ||||
| 2302 | ||||

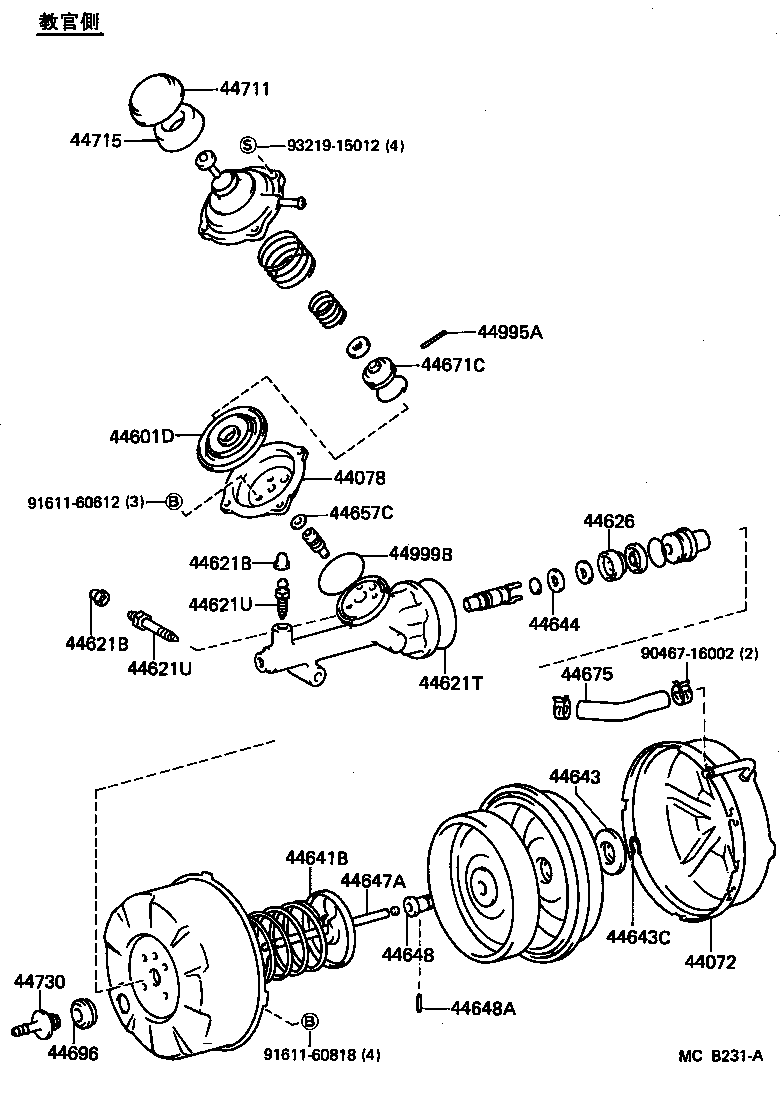

ILLUST NO. 3 OF 4(8408- )KYO
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44072 - BODY SUB-ASSY, SEPARATOR BOOSTER, NO.2 | ||||
| 44072-22560 |
LX70,SX70..KYO |
1 | ||
| 44078 - BODY SUB-ASSY, CONTROL VALVE | ||||
| 44078-22560 |
LX70,SX70..KYO |
1 | ||
| 44601D - DIAPHRAGM SUB-ASSY, CONTROL VALVE | ||||
| 44601-37010 |
LX70,SX70..KYO |
1 | ||
| 44621B - CAP, BLEEDER PLUG(FOR BRAKE BOOSTER) | ||||
| 47548-20010 |
LX70,SX70..KYO *41 |
2 | ||
| 31478-30010 |
LX70,SX70..KYO *42 |
2 | ||
| 44621B - CAP, BLEEDER PLUG(FOR BRAKE BOOSTER) | ||||
| 47548-20010 |
LX70,SX70..KYO *41 |
2 | ||
| 31478-30010 |
LX70,SX70..KYO *42 |
2 | ||
| 44621T - RING, O(FOR HYDRAULIC CYLINDER BODY) | ||||
| 90301-59044 |
LX70,SX70..KYO |
1 | ||
| 44621U - PLUG, BLEEDER(FOR HYDRAULIC CYLINDER BODY) | ||||
| 47547-30020 |
LX70,SX70..KYO L=36 |
1 | ||
| 47547-40020 |
LX70,SX70..KYO L=50 |
1 | ||
| 44621U - PLUG, BLEEDER(FOR HYDRAULIC CYLINDER BODY) | ||||
| 47547-30020 |
LX70,SX70..KYO L=36 |
1 | ||
| 47547-40020 |
LX70,SX70..KYO L=50 |
1 | ||
| 44626 - RETAINER, BOOSTER ROD CUP | ||||
| 44626-30010 |
LX70,SX70..KYO |
1 | ||
| 44641B - RETAINER, BOOSTER SPRING | ||||
| 44649-36040 |
LX70,SX70..KYO |
1 | ||
| 44643 - RETAINER, DIAPHRAGM | ||||
| 44643-36040 |
LX70,SX70..KYO |
1 | ||
| 44643C - RING, SNAP(FOR DIAPHRAGM RETAINER) | ||||
| 96150-01400 |
LX70,SX70..KYO |
1 | ||
| 44644 - SPACER, PISTON ROD | ||||
| 90202-08068 |
LX70,SX70..KYO |
1 | ||
| 44654-22560 |
SX70..KYO |
1 | ||
| 44647A - ROD, BOOSTER PISTON | ||||
| 44647-30010 |
LX70,SX70..KYO |
1 | ||
| 44648 - END, PISTON ROD | ||||
| 44648-36040 |
LX70,SX70..KYO |
1 | ||
| 44648A - PIN, BOOSTER ROD END | ||||
| 90250-03142 |
LX70,SX70..KYO |
1 | ||
| 44657C - SPACER(FOR BOOSTER CONTROL VALVE PISTON) | ||||
| 90560-08294 |
LX70,SX70..KYO |
1 | ||
| 44671C - SEAT, VACUUM VALVE | ||||
| 44671-36040 |
LX70,SX70..KYO |
1 | ||
| 44675 - HOSE, BOOSTER VACUUM | ||||
| 44688-22560 |
LX70,SX70..KYO |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24439 |
LX70,SX70..KYO |
1 | ||
| 44711 - BODY, AIR CLEANER(FOR BOOSTER) | ||||
| 44711-30010 |
LX70,SX70..KYO |
1 | ||
| 44715 - ELEMENT, AIR CLEANER(FOR BOOSTER) | ||||
| 44715-20020 |
LX70,SX70..KYO |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-22080 |
LX70,SX70..KYO |
1 | ||
| 44995A - PIN, VALVE JOINT | ||||
| 44995-36040 |
LX70,SX70..KYO |
1 | ||
| 44999B - RING, O(FOR CONTROL VALVE) | ||||
| 44999-36040 |
LX70,SX70..KYO |
1 | ||
| Common parts | ||||
| 90467-16002 | ||||
| 91611-60612 | ||||
| 91611-60818 | ||||
| 93219-15012 | ||||
