SX70-YEPES (1984)

Toyota Cresta

Production Aug 1984 - Aug 1988
Engine 1SU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )

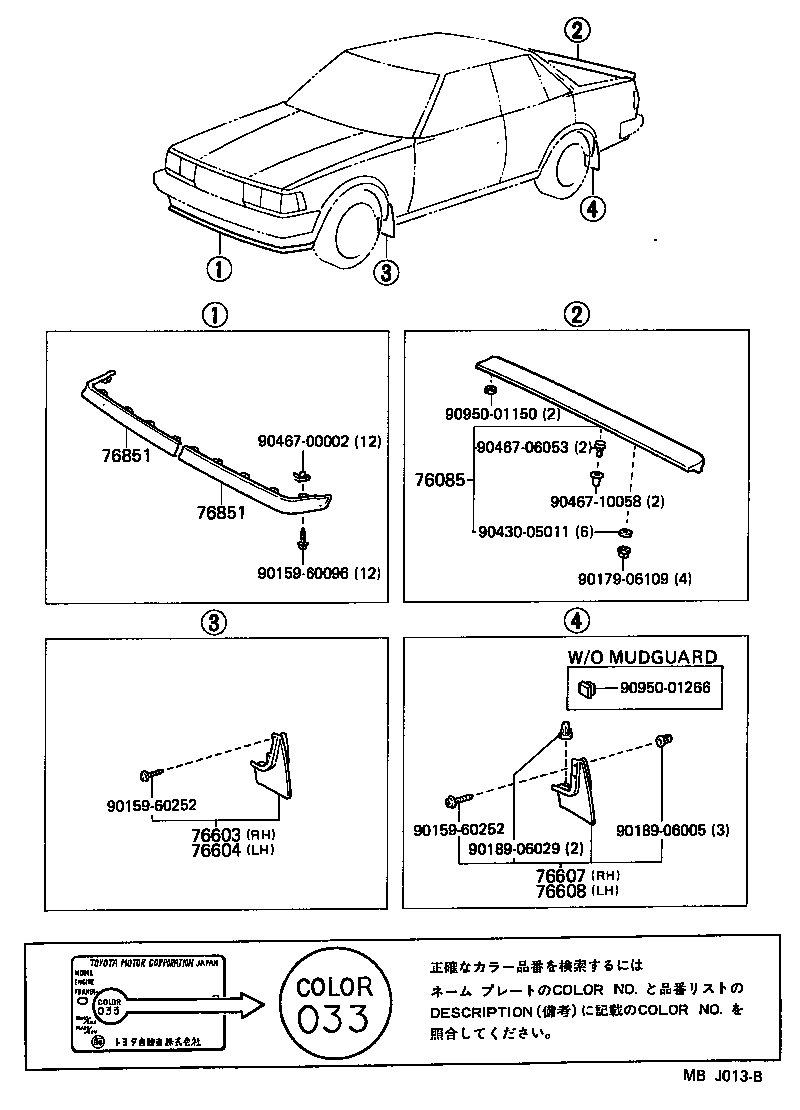

Click highlighted areas on diagram

diagram 76085 76603 76604 76607 76608 76851 76851 9015960096 9015960252 9015960252 9017906109 9018906005 9018906029 9043005011 9046700002 9046706053 9046710058 9095001150 9095001266
Part # Description Qty Price
76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH
76603-2905508

LX70,SX70..SCM..(CBR,TD)

SCM EXTRA,SUPER WHITE,SUPER WHITE,040

 1
76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH
76604-2905508

LX70,SX70..SCM..(CBR,TD)

SCM EXTRA,SUPER WHITE,SUPER WHITE,040

 1
76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76607-2905508

LX70,SX70..SCM..(CBR,TD)

SCM EXTRA,SUPER WHITE,SUPER WHITE,040

 1
76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
76608-2905508

LX70,SX70..SCM..(CBR,TD)

SCM EXTRA,SUPER WHITE,SUPER WHITE,040

 1
Common parts
90159-60096
90159-60252
90179-06109
90189-06005
90189-06029
90430-05011
90467-00002
90467-06053
90467-10058
90950-01150
90950-01266
