SX70-YEPES (1984)
Toyota Cresta
Production
Aug 1984
-
Aug 1988
Engine
1SU
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8408- )

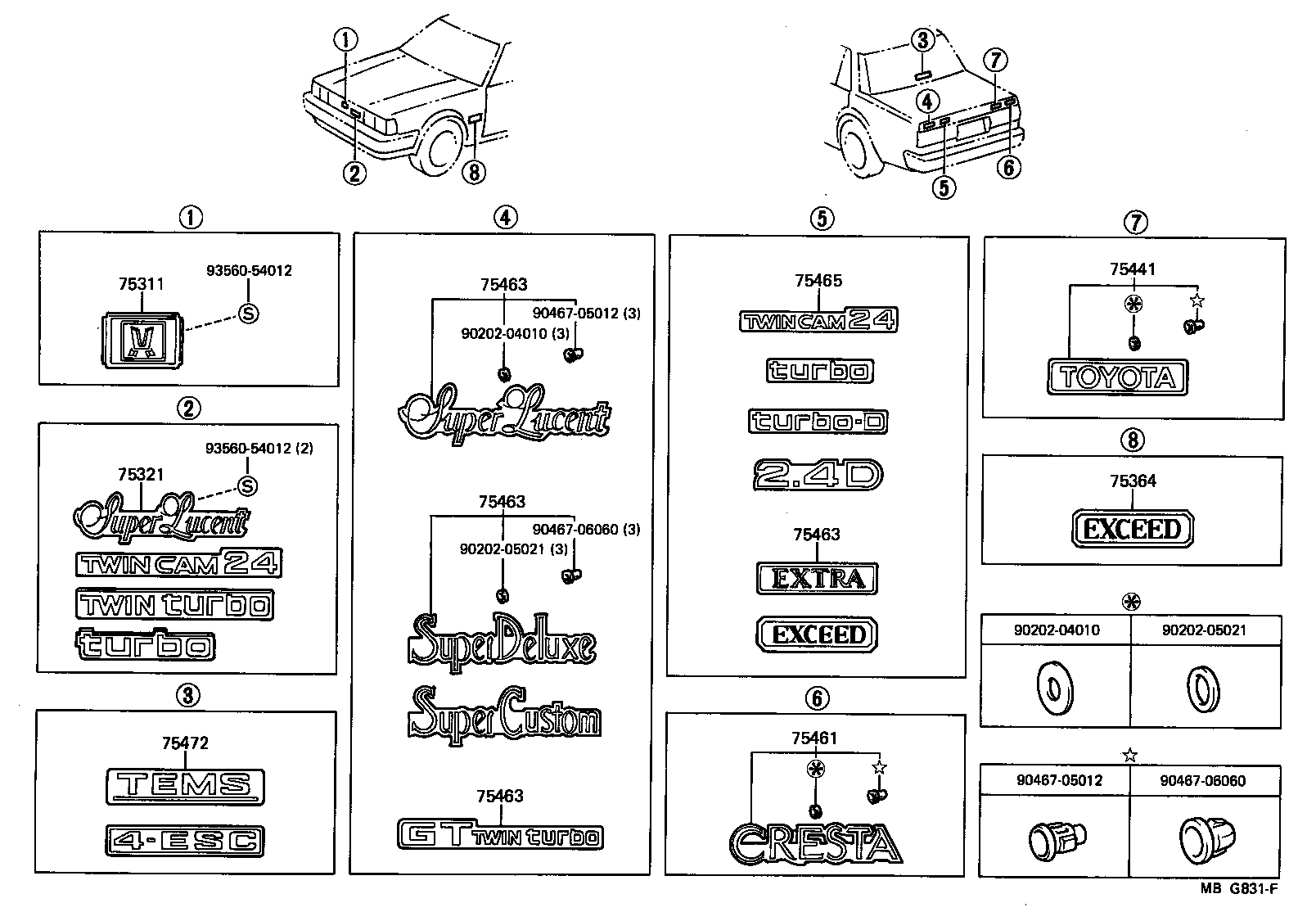

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL) | ||||
| 75301-22220 |
GX71,LX70,MX71,SX70 |
1 | ||
| 75301-22280 |
GX71,LX70,SX70 |
1 | ||
| 75441 - PLATE, REAR NAME, NO.1 | ||||
| 75442-22040 |
GX71,LX70,MX71,SX70 TOYOTA,TOYOTA |
1 | ||
| 75461 - PLATE, REAR NAME, NO.2 (MODEL MARK) | ||||
| 75441-22110 |
GX71,LX70,MX71,SX70 CRESTA,CRESTA |
1 | ||
| 75463 - PLATE, REAR NAME, NO.4 (GRADE MARK) | ||||
| 75445-91601 |
LX70,SX70..SCM..(CBR,TD) EXTRA,EXTRA |
1 | ||
| 75443-22550 |
LX70,SX70..SCM SUPER CUSTOM,SUPER CUSTOM |
1 | ||
| 75463 - PLATE, REAR NAME, NO.4 (GRADE MARK) | ||||
| 75445-91601 |
LX70,SX70..SCM..(CBR,TD) EXTRA,EXTRA |
1 | ||
| 75443-22550 |
LX70,SX70..SCM SUPER CUSTOM,SUPER CUSTOM |
1 | ||
| 75463 - PLATE, REAR NAME, NO.4 (GRADE MARK) | ||||
| 75445-91601 |
LX70,SX70..SCM..(CBR,TD) EXTRA,EXTRA |
1 | ||
| 75443-22550 |
LX70,SX70..SCM SUPER CUSTOM,SUPER CUSTOM |
1 | ||
| 75463 - PLATE, REAR NAME, NO.4 (GRADE MARK) | ||||
| 75445-91601 |
LX70,SX70..SCM..(CBR,TD) EXTRA,EXTRA |
1 | ||
| 75443-22550 |
LX70,SX70..SCM SUPER CUSTOM,SUPER CUSTOM |
1 | ||
| Common parts | ||||
| 90202-04010 | ||||
| 90202-05021 | ||||
| 90467-05012 | ||||
| 90467-06060 | ||||
| 93560-54012 | ||||
