SX70-YEPES (1984)

Toyota Cresta

Production Aug 1984 - Aug 1988
Engine 1SU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )

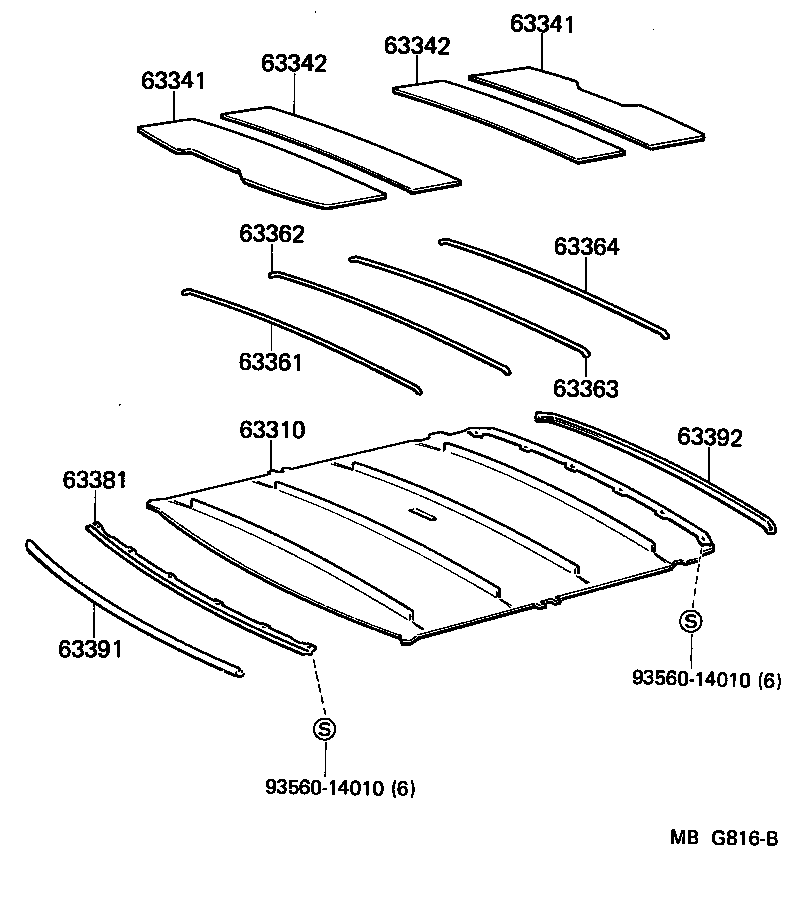

Click highlighted areas on diagram

diagram 63310 63341 63341 63342 63342 63361 63362 63363 63364 63381 63391 63392 9356014010 9356014010
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63310-2235003

GX71,LX70,MX71,SX70..GT,SCM,SDX,SLU

GRAY,GRAY,TRIM2#

 1
63310-2235005

GX71,LX70,MX71,SX70..GT,SCM,SDX,SLU

BEIGE,BEIGE,TRIM3#,4#

 1
63310-2235015

GX71,LX70,SX70..GT,SCM,SDX,SLU

BEIGE,DARK BEIGE,TRIM4#

 1
63310-2235002

GX71,LX70,SX70..GT,SCM,SDX,SLU

MAROON,MAROON,TRIM3#

 1
63310-2235004

GX71,LX70,SX70..GT,SCM,SDX,SLU

BLUE,DARK BLUE,TRIM8#

 1
63310-2234004

SX70..4FC

*30,BLUE,DARK BLUE,TRIM8#

 1
63341 - PAD, ROOF SILENCER, NO.1
63341-22130

GX71,LX70,MX71,SX70

 2
63341 - PAD, ROOF SILENCER, NO.1
63341-22130

GX71,LX70,MX71,SX70

 2
63342 - PAD, ROOF SILENCER, NO.2
63342-22060

GX71,LX70,MX71,SX70

 2
63342 - PAD, ROOF SILENCER, NO.2
63342-22060

GX71,LX70,MX71,SX70

 2
63361 - SUPPORT, ROOF HEADLINING, NO.1
63362-22110

GX71,LX70,SX70

L=1124,GREEN+BLACK

 1
63361-22230

GX71,LX70,MX71,SX70

L=1130,GREEN+WHITE

 1
63361-22140

GX71,LX70,SX70

L=1127,GREEN

 1
63362 - SUPPORT, ROOF HEADLINING, NO.2
63363-22070

GX71,LX70,MX71,SX70

L=1115,BLUE

 1
63363-22050

GX71,LX70,SX70

L=1118,BLUE+WHITE

 1
63363-22080

GX71,LX70,SX70

L=1112,BLUE+BLACK

 1
63363 - SUPPORT, ROOF HEADLINING, NO.3
63363-22070

GX71,LX70,SX70

L=1115,BLUE

 1
63363-22050

GX71,LX70,SX70

L=1118,BLUE+WHITE

 1
63363-22080

GX71,LX70,MX71,SX70

L=1112,BLUE+BLACK

 1
63364 - SUPPORT, ROOF HEADLINING, NO.4
63364-22030

GX71,LX70,MX71,SX70

L=1103,RED+WHITE

 1
63364-22020

GX71,LX70,SX70

L=1100,RED

 1
63364-22040

GX71,LX70,MX71,SX70

L=1097,RED+BLACK

 1
63381 - RETAINER, HEADLINING, FRONT
63381-22060

GX71,LX70,MX71,SX70

 1
63391 - TRIM, ROOF HEADLINING, FRONT
63391-2208003

GX71,LX70,SX70..KYO,SCM,SDX

GRAY,COOL GRAY,TRIM1#

 1
63391-2208004

GX71,LX70,SX70..KYO,SCM,SDX

BLUE,DARK BLUE,TRIM8#

 1
63391-2208015

GX71,LX70,SX70..SCM,SDX

BEIGE,DARK BEIGE,TRIM4#

 1
63391-2208002

GX71,LX70,SX70..SCM,SDX

MAROON,MAROON,TRIM3#

 1
63391-2208005

GX71,LX70,SX70..SCM,SDX

BEIGE,BEIGE,TRIM4#

 1
63392 - TRIM, ROOF HEADLINING, REAR
63392-2207003

GX71,LX70,SX70..KYO,SCM,SDX

GRAY,COOL GRAY,TRIM1#

 1
63392-2207005

GX71,LX70,SX70..SCM,SDX

BEIGE,BEIGE,TRIM4#

 1
63392-2207002

GX71,LX70,SX70..SCM,SDX

MAROON,MAROON,TRIM3#

 1
63392-2207015

GX71,LX70,SX70..SCM,SDX

BEIGE,DARK BEIGE,TRIM4#

 1
63392-2207004

GX71,LX70,SX70..KYO,SCM,SDX

BLUE,DARK BLUE,TRIM8#

 1
Common parts
93560-14010
