MX83-CEPZF (1989)
Toyota Cresta
(8908- )7MGE
12V 100A

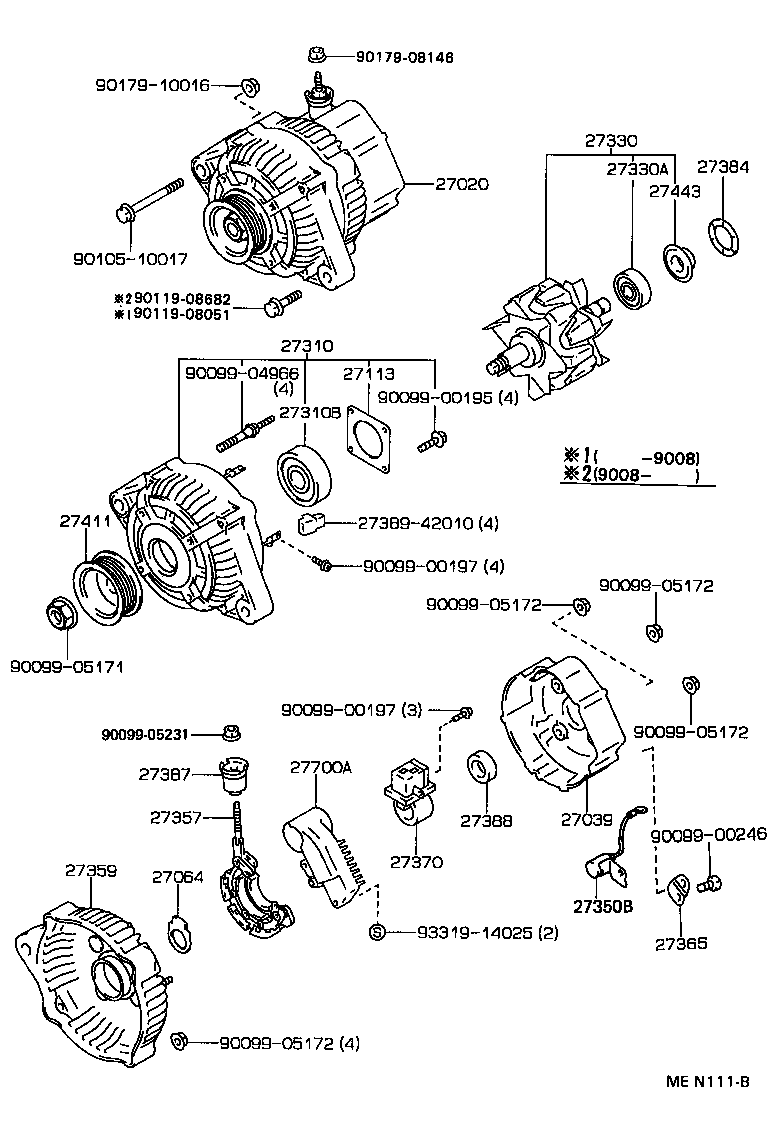

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-42080 |
7MGE..MX83 12V 100A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-42020 |
1GGTE,1GGZE,1JZ#,7MGE..GX81,JZX81,MX83..4FC |
1 | ||
| 27039-50080 |
1JZ#,7MGE..JZX81,MX83 |
1 | ||
| 27064 - SEAL, ALTERNATOR PLATE | ||||
| 27064-42010 |
1GGE,2LT..GX81,LX80..SCM,SLT;1GFE,1JZ#,7MGE,4SFE..GX81,JZX81,MX83,SX80..4FC |
1 | ||
| 27064-42010 |
2LT..LX80..4FC..SCM;1GFE,1GG#,7MGE,4SFI..GX81,MX83,SX80..4FC |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-42010 |
1GFE,1GG#,7MGE,4SFI..GX81,MX83,SX80..4FC |
1 | ||
| 27312-42010 |
1GGE..GX81;1GFE,1JZ#,7MGE,4SFE..GX81,JZX81,MX83,SX80..4FC |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-42080 |
7MGE..MX83 |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10192 |
1JZ#,7MGE..JZX81,MX83 |
1 | ||
| 90099-10192 |
1GGE..GX81;1GFE,1JZ#,7MGE,4SFE..GX81,JZX81,MX83,SX80..4FC |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-42020 |
1GGTE,1GGZE,7MGE..GX81,MX83..4FC |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
7MGE..MX83 |
2 | ||
| 90099-10140 |
1G#,2L#,7MGE,4SFE,3YP..GX81,LX80,MX83,SX80,YX80 |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-50030 |
7MGE..MX83 |
1 | ||
| 27357-74170 |
1JZ#,7MGE..JZX81,MX83 |
1 | ||
| 27357-50030 |
1GGTE,1GGZE,7MGE..GX81,MX83..4FC |
1 | ||
| 27357-50060 |
1JZ#,7MGE..JZX81,MX83 |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-42020 |
7MGE..MX83 |
1 | ||
| 27365 - PLATE, TERMINAL | ||||
| 27365-55080 |
1JZ#,7MGE..JZX81,MX83 |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-42010 |
1GFE,1GG#,7MGE,4SFI..GX81,MX83,SX80..4FC |
1 | ||
| 27370-42010 |
1GGE..GX81;1GFE,7MGE,4SFE..GX81,MX83,SX80..4FC |
1 | ||
| 27370-75060 |
1GGE,2LT..GX81,LX80..SCM,SLT;1GFE,1JZ#,7MGE,4SFE..GX81,JZX81,MX83,SX80..4FC |
1 | ||
| 27384 - WASHER | ||||
| 27384-42010 |
1GFE,1GG#,7MGE,4SFI..GX81,MX83,SX80..4FC |
1 | ||
| 27384-42010 |
1GGE..GX81;1GFE,7MGE,4SFE..GX81,MX83,SX80..4FC |
1 | ||
| 27384-42010 |
1GFE,1GGE,7MGE,4SFI..GX81,MX83,SX80..4FC |
1 | ||
| 27384-50030 |
1GGE,2LT..GX81,LX80..SCM,SLT;1GFE,1JZ#,7MGE,4SFE..GX81,JZX81,MX83,SX80..4FC |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-42020 |
2LT..LX80..4FC..SCM;1GFE,1GGE,7MGE,4SFI..GX81,MX83,SX80..4FC |
1 | ||
| 27387-42040 |
1JZ#,7MGE..JZX81,MX83 |
1 | ||
| 27388 - COVER, ALTERNATOR BRUSH | ||||
| 27388-42010 |
1GGE,2LT..GX81,LX80..SCM,SLT;1GFE,1JZ#,7MGE,4SFE..GX81,JZX81,MX83,SX80..4FC |
1 | ||
| 27388-42010 |
2LT..LX80..4FC..SCM;1GFE,1GG#,7MGE,4SFI..GX81,MX83,SX80..4FC |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
1GFE,1GG#,1JZ#,2L#,7MGE,4SF#,3YP..GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-76020 |
7MGE..MX83 |
1 | ||
| 27700-16010 |
4SFI..SX80..5F;1GFE,1GG#,7MGE..GX81,MX83 |
1 | ||
| 27700-76020 |
7MGE..MX83;1GFE..GX81..5F |
1 | ||
| Common parts | ||||
| 27389-42010 | ||||
| 90099-00195 | ||||
| 90099-00197 | ||||
| 90099-00246 | ||||
| 90099-04966 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90099-05231 | ||||
| 90105-10017 | ||||
| 90119-08051 | ||||
| 90119-08682 | ||||
| 90179-08146 | ||||
| 90179-10016 | ||||
| 93319-14025 | ||||
