MX71-YEPGT (1984)

Toyota Cresta

Production Aug 1984 - Oct 1985
Engine MTEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

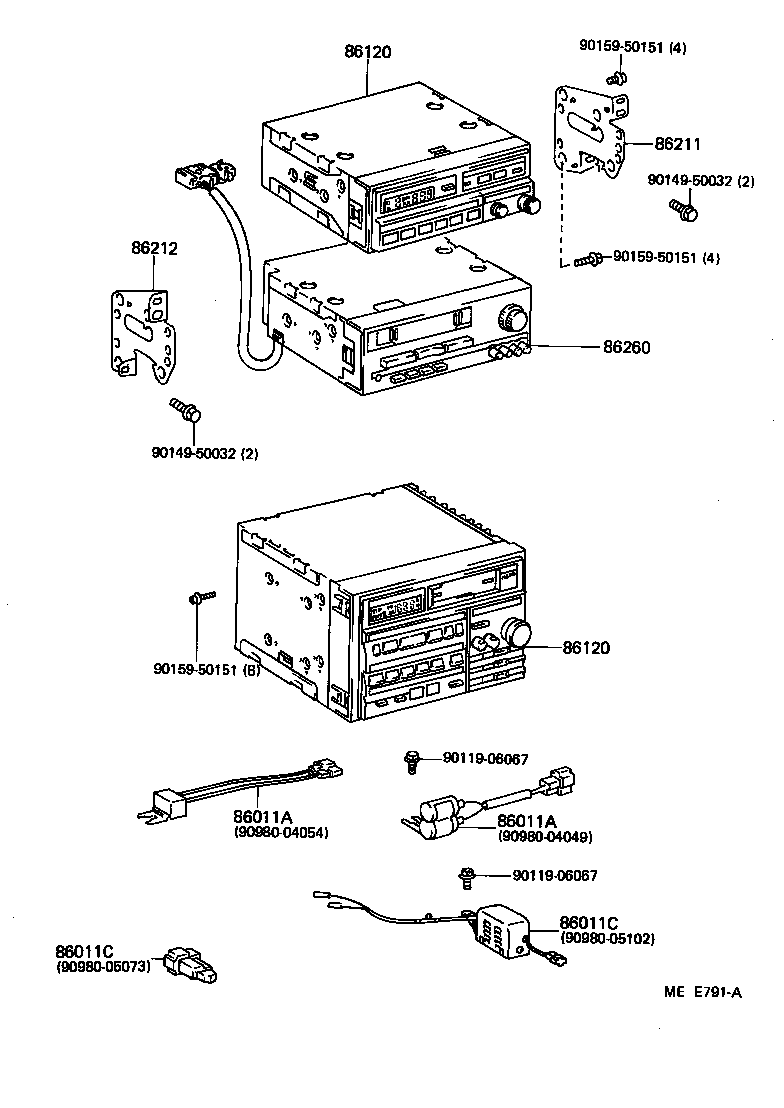

ILLUST NO. 1 OF 2(8408- )

Click highlighted areas on diagram

diagram 86011A 86011A 86011C 86011C 86120 86120 86211 86212 86260 9011906067 9011906067 9014950032 9014950032 9015950151 9015950151 9015950151 9098004049 9098004054 9098005073 9098005102
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04054

GX71,MX71,SX70

IG COIL

 1
90980-04049

GX71,LX70,MX71,SX70

DEFOGGER

 1
86011A - CONDENSER, RADIO SETTING
90980-04054

GX71,MX71,SX70

IG COIL

 1
90980-04049

GX71,LX70,MX71,SX70

DEFOGGER

 1
86011C - FILTER, NOISE
90980-05102

GX71,LX70,MX71,SX70

RR

 1
90980-05073

GX71,LX70,MX71,SX70

FR

 1
86011C - FILTER, NOISE
90980-05102

GX71,LX70,MX71,SX70

RR

 1
90980-05073

GX71,LX70,MX71,SX70

FR

 1
86120 - RECEIVER ASSY, RADIO
86120-22500

GX71,MX71..GT,SLU

 1
86120 - RECEIVER ASSY, RADIO
86120-22500

GX71,MX71..GT,SLU

 1
86211 - BRACKET, RADIO, NO.1
86211-22130

GX71,LX70,MX71,SX70

 1
86212 - BRACKET, RADIO, NO.2
86212-22110

GX71,LX70,MX71,SX70

 1
Common parts
90119-06067
90149-50032
90159-50151
90980-04049
90980-04054
90980-05073
90980-05102

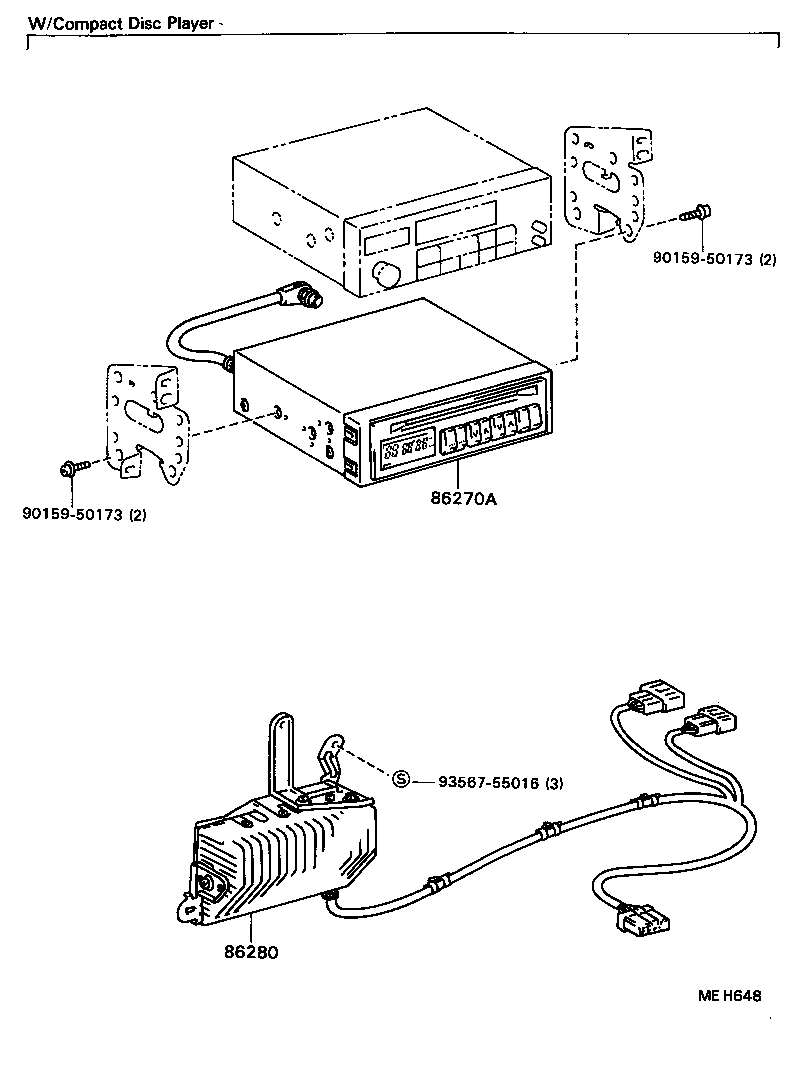

ILLUST NO. 2 OF 2(8408- )

Click highlighted areas on diagram

diagram 86270A 86280 9015950173 9015950173 9356755016
Part # Description Qty Price
Common parts
90159-50173
93567-55016
