MX71-YEPGT (1984)

Toyota Cresta

Production Aug 1984 - Oct 1985
Engine MTEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )

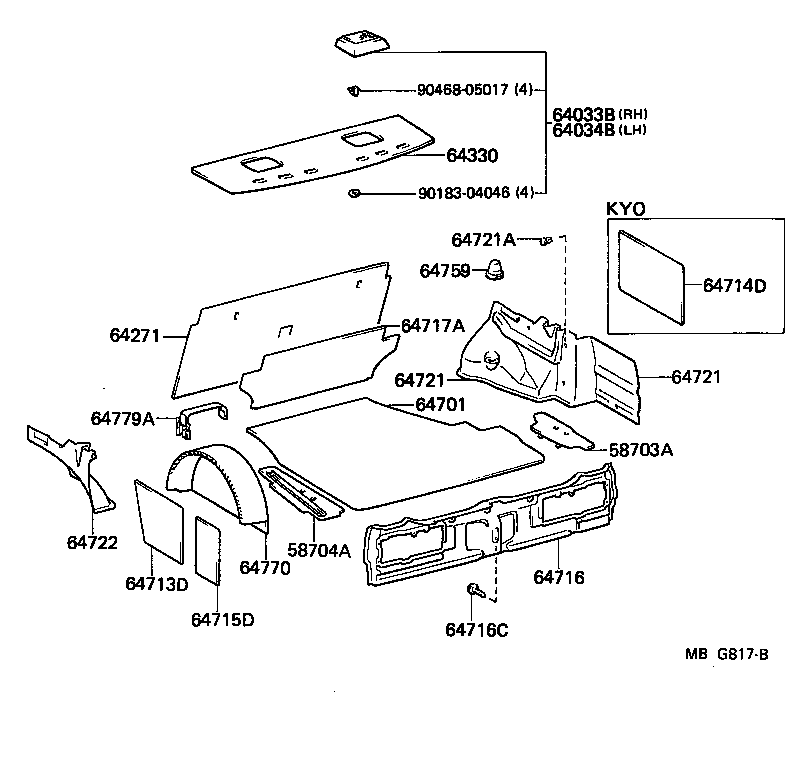

Click highlighted areas on diagram

diagram 58703A 58704A 64033B 64034B 64271 64330 64701 64713D 64714D 64715D 64716 64716C 64717A 64721 64721 64721A 64722 64759 64770 64779A 9018304046 9046805017
Part # Description Qty Price
58703A - COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH
58703-22050

GX71,LX70,MX71,SX70

 1
58704A - COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH
58704-22030

GX71,LX70,MX71,SX70..GT,SCM,SDX,SLU

 1
64033B - GRILLE SUB-ASSY, REAR SPEAKER, RH
64033-2202003

GX71,MX71..SLU

GRAY,COOL GRAY,TRIM1#

 1
64033-2202005

GX71,MX71..SLU

BEIGE,BEIGE,TRIM4#

 1
64033-2202002

GX71,MX71..SLU

MAROON,MAROON,TRIM3#

 1
86269-22030

GX71,MX71..SLU

TECHNICS

 1
64034B - GRILLE SUB-ASSY, REAR SPEAKER, LH
64033-2202002

GX71,MX71..SLU

MAROON,MAROON,TRIM3#

 1
86269-22030

GX71,MX71..SLU

TECHNICS

 1
64033-2202005

GX71,MX71..SLU

BEIGE,BEIGE,TRIM4#

 1
64033-2202003

GX71,MX71..SLU

GRAY,COOL GRAY,TRIM1#

 1
64271 - BOARD, ROOM PARTITION, NO.1
64271-22080

GX71,LX70,MX71,SX70

 1
64330 - PANEL ASSY, PACKAGE TRAY TRIM
64330-2253002

GX71,MX71..GT,SLU

MAROON,MAROON,TRIM3#

 1
64330-2253003

GX71,MX71..GT,SLU

GRAY,COOL GRAY,TRIM1#

 1
64330-2253005

GX71,MX71..GT,SLU

BEIGE,BEIGE,TRIM4#

 1
64701 - MAT SUB-ASSY, LUGGAGE COMPARTMENT
64711-22190

GX71,MX71..GT,SLU

 1
64713D - COVER, LUGGAGE COMPARTMENT TRIM, FRONT LH
64713-22040

GX71,MX71..GT,SLU

 1
64715D - COVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH
64715-22140

GX71,MX71..GT,SLU

 1
64716 - COVER, LUGGAGE COMPARTMENT, REAR CENTER
64716-22170

GX71,MX71..GT,SLU

 1
64716C - CLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
90467-0500433

GX71,MX71,SX70..GT,SCM,SDX,SLU

GRAY,GRAY,TRIM1#,8#

 12
64717A - COVER, LUGGAGE COMPARTMENT TRIM, FRONT
64717-22080

GX71,LX70,MX71,SX70

 1
64721 - COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
64721-22160

GX71,MX71..(GT,SLU)..(EFI,TBO,TWT)

 1
64721 - COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
64721-22160

GX71,MX71..(GT,SLU)..(EFI,TBO,TWT)

 1
64721A - CLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
90467-0704203

GX71,LX70,MX71,SX70..GT,SCM,SDX,SLU

GRAY,GRAY,TRIM1#,8#

 4
64722 - COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
64722-22200

GX71,MX71..(GT,SLU)..(EFI,TBO,TWT)

 1
64759 - COVER, SHOCK ABSORBER HEAD
58731-2202023

GX71,LX70,MX71,SX70..CBR,DSL,EFI,TBO,TD,TWT

GRAY,GRAY,TRIM1#,8#

 2
64770 - COVER ASSY, SPARE WHEEL
64770-22050

GX71,MX71..GT,SLU

 1
64779A - STOPPER, SPARE WHEEL COVER
64779-22010

GX71,LX70,MX71,SX70

 1
Common parts
90183-04046
90468-05017
