MX71-YEPGT (1984)

Toyota Cresta

Production Aug 1984 - Oct 1985
Engine MTEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )

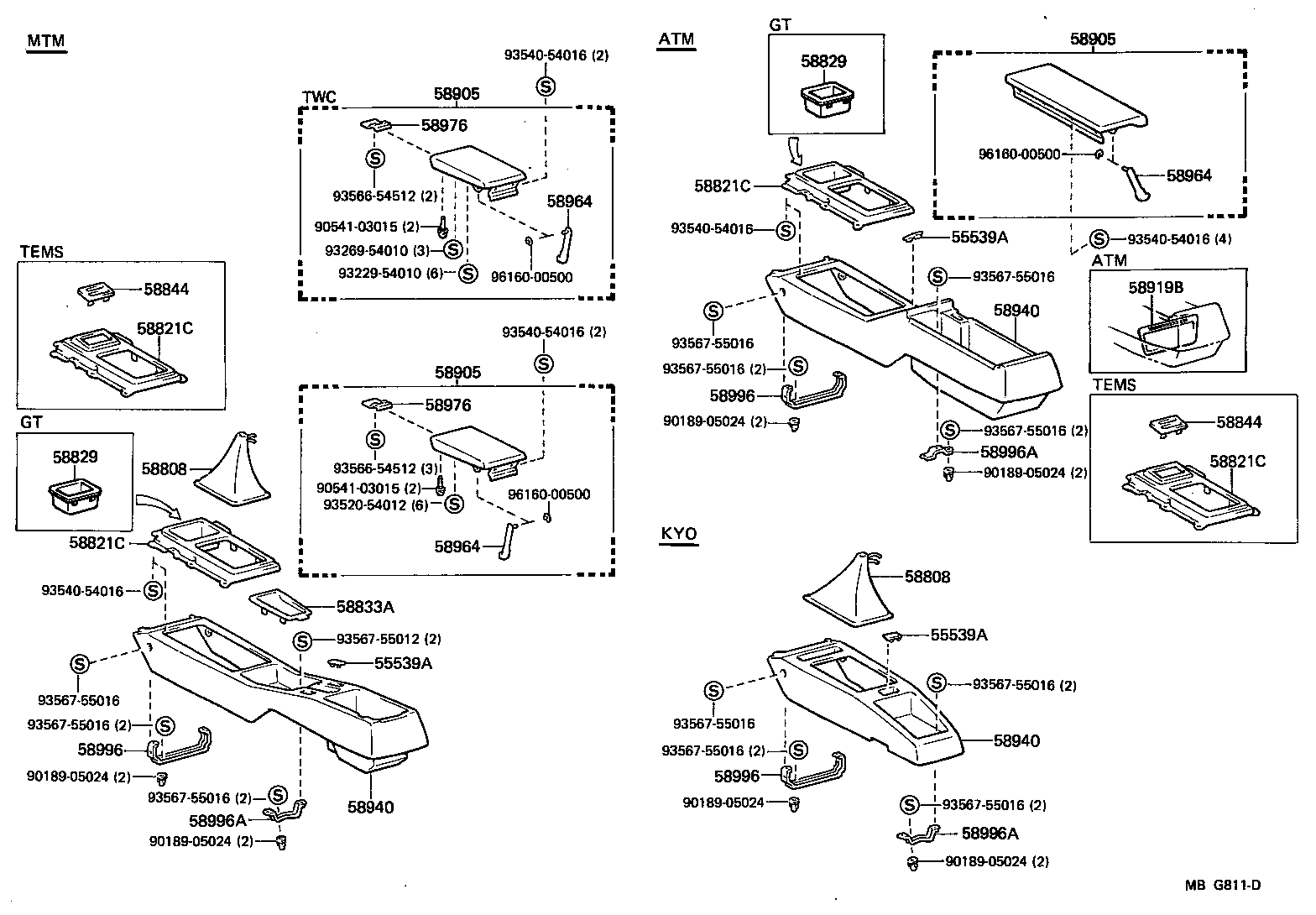

Click highlighted areas on diagram

diagram 55539A 55539A 55539A 58808 58808 58821C 58821C 58821C 58821C 58829 58829 58833A 58844 58844 58905 58905 58905 58919B 58940 58940 58940 58964 58964 58964 58976 58976 58996 58996 58996 58996A 58996A 58996A 9018905024 9018905024 9018905024 9018905024 9018905024 9018905024 9054103015 9054103015 9322954010 9326954010 9352054012 9354054016 9354054016 9354054016 9354054016 9354054016 9356654512 9356654512 9356755012 9356755016 9356755016 9356755016 9356755016 9356755016 9356755016 9356755016 9356755016 9356755016 9356755016 9356755016 9616000500 9616000500 9616000500
Part # Description Qty Price
55539A - COVER, SPARE SWITCH HOLE
55539-2401022

GX71,LX70,MX71,SX70..GT,SCM,SDX,SLU

MAROON,RED/MAROON,TRIM3#

 2
55539-2401033

GX71,LX70,MX71,SX70

GRAY,COOL GRAY,TRIM1#

 2
55539-2401005

GX71,LX70,MX71,SX70..GT,SCM,SDX,SLU

BEIGE,BEIGE,TRIM4#

 2
55539A - COVER, SPARE SWITCH HOLE
55539-2401022

GX71,LX70,MX71,SX70..GT,SCM,SDX,SLU

MAROON,RED/MAROON,TRIM3#

 2
55539-2401033

GX71,LX70,MX71,SX70

GRAY,COOL GRAY,TRIM1#

 2
55539-2401005

GX71,LX70,MX71,SX70..GT,SCM,SDX,SLU

BEIGE,BEIGE,TRIM4#

 2
55539A - COVER, SPARE SWITCH HOLE
55539-2401022

GX71,LX70,MX71,SX70..GT,SCM,SDX,SLU

MAROON,RED/MAROON,TRIM3#

 2
55539-2401033

GX71,LX70,MX71,SX70

GRAY,COOL GRAY,TRIM1#

 2
55539-2401005

GX71,LX70,MX71,SX70..GT,SCM,SDX,SLU

BEIGE,BEIGE,TRIM4#

 2
58821C - PANEL, CONSOLE, UPPER
58821-2209002

LX70,SX70..4FC;GX71,MX71..EFI,TBO

MAROON,RED,TRIM3#

 1
58821-2209003

LX70,SX70..4FC;GX71,MX71..EFI,TBO

GRAY,COOL GRAY,TRIM1#

 1
58821-2209005

LX70,SX70..4FC;GX71,MX71..EFI,TBO

BEIGE,BEIGE,TRIM4#

 1
58821C - PANEL, CONSOLE, UPPER
58821-2209002

LX70,SX70..4FC;GX71,MX71..EFI,TBO

MAROON,RED,TRIM3#

 1
58821-2209003

LX70,SX70..4FC;GX71,MX71..EFI,TBO

GRAY,COOL GRAY,TRIM1#

 1
58821-2209005

LX70,SX70..4FC;GX71,MX71..EFI,TBO

BEIGE,BEIGE,TRIM4#

 1
58821C - PANEL, CONSOLE, UPPER
58821-2209002

LX70,SX70..4FC;GX71,MX71..EFI,TBO

MAROON,RED,TRIM3#

 1
58821-2209003

LX70,SX70..4FC;GX71,MX71..EFI,TBO

GRAY,COOL GRAY,TRIM1#

 1
58821-2209005

LX70,SX70..4FC;GX71,MX71..EFI,TBO

BEIGE,BEIGE,TRIM4#

 1
58821C - PANEL, CONSOLE, UPPER
58821-2209002

LX70,SX70..4FC;GX71,MX71..EFI,TBO

MAROON,RED,TRIM3#

 1
58821-2209003

LX70,SX70..4FC;GX71,MX71..EFI,TBO

GRAY,COOL GRAY,TRIM1#

 1
58821-2209005

LX70,SX70..4FC;GX71,MX71..EFI,TBO

BEIGE,BEIGE,TRIM4#

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-2207003

LX70,MX71,SX70..4FC

GRAY,COOL GRAY,TRIM1#

 1
58905-2207015

LX70,MX71,SX70..4FC

BEIGE,BEIGE,TRIM4#

 1
58905-2207012

LX70,MX71,SX70..4FC

MAROON,MAROON,TRIM3#

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-2207003

LX70,MX71,SX70..4FC

GRAY,COOL GRAY,TRIM1#

 1
58905-2207015

LX70,MX71,SX70..4FC

BEIGE,BEIGE,TRIM4#

 1
58905-2207012

LX70,MX71,SX70..4FC

MAROON,MAROON,TRIM3#

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-2207003

LX70,MX71,SX70..4FC

GRAY,COOL GRAY,TRIM1#

 1
58905-2207015

LX70,MX71,SX70..4FC

BEIGE,BEIGE,TRIM4#

 1
58905-2207012

LX70,MX71,SX70..4FC

MAROON,MAROON,TRIM3#

 1
58940 - CONSOLE ASSY, REAR
58801-2216002

GX71,LX70,MX71,SX70..4FC

MAROON,RED,TRIM3#

 1
58801-2216005

GX71,LX70,MX71,SX70..4FC

BEIGE,BEIGE,TRIM4#

 1
58801-2216003

GX71,LX70,MX71,SX70..4FC

GRAY,COOL GRAY,TRIM1#

 1
58940 - CONSOLE ASSY, REAR
58801-2216002

GX71,LX70,MX71,SX70..4FC

MAROON,RED,TRIM3#

 1
58801-2216005

GX71,LX70,MX71,SX70..4FC

BEIGE,BEIGE,TRIM4#

 1
58801-2216003

GX71,LX70,MX71,SX70..4FC

GRAY,COOL GRAY,TRIM1#

 1
58940 - CONSOLE ASSY, REAR
58801-2216002

GX71,LX70,MX71,SX70..4FC

MAROON,RED,TRIM3#

 1
58801-2216005

GX71,LX70,MX71,SX70..4FC

BEIGE,BEIGE,TRIM4#

 1
58801-2216003

GX71,LX70,MX71,SX70..4FC

GRAY,COOL GRAY,TRIM1#

 1
58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
58964-22030

GX71,LX70,MX71,SX70..4FC

 1
58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
58964-22030

GX71,LX70,MX71,SX70..4FC

 1
58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
58964-22030

GX71,LX70,MX71,SX70..4FC

 1
58996 - BRACKET, CONSOLE BOX MOUNTING, NO.1
58995-22010

GX71,LX70,MX71,SX70

 1
58996 - BRACKET, CONSOLE BOX MOUNTING, NO.1
58995-22010

GX71,LX70,MX71,SX70

 1
58996 - BRACKET, CONSOLE BOX MOUNTING, NO.1
58995-22010

GX71,LX70,MX71,SX70

 1
58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2
58996-22040

GX71,LX70,MX71,SX70..4FC

 1
58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2
58996-22040

GX71,LX70,MX71,SX70..4FC

 1
58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2
58996-22040

GX71,LX70,MX71,SX70..4FC

 1
Common parts
90189-05024
90541-03015
93229-54010
93269-54010
93520-54012
93540-54016
93566-54512
93567-55012
93567-55016
96160-00500
