MX71-YEPGT (1984)

Toyota Cresta

Production Aug 1984 - Oct 1985
Engine MTEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8408-8510)MX71 ; (8510- )TWT

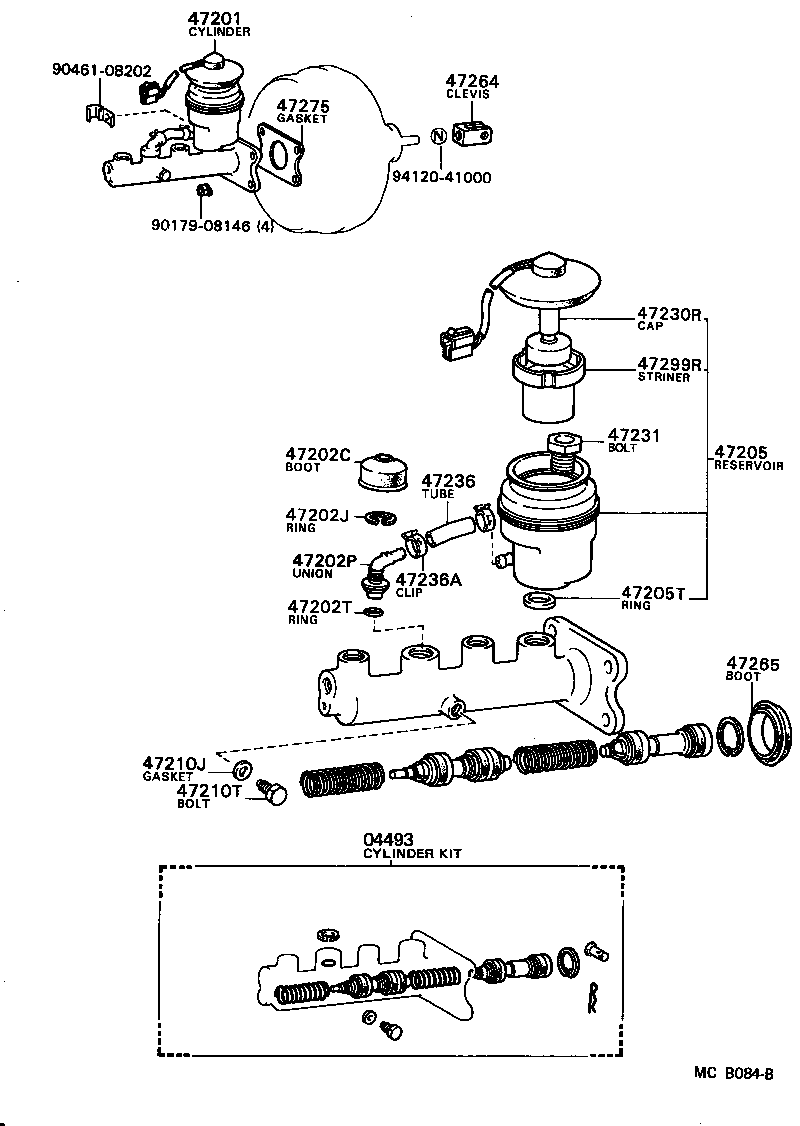

Click highlighted areas on diagram

diagram 04493 47201 47202C 47202J 47202P 47202T 47205 47205T 47210J 47210T 47230R 47231 47236 47236A 47264 47265 47275 47299R 9017908146 9046108202 9412041000
Part # Description Qty Price
04493 - CYLINDER KIT, BRAKE MASTER
04493-22120

GX71,MX71..TBO,TWC

 1
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-22490

MX71

 1
47202C - BOOT, RESERVOIR, NO.1(FOR BRAKE MASTER CYLINDER SIDE)
47265-20060

GX71,LX70,MX71,SX70

 1
47202J - RING, SNAP(FOR BRAKE MASTER CYLINDER SIDE)
96151-02000

GX71,LX70,MX71,SX70

 1
47202P - UNION, RESERVOIR(FOR BRAKE MASTER CYLINDER SIDE)
90407-10004

MX71

 1
47202T - RING(FOR BRAKE MASTER CYLINDER RESERVOIR, NO.1)
90301-14001

GX71,LX70,MX71,SX70

 1
47205 - RESERVOIR SET, BRAKE MASTER CYLINDER(FOR REAR SIDE)
47202-22180

GX71,MX71..TBO,TWT

 1
47205T - RING(FOR BRAKE MASTER CYLINDER RESERVOIR, NO.2)
90562-18151

LX70,MX71,SX70..KYO,SLU

 1
47210J - GASKET(FOR MASTER CYLINDER)
90430-06104

GX71,LX70,MX71,SX70

 2
47210T - BOLT(FOR BRAKE MASTER CYLINDER)
90109-06008

GX71,LX70,MX71,SX70

 2
47230R - CAP ASSY, RESERVOIR, NO.2(FOR REAR SIDE)
84460-20051

GX71,LX70,MX71,SX70

 1
47231 - BOLT, BRAKE MASTER CYLINDER RESERVOIR SET
47231-20010

LX70,MX71,SX70..KYO,SLU

 1
47236 - TUBE, RESERVOIR BRAKE
47234-20010

GX71,LX70,MX71,SX70

 1
47236A - CLIP(FOR RESERVOIR TUBE)
90467-16001

GX71,LX70,MX71,SX70

 2
47264 - CLEVIS, MASTER CYLINDER PUSH ROD
47264-22010

GX71,LX70,MX71,SX70

 2
47265 - BOOT, MASTER CYLINDER
47265-20050

GX71,LX70,MX71,SX70

 1
47275 - GASKET, BRAKE MASTER CYLINDER
47275-24010

GX71,LX70,MX71,SX70

 1
47299R - STRAINER, MASTER CYLINDER RESERVOIR, REAR
47299-22030

GX71,LX70,MX71,SX70

 1
Common parts
90179-08146
90461-08202
94120-41000
