MX61-YTPGT (1982)

Toyota Cresta

Production Aug 1982 - Jul 1984
Engine MTEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8208- )

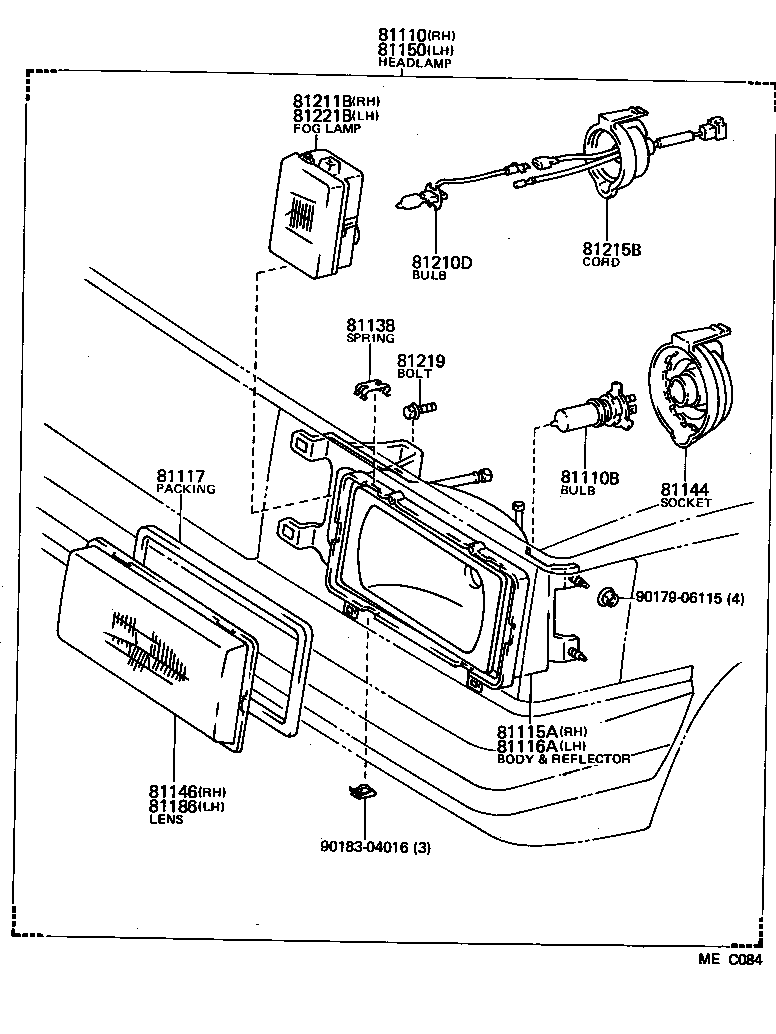

Click highlighted areas on diagram

diagram 81110 81110B 81115A 81116A 81117 81138 81144 81146 81150 81186 81210D 81211B 81215B 81219 81221B 9017906115 9018304016
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-80231

GX61,LX60,MX61,SX60

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13015

GX61,LX60,MX61,SX60

12V 60/55W,*HAL *WH,12V 60/55W

 2
81115A - BODY AND REFLECTOR SUB-ASSY, HEADLAMP, RH
81135-22301

GX61,LX60,MX61,SX60

 1
81116A - BODY AND REFLECTOR SUB-ASSY, HEADLAMP, LH
81175-22301

GX61,LX60,MX61,SX60

 1
81117 - PACKING, HEADLAMP HOUSING
81147-30490

GX61,LX60,MX61,SX60

 2
81138 - SPRING, HEADLAMP
81138-20550

GX61,LX60,MX61,SX60

 12
81144 - COVER, HEADLAMP, NO.1
81139-30490

GX61,LX60,MX61,SX60

 2
81146 - LENS, HEADLAMP, RH
81146-22301

GX61,LX60,MX61,SX60

 1
81150 - HEADLAMP ASSY, LH
81150-80228

GX61,LX60,MX61,SX60

 1
81186 - LENS, HEADLAMP, LH
81186-22301

GX61,LX60,MX61,SX60

 1
81210D - BULB, FOG LAMP
90981-13018

GX61,LX60,MX61,SX60

12V 55W,ﾊﾛｹﾞﾝ,12V 55W

 2
81211B - FOG LAMP, RH
81211-22301

GX61,LX60,MX61,SX60

 1
81215B - CORD, FOG LAMP
81215-22301

GX61,LX60,MX61,SX60

 2
81219 - BOLT, FOG LAMP
81219-30431

GX61,LX60,MX61,SX60

 4
81221B - FOG LAMP, LH
81221-22301

GX61,LX60,MX61,SX60

 1
Common parts
90179-06115
90183-04016
