MX61-YTPGT (1982)

Toyota Cresta

Production Aug 1982 - Jul 1984
Engine MTEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )L

Click highlighted areas on diagram

diagram 28011 28100 28110 28118 28119 28120 28130 28137 28139 28140 28150 28160 28160A 28160A 28165 28191 28222 28228 28229 28252 9009221001 9009221001 9009900138 9009901436 9009902325 9009904297 9009912009 9011912018 9011912018 9017908026 9321915008 9331915008 9411551200 9451100500 9451100600 9451100600 9451101000 9461210800
Part # Description Qty Price
28100 - STARTER ASSY
28100-45050

MTEU..MX61

12V 1.4KW,12V 1.4KW

 1
28110 - HOUSING ASSY, STARTER DRIVE
28110-45050

MTEU..MX61

12V 1.4KW

 1
28119 - COVER, STARTER END FRAME
28199-15090

MTEU..MX61

12V 1.4KW

 1
28120 - YOKE ASSY, STARTER
28120-15090

MTEU..MX61

12V 1.4KW

 1
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-15090

MTEU..MX61

12V 1.4KW

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-15090

MTEU..MX61

12V 1.4KW

 1
28150 - SWITCH ASSY, MAGNET STARTER
28150-37010

MTEU..MX61

12V 0.8KW

 1
28150-45050

MTEU..MX61

12V 1.4KW

 1
28160 - ARMATURE ASSY, STARTER
28160-15090

MTEU..MX61

12V 1.4KW

 1
28160A - BEARING, STARTER ARMATURE
90099-10144

MTEU..MX61

12V 1.4KW,NO.2

 1
90099-10143

MTEU..MX61

12V 1.4KW,NO.1

 1
28160A - BEARING, STARTER ARMATURE
90099-10144

MTEU..MX61

12V 1.4KW,NO.2

 1
90099-10143

MTEU..MX61

12V 1.4KW,NO.1

 1
Common parts
90092-21001
90099-00138
90099-01436
90099-02325
90099-04297
90099-12009
90119-12018
90179-08026
93219-15008
93319-15008
94115-51200
94511-00500
94511-00600
94511-01000
94612-10800

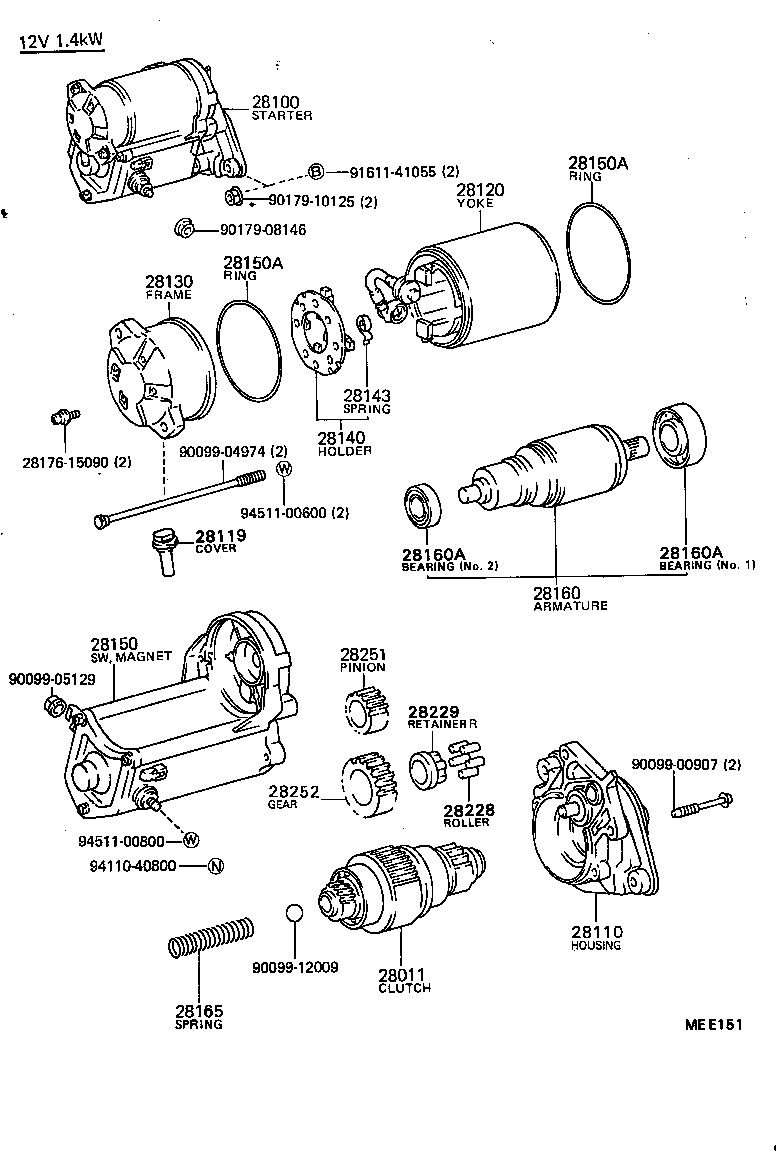

(8308- )MTEU

Click highlighted areas on diagram

diagram 28011 28100 28110 28119 28120 28130 28140 28143 28150 28150A 28150A 28160 28160A 28160A 28165 2817615090 28228 28229 28251 28252 9009900907 9009904974 9009905129 9009912009 9017908146 9017910125 9161141055 9411040800 9451100600 9451100800
Part # Description Qty Price
28100 - STARTER ASSY
28100-45050

MTEU..MX61

12V 1.4KW,12V 1.4KW

 1
28110 - HOUSING ASSY, STARTER DRIVE
28110-45050

MTEU..MX61

12V 1.4KW

 1
28119 - COVER, STARTER END FRAME
28199-15090

MTEU..MX61

12V 1.4KW

 1
28120 - YOKE ASSY, STARTER
28120-15090

MTEU..MX61

12V 1.4KW

 1
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-15090

MTEU..MX61

12V 1.4KW

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-15090

MTEU..MX61

12V 1.4KW

 1
28150 - SWITCH ASSY, MAGNET STARTER
28150-37010

MTEU..MX61

12V 0.8KW

 1
28150-45050

MTEU..MX61

12V 1.4KW

 1
28150A - PACKING(FOR STARTER MAGNET SWITCH)
90099-14064

MTEU..MX61

12V 1.4KW

 2
28150A - PACKING(FOR STARTER MAGNET SWITCH)
90099-14064

MTEU..MX61

12V 1.4KW

 2
28160 - ARMATURE ASSY, STARTER
28160-15090

MTEU..MX61

12V 1.4KW

 1
28160A - BEARING, STARTER ARMATURE
90099-10144

MTEU..MX61

12V 1.4KW,NO.2

 1
90099-10143

MTEU..MX61

12V 1.4KW,NO.1

 1
28160A - BEARING, STARTER ARMATURE
90099-10144

MTEU..MX61

12V 1.4KW,NO.2

 1
90099-10143

MTEU..MX61

12V 1.4KW,NO.1

 1
28251 - PINION, STARTER DRIVE
28251-15090

MTEU..MX61

12V 1.4KW

 1
Common parts
28176-15090
90099-00907
90099-04974
90099-05129
90099-12009
90179-08146
90179-10125
91611-41055
94110-40800
94511-00600
94511-00800
