LX90-CEPNT (1992)
Toyota Cresta
Production
Oct 1992
-
Sep 1996
Engine
2LTE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9210- )LX90

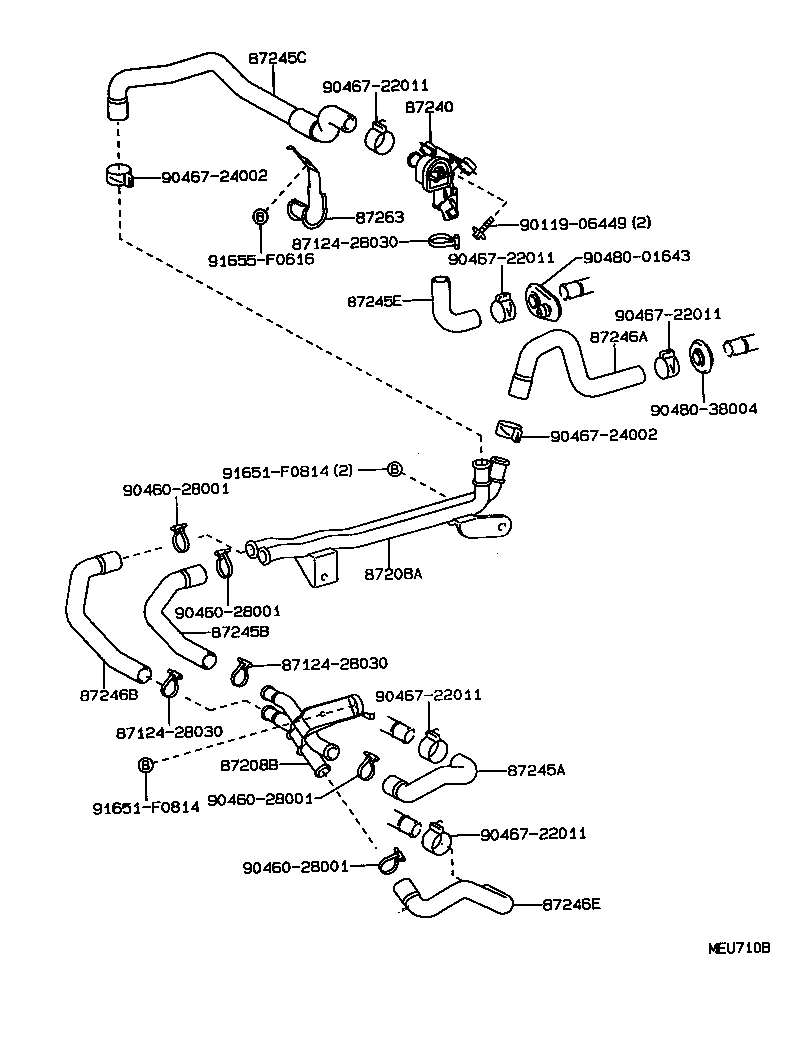

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87208A - PIPE SUB-ASSY, HEATER WATER, A | ||||
| 87208-22211 |
LX90 |
1 | ||
| 87208B - PIPE SUB-ASSY, HEATER WATER, B | ||||
| 87208-89144 |
LX90 |
1 | ||
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-22360 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-2A260 |
LX90 |
1 | ||
| 87245B - HOSE, HEATER WATER, INLET B | ||||
| 87245-2A320 |
LX90 |
1 | ||
| 87245C - HOSE, HEATER WATER ,INLET C | ||||
| 87245-2A500 |
LX90 |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-2A520 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-2A400 |
LX90 |
1 | ||
| 87246B - HOSE, HEATER WATER, OUTLET B | ||||
| 87245-2A330 |
LX90 |
1 | ||
| 87246E - HOSE, HEATER WATER, OUTLET E | ||||
| 87245-2A270 |
LX90 |
1 | ||
| 87263 - BRACKET, HEATER WATER PIPE, NO.1 | ||||
| 87263-22120 |
LX90 |
1 | ||
| Common parts | ||||
| 87124-28030 | ||||
| 90119-06449 | ||||
| 90460-28001 | ||||
| 90467-22011 | ||||
| 90467-24002 | ||||
| 90480-01643 | ||||
| 90480-38004 | ||||
| 91651-F0814 | ||||
| 91655-F0616 | ||||
