LX90-CEPET (1992)
Toyota Cresta
Production
Oct 1992
-
Sep 1996
Engine
2LTE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9210- )2LTE

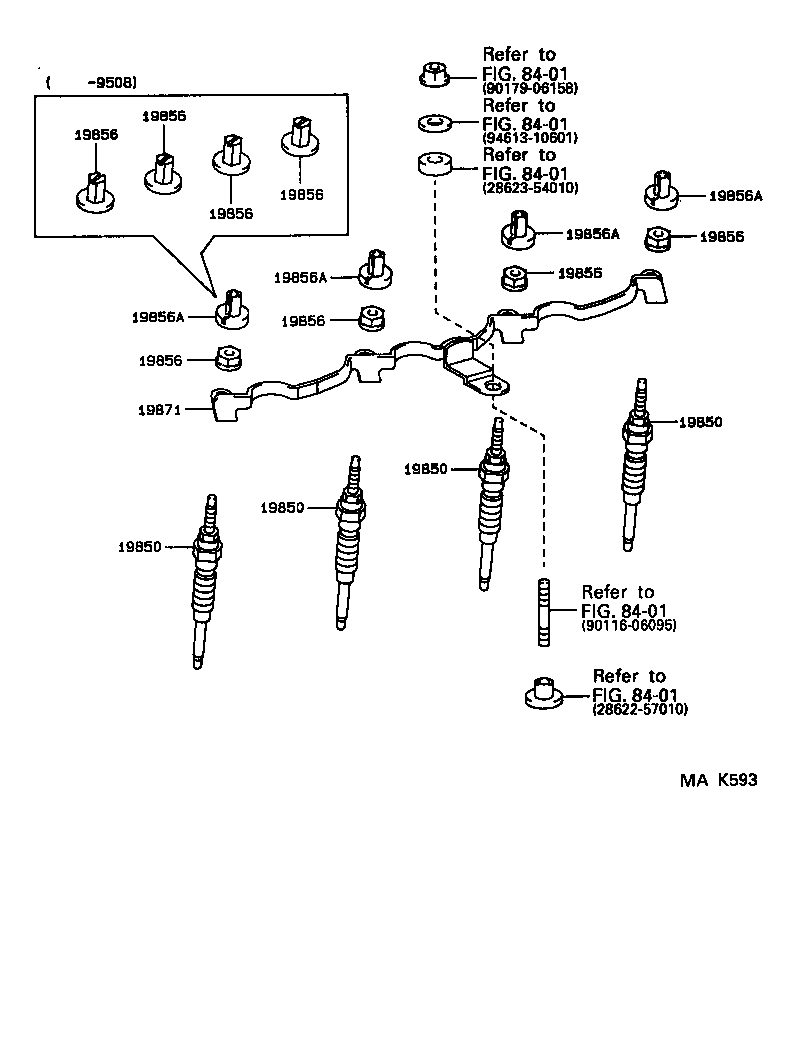

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19850 - PLUG ASSY, GLOW | ||||
| 19850-54110 |
2LTE..LX90 *BV−GV=12V−11V |
4 | ||
| 19850 - PLUG ASSY, GLOW | ||||
| 19850-54110 |
2LTE..LX90 *BV−GV=12V−11V |
4 | ||
| 19850 - PLUG ASSY, GLOW | ||||
| 19850-54110 |
2LTE..LX90 *BV−GV=12V−11V |
4 | ||
| 19850 - PLUG ASSY, GLOW | ||||
| 19850-54110 |
2LTE..LX90 *BV−GV=12V−11V |
4 | ||
| 19856 - NUT, CONNECTING(FOR GLOW PLUG) | ||||
| 90179-04019 |
2LTE..LX90 |
4 | ||
| 90179-04030 |
2LTE..LX90 |
4 | ||
| 19856 - NUT, CONNECTING(FOR GLOW PLUG) | ||||
| 90179-04019 |
2LTE..LX90 |
4 | ||
| 90179-04030 |
2LTE..LX90 |
4 | ||
| 19856 - NUT, CONNECTING(FOR GLOW PLUG) | ||||
| 90179-04019 |
2LTE..LX90 |
4 | ||
| 90179-04030 |
2LTE..LX90 |
4 | ||
| 19856 - NUT, CONNECTING(FOR GLOW PLUG) | ||||
| 90179-04019 |
2LTE..LX90 |
4 | ||
| 90179-04030 |
2LTE..LX90 |
4 | ||
| 19856 - NUT, CONNECTING(FOR GLOW PLUG) | ||||
| 90179-04019 |
2LTE..LX90 |
4 | ||
| 90179-04030 |
2LTE..LX90 |
4 | ||
| 19856 - NUT, CONNECTING(FOR GLOW PLUG) | ||||
| 90179-04019 |
2LTE..LX90 |
4 | ||
| 90179-04030 |
2LTE..LX90 |
4 | ||
| 19856 - NUT, CONNECTING(FOR GLOW PLUG) | ||||
| 90179-04019 |
2LTE..LX90 |
4 | ||
| 90179-04030 |
2LTE..LX90 |
4 | ||
| 19856 - NUT, CONNECTING(FOR GLOW PLUG) | ||||
| 90179-04019 |
2LTE..LX90 |
4 | ||
| 90179-04030 |
2LTE..LX90 |
4 | ||
| 19856A - GROMMET, SCREW(FOR, GLOW PLUG CONNECTOR) | ||||
| 90189-04024 |
2LTE..LX90 |
4 | ||
| 19856A - GROMMET, SCREW(FOR, GLOW PLUG CONNECTOR) | ||||
| 90189-04024 |
2LTE..LX90 |
4 | ||
| 19856A - GROMMET, SCREW(FOR, GLOW PLUG CONNECTOR) | ||||
| 90189-04024 |
2LTE..LX90 |
4 | ||
| 19856A - GROMMET, SCREW(FOR, GLOW PLUG CONNECTOR) | ||||
| 90189-04024 |
2LTE..LX90 |
4 | ||
| 19871 - CONNECTOR, GLOW PLUG NO.1 | ||||
| 19871-54040 |
2LTE..LX90 |
1 | ||
| Linked diagrams | ||||
| 8401 | ||||
