LX90-CEMNT (1992)

Toyota Cresta

Production Oct 1992 - Sep 1994
Engine 2LTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9210- )

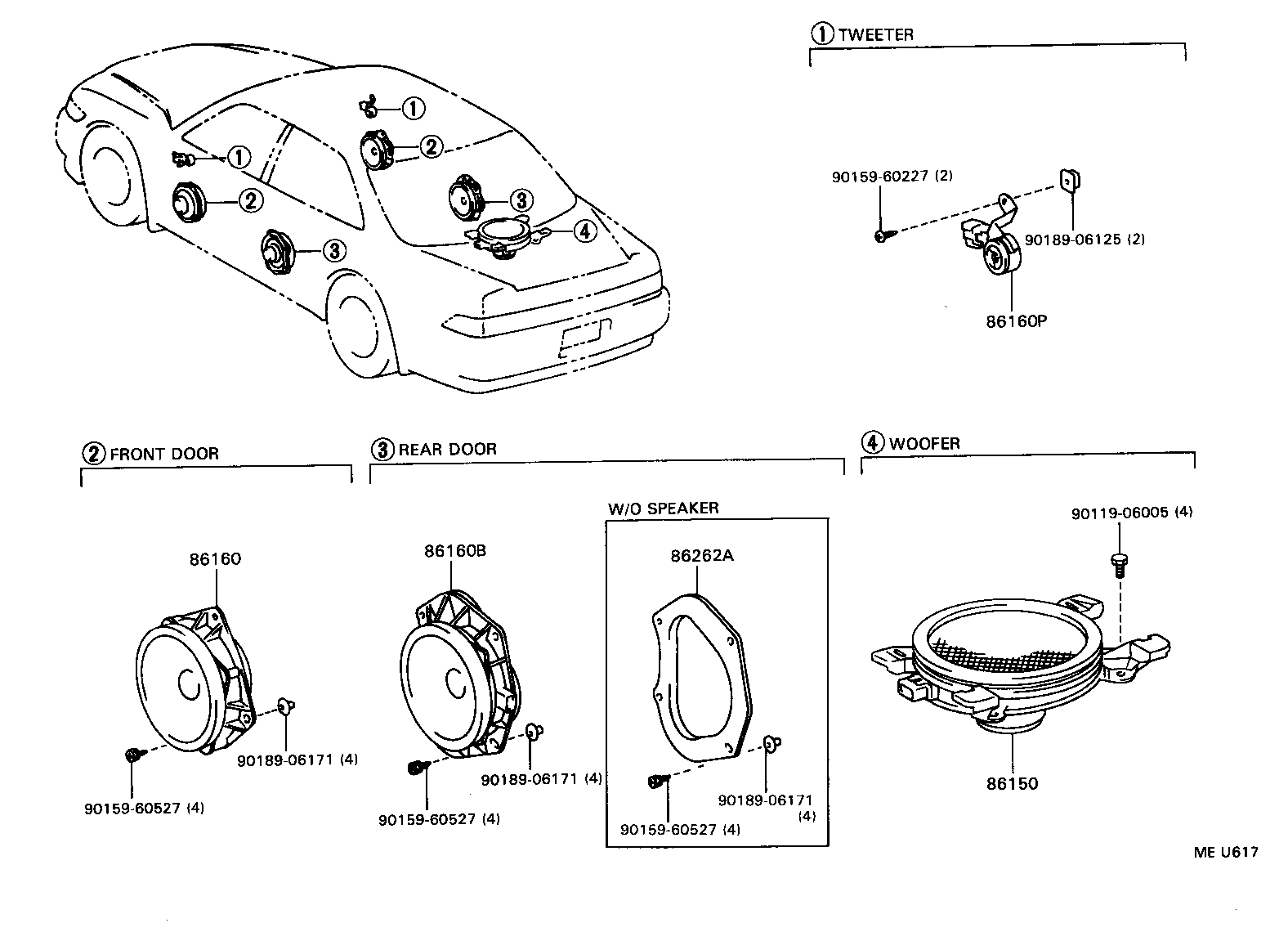

Click highlighted areas on diagram

diagram 86150 86160 86160B 86160P 86262A 9011906005 9015960227 9015960527 9015960527 9015960527 9018906125 9018906171 9018906171 9018906171
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-22600

GX90,JZX90,93,LX90,SX90

ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=86160-22600

 2
86160-22610

GX90,JZX90,LX90,SX90

ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=86160-22610

 2
86262A - COVER, SPEAKER, FRONT
86262-22010

LX90,SX90..SC

 2
Common parts
90119-06005
90159-60227
90159-60527
90189-06125
90189-06171
