LX90-CEMNT (1992)

Toyota Cresta

Production Oct 1992 - Sep 1994
Engine 2LTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9210- )

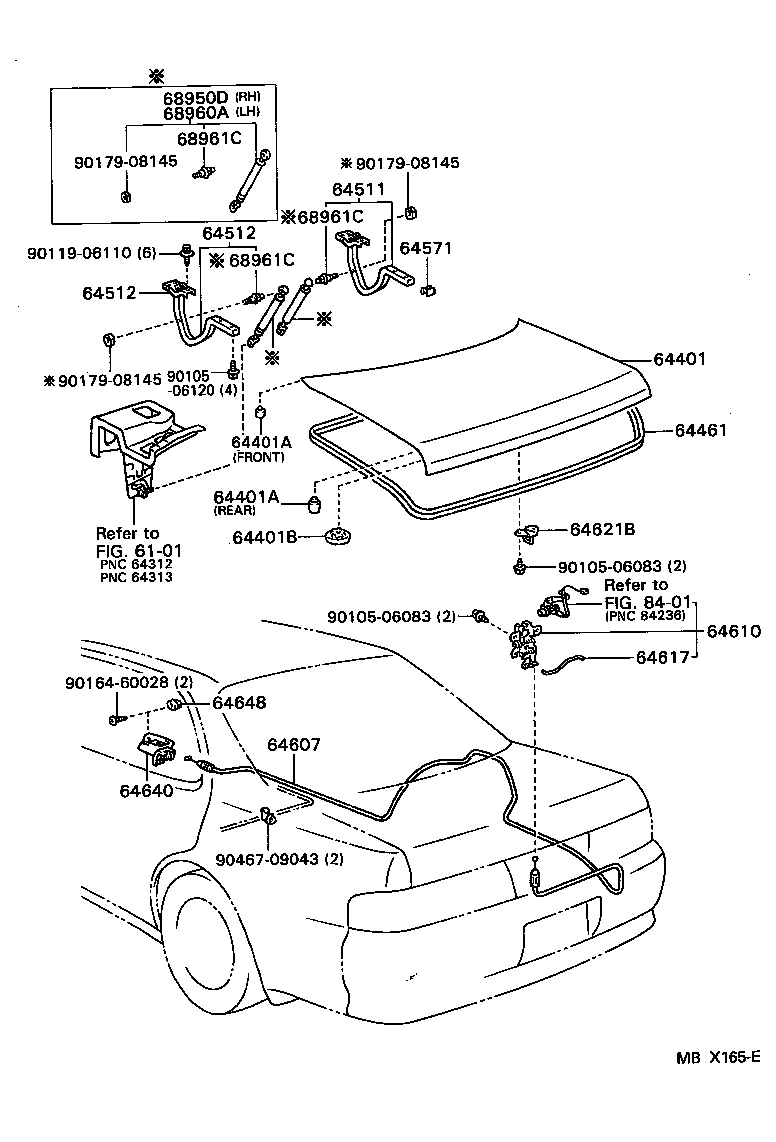

Click highlighted areas on diagram

diagram 6101 64401 64401A 64401A 64401B 64461 64511 64512 64512 64571 64607 64610 64617 64621B 64640 64648 68950D 68960A 68961C 68961C 68961C 8401 9010506083 9010506083 9010506120 9011906110 9016460028 9017908145 9017908145 9017908145 9046709043
Part # Description Qty Price
64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64401-22630

GX90,JZX9#,LX90,SX90..SC,SLT,SLTG,SUF

 1
64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)
90541-06059

GX90,JZX9#,LX90,SX90

FRONT

 2
90541-09088

GX90,JZX9#,LX90,SX90

REAR

 2
64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)
90541-06059

GX90,JZX9#,LX90,SX90

FRONT

 2
90541-09088

GX90,JZX9#,LX90,SX90

REAR

 2
64401B - PLUG, HOLE(FOR LUGGAGE COMPARTMENT DOOR PANEL)
90950-01392

GX90,JZX9#,LX90,SX90

 2
64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64461-22250

GX90,JZX9#,LX90,SX90

 1
64511 - SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH
64510-22130

GX90,JZX9#,LX90,SX90

 1
64512 - SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH
64520-22120

GX90,JZX9#,LX90,SX90

 1
64512 - SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH
64520-22120

GX90,JZX9#,LX90,SX90

 1
64571 - COVER, LUGGAGE COMPARTMENT DOOR HINGE
64571-22020

GX90,JZX90,LX90,SX90..SC,SLT,SUF,TOUS,TOUV

 2
64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
64607-22340

GX90,JZX9#,LX90,SX90

 1
64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64610-22160

GX90,JZX9#,LX90,SX90

 1
64617 - LINK, LUGGAGE COMPARTMENT DOOR LOCK
64617-22040

GX90,JZX9#,LX90,SX90

 1
64621B - STRIKER, LUGGAGE COMPARTMENT DOOR LOCK
64620-24020

GX90,JZX9#,LX90,SX90

 1
64640 - OPENER ASSY, LUGGAGE DOOR LOCK
64640-22240E0

GX90,JZX9#,LX90,SX90..SC,SLT,SLTG,SUF

SABLE,TRIM4#

 1
64640-22240J0

GX90,JZX90,91,LX90,SX90

GRAYISH BLUE,TRIM8#

 1
64648 - GROMMET, LUGGAGE DOOR LOCK OPENER
64648-32010

GX90,JZX9#,LX90,SX90

 2
68950D - STAY ASSY, LUGGAGE DOOR, RH
64530-29095

GX90,JZX9#,LX90,SX90..SC,SLT,SLTG,SUF

 1
68960A - STAY ASSY, LUGGAGE DOOR, LH
64530-29095

GX90,JZX9#,LX90,SX90..SC,SLT,SLTG,SUF

 1
68961C - BOLT, LUGGAGE DOOR STAY
68961-22040

GX90,JZX9#,LX90,SX90

 2
68961C - BOLT, LUGGAGE DOOR STAY
68961-22040

GX90,JZX9#,LX90,SX90

 2
68961C - BOLT, LUGGAGE DOOR STAY
68961-22040

GX90,JZX9#,LX90,SX90

 2
Common parts
90105-06083
90105-06120
90119-06110
90164-60028
90179-08145
90467-09043
Linked diagrams
6101
8401
