LX90-CEMNT (1992)

Toyota Cresta

Production Oct 1992 - Sep 1994
Engine 2LTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9210- )

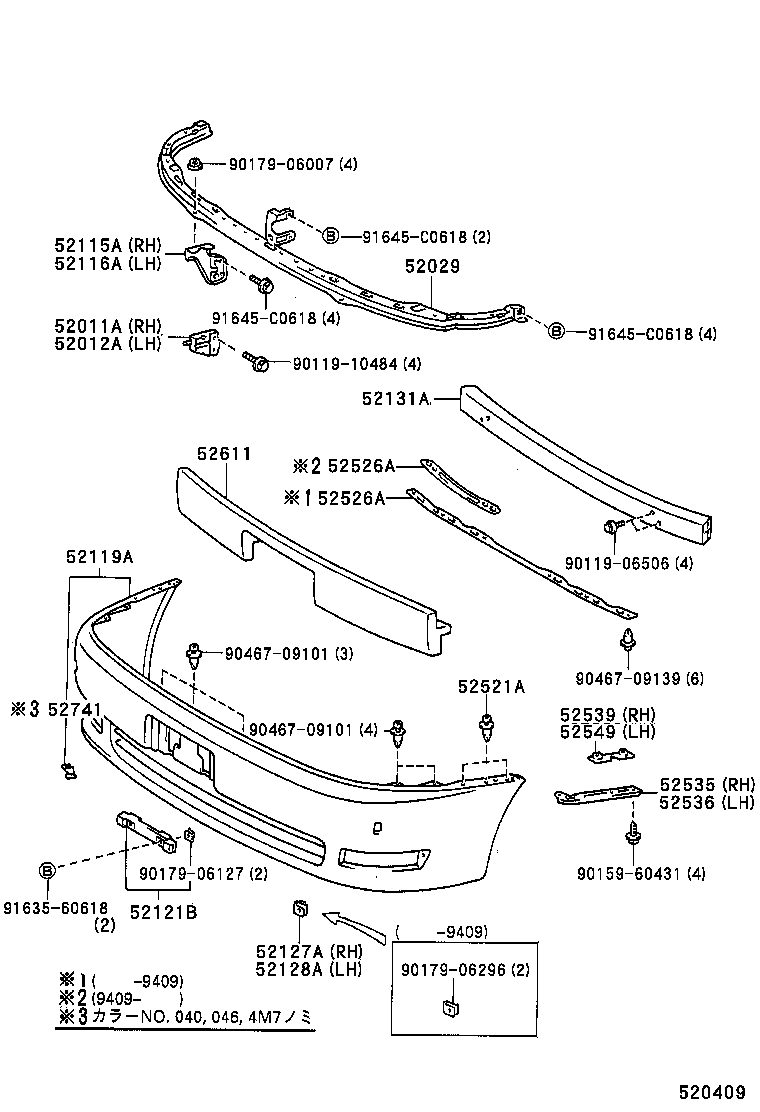

Click highlighted areas on diagram

diagram 52011A 52012A 52029 52115A 52116A 52119A 52121B 52127A 52128A 52131A 52521A 52526A 52526A 52535 52536 52539 52549 52611 52741 9011906506 9011910484 9015960431 9017906007 9017906127 9017906296 9046709101 9046709101 9046709139 9163560618 91645C0618 91645C0618 91645C0618
Part # Description Qty Price
52011A - ARM SUB-ASSY, FRONT BUMPER, RH
52011-22240

GX90,JZX9#,LX90,SX90

 1
52012A - ARM SUB-ASSY, FRONT BUMPER, LH
52012-22250

GX90,JZX9#,LX90,SX90

 1
52029 - REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER
52029-22030

GX90,JZX9#,LX90,SX90

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-22180

GX90,JZX9#,LX90,SX90

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-22150

GX90,JZX9#,LX90,SX90

 1
52119A - COVER, FRONT BUMPER
52119-22770B0

GX90,JZX9#,LX90,SX90

DK.BL.GRAY ME,183

 1
52119-22770A0

GX90,JZX9#,LX90,SX90

SUPER WHITE 2,040

 1
52119-22770E0

GX90,JZX9#,LX90,SX90..SC,SLT,SLTG,SUF

FLAXEN MM,4M7

 1
52121B - BRACKET, FRONT LICENCE PLATE MOUNTING
52121-22120

GX90,JZX9#,LX90,SX90

 1
52131A - REINFORCEMENT, FRONT BUMPER
52131-22180

GX90,JZX9#,LX90,SX90

 1
52521A - CLIP(FOR FRONT BUMPER RETAINER)
90467-0506301

LX90,SX90..SC

BLACK,040 ,183 ,4M7

 4
52526A - RETAINER, FRONT BUMPER, LOWER NO.1
52526-22090

GX90,JZX9#,LX90,SX90

 1
52526A - RETAINER, FRONT BUMPER, LOWER NO.1
52526-22090

GX90,JZX9#,LX90,SX90

 1
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-22040

GX90,JZX9#,LX90,SX90

 1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-22040

GX90,JZX9#,LX90,SX90

 1
52539 - RETAINER, FRONT BUMPER SIDE, NO.3 RH
52539-22020

GX90,JZX9#,LX90,SX90

 1
52549 - RETAINER, FRONT BUMPER SIDE, NO.3 LH
52549-22020

GX90,JZX9#,LX90,SX90

 1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-22190

GX90,JZX9#,LX90,SX90

 1
52741 - GARNISH, FRONT BUMPER BAR, NO.1
52741-22020

GX90,JZX9#,LX90,SX90

 1
Common parts
90119-06506
90119-10484
90159-60431
90179-06007
90179-06127
90179-06296
90467-09101
90467-09139
91635-60618
91645-C0618
