LX90-CEMNT (1992)

Toyota Cresta

Production Oct 1992 - Sep 1994
Engine 2LTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9210- )MTM

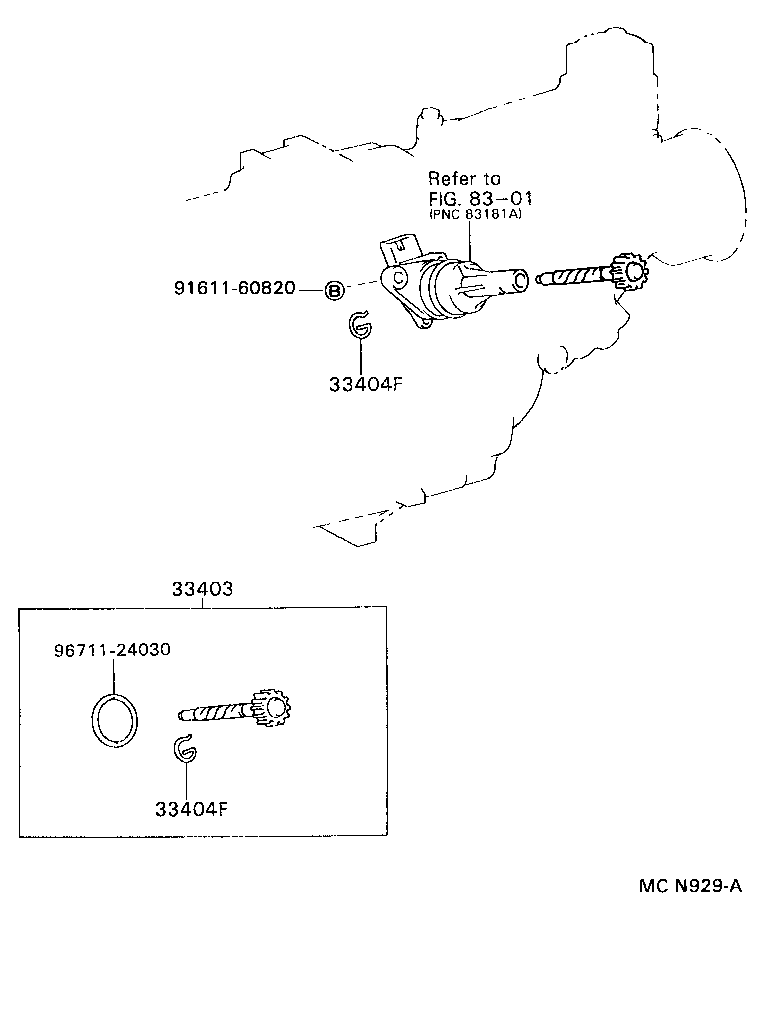

Click highlighted areas on diagram

R154,W55,W56,W57

diagram 33403 33404F 33404F 8301 9161160820 9671124030
Part # Description Qty Price
33403 - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)
33403-39355

LX90..MTM

歯数=31,ﾏｰｸ 31:10

 1
33404F - CLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90468-12005

GX90,JZX90,LX90,SX90..MTM

 1
33404F - CLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90468-12005

GX90,JZX90,LX90,SX90..MTM

 1
Common parts
91611-60820
96711-24030
Linked diagrams
8301
