LX90-CEMET (1992)

Toyota Cresta

Production Oct 1992 - Sep 1996
Engine 2LTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9210- )

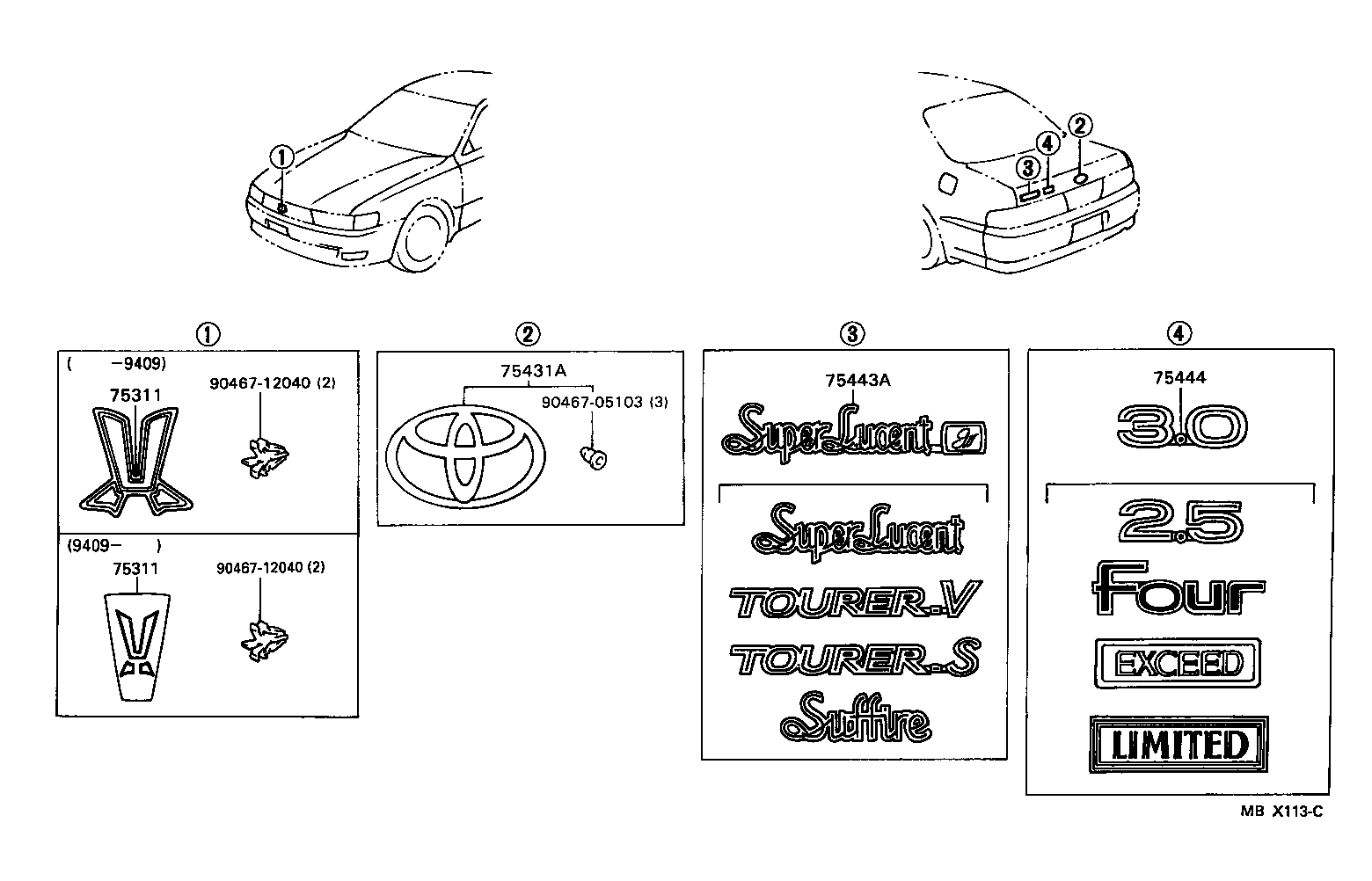

Click highlighted areas on diagram

diagram 75311 75311 75431A 75443A 75444 9046705103 9046712040 9046712040
Part # Description Qty Price
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-22460

GX90,JZX9#,LX90,SX90..SC,SLT,SLTG,SUF

 1
75311-22520

GX90,JZX9#,LX90,SX90

 1
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-22460

GX90,JZX9#,LX90,SX90..SC,SLT,SLTG,SUF

 1
75311-22520

GX90,JZX9#,LX90,SX90

 1
75431A - EMBLEM, BACK DOOR, NO.1
75431-22010

GX90,JZX9#,LX90,SX90

 1
75443A - PLATE, LUGGAGE COMPARTMENT DOOR, NO.3
75443-22770

LX90,SX90..SUF

SUFFIRE

 1
Common parts
90467-05103
90467-12040
