LX80Y-CEPRX (1988)
Toyota Cresta

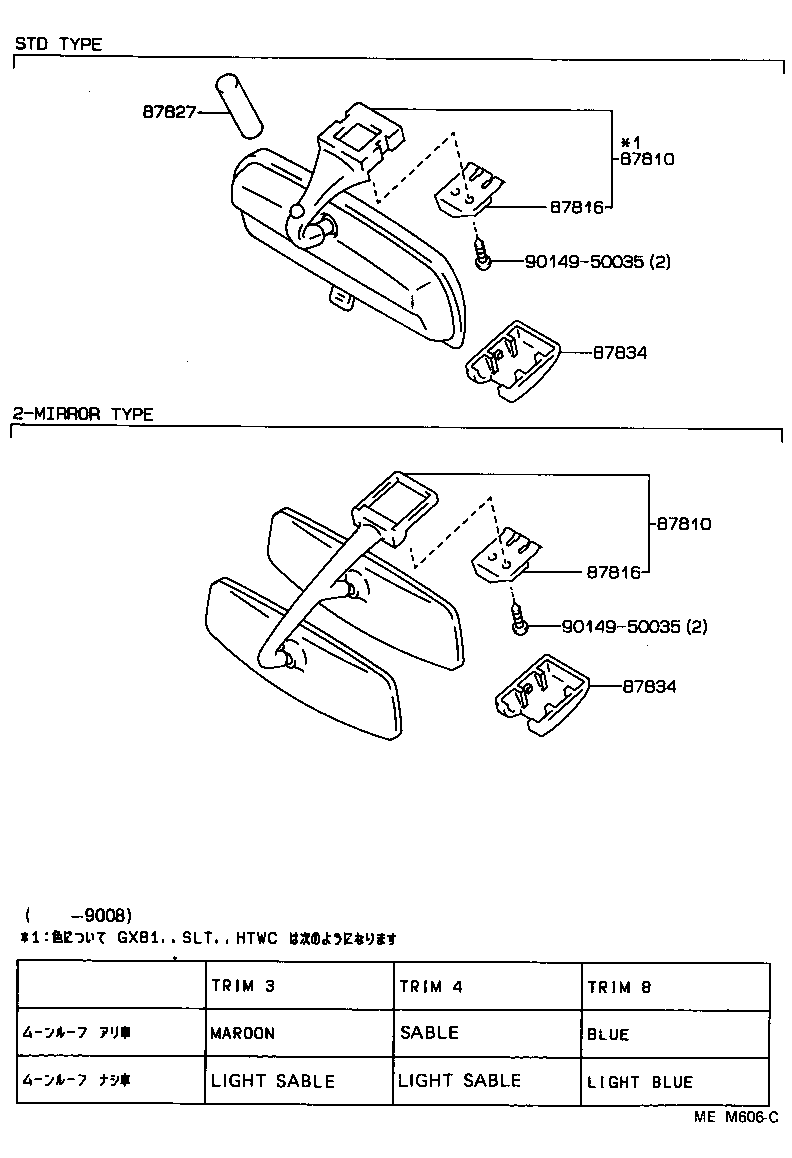

ILLUST NO. 1 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-9150224 |
LX80,SX80,YX80..KYO LIGHT BLUE,TRIM8# |
1 | ||
| 87810-91502 |
LX80,SX80,YX80..KYO |
1 | ||
| 87810-9150203 |
LX80,SX80,YX80..KYO MEDIUM GRAY,TRIM1# |
1 | ||
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-9150224 |
LX80,SX80,YX80..KYO LIGHT BLUE,TRIM8# |
1 | ||
| 87810-91502 |
LX80,SX80,YX80..KYO |
1 | ||
| 87810-9150203 |
LX80,SX80,YX80..KYO MEDIUM GRAY,TRIM1# |
1 | ||
| 87816 - SPRING, INNER REAR VIEW MIRROR | ||||
| 74372-30030 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 87816 - SPRING, INNER REAR VIEW MIRROR | ||||
| 74372-30030 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER | ||||
| 87834-1402134 |
LX80,SX80,YX80..KYO BLUE,TRIM8# |
1 | ||
| 87834-1402143 |
LX80,SX80,YX80..KYO MEDIUM GRAY,TRIM1# |
1 | ||
| 87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER | ||||
| 87834-1402134 |
LX80,SX80,YX80..KYO BLUE,TRIM8# |
1 | ||
| 87834-1402143 |
LX80,SX80,YX80..KYO MEDIUM GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90149-50035 | ||||

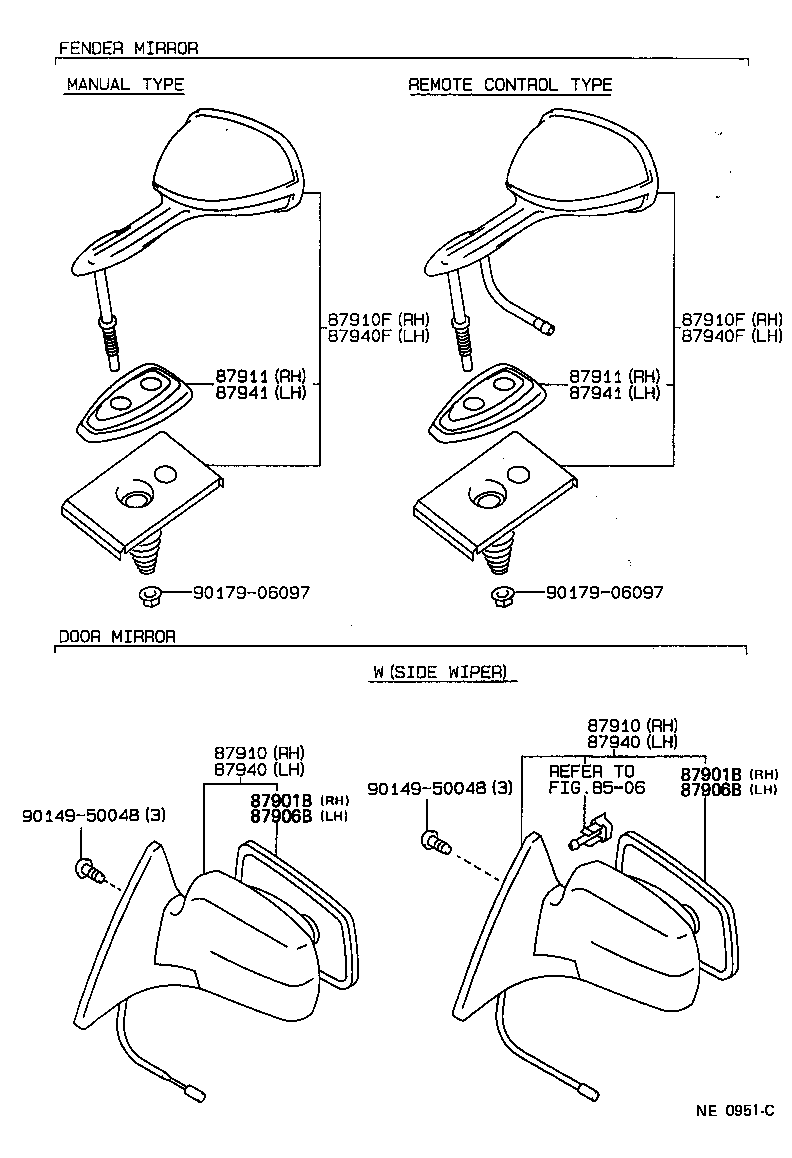

ILLUST NO. 2 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH | ||||
| 87931-91609 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH | ||||
| 87931-91609 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH | ||||
| 87961-91609 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH | ||||
| 87961-91609 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-91606 |
GX81,LX80,SX80,YX80..KYO,SCM,SDX |
1 | ||
| 87910-23050 |
GX81,LX80,SX80,YX80..KYO,SCM,SDX |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-91606 |
GX81,LX80,SX80,YX80..KYO,SCM,SDX |
1 | ||
| 87910-23050 |
GX81,LX80,SX80,YX80..KYO,SCM,SDX |
1 | ||
| 87910F - MIRROR ASSY, FENDER, RH | ||||
| 87910-91604 |
LX80,SX80,YX80..KYO |
1 | ||
| 87910-91605 |
LX80,SX80,YX80..KYO ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ- |
1 | ||
| 87910F - MIRROR ASSY, FENDER, RH | ||||
| 87910-91604 |
LX80,SX80,YX80..KYO |
1 | ||
| 87910-91605 |
LX80,SX80,YX80..KYO ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ- |
1 | ||
| 87911 - GASKET, OUTER REAR VIEW MIRROR, RH | ||||
| 87911-91603 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 87911 - GASKET, OUTER REAR VIEW MIRROR, RH | ||||
| 87911-91603 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-91606 |
GX81,LX80,SX80,YX80..KYO,SCM,SDX |
1 | ||
| 87940-23050 |
GX81,LX80,SX80,YX80..KYO,SCM,SDX |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-91606 |
GX81,LX80,SX80,YX80..KYO,SCM,SDX |
1 | ||
| 87940-23050 |
GX81,LX80,SX80,YX80..KYO,SCM,SDX |
1 | ||
| 87940F - MIRROR ASSY, FENDER, LH | ||||
| 87940-91604 |
LX80,SX80,YX80..KYO |
1 | ||
| 87940-91605 |
LX80,SX80,YX80..KYO ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ- |
1 | ||
| 87940F - MIRROR ASSY, FENDER, LH | ||||
| 87940-91604 |
LX80,SX80,YX80..KYO |
1 | ||
| 87940-91605 |
LX80,SX80,YX80..KYO ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ- |
1 | ||
| 87941 - GASKET, OUTER REAR VIEW MIRROR, LH | ||||
| 87941-91603 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 87941 - GASKET, OUTER REAR VIEW MIRROR, LH | ||||
| 87941-91603 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| Common parts | ||||
| 90149-50048 | ||||
| 90179-06097 | ||||
| Linked diagrams | ||||
| 8506 | ||||
