LX80Y-CEPRX (1988)

Toyota Cresta

Production Aug 1988 - Oct 1992
Engine 2LT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

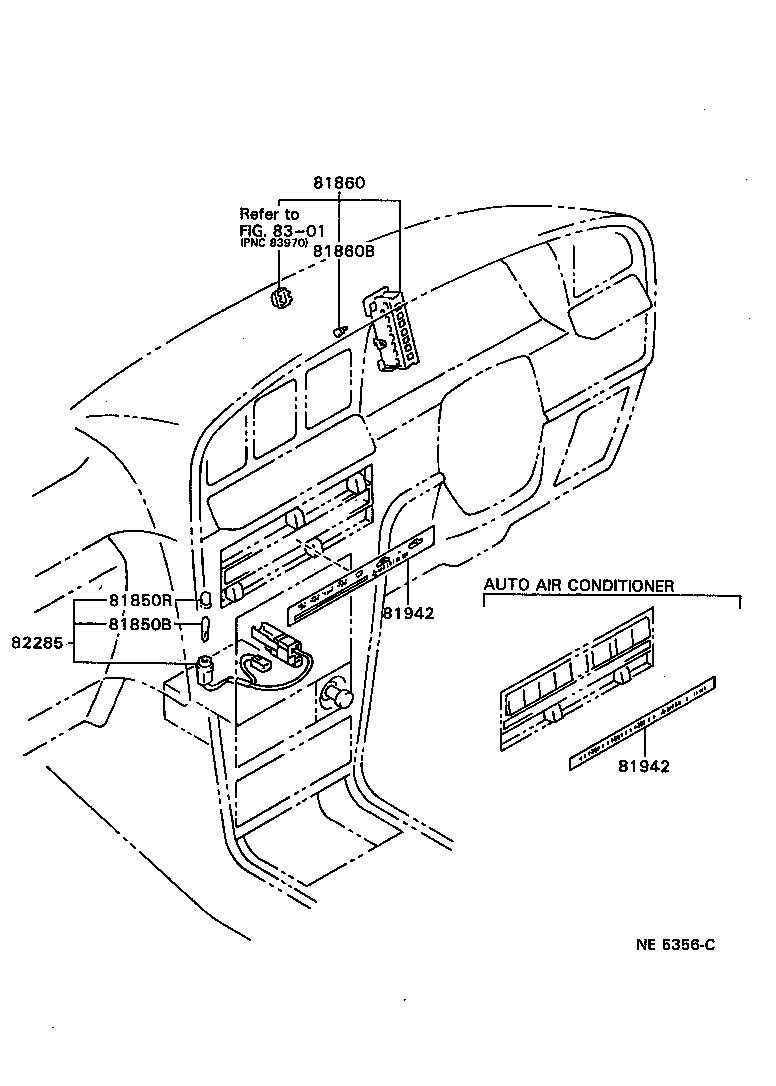

Click highlighted areas on diagram

diagram 81850B 81850R 81860 81860B 81942 81942 82285 8301
Part # Description Qty Price
81850B - BULB, INDICATOR LAMP
90981-11014

GX81,JZX81,LX80,MX83,SX80,YX80

14V 1.4W

 1
81850R - CAP BULB
84998-10530

GX81,JZX81,LX80,MX83,SX80,YX80

 1
81860 - LAMP ASSY, TRANSMISSION INDICATOR
81860-22020

JZX81..TWC;GX81,LX80,SX80..4FC

 1
81860B - BULB, TRANSMISSION INDICATOR LAMP
84999-50180

JZX81..TWC;GX81,LX80,SX80..4FC

12V 1.2W

 7
84999-50190

JZX81..TWC;GX81,LX80,SX80..4FC

12V 1.2W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ

 1
81942 - SHEET, HEATER CONTROL NAME
81942-22040

LX80,SX80,YX80..KYO

 1
81942 - SHEET, HEATER CONTROL NAME
81942-22040

LX80,SX80,YX80..KYO

 1
82285 - WIRE, ILLUMINATION
82285-22020

GX81,JZX81,LX80,MX83,SX80,YX80

 1
Linked diagrams
8301
