LX80Y-CEPRX (1988)
Toyota Cresta
ILLUST NO. 2 OF 2(8808- )2L#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-54660 |
2LT..LX80..4FC |
1 | ||
| 16400-54660 |
2LT..LX80..4FC |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
2L#..LX80 |
1 | ||
| 23322-54010 |
2L#..LX80 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96711-19007 |
2L#..LX80 |
1 | ||
| 96711-19007 |
2L#..LX80 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-63010 |
2L#..LX80 |
1 | ||
| 16401-63010 |
2L#..LX80 |
1 | ||
| 16403F - CORE SUB-ASSY, RADIATOR | ||||
| 16403-54660 |
2LT..LX80..4FC |
1 | ||
| 16403-54660 |
2LT..LX80..4FC |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16462-70350 |
2L#..LX80 |
1 | ||
| 16462-70350 |
2L#..LX80 |
1 | ||
| 16462-70350 |
2L#..LX80 |
1 | ||
| 16462-70350 |
2L#..LX80 |
1 | ||
| 16443 - PLATE, RADIATOR TANK, LOCK, UPPER | ||||
| 16463-70350 |
2L#..LX80 |
2 | ||
| 16463-70350 |
2L#..LX80 |
2 | ||
| 16463-70350 |
2L#..LX80 |
2 | ||
| 16463-70350 |
2L#..LX80 |
2 | ||
| 16451 - PLATE, RADIATOR CORE, UPPER | ||||
| 16452-70320 |
2L#..LX80 |
1 | ||
| 16452-70320 |
2L#..LX80 |
1 | ||
| 16452-70320 |
2L#..LX80 |
1 | ||
| 16452-70320 |
2L#..LX80 |
1 | ||
| 16452 - PLATE, RADIATOR CORE, LOWER | ||||
| 16452-70320 |
2L#..LX80 |
1 | ||
| 16452-70320 |
2L#..LX80 |
1 | ||
| 16452-70320 |
2L#..LX80 |
1 | ||
| 16452-70320 |
2L#..LX80 |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16462-70350 |
2L#..LX80 |
1 | ||
| 16462-70350 |
2L#..LX80 |
1 | ||
| 16463 - PLATE, RADIATOR TANK, LOCK, LOWER | ||||
| 16463-70350 |
2L#..LX80 |
2 | ||
| 16463-70350 |
2L#..LX80 |
2 | ||
| 16491 - COOLER, OIL(FOR ATM) | ||||
| 16491-54660 |
2LT..LX80..4FC |
1 | ||
| 16491-54660 |
2LT..LX80..4FC |
1 | ||
| 16491A - RING, O(FOR ATM OIL COOLER) | ||||
| 16492-35080 |
2LT..LX80..4FC |
2 | ||
| 16492-35080 |
2LT..LX80..4FC |
2 | ||
| 16492-62060 |
2LT..LX80..4FC |
2 | ||
| 16492-62060 |
2LT..LX80..4FC |
2 | ||
| 16491B - WASHER, PLATE(FOR ATM OIL COOLER) | ||||
| 16493-15130 |
2LT..LX80..4FC |
2 | ||
| 16493-15130 |
2LT..LX80..4FC |
2 | ||
| 16491C - WASHER, SPRING(FOR ATM OIL COOLER) | ||||
| 16494-15130 |
2LT..LX80..4FC |
2 | ||
| 16494-15130 |
2LT..LX80..4FC |
2 | ||
| 16491D - NUT(FOR ATM OIL COOLER) | ||||
| 16496-15130 |
2LT..LX80..4FC |
2 | ||
| 16496-15130 |
2LT..LX80..4FC |
2 | ||
| 16495 - NUT, FLARE(FOR ATM OIL COOLER) | ||||
| 16495-15130 |
2LT..LX80..4FC |
1 | ||
| 16495-15130 |
2LT..LX80..4FC |
1 | ||

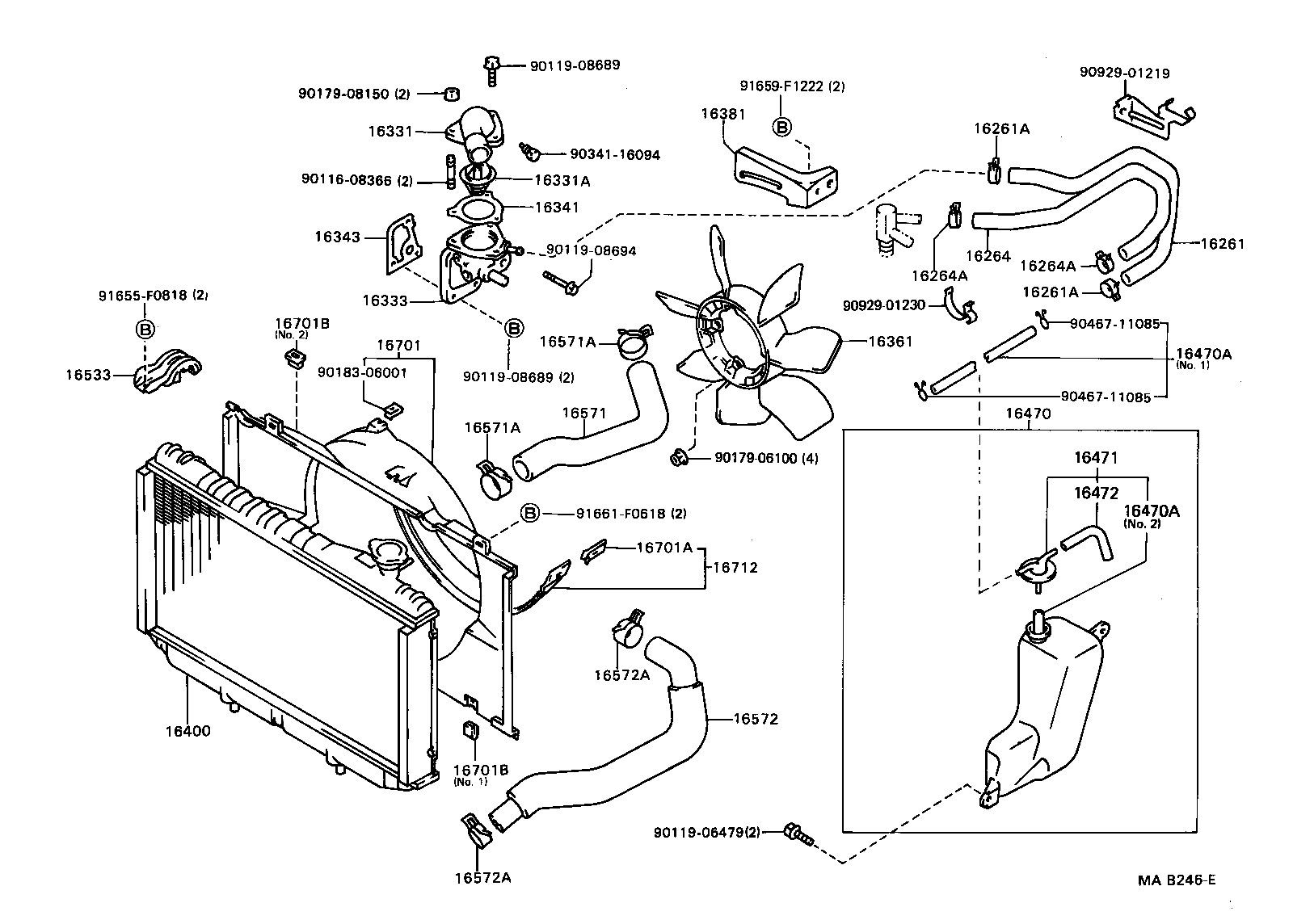

ILLUST NO. 1 OF 2(8808- )2L#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-54080 |
2L#..LX80 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
2L#..LX80 |
2 | ||
| 90467-15004 |
2L#..LX80 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
2L#..LX80 |
2 | ||
| 90467-15004 |
2L#..LX80 |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-54070 |
2L#..LX80 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15004 |
2L#..LX80 |
2 | ||
| 90467-15022 |
2L#..LX80 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15004 |
2L#..LX80 |
2 | ||
| 90467-15022 |
2L#..LX80 |
2 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-54090 |
2L#..LX80 |
1 | ||
| 16331-54150 |
2LT..LX80..4FC |
1 | ||
| 16331-54140 |
2L#..LX80 |
1 | ||
| 16331-54140 |
2L#..LX80..5F;2LT..LX80..KYO |
1 | ||
| 16331-54150 |
2LT..LX80..4FC |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03072 |
2L#..LX80 *WAX 88−100 |
1 | ||
| 90916-03099 |
2L#..LX80 *WAX 88−100 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16303-54030 |
2L#..LX80 |
1 | ||
| 16333-54111 |
2L#..LX80 |
1 | ||
| 16333-54112 |
2L#..LX80 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-54030 |
2L#..LX80 |
1 | ||
| 16341-54040 |
2L#..LX80 |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-54030 |
2L#..LX80 |
1 | ||
| 16343-54040 |
2L#..LX80 |
1 | ||
| 16361 - FAN | ||||
| 16361-70030 |
2L#..LX80 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-54070 |
2L#..LX80 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-54660 |
2LT..LX80..4FC |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-70110 |
2L#..LX80 |
1 | ||
| 16470-46010 |
2L#..LX80 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
2L#..LX80 長さ=600,NO.2 |
1 | ||
| 16567-54080 |
2L#..LX80 *H,L=400,NO.1 |
1 | ||
| 90445-12078 |
2L#..LX80 長さ=600,NO.2 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
2L#..LX80 長さ=600,NO.2 |
1 | ||
| 16567-54080 |
2L#..LX80 *H,L=400,NO.1 |
1 | ||
| 90445-12078 |
2L#..LX80 長さ=600,NO.2 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-46010 |
2L#..LX80 |
1 | ||
| 16405-70080 |
2L#..LX80 |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-95A01 |
2L#..LX80 |
1 | ||
| 85338-95A01 |
2L#..LX80 |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16505-70020 |
2L#..LX80 |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-54280 |
2L#..LX80 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37002 |
2L#..LX80 |
2 | ||
| 90467-37002 |
2L#..LX80 |
2 | ||
| 90467-37002 |
2L#..LX80 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37002 |
2L#..LX80 |
2 | ||
| 90467-37002 |
2L#..LX80 |
2 | ||
| 90467-37002 |
2L#..LX80 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-54280 |
2L#..LX80 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-41001 |
2L#..LX80 ｴﾝｼﾞﾝ側 |
1 | ||
| 90467-41004 |
2L#..LX80 ｴﾝｼﾞﾝ側 |
1 | ||
| 90467-37002 |
2L#..LX80 ﾗｼﾞｴｰﾀ側 |
1 | ||
| 90467-37002 |
2L#..LX80 ﾗｼﾞｴｰﾀ側 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-41001 |
2L#..LX80 ｴﾝｼﾞﾝ側 |
1 | ||
| 90467-41004 |
2L#..LX80 ｴﾝｼﾞﾝ側 |
1 | ||
| 90467-37002 |
2L#..LX80 ﾗｼﾞｴｰﾀ側 |
1 | ||
| 90467-37002 |
2L#..LX80 ﾗｼﾞｴｰﾀ側 |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16701-54170 |
2L#..LX80 |
1 | ||
| 16701A - CLIP(FOR FAN SHROUD) | ||||
| 90468-06013 |
2L#..LX80 |
2 | ||
| 16701B - CUSHION, FAN SHROUD | ||||
| 90541-11002 |
2L#..LX80 NO.1 |
2 | ||
| 90541-14002 |
2L#..LX80 NO.2 |
1 | ||
| 16701B - CUSHION, FAN SHROUD | ||||
| 90541-11002 |
2L#..LX80 NO.1 |
2 | ||
| 90541-14002 |
2L#..LX80 NO.2 |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16702-54030 |
2L#..LX80 |
1 | ||
| Common parts | ||||
| 90116-08366 | ||||
| 90119-06479 | ||||
| 90119-08689 | ||||
| 90119-08694 | ||||
| 90179-06100 | ||||
| 90179-08150 | ||||
| 90183-06001 | ||||
| 90341-16094 | ||||
| 90467-11085 | ||||
| 90929-01219 | ||||
| 90929-01230 | ||||
| 91655-F0818 | ||||
| 91659-F1222 | ||||
| 91661-F0618 | ||||
