LX80Y-CEMRS (1988)

Toyota Cresta

Production Aug 1988 - Oct 1992
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8808-9210)

Click highlighted areas on diagram

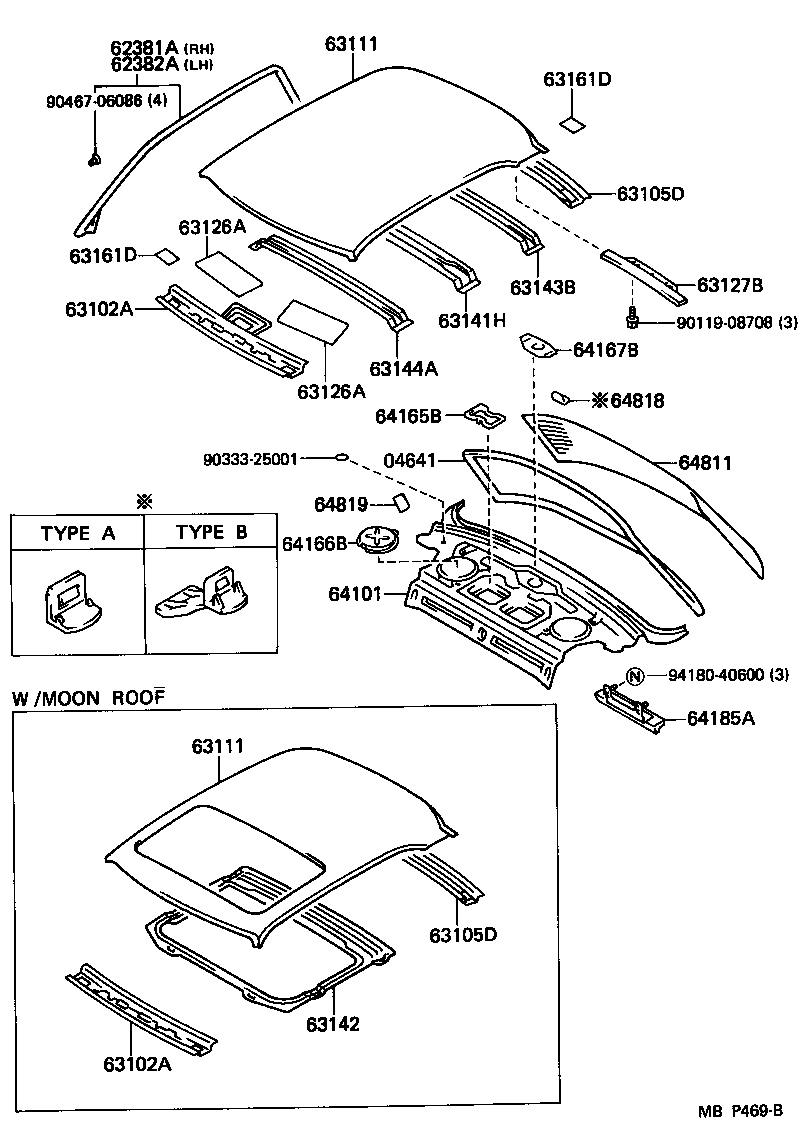

diagram 04641 62381A 62382A 63102A 63102A 63105D 63105D 63111 63111 63126A 63126A 63127B 63141H 63142 63143B 63144A 63161D 63161D 64101 64165B 64166B 64167B 64185A 64811 64818 64819 9011908708 9033325001 9046706086 9418040600
Part # Description Qty Price
04641 - DAM KIT, BACK WINDOW GLASS
04562-12010

GX81,LX80,MX83,SX80,YX80

 1
04562-12010

GX81,LX80,SX80,YX80..KYO,SCM,SDX

 2
62381A - WEATHERSTRIP, ROOF SIDE RAIL, RH
62381-91604

GX81,JZX81,LX80,MX83,SX80,YX80

 1
62381-91602

GX81,LX80,MX83,SX80,YX80

 1
62382A - WEATHERSTRIP, ROOF SIDE RAIL, LH
62382-91603

GX81,JZX81,LX80,MX83,SX80,YX80

 1
62382-91601

GX81,LX80,MX83,SX80,YX80

 1
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-91603

GX81,JZX81,LX80,MX83,SX80,YX80

 1
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-91603

GX81,JZX81,LX80,MX83,SX80,YX80

 1
63105D - FRAME SUB-ASSY, BACK WINDOW, UPPER
63105-91615

GX81,JZX81,LX80,MX83,SX80,YX80

 1
63105D - FRAME SUB-ASSY, BACK WINDOW, UPPER
63105-91615

GX81,JZX81,LX80,MX83,SX80,YX80

 1
63111 - PANEL, ROOF
63111-91616

GX81,JZX81,LX80,MX83,SX80,YX80

 1
63111 - PANEL, ROOF
63111-91616

GX81,JZX81,LX80,MX83,SX80,YX80

 1
63126A - DAMPER, WINDSHIELD HEADER PANEL
63126-32010

GX81,JZX81,LX80,MX83,SX80,YX80

 2
63126A - DAMPER, WINDSHIELD HEADER PANEL
63126-32010

GX81,JZX81,LX80,MX83,SX80,YX80

 2
63141H - REINFORCEMENT, ROOF PANEL, CENTER
63103-91604

GX81,JZX81,LX80,MX83,SX80,YX80

 1
63143B - REINFORCEMENT, ROOF PANEL, NO.3
63143-91604

GX81,JZX81,LX80,MX83,SX80,YX80

 1
63144A - REINFORCEMENT, ROOF PANEL, NO.4
63144-91602

GX81,JZX81,LX80,MX83,SX80,YX80

 1
63161D - PLATE, ROOF HEADER PANEL, NO.1
63161-22010

GX81,LX80,SX80,YX80

 4
61826-22020

GX81,JZX81,LX80,MX83,SX80,YX80

 4
63161D - PLATE, ROOF HEADER PANEL, NO.1
63161-22010

GX81,LX80,SX80,YX80

 4
61826-22020

GX81,JZX81,LX80,MX83,SX80,YX80

 4
64101 - PANEL SUB-ASSY, UPPER BACK
64101-91603

GX81,JZX81,LX80,MX83,SX80,YX80

 1
64165B - COVER, UPPER BACK PANEL HOLE, NO.1
64165-91601

GX81,LX80,SX80,YX80

 2
64165-91602

GX81,JZX81,LX80,MX83,SX80,YX80

 2
64166B - COVER, UPPER BACK PANEL HOLE, NO.2
64166-22040

GX81,LX80,SX80,YX80..KYO,SCM,SDX

 2
64167B - COVER, UPPER BACK PANEL HOLE, NO.3
64167-91601

GX81,JZX81,LX80,MX83,SX80,YX80

 1
64811 - GLASS, BACK WINDOW
64811-91613

GX81,LX80,MX83,SX80,YX80

*EHTT,厚さ=3.5

 1
64811-23150

GX81,LX80,SX80,YX80..KYO,SCM,SDX

*EHTT,厚さ=3.5

 1
64818 - SPACER, BACK WINDOW GLASS
64818-22060

GX81,JZX81,LX80,MX83,SX80,YX80

ﾀｲﾌﾟ A

 8
64818-22060

GX81,LX80,SX80,YX80

ﾀｲﾌﾟ A

 7
64818-91601

GX81,JZX81,LX80,MX83,SX80,YX80

ﾀｲﾌﾟ B

 2
64819 - SPACER, BACK WINDOW GLASS, NO.2
64819-91601

GX81,JZX81,LX80,MX83,SX80,YX80

 2
Common parts
90119-08708
90333-25001
90467-06086
94180-40600

ILLUST NO. 2 OF 2(8808-9210)

Click highlighted areas on diagram

diagram 6101 6101 63201G 63203F 63207 63208 63209 63214F 63217G 63218A 63218A 63218G 63219A 63221 63223 63224 63251H 63255 63256 63260A 63265B 63277C 63277C 63635A 63699A 9014940019 9015960080 9015960219 9015960348 9015960348 9016250004 9016250004 9016250004 9016840046 9016850063 9017906070 9017906115 9017906167 9018904014 9018906043 9033330002 9046312014 9046714001 9046714001 9046804128 9353065016 9616000400
Part # Description Qty Price
Common parts
90149-40019
90159-60080
90159-60219
90159-60348
90162-50004
90168-40046
90168-50063
90179-06070
90179-06115
90179-06167
90189-04014
90189-06043
90333-30002
90463-12014
90467-14001
90468-04128
93530-65016
96160-00400
