LX80-CEPEX (1988)
Toyota Cresta
Production
Aug 1988
-
Oct 1992
Engine
2LT
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9008- )

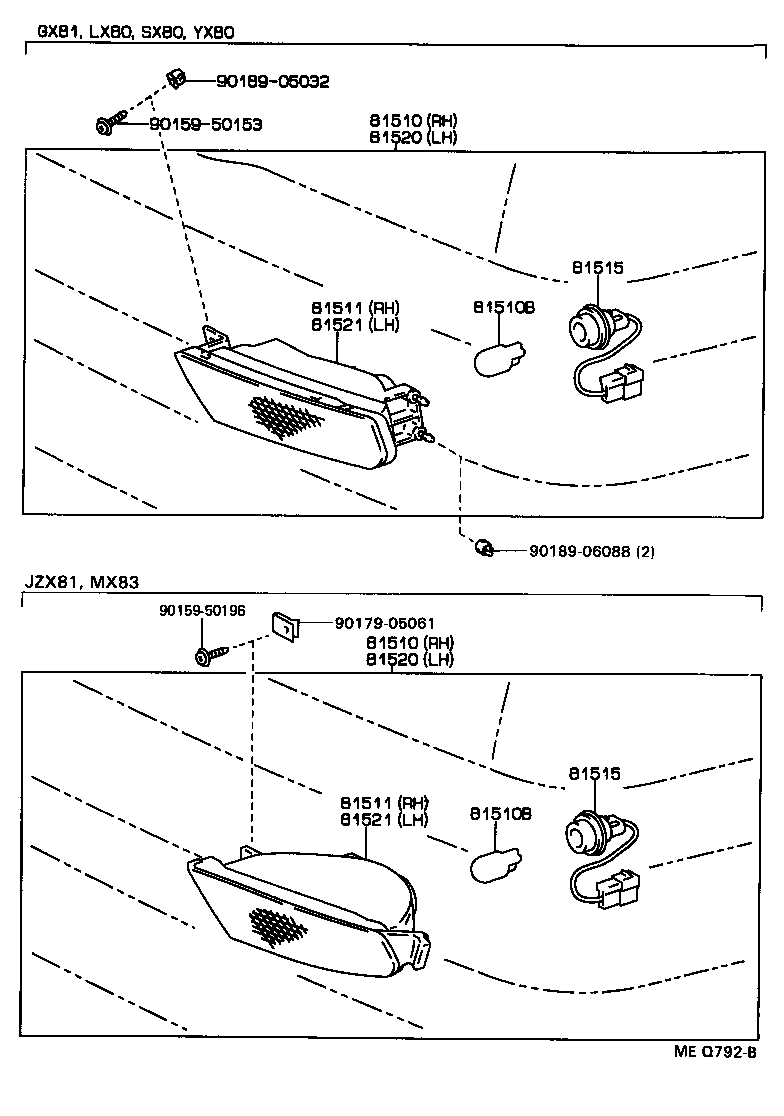

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81510 - LAMP ASSY, FRONT TURN SIGNAL, RH | ||||
| 81510-23040 |
GX81,LX80,SX80,YX80 |
1 | ||
| 81510 - LAMP ASSY, FRONT TURN SIGNAL, RH | ||||
| 81510-23040 |
GX81,LX80,SX80,YX80 |
1 | ||
| 81510B - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 99132-11210 |
GX81,JZX81,LX80,MX83,SX80,YX80 12V 21W |
2 | ||
| 81510B - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 99132-11210 |
GX81,JZX81,LX80,MX83,SX80,YX80 12V 21W |
2 | ||
| 81511 - LENS, FRONT TURN SIGNAL LAMP, RH | ||||
| 81511-23040 |
GX81,LX80,SX80,YX80 |
1 | ||
| 81511 - LENS, FRONT TURN SIGNAL LAMP, RH | ||||
| 81511-23040 |
GX81,LX80,SX80,YX80 |
1 | ||
| 81515 - WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY | ||||
| 81515-23050 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
2 | ||
| 81515 - WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY | ||||
| 81515-23050 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
2 | ||
| 81520 - LAMP ASSY, FRONT TURN SIGNAL, LH | ||||
| 81520-23040 |
GX81,LX80,SX80,YX80 |
1 | ||
| 81520 - LAMP ASSY, FRONT TURN SIGNAL, LH | ||||
| 81520-23040 |
GX81,LX80,SX80,YX80 |
1 | ||
| 81521 - LENS, FRONT TURN SIGNAL LAMP, LH | ||||
| 81521-23040 |
GX81,LX80,SX80,YX80 |
1 | ||
| 81521 - LENS, FRONT TURN SIGNAL LAMP, LH | ||||
| 81521-23040 |
GX81,LX80,SX80,YX80 |
1 | ||
| Common parts | ||||
| 90159-50153 | ||||
| 90159-50196 | ||||
| 90179-05061 | ||||
| 90189-05032 | ||||
| 90189-06088 | ||||
(8808-9008)

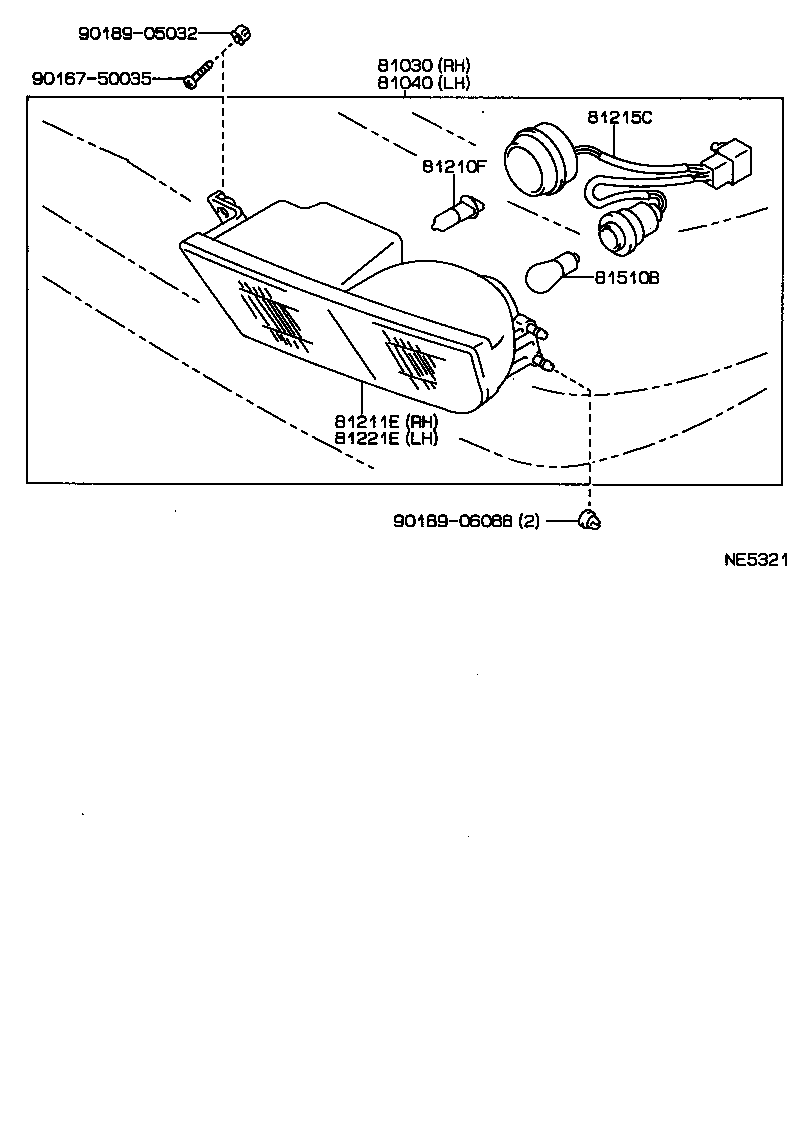

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81030 - LAMP ASSY, FRONT FOG AND TURN SIGNAL, RH | ||||
| 81030-91601 |
GX81,LX80,MX83,SX80,YX80 |
1 | ||
| 81040 - LAMP ASSY, FRONT FOG AND TURN SIGNAL, LH | ||||
| 81040-91601 |
GX81,LX80,MX83,SX80,YX80 |
1 | ||
| 81210F - BULB, FOG LAMP | ||||
| 90981-13018 |
GX81,LX80,MX83,SX80,YX80 12V 55W,ﾊﾛｹﾞﾝ |
2 | ||
| 90981-13048 |
GX81,LX80,MX83,SX80,YX80 12V 55W,ﾊﾛｹﾞﾝ |
2 | ||
| 81211E - UNIT, FRONT FOG AND TURN SIGNAL LAMP, RH | ||||
| 81211-91602 |
GX81,LX80,MX83,SX80,YX80 |
1 | ||
| 81215C - CORD, FRONT FOG AND TURN SIGNAL LAMP | ||||
| 81215-91602 |
GX81,LX80,MX83,SX80,YX80 |
2 | ||
| 81221E - UNIT, FRONT FOG AND TURN SIGNAL LAMP, LH | ||||
| 81221-91601 |
GX81,LX80,MX83,SX80,YX80 |
1 | ||
| 81510B - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 99132-11210 |
GX81,JZX81,LX80,MX83,SX80,YX80 12V 21W |
2 | ||
| Common parts | ||||
| 90167-50035 | ||||
| 90189-05032 | ||||
| 90189-06088 | ||||
