LX80-CEPEX (1988)
Toyota Cresta

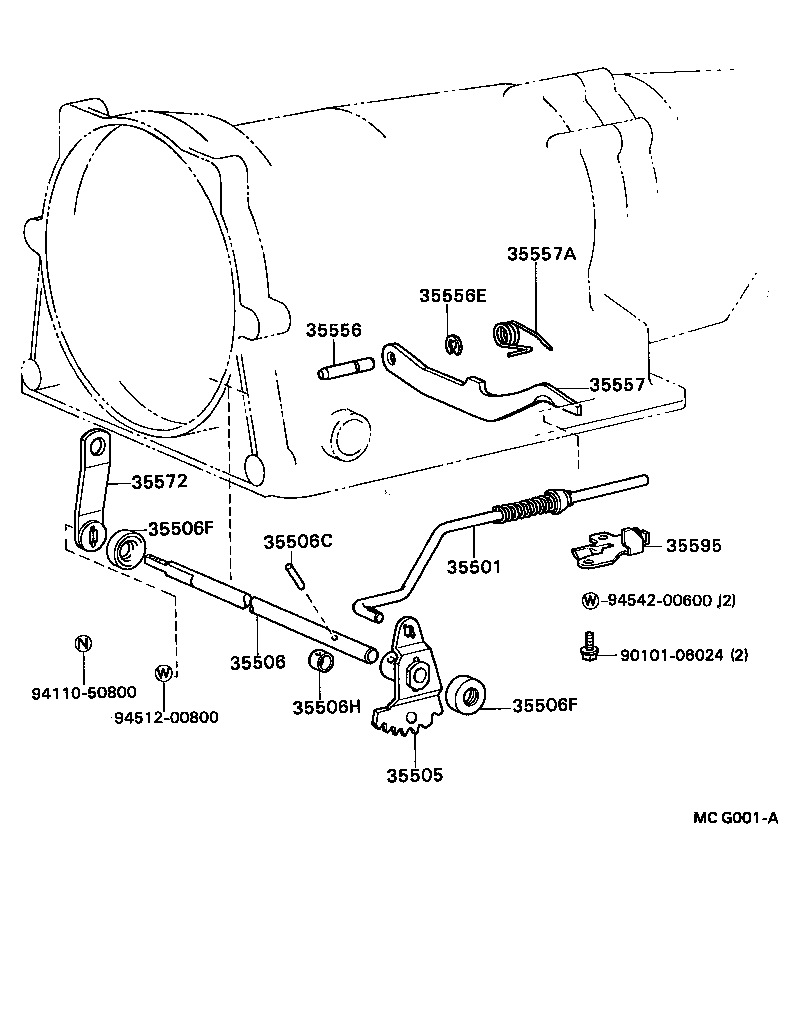

ILLUST NO. 1 OF 2(8808- )ATM..CI,HTWC,LPG,TD
A41,A42D,A42DL,A43D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35501 - ROD SUB-ASSY, PARKING LOCK | ||||
| 35501-22020 |
GX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD) |
1 | ||
| 35505 - LEVER SUB-ASSY, MANUAL VALVE | ||||
| 35505-22040 |
LX80..4FC |
1 | ||
| 35506 - SHAFT SUB-ASSY, MANUAL VALVE LEVER | ||||
| 35561-40010 |
GX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD) |
1 | ||
| 35506C - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90254-04011 |
GX81,JZX81,LX80,MX83,SX80,YX80..ATM |
1 | ||
| 35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90311-11001 |
GX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD) |
2 | ||
| 90311-11003 |
GX81,LX80,SX80,YX80..ATM..(HTWC,LPG,TD) |
2 | ||
| 35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90311-11001 |
GX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD) |
2 | ||
| 90311-11003 |
GX81,LX80,SX80,YX80..ATM..(HTWC,LPG,TD) |
2 | ||
| 35506H - SPACER (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90560-20003 |
GX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD) |
1 | ||
| 35556 - SHAFT, PARKING LOCK PAWL | ||||
| 35556-26010 |
GX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD) |
1 | ||
| 35556E - RING, E (FOR PARKING LOCK PAWL SHAFT) | ||||
| 90523-08021 |
GX81,JZX81,LX80,MX83,SX80,YX80..ATM |
1 | ||
| 35557 - PAWL, PARKING LOCK | ||||
| 35557-35010 |
GX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD) |
1 | ||
| 35557A - SPRING, TORSION (FOR PARKING LOCK PAWL) | ||||
| 90508-25001 |
GX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD) |
1 | ||
| 35572 - LEVER, TRANSMISSION CONTROL SHAFT, RH | ||||
| 35572-22040 |
GX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD) |
1 | ||
| 35595 - BRACKET, PARKING LOCK PAWL | ||||
| 35595-40010 |
GX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD) |
1 | ||
| Common parts | ||||
| 90101-06024 | ||||
| 94110-50800 | ||||
| 94512-00800 | ||||
| 94542-00600 | ||||

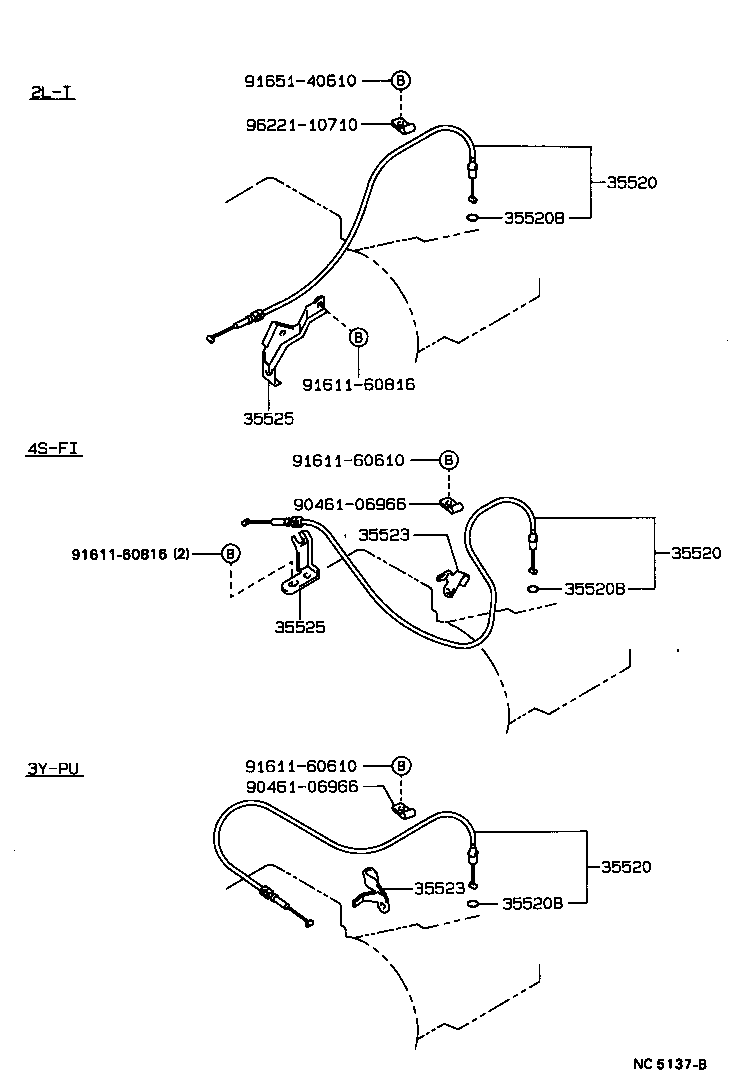

ILLUST NO. 2 OF 2(8808- )LX80,SX80,YX80..ATM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35520 - CABLE ASSY, THROTTLE | ||||
| 35520-22200 |
LX80..4FC |
1 | ||
| 35520-22230 |
LX80..4FC..SCM |
1 | ||
| 35520-22230 |
LX80..4FC |
1 | ||
| 35520 - CABLE ASSY, THROTTLE | ||||
| 35520-22200 |
LX80..4FC |
1 | ||
| 35520-22230 |
LX80..4FC..SCM |
1 | ||
| 35520-22230 |
LX80..4FC |
1 | ||
| 35520 - CABLE ASSY, THROTTLE | ||||
| 35520-22200 |
LX80..4FC |
1 | ||
| 35520-22230 |
LX80..4FC..SCM |
1 | ||
| 35520-22230 |
LX80..4FC |
1 | ||
| 35520B - RING, O(FOR THROTTLE CABLE) | ||||
| 90301-09012 |
GX81,JZX81,LX80,MX83,SX80,YX80..ATM |
1 | ||
| 35520B - RING, O(FOR THROTTLE CABLE) | ||||
| 90301-09012 |
GX81,JZX81,LX80,MX83,SX80,YX80..ATM |
1 | ||
| 35520B - RING, O(FOR THROTTLE CABLE) | ||||
| 90301-09012 |
GX81,JZX81,LX80,MX83,SX80,YX80..ATM |
1 | ||
| 35525 - BRACKET, THROTTLE CABLE | ||||
| 35525-22110 |
LX80..4FC |
1 | ||
| 35525-22111 |
LX80..4FC |
1 | ||
| 35525 - BRACKET, THROTTLE CABLE | ||||
| 35525-22110 |
LX80..4FC |
1 | ||
| 35525-22111 |
LX80..4FC |
1 | ||
| Common parts | ||||
| 90461-06966 | ||||
| 91611-60610 | ||||
| 91611-60816 | ||||
| 91651-40610 | ||||
| 96221-10710 | ||||
