LX70-YEMEX (1984)

Toyota Cresta

Production Aug 1984 - Aug 1988
Engine 2LT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

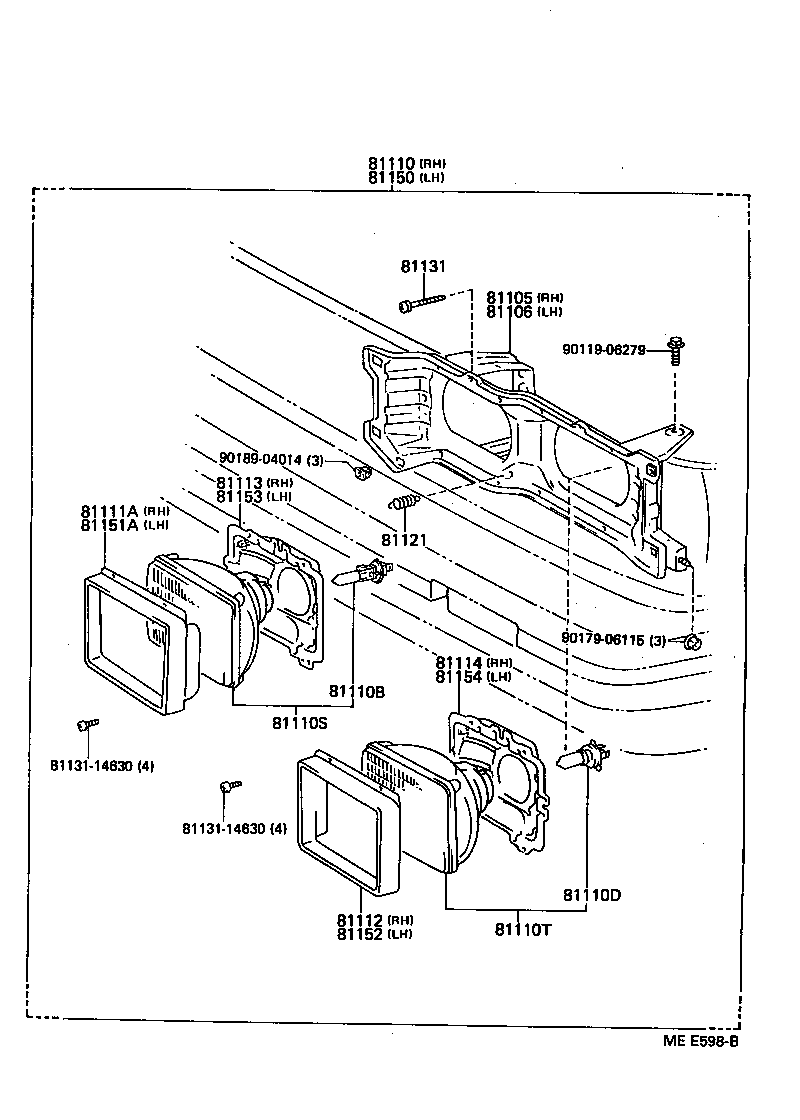

(8408-8608)

Click highlighted areas on diagram

diagram 81105 81106 81110 81110B 81110D 81110S 81110T 81111A 81112 81113 81114 81121 81131 8113114630 8113114630 81150 81151A 81152 81153 81154 9011906279 9017906115 9018904014
Part # Description Qty Price
81105 - HOUSING SUB-ASSY, HEADLAMP, RH
81105-22450

GX71,LX70,MX71,SX70

 1
81106 - HOUSING SUB-ASSY, HEADLAMP, LH
81106-22450

GX71,LX70,MX71,SX70

 1
81110 - HEADLAMP ASSY, RH
81110-80410

GX71,LX70,MX71,SX70

 1
81110-22350

GX71,LX70,SX70

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13039

GX71,LX70,SX70

12V 55W,ﾊﾛｹﾞﾝ,12V 55W

 2
90981-13017

GX71,LX70,MX71,SX70

12V 55W,*HAL *WH,12V 55W

 2
81110D - BULB(FOR HEADLAMP, NO.2)
90981-13015

GX71,LX70,MX71,SX70

12V 60/55W,*HAL *WH,12V 60/55W

 2
81110S - SEALED BEAM UNIT, NO.1
90981-05036

GX71,LX70,MX71,SX70

12V 55W

 2
81110T - SEALED BEAM UNIT, NO.2
90981-05037

GX71,LX70,MX71,SX70

12V 60/55W

 2
81111A - RING, SEALED BEAM RETAINING, NO.1 RH
81111-22450

GX71,LX70,MX71,SX70

 1
81112 - RING, SEALED BEAM RETAINING, NO.2 RH
81112-22450

GX71,LX70,MX71,SX70

 1
81113 - RING, SEALED BEAM MOUNTING, NO.1 RH
81113-22450

GX71,LX70,MX71,SX70

 1
81114 - RING, SEALED BEAM MOUNTING, NO.2 RH
81114-22450

GX71,LX70,MX71,SX70

 1
81121 - SPRING, HEADLAMP TENSION
81121-14630

GX71,LX70,MX71,SX70

 4
81131 - SCREW, HEADLAMP ADJUSTING
81131-14370

GX71,LX70,MX71,SX70

 8
81150 - HEADLAMP ASSY, LH
81150-80402

GX71,LX70,MX71,SX70

 1
81150-22350

GX71,LX70,SX70

 1
81151A - RING, SEALED BEAM RETAINING, NO.1 LH
81151-22450

GX71,LX70,MX71,SX70

 1
81152 - RING, SEALED BEAM RETAINING, NO.2 LH
81152-22450

GX71,LX70,MX71,SX70

 1
81153 - RING, SEALED BEAM MOUNTING, NO.1 LH
81153-22450

GX71,LX70,MX71,SX70

 1
81154 - RING, SEALED BEAM MOUNTING, NO.2 LH
81154-22450

GX71,LX70,MX71,SX70

 1
Common parts
81131-14630
90119-06279
90179-06115
90189-04014

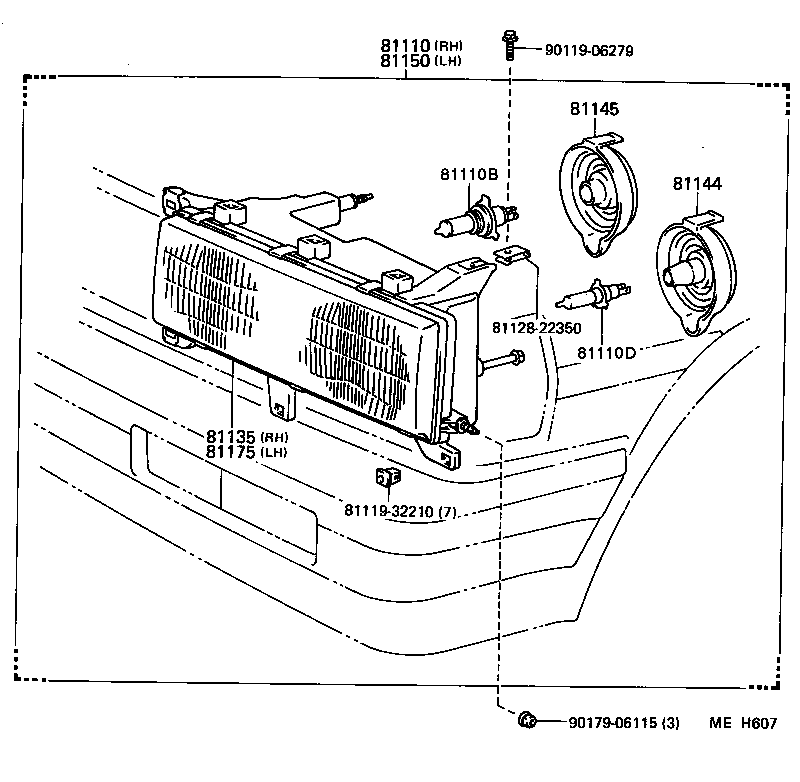

(8608- )

Click highlighted areas on diagram

diagram 81110 81110B 81110D 8111932210 8112822350 81135 81144 81145 81150 81175 9011906279 9017906115
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-80410

GX71,LX70,MX71,SX70

 1
81110-22350

GX71,LX70,SX70

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13039

GX71,LX70,SX70

12V 55W,ﾊﾛｹﾞﾝ,12V 55W

 2
90981-13017

GX71,LX70,MX71,SX70

12V 55W,*HAL *WH,12V 55W

 2
81110D - BULB(FOR HEADLAMP, NO.2)
90981-13015

GX71,LX70,MX71,SX70

12V 60/55W,*HAL *WH,12V 60/55W

 2
81135 - UNIT ASSY, HEADLAMP, RH
81130-22350

GX71,LX70,SX70

 1
81144 - COVER, HEADLAMP, NO.1
81139-16340

GX71,LX70,SX70

 1
81145 - COVER, HEADLAMP, NO.2
81139-22350

GX71,LX70,SX70

 1
81150 - HEADLAMP ASSY, LH
81150-80402

GX71,LX70,MX71,SX70

 1
81150-22350

GX71,LX70,SX70

 1
81175 - UNIT ASSY, HEADLAMP, LH
81170-22350

GX71,LX70,SX70

 1
Common parts
81119-32210
81128-22350
90119-06279
90179-06115
