LX70-YEMEX (1984)
Toyota Cresta

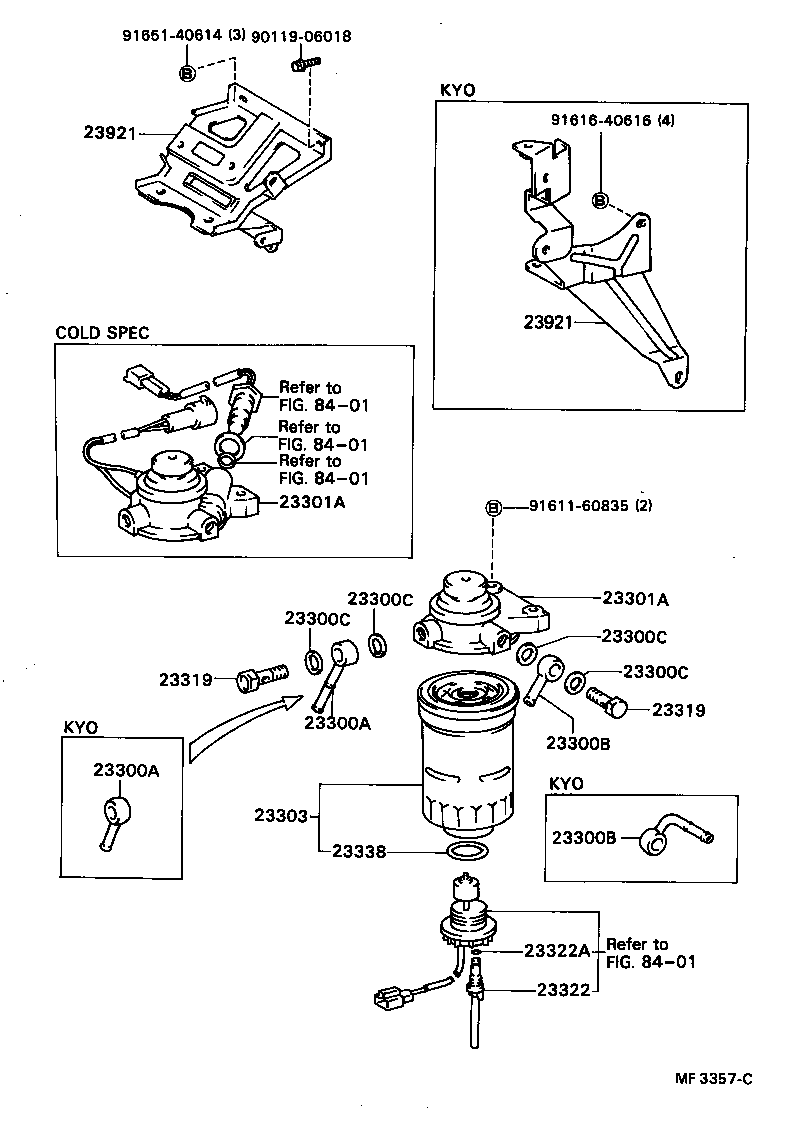

(8408-8606)2L#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23300A - UNION, NIPPLE(FOR FUEL FILTER INLET) | ||||
| 23323-54170 |
2L#..LX70..SCM |
1 | ||
| 23300A - UNION, NIPPLE(FOR FUEL FILTER INLET) | ||||
| 23323-54170 |
2L#..LX70..SCM |
1 | ||
| 23300B - UNION, NIPPLE(FOR FUEL FILTER OUTLET) | ||||
| 90405-08016 |
2L#..LX70..SCM |
1 | ||
| 23300B - UNION, NIPPLE(FOR FUEL FILTER OUTLET) | ||||
| 90405-08016 |
2L#..LX70..SCM |
1 | ||
| 23300C - GASKET, NIPPLE UNION(FOR FUEL) | ||||
| 22447-47030 |
2L#..LX70 |
4 | ||
| 23300C - GASKET, NIPPLE UNION(FOR FUEL) | ||||
| 22447-47030 |
2L#..LX70 |
4 | ||
| 23300C - GASKET, NIPPLE UNION(FOR FUEL) | ||||
| 22447-47030 |
2L#..LX70 |
4 | ||
| 23300C - GASKET, NIPPLE UNION(FOR FUEL) | ||||
| 22447-47030 |
2L#..LX70 |
4 | ||
| 23301A - CAP ASSY, FUEL FILTER | ||||
| 23301-54060 |
2L#..LX70..SCM COLD SPEC |
1 | ||
| 23301-54270 |
2L#..LX70..SCM |
1 | ||
| 23301-54030 |
2L#..LX70 COLD SPEC |
1 | ||
| 23301-64010 |
2L#..LX70 |
1 | ||
| 23301-54200 |
2L#..LX70..SCM COLD SPEC |
1 | ||
| 23301A - CAP ASSY, FUEL FILTER | ||||
| 23301-54060 |
2L#..LX70..SCM COLD SPEC |
1 | ||
| 23301-54270 |
2L#..LX70..SCM |
1 | ||
| 23301-54030 |
2L#..LX70 COLD SPEC |
1 | ||
| 23301-64010 |
2L#..LX70 |
1 | ||
| 23301-54200 |
2L#..LX70..SCM COLD SPEC |
1 | ||
| 23303 - ELEMENT SUB-ASSY, FUEL FILTER | ||||
| 23303-64010 |
2L#..LX70 |
1 | ||
| 23319 - SCREW, FUEL PIPE FOLLOW | ||||
| 90099-18011 |
2L#..LX70 |
2 | ||
| 23319 - SCREW, FUEL PIPE FOLLOW | ||||
| 90099-18011 |
2L#..LX70 |
2 | ||
| 23322 - PLUG, DRAIN(FOR FUEL FILTER) | ||||
| 23322-64010 |
2L#..LX70 |
1 | ||
| 23322A - RING, O(FOR DRAIN PLUG) | ||||
| 23344-54010 |
2L#..LX70 |
1 | ||
| 23338 - GASKET(FOR WARNING SWITCH) | ||||
| 23344-64010 |
2L#..LX70 |
1 | ||
| 23921 - SUPPORT, FUEL FILTER | ||||
| 23921-54140 |
2L#..LX70..SCM |
1 | ||
| 23921 - SUPPORT, FUEL FILTER | ||||
| 23921-54140 |
2L#..LX70..SCM |
1 | ||
| Common parts | ||||
| 90119-06018 | ||||
| 91611-60835 | ||||
| 91616-40616 | ||||
| 91651-40614 | ||||
| Linked diagrams | ||||
| 8401 | ||||

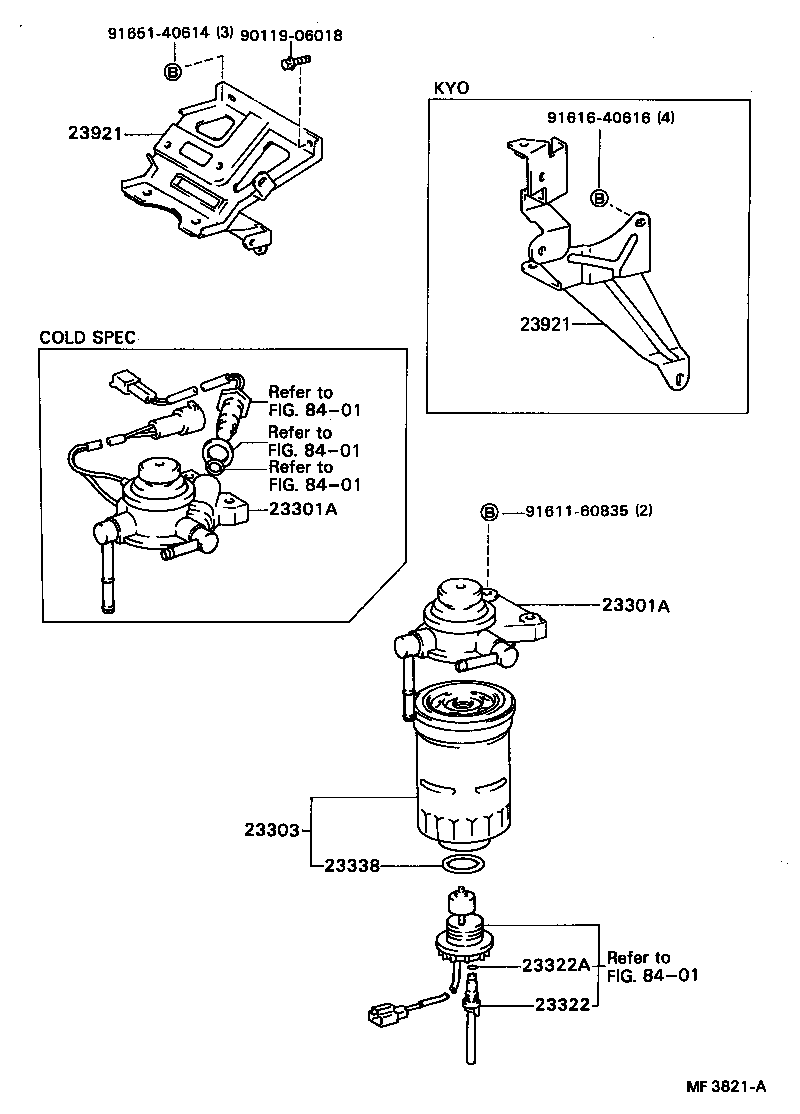

(8606- )2L#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23301A - CAP ASSY, FUEL FILTER | ||||
| 23301-54060 |
2L#..LX70..SCM COLD SPEC |
1 | ||
| 23301-54270 |
2L#..LX70..SCM |
1 | ||
| 23301-54030 |
2L#..LX70 COLD SPEC |
1 | ||
| 23301-64010 |
2L#..LX70 |
1 | ||
| 23301-54200 |
2L#..LX70..SCM COLD SPEC |
1 | ||
| 23301A - CAP ASSY, FUEL FILTER | ||||
| 23301-54060 |
2L#..LX70..SCM COLD SPEC |
1 | ||
| 23301-54270 |
2L#..LX70..SCM |
1 | ||
| 23301-54030 |
2L#..LX70 COLD SPEC |
1 | ||
| 23301-64010 |
2L#..LX70 |
1 | ||
| 23301-54200 |
2L#..LX70..SCM COLD SPEC |
1 | ||
| 23303 - ELEMENT SUB-ASSY, FUEL FILTER | ||||
| 23303-64010 |
2L#..LX70 |
1 | ||
| 23322 - PLUG, DRAIN(FOR FUEL FILTER) | ||||
| 23322-64010 |
2L#..LX70 |
1 | ||
| 23322A - RING, O(FOR DRAIN PLUG) | ||||
| 23344-54010 |
2L#..LX70 |
1 | ||
| 23338 - GASKET(FOR WARNING SWITCH) | ||||
| 23344-64010 |
2L#..LX70 |
1 | ||
| 23921 - SUPPORT, FUEL FILTER | ||||
| 23921-54140 |
2L#..LX70..SCM |
1 | ||
| 23921 - SUPPORT, FUEL FILTER | ||||
| 23921-54140 |
2L#..LX70..SCM |
1 | ||
| Common parts | ||||
| 90119-06018 | ||||
| 91611-60835 | ||||
| 91616-40616 | ||||
| 91651-40614 | ||||
| Linked diagrams | ||||
| 8401 | ||||
