LX60-YTPES (1983)

Toyota Cresta

Production Aug 1983 - Jul 1984
Engine L
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

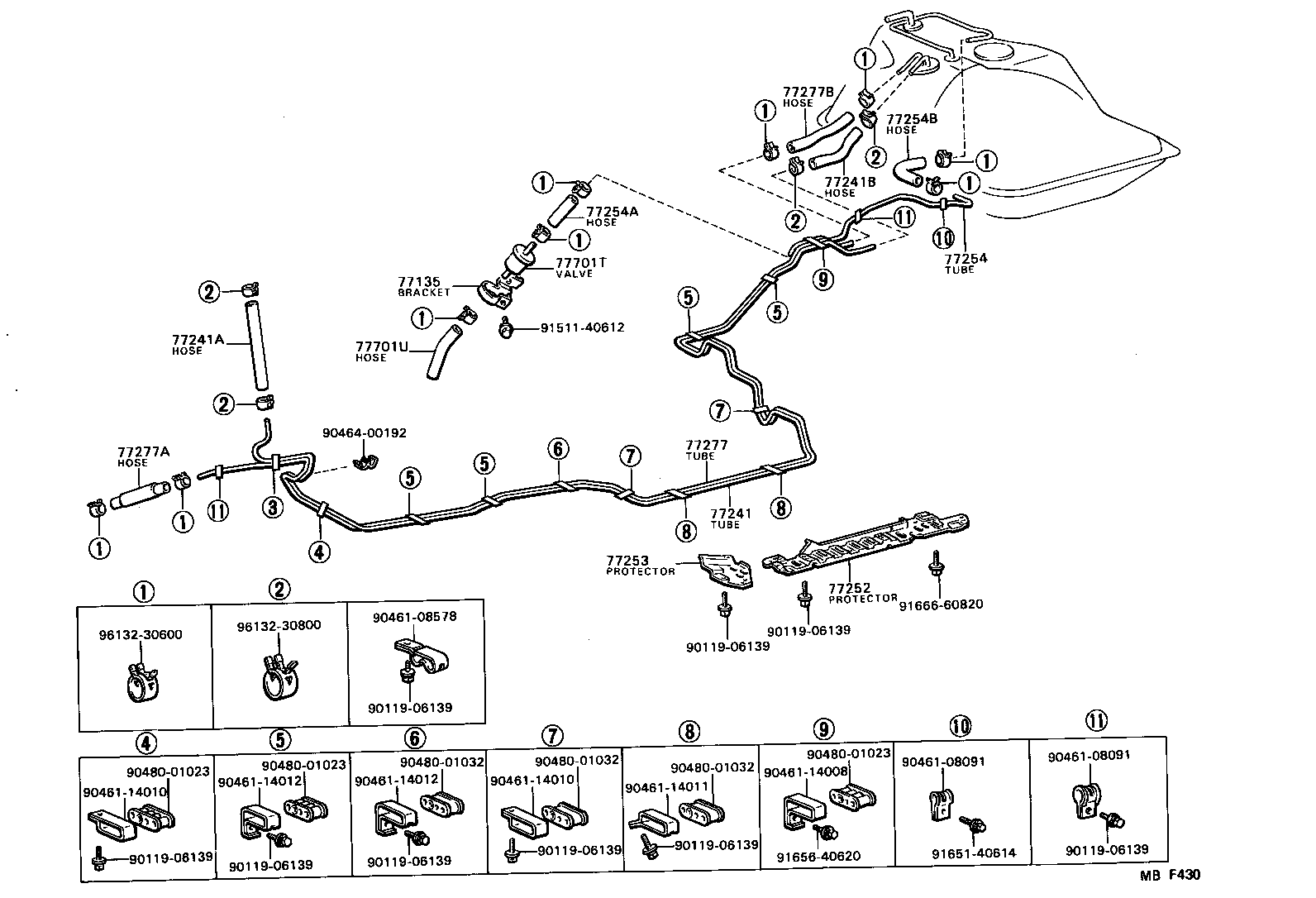

ILLUST NO. 2 OF 2(8308- )LX60

Click highlighted areas on diagram

diagram 77135 77241 77241A 77241B 77252 77253 77254 77254A 77254B 77277 77277A 77277B 77701T 77701U 9011906139 9011906139 9011906139 9011906139 9011906139 9011906139 9011906139 9011906139 9011906139 9046108091 9046108091 9046108578 9046114008 9046114010 9046114010 9046114011 9046114012 9046114012 9046400192 9048001023 9048001023 9048001023 9048001032 9048001032 9048001032 9151140612 9165140614 9165640620 9166660820 9613230600 9613230800
Part # Description Qty Price
77135 - BRACKET, CHECK VALVE
77135-22030

LX60

 1
77241 - TUBE, FUEL MAIN, NO.1
77251-22230

LX60

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95332-08030

LX60

*H,L=280,内径=7.6

 1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95332-08030

LX60

*H,L=240,内径=7.6

 1
77252 - PROTECTOR, FUEL TUBE
77266-22020

GX5#,61,LX60,MX51,61,SX60

 1
77253 - PROTECTOR, FUEL TUBE, NO.2
77267-22010

GX5#,61,LX60,MX51,61,SX60

 1
77254 - TUBE, FUEL EMISSION, NO.1
77227-22040

LX60

 1
77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1)
95332-06010

LX60

*H,L=70

 1
77254B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1)
95332-06020

GX5#,61,LX60,MX51,61,SX60,TX50

*H,L=170

 1
77277 - TUBE, FUEL RETURN, NO.1
77255-22130

LX60

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
95332-06030

LX60

*H,L=300

 1
77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)
95332-06030

LX60,SX60,TX50

*H,L=240

 1
77701T - VALVE, CHECK (FOR MAIN FUEL TANK)
90917-10020

LX60

 1
77701U - HOSE, FUEL (FOR CHECK VALVE)
95332-06010

LX60

*H,L=90

 1
Common parts
90119-06139
90461-08091
90461-08578
90461-14008
90461-14010
90461-14011
90461-14012
90464-00192
90480-01023
90480-01032
91511-40612
91651-40614
91656-40620
91666-60820
96132-30600
96132-30800
