LX100-CEPQT (1996)

Toyota Cresta

Production Sep 1996 - Aug 1999
Engine 2LTE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9609-9908)2LTE

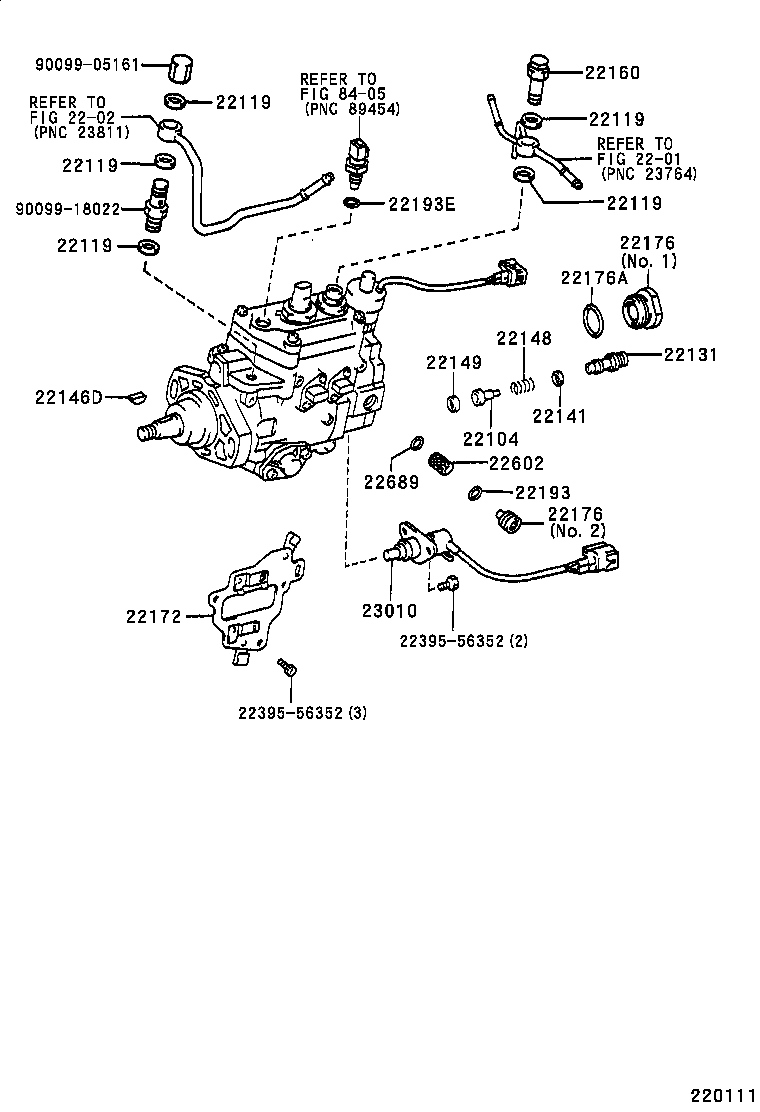

Click highlighted areas on diagram

diagram 2201 2202 22104 22119 22119 22119 22119 22119 22131 22141 22146D 22148 22149 22160 22172 22176 22176 22176A 22193 22193E 2239556352 2239556352 22602 22689 23010 8405 9009905161 9009918022
Part # Description Qty Price
22104 - VALVE SUB-ASSY, INJECTION PUMP DELIVERY
22104-5B440

2LTE..LX100

 4
22119 - WASHER, AIR BLEEDER NIPPLE
90201-12109

2LTE..LX100

 5
22119 - WASHER, AIR BLEEDER NIPPLE
90201-12109

2LTE..LX100

 5
22119 - WASHER, AIR BLEEDER NIPPLE
90201-12109

2LTE..LX100

 5
22119 - WASHER, AIR BLEEDER NIPPLE
90201-12109

2LTE..LX100

 5
22119 - WASHER, AIR BLEEDER NIPPLE
90201-12109

2LTE..LX100

 5
22131 - HOLDER, DELIVERY VALVE
22131-5B250

2LTE..LX100

 4
22141 - SEAT, DELIVERY VALVE SPRING
22141-54010

2LTE..LX100

 4
22146D - KEY(FOR DRIVE GEAR)
90099-13017

2LTE..LX100

 1
22148 - SPRING, DELIVERY VALVE
22148-5B250

2LTE..LX100

 4
22149 - GASKET, DELIVERY VALVE
22149-56351

2LTE..LX100

 4
22160 - SCREW SUB-ASSY, OVERFLOW
22160-54271

2LTE..LX100

 1
22172 - CLIP, CONNECTOR SUPPORT, SOLENOID
22172-67030

2LTE..LX100

 1
22176 - PLUG, DISTRIBUTIVE HEAD
22176-54640

2LTE..LX100

NO.1

 1
22176-5B302

2LTE..LX100

NO.2

 1
22176 - PLUG, DISTRIBUTIVE HEAD
22176-54640

2LTE..LX100

NO.1

 1
22176-5B302

2LTE..LX100

NO.2

 1
22176A - RING, O(FOR DISTRIBUTIVE HEAD PLUG)
22193-54772

2LTE..LX100

 1
90099-14052

2LTE..LX100

 1
22193 - RING, O(FOR LEVER CONNECTING PIN)
22193-5B302

2LTE..LX100

 1
22193E - RING, O(FOR FUEL TEMPERATURE SENSOR)
22193-67030

2LTE..LX100

 1
22602 - FILTER SUB-ASSY, FUEL INJECTION PUMP
22602-56350

2LTE..LX100

 1
22689 - WASHER(FOR SWIVEL NIPPLE)
22689-56350

2LTE..LX100

 1
23010 - VALVE ASSY, TIMING CONTROL
23010-54040

2LTE..LX100

 1
Common parts
22395-56352
90099-05161
90099-18022
Linked diagrams
2201
2202
8405
