LX100-CEPQT (1996)
Toyota Cresta
Production
Sep 1996
-
Aug 1999
Engine
2LTE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9609-9908)2LTE

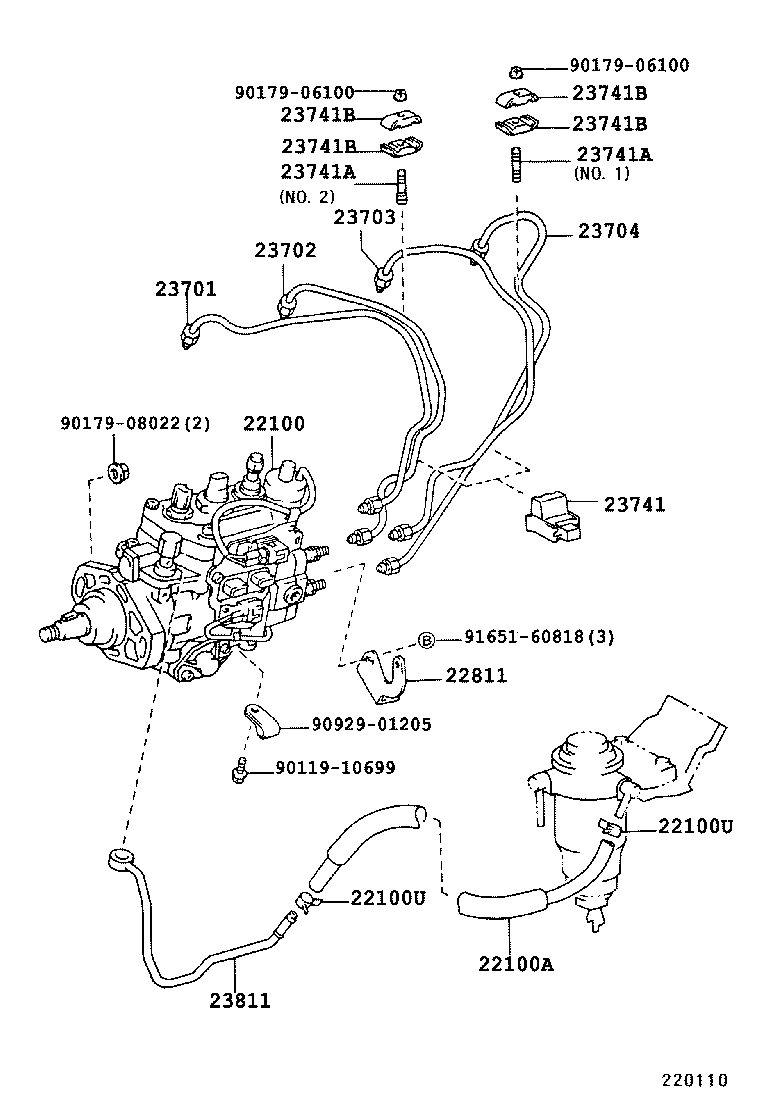

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22100 - PUMP ASSY, INJECTION OR SUPPLY | ||||
| 22100-5B440 |
2LTE..LX100 |
1 | ||
| 22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER) | ||||
| 90447-14068 |
2LTE..LX100 |
1 | ||
| 22100U - CLIP, HOSE FUEL(FOR INJECTION PUMP) | ||||
| 90467-13039 |
2LTE..LX100 |
2 | ||
| 22100U - CLIP, HOSE FUEL(FOR INJECTION PUMP) | ||||
| 90467-13039 |
2LTE..LX100 |
2 | ||
| 22811 - STAY, INJECTION PUMP, NO.1 | ||||
| 22811-54050 |
2LTE..LX100 |
1 | ||
| 23701 - PIPE SUB-ASSY, INJECTION, NO.1 | ||||
| 23701-54130 |
2LTE..LX100 |
1 | ||
| 23702 - PIPE SUB-ASSY, INJECTION, NO.2 | ||||
| 23702-54160 |
2LTE..LX100 |
1 | ||
| 23703 - PIPE SUB-ASSY, INJECTION, NO.3 | ||||
| 23703-54100 |
2LTE..LX100 |
1 | ||
| 23704 - PIPE SUB-ASSY, INJECTION, NO.4 | ||||
| 23704-54100 |
2LTE..LX100 |
1 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-54030 |
2LTE..LX100 |
2 | ||
| 23741A - BOLT, STUD(FOR INJECTION PIPE CLAMP) | ||||
| 90116-06041 |
2LTE..LX100 NO.2 |
1 | ||
| 90116-06095 |
2LTE..LX100 NO.1 |
1 | ||
| 23741A - BOLT, STUD(FOR INJECTION PIPE CLAMP) | ||||
| 90116-06041 |
2LTE..LX100 NO.2 |
1 | ||
| 90116-06095 |
2LTE..LX100 NO.1 |
1 | ||
| 23741B - CLAMP, INJECTION PIPE | ||||
| 23741-56010 |
2LTE..LX100 |
4 | ||
| 23741B - CLAMP, INJECTION PIPE | ||||
| 23741-56010 |
2LTE..LX100 |
4 | ||
| 23741B - CLAMP, INJECTION PIPE | ||||
| 23741-56010 |
2LTE..LX100 |
4 | ||
| 23741B - CLAMP, INJECTION PIPE | ||||
| 23741-56010 |
2LTE..LX100 |
4 | ||
| 23811 - PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP) | ||||
| 23811-54151 |
2LTE..LX100 |
1 | ||
| Common parts | ||||
| 90119-10699 | ||||
| 90179-06100 | ||||
| 90179-08022 | ||||
| 90929-01205 | ||||
| 91651-60818 | ||||
