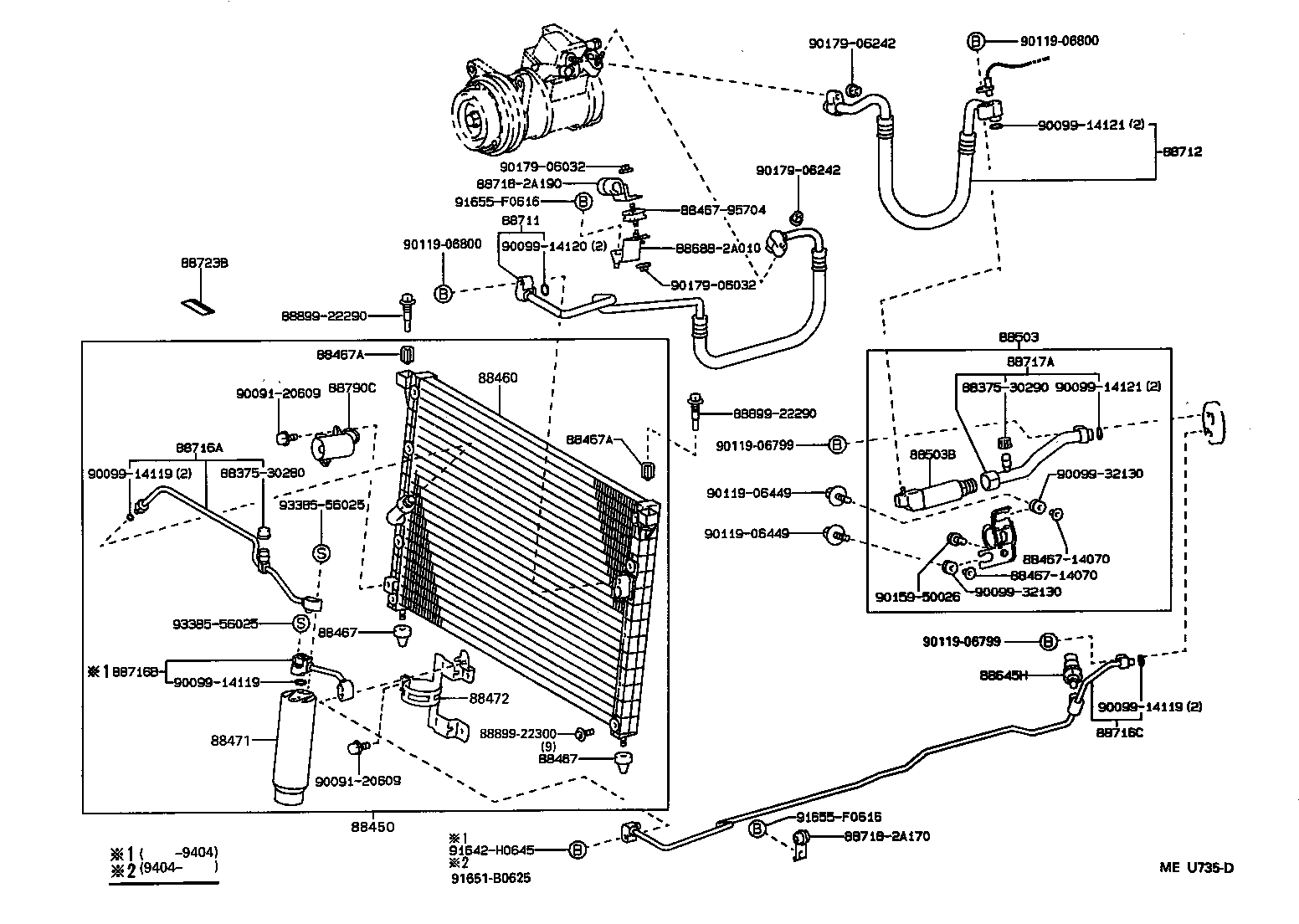

Toyota Cresta JZX91 HEATING & AIR CONDITIONING - COOLER PIPING

Part #	Description	Period	Qty
88450 - CONDENSER ASSY, W/RECEIVER
88450-22010	GX90,JZX9#,SX90	10/1992 - 04/1994	1
88450-22070	GX90,JZX9#,SX90	04/1994 - 09/1996	1
88460 - CONDENSER ASSY, COOLER
88460-22510	GX90,JZX9#,SX90	10/1992 - 09/1996	1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-24050	GX90,JZX9#,LX90,SX90	10/1992 - 09/1996	2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-24050	GX90,JZX9#,LX90,SX90	10/1992 - 09/1996	2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-12110	GX90,JZX9#,LX90,SX90	10/1992 - 09/1996	2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-12110	GX90,JZX9#,LX90,SX90	10/1992 - 09/1996	2
88471 - TANK, RECEIVER AIR CONDITIONER
88471-34010	GX90,JZX9#,LX90,SX90	10/1992 - 09/1996	1
88472 - BRACKET, RECEIVER TANK, NO.1
88473-22090	GX90,JZX9#,LX90,SX90	04/1994 - 09/1996	1
88473-22080	GX90,JZX9#,LX90,SX90	10/1992 - 04/1994	1
88503 - REGULATOR ASSY, PRESSURE
88503-22250	GX90,JZX9#,LX90,SX90	10/1992 - 09/1994	1
88503-22340	GX90,JZX9#,LX90,SX90	09/1994 - 09/1996	1
88503B - REGULATOR SUB-ASSY, PRESSURE
88503-22260	GX90,JZX9#,LX90,SX90	10/1992 - 09/1996	1
88645H - SWITCH, PRESSURE NO.1
88645-22070	GX90,JZX9#,LX90,SX90	03/1994 - 09/1994	1
88645-20050	GX90,JZX9#,LX90,SX90	10/1992 - 03/1994	1
88645-22070	JZX9#,LX90,SX90	09/1994 - 09/1996	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-22620	JZX90,91..SLT,SLTG,TOUS	10/1992 - 09/1996	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-2A130	JZX90,91	12/1993 - 09/1996	1
88712-22880	JZX90,91..SLT,SLTG,TOUS	10/1992 - 12/1993	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-2A220	GX90,JZX9#,SX90	10/1992 - 04/1994	1
88716-2A480	GX90,JZX9#,SX90	04/1994 - 09/1996	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-2A230	GX90,JZX9#,LX90,SX90	10/1992 - 04/1994	1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-2A250	GX90,JZX90,91,LX90,SX90	10/1992 - 04/1994	1
88716-2A500	GX90,JZX90,91,LX90,SX90	04/1994 - 09/1994	1
88716-2A520	GX90,JZX90,91,LX90,SX90	09/1994 - 09/1996	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-22560	GX90,JZX9#,LX90,SX90	09/1994 - 09/1996	1
88717-22460	GX90,JZX9#,LX90,SX90	10/1992 - 09/1994	1
88723B - LABEL, COOLER SERVICE CAUTION
88723-20030	GX90,JZX9#,LX90,SX90	10/1992 - 09/1996	1
88790C - THERMISTOR ASSY
88790-22090	GX90,JZX9#,LX90,SX90	10/1992 - 09/1996	1
Common parts
88375-30280
88375-30290
88467-14070
88467-95704
88688-2A010
88718-2A170
88718-2A190
88899-22290
88899-22300
90091-20609
90099-14119
90099-14120
90099-14121
90099-32130
90119-06449
90119-06799
90119-06800
90159-50026
90179-06032
90179-06242
91642-H0645
91651-B0625
91655-F0616
93385-56025

JZX91-CEPZF (1992)

(9210- )JZX9#
