JZX91-CEPZF (1992)

Toyota Cresta

Production Oct 1992 - Sep 1996
Engine 2JZGE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9210- )

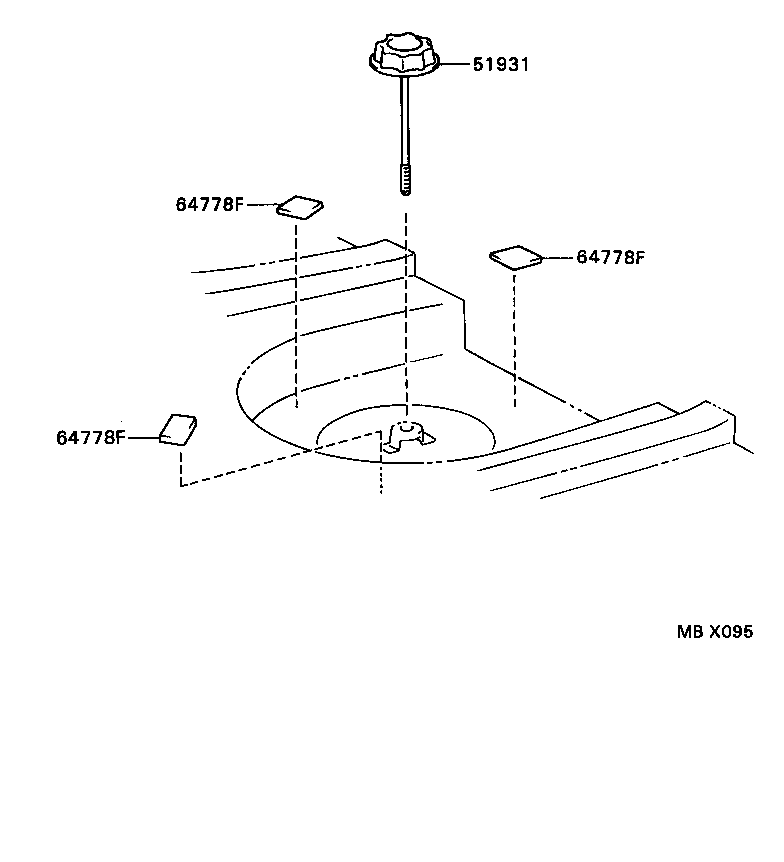

Click highlighted areas on diagram

diagram 51931 64778F 64778F 64778F
Part # Description Qty Price
51931 - CARRIER, SPARE WHEEL, NO.1
51931-12020

GX90,JZX9#,LX90,SX90..SC,SLT,SLTG,SUF,TOUS

ｵｳｷﾕｳﾀｲﾔ ｲｶﾞｲ

 1
51931-22040

GX90,JZX9#,LX90,SX90..SC,SLT,SLTG,SUF,TOUS

 1
51931-12020

GX90,JZX9#,LX90,SX90..SC,SLT,SLTG,SUF,TOUS

ｵｳｷﾕｳﾀｲﾔ ｲｶﾞｲ

 1
64778F - PROTECTOR, SPARE WHEEL
64778-22030

GX90,JZX9#,LX90,SX90

 3
64778F - PROTECTOR, SPARE WHEEL
64778-22030

GX90,JZX9#,LX90,SX90

 3
64778F - PROTECTOR, SPARE WHEEL
64778-22030

GX90,JZX9#,LX90,SX90

 3
