Toyota Cresta JZX91 FRONT SPRING & SHOCK ABSORBER

Part #	Description	Period	Qty
48131 - SPRING, FRONT COIL, RH
48131-2A890	JZX91	10/1992 - 09/1996	1
48132 - SPRING, FRONT COIL, LH
48131-2A890	JZX91	10/1992 - 09/1996	1
48157B - INSULATOR, FRONT COIL SPRING, UPPER RH
48157-22040	GX90,JZX90,91,LX90,SX90	10/1992 - 09/1996	1
48157C - INSULATOR, FRONT COIL SPRING, UPPER LH
48157-22040	GX90,JZX90,91,LX90,SX90	10/1992 - 09/1996	1
48331B - BUMPER, FRONT SPRING, RH
48331-22060	GX90,JZX9#,LX90,SX90	10/1992 - 09/1996	1
48331C - BUMPER, FRONT SPRING, LH
48331-22060	GX90,JZX9#,LX90,SX90	10/1992 - 09/1996	1
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48510-29195	JZX91 ﾏｰｸ 48510−22410	10/1992 - 09/1994	1
48510-29355	JZX91 ﾏｰｸ 48510−22450	09/1994 - 09/1996	1
48510N - BUSH(FOR FRONT SHOCK ABSORBER RH)
90389-12016	GX90,JZX90,91,LX90,SX90	10/1992 - 09/1994	1
90389-12016	JZX91;GX90,JZX90,LX90,SX90..SC,SLT,SUF,TOUS,TOUV	09/1994 - 09/1996	1
48514 - BRACKET, FRONT SHOCK ABSORBER, LOWER RH
48514-22010	GX90,JZX90,91,LX90,SX90	10/1992 - 09/1996	1
48515 - BRACKET, FRONT SHOCK ABSORBER, LOWER LH
48515-22010	GX90,JZX90,91,LX90,SX90	10/1992 - 09/1996	1
48519B - BRACKET, ACTUATOR SUPPORT, FRONT RH
48519-22020	JZX91	10/1992 - 09/1996	1
48519C - BRACKET, ACTUATOR SUPPORT, FRONT LH
48519-22020	JZX91	10/1992 - 09/1996	1
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48510-29195	JZX91 ﾏｰｸ 48510−22410	10/1992 - 09/1994	1
48510-29355	JZX91 ﾏｰｸ 48510−22450	09/1994 - 09/1996	1
48520C - BUSH(FOR FRONT SHOCK ABSORBER LH)
90389-12016	GX90,JZX90,91,LX90,SX90	10/1992 - 09/1996	1
48553C - CAP, FRONT SHOCK ABSORBER, RH
48553-22060	JZX91	10/1992 - 09/1996	1
48590A - CAP ASSY, FRONT SHOCK ABSORBER, LH
48590-22030	JZX91	10/1992 - 09/1996	1
48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48680-22020	GX90,JZX90,91,LX90,SX90..SC,SLT,SLTG,SUF	10/1992 - 09/1996	1
48603D - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
90170-12009	JZX91	10/1992 - 09/1994	2
90170-12009	JZX91	09/1994 - 09/1996	1
48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48680-22020	GX90,JZX90,91,LX90,SX90..SC,SLT,SLTG,SUF	10/1992 - 09/1996	1
48609E - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
90170-12009	JZX91	09/1994 - 09/1996	1
90170-12009	JZX91	10/1992 - 09/1994	2
48810 - LINK ASSY, FRONT STABILIZER, LH
48820-22040	GX90,JZX90,91,LX90,SX90	10/1992 - 09/1995	1
48820-22041	GX90,JZX90,91,LX90,SX90	09/1995 - 09/1996	1
48811 - BAR, STABILIZER, FRONT
48811-22400	GX90,JZX90,91,LX90,SX90..SC,SLT,SLTG,SUF,TOUS	10/1992 - 09/1996	1
48815 - BUSH, FRONT STABILIZER BAR, NO.1
48815-22070	GX90,JZX9#,LX90,SX90	10/1992 - 07/1993	2
48815-22150	GX90,JZX90,91,LX90,SX90	07/1993 - 09/1996	2
48820A - NUT(FOR FRONT STABILIZER LINK)
90179-12047	GX90,JZX90,91,LX90,SX90 NO.2	10/1992 - 09/1996	2
90179-10054	GX90,JZX90,91,LX90,SX90 NO.1	10/1992 - 09/1996	2
48820A - NUT(FOR FRONT STABILIZER LINK)
90179-12047	GX90,JZX90,91,LX90,SX90 NO.2	10/1992 - 09/1996	2
90179-10054	GX90,JZX90,91,LX90,SX90 NO.1	10/1992 - 09/1996	2
48820B - LINK ASSY, FRONT STABILIZER, RH
48820-22040	GX90,JZX90,91,LX90,SX90	10/1992 - 09/1995	1
48820-22041	GX90,JZX90,91,LX90,SX90	09/1995 - 09/1996	1
48824A - BRACKET, FRONT STABILIZER, NO.1 RH
48809-22010	GX90,JZX90,91,LX90,SX90	10/1992 - 08/1995	1
48809-30020	GX90,JZX90,91,LX90,SX90	08/1995 - 09/1996	1
48827 - BRACKET, FRONT STABILIZER, NO.2 RH
48824-22060	GX90,JZX9#,LX90,SX90	10/1992 - 09/1996	1
48828 - BRACKET, FRONT STABILIZER, NO.2 LH
48824-22060	GX90,JZX9#,LX90,SX90	10/1992 - 09/1996	1
48829A - BRACKET, FRONT STABILIZER, NO.1 LH
48809-30030	GX90,JZX90,91,LX90,SX90	08/1995 - 09/1996	1
48809-22020	GX90,JZX90,91,LX90,SX90	10/1992 - 08/1995	1
Common parts
90105-12251
90179-08095
90179-12111
91615-60825
91621-60814
91645-80825
94110-40800

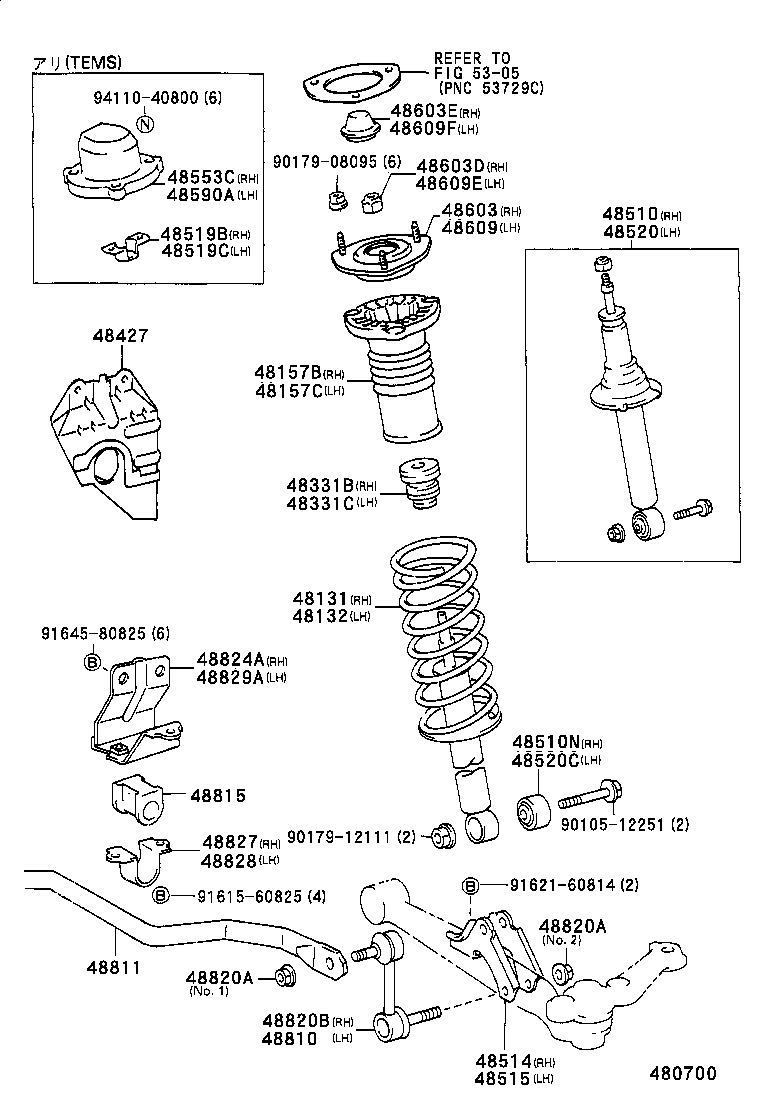

Linked diagrams
5305

JZX91-CEPZF (1992)

(9210- )GX90,JZX90,91,LX90,SX90
