JZX91-CEPZF (1992)
Toyota Cresta

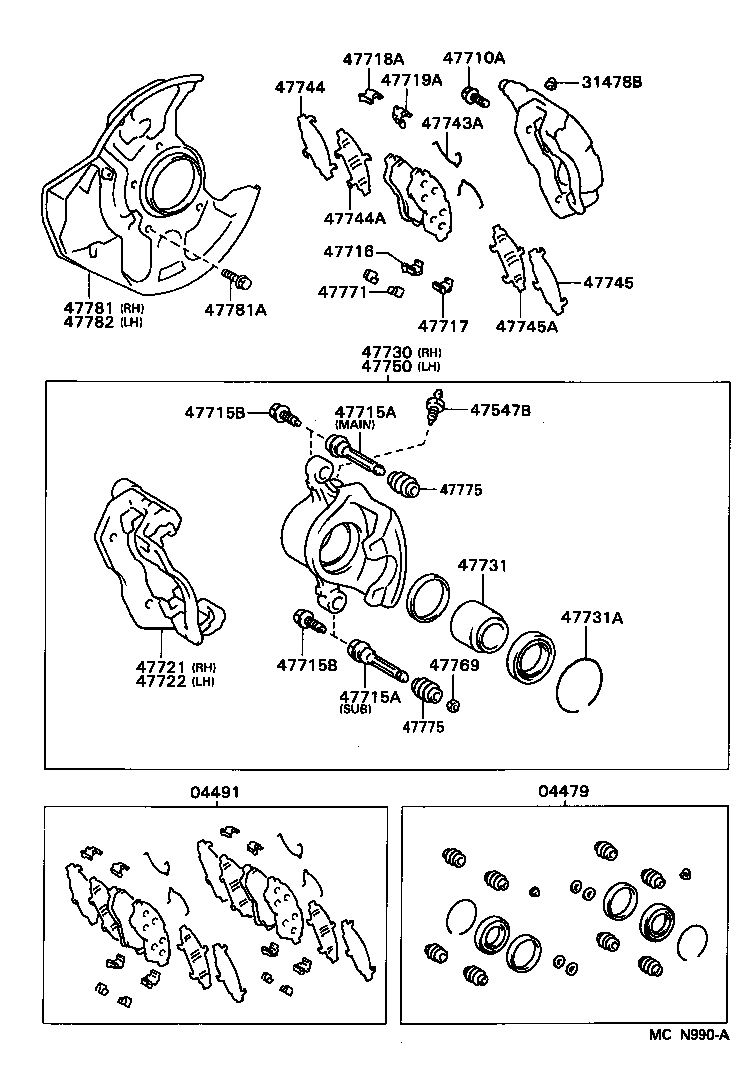

ILLUST NO. 1 OF 2(9210- )JZX90,91..SLT,SLTG,TOUS ; (9310- )JZX93
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04479-33010 |
JZX9#..SLT,SLTG,TOUS |
1 | ||
| 04491 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04491-22360 |
JZX9#..SLT,SLTG,TOUS |
1 | ||
| 31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-30010 |
GX90,JZX9#,LX90,SX90 |
2 | ||
| 47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-27030 |
JZX9# |
2 | ||
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90105-12228 |
GX90,JZX9#,LX90,SX90 *12−1.25PX32−24 |
4 | ||
| 47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE | ||||
| 47715-22080 |
JZX9#..SLT,SLTG,TOUS MAIN PIN SIDE |
2 | ||
| 47715-22070 |
JZX9#..SLT,SLTG,TOUS SUB PIN SIDE |
2 | ||
| 47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE | ||||
| 47715-22080 |
JZX9#..SLT,SLTG,TOUS MAIN PIN SIDE |
2 | ||
| 47715-22070 |
JZX9#..SLT,SLTG,TOUS SUB PIN SIDE |
2 | ||
| 47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE) | ||||
| 90105-08164 |
JZX9# |
4 | ||
| 47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE) | ||||
| 90105-08164 |
JZX9# |
4 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-50010 |
JZX9#..SLT,SLTG,TOUS |
2 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47716-50030 |
JZX9#..SLT,SLTG,TOUS |
2 | ||
| 47718A - PLATE, PAD SUPPORT, NO.3(FOR FRONT DISC BRAKE) | ||||
| 47717-50011 |
JZX9#..SLT,SLTG,TOUS |
2 | ||
| 47719A - PLATE, PAD SUPPORT, NO.4(FOR FRONT DISC BRAKE) | ||||
| 47717-50031 |
JZX9#..SLT,SLTG,TOUS |
2 | ||
| 47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH | ||||
| 47721-22150 |
JZX90,91..SLT,SLTG,TOUS |
1 | ||
| 47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH | ||||
| 47722-22110 |
JZX90,91..SLT,SLTG,TOUS |
1 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-22260 |
JZX90,91..SLT,SLTG,TOUS |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-33010 |
JZX9#..SLT,SLTG,TOUS |
2 | ||
| 47731A - RING, SET(FOR FRONT DISC BRAKE PISTON) | ||||
| 90522-66001 |
JZX9#..SLT,SLTG,TOUS |
4 | ||
| 47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE) | ||||
| 47743-50010 |
JZX9#..SLT,SLTG,TOUS |
4 | ||
| 47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47745-50010 |
JZX9#..SLT,SLTG,TOUS |
2 | ||
| 47744A - SHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE) | ||||
| 47744-50010 |
JZX9#..SLT,SLTG,TOUS |
2 | ||
| 47745 - SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47745-50010 |
JZX9#..SLT,SLTG,TOUS |
2 | ||
| 47745A - SHIM, ANTI-SQUEAL, NO.4(FOR FRONT DISC BRAKE) | ||||
| 47744-50010 |
JZX9#..SLT,SLTG,TOUS |
2 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-22260 |
JZX90,91..SLT,SLTG,TOUS |
1 | ||
| 47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47769-50010 |
JZX9# |
2 | ||
| 47771 - PLATE, PAD WEAR INDICATOR, NO.1 | ||||
| 47771-50010 |
JZX9#..SLT,SLTG,TOUS |
2 | ||
| 47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE) | ||||
| 47775-50010 |
JZX9# |
4 | ||
| 47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE) | ||||
| 47775-50010 |
JZX9# |
4 | ||
| 47781 - COVER, DISC BRAKE DUST, FRONT RH | ||||
| 47781-22160 |
JZX90,91..SLT,SLTG,TOUS |
1 | ||
| 47781-22161 |
JZX90,91..SLT,SLTG,TOUS |
1 | ||
| 47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING) | ||||
| 90148-60028 |
GX90,JZX90,91,LX90,SX90 |
8 | ||
| 90119-06227 |
GX90,JZX9#,LX90,SX90 |
8 | ||
| 47782 - COVER, DISC BRAKE DUST, FRONT LH | ||||
| 47782-22160 |
JZX90,91..SLT,SLTG,TOUS |
1 | ||
| 47782-22161 |
JZX90,91..SLT,SLTG,TOUS |
1 | ||
ILLUST NO. 2 OF 2(9210- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04465 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04465-30080 |
JZX9#..SLT,SLTG,TOUS ﾏｰｸ NBK PN529 |
1 | ||
| 04945 - SHIM KIT, ANTI SQUEAL, FRONT | ||||
| 04945-50020 |
JZX9#..SLT,SLTG,TOUS |
1 | ||
| 04947 - FITTING KIT, DISC BRAKE, FRONT | ||||
| 04947-50020 |
JZX9#..SLT,SLTG,TOUS |
1 | ||
