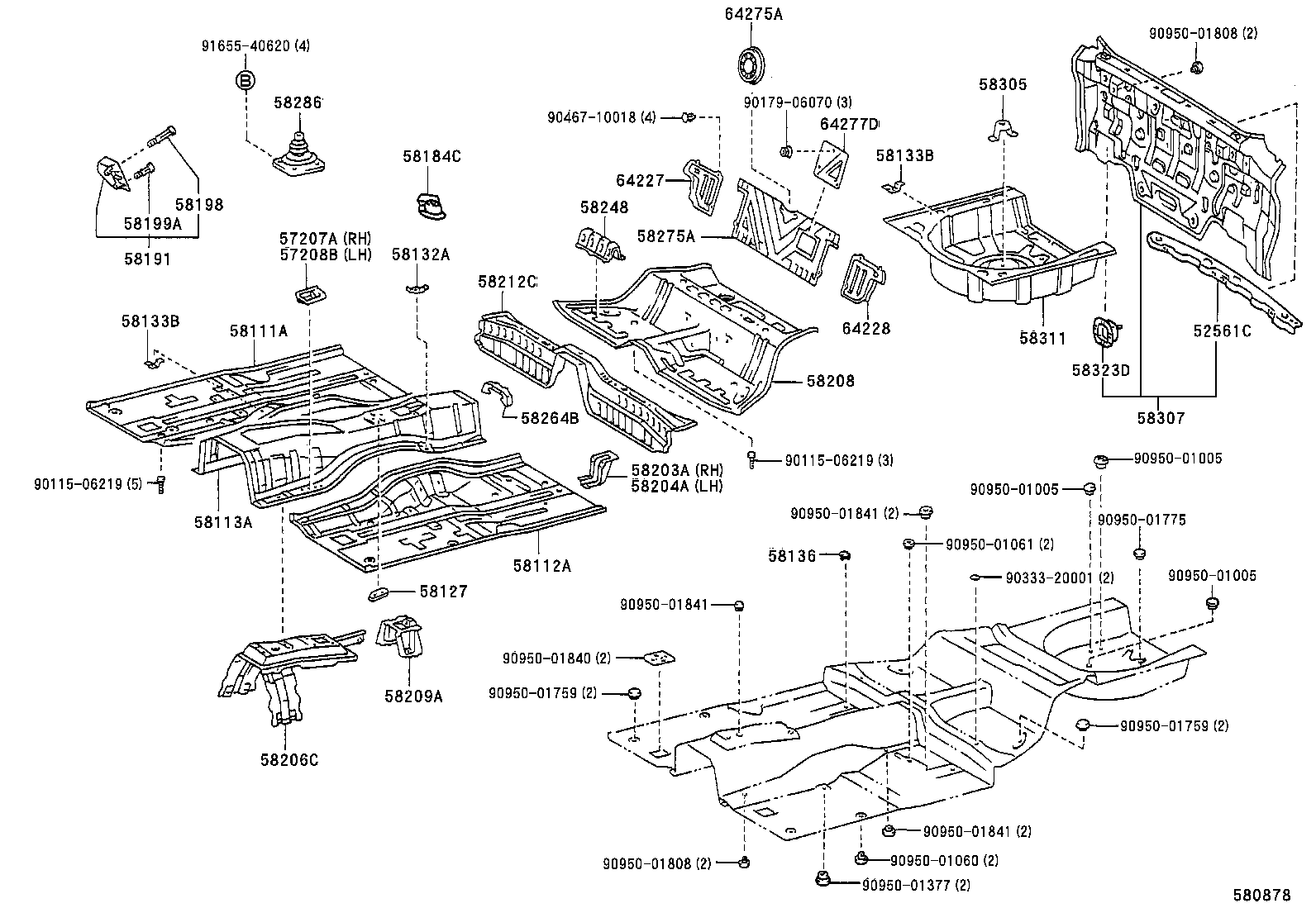

Toyota Cresta JZX90 FLOOR PAN & LOWER BACK PANEL

Part #	Description	Period	Qty
52561C - RETAINER, REAR BUMPER, UPPER CENTER
52561-22110	GX90,JZX9#,LX90,SX90	08/1994 - 09/1996	1
52561-22090	GX90,JZX9#,LX90,SX90	10/1992 - 08/1994	1
57207A - BRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER, RH
57207-22050	GX90,JZX90,91,LX90,SX90	10/1992 - 09/1996	1
57208B - BRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER, LH
57208-22050	GX90,JZX90,91,LX90,SX90	10/1992 - 09/1996	1
58111A - PAN, FRONT FLOOR, RH
58111-22170	GX90,JZX90,91,LX90,SX90	10/1992 - 09/1996	1
58112A - PANEL, FRONT FLOOR, LH
58112-22010	GX90,JZX90,91,LX90,SX90	10/1992 - 09/1996	1
58113A - PANEL, FRONT FLOOR, CENTER
58113-22010	GX90,JZX90,91,LX90,SX90	10/1992 - 09/1996	1
58127 - PATCH, FRONT FLOOR PANEL
58127-22010	GX90,JZX9#,LX90,SX90	10/1992 - 09/1996	1
58132A - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.2
58132-22050	GX90,JZX90,91,LX90,SX90	10/1992 - 09/1996	2
58133B - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.3
58133-22040	GX90,JZX9#,LX90,SX90	10/1992 - 09/1996	2
58133B - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.3
58133-22040	GX90,JZX9#,LX90,SX90	10/1992 - 09/1996	2
58136 - COVER, FRONT FLOOR HOLE
58136-24010	GX90,JZX9#,LX90,SX90	10/1992 - 09/1996	2
58191 - FOOTREST, FRONT FLOOR
58191-22080	GX90,JZX9#,LX90,SX90..ATM	10/1992 - 09/1996	1
58198 - CLIP, FOOTREST
58198-22080	GX90,JZX9#,LX90,SX90	10/1992 - 09/1996	1
58199A - CLIP, FOOTREST, NO.2
58199-22020	GX90,JZX9#,LX90,SX90	10/1992 - 09/1996	1
58203A - REINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, RH
58203-22050	GX90,JZX9#,LX90,SX90	10/1992 - 09/1996	1
58204A - REINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH
58204-22050	GX90,JZX9#,LX90,SX90	10/1992 - 09/1996	1
58206C - COVER SUB-ASSY, TRANSMISSION, REAR
58206-22070	GX90,JZX90,91,LX90,SX90..ATM	10/1992 - 09/1996	1
58208 - PAN, CENTER FLOOR
58211-22060	GX90,JZX9#,LX90,SX90	10/1992 - 03/1996	1
58211-22061	GX90,JZX9#,LX90,SX90	03/1996 - 09/1996	1
58209A - REINFORCEMENT SUB-ASSY, DRIVE SHAFT CENTER SUPPORT
58209-22060	GX90,JZX90,91,LX90,SX90..ATM	10/1992 - 09/1994	1
58209-22060	GX90,JZX90,91,LX90,SX90	09/1994 - 09/1996	1
58212C - PAN, CENTER FLOOR, FRONT
58212-22070	GX90,JZX9#,LX90,SX90	10/1992 - 09/1996	1
58248 - REINFORCEMENT, REAR SEAT CUSHION LOCK
58248-22010	GX90,JZX9#,LX90,SX90	10/1992 - 09/1996	2
58264B - BRACKET, PARKING BRAKE CABLE GUIDE
58264-22060	GX90,JZX9#,LX90,SX90	10/1992 - 09/1996	1
58275A - RETAINER, REAR SEAT BACK TO CENTER FLOOR
58275-22010	GX90,JZX9#,LX90,SX90	10/1992 - 09/1996	1
58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58305-10011	GX90,JZX9#,LX90,SX90	10/1992 - 09/1996	1
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-22630	GX90,JZX9#,LX90,SX90	10/1992 - 06/1993	1
58307-22650	GX90,JZX9#,LX90,SX90	06/1993 - 08/1994	1
58307-22700	GX90,JZX9#,LX90,SX90	08/1994 - 09/1996	1
58311 - PAN, REAR FLOOR
58311-22140	GX90,JZX9#,LX90,SX90	10/1992 - 09/1996	1
58323D - REINFORCEMENT, REAR BUMPER ARM SUPPORT
58323-22050	GX90,JZX9#,LX90,SX90	10/1992 - 09/1996	2
64227 - EXTENSION, CENTER FLOOR TO BRACE
64227-22040	GX90,JZX9#,LX90,SX90	10/1992 - 09/1996	1
64228 - EXTENSION, CENTER FLOOR TO BRACE, NO.2
64228-22030	GX90,JZX9#,LX90,SX90	10/1992 - 09/1996	1
64275A - COVER, ROOM PARTITION
64275-22020	GX90,JZX9#,LX90,SX90	10/1992 - 09/1996	1
64277D - COVER, ROOM PARTITION, NO.2
64277-22020	GX90,JZX9#,LX90,SX90	10/1992 - 09/1996	1
Common parts
90115-06219
90179-06070
90333-20001
90467-10018
90950-01005
90950-01060
90950-01061
90950-01377
90950-01759
90950-01775
90950-01808
90950-01840
90950-01841
91655-40620

JZX90-CEPVZ (1992)

(9210- )
