JZX90-CEPVF (1992)
Toyota Cresta

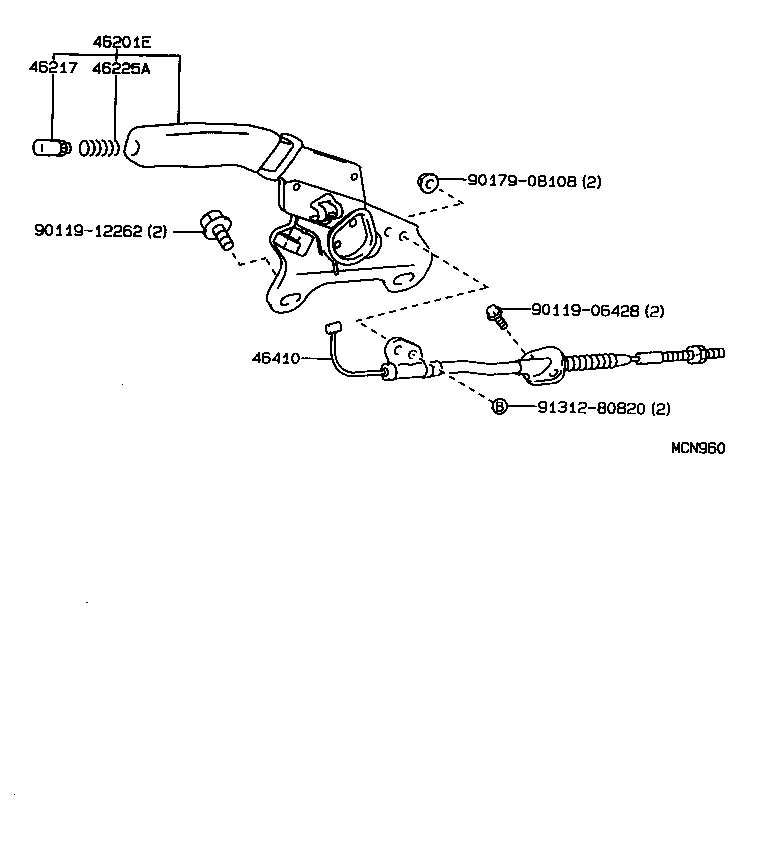

ILLUST NO. 1 OF 3(9210- )MTM..SLT,SUF ; (9210- )SC,TOUS,TOUV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46201E - LEVER SUB-ASSY, PARKING BRAKE | ||||
| 46201-22250C0 |
JZX90..TOUS,TOUV BLACK,TRIM6#,8# |
1 | ||
| 46217 - KNOB, PARKING BRAKE RELEASE ROD | ||||
| 46217-22060C0 |
JZX90..TOUS,TOUV BLACK,TRIM6#,8# |
1 | ||
| 46225A - SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD) | ||||
| 90501-10085 |
JZX90,LX90,SX90..SC,TOUS,TOUV;GX90,LX90,SX90..MTM..(SLT,SUF) |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-22210 |
JZX90,LX90,SX90..SC,TOUS,TOUV;GX90,LX90,SX90..MTM..(SLT,SUF) |
1 | ||
| Common parts | ||||
| 90119-06428 | ||||
| 90119-12262 | ||||
| 90179-08108 | ||||
| 91312-80820 | ||||

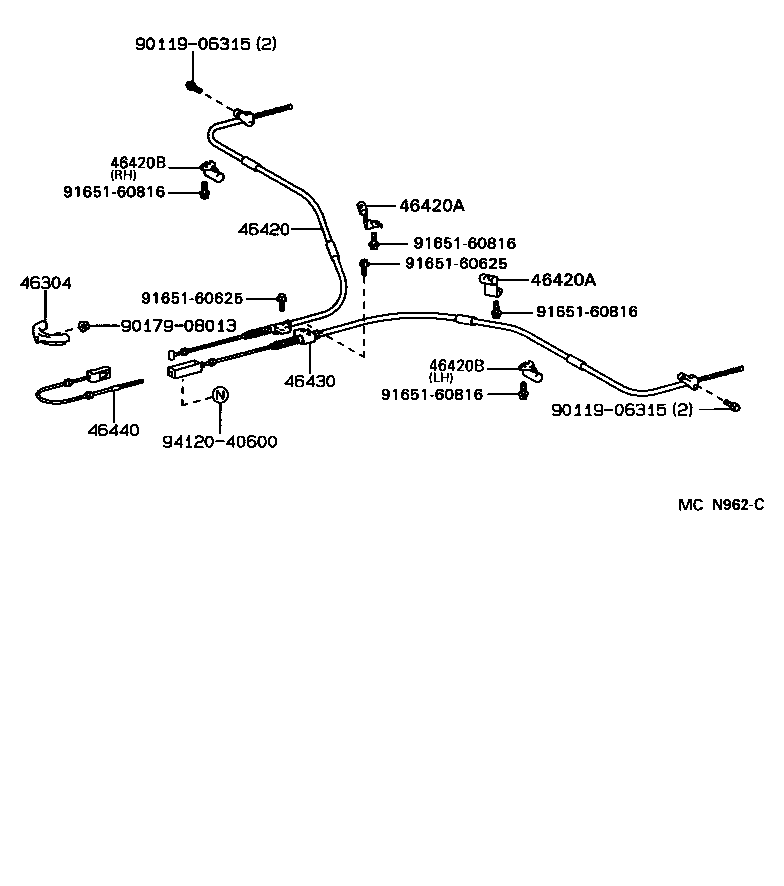

ILLUST NO. 2 OF 3(9210- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46304 - EQUALIZER SUB-ASSY, PARKING BRAKE | ||||
| 46341-22040 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-22370 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 46420-30560 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 46451-22061 |
GX90,JZX9#,LX90,SX90 |
2 | ||
| 46451-22060 |
GX90,JZX9#,LX90,SX90 |
2 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 46451-22061 |
GX90,JZX9#,LX90,SX90 |
2 | ||
| 46451-22060 |
GX90,JZX9#,LX90,SX90 |
2 | ||
| 46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE) | ||||
| 46451-22070 |
GX90,JZX9#,LX90,SX90 右側 |
1 | ||
| 46452-22040 |
GX90,JZX9#,LX90,SX90 左側 |
1 | ||
| 46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE) | ||||
| 46451-22070 |
GX90,JZX9#,LX90,SX90 右側 |
1 | ||
| 46452-22040 |
GX90,JZX9#,LX90,SX90 左側 |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-22300 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 46430-30130 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 46440 - CABLE ASSY, PARKING BRAKE, NO.4 | ||||
| 46440-22010 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 46440-22030 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| Common parts | ||||
| 90119-06315 | ||||
| 90179-08013 | ||||
| 91651-60625 | ||||
| 91651-60816 | ||||
| 94120-40600 | ||||

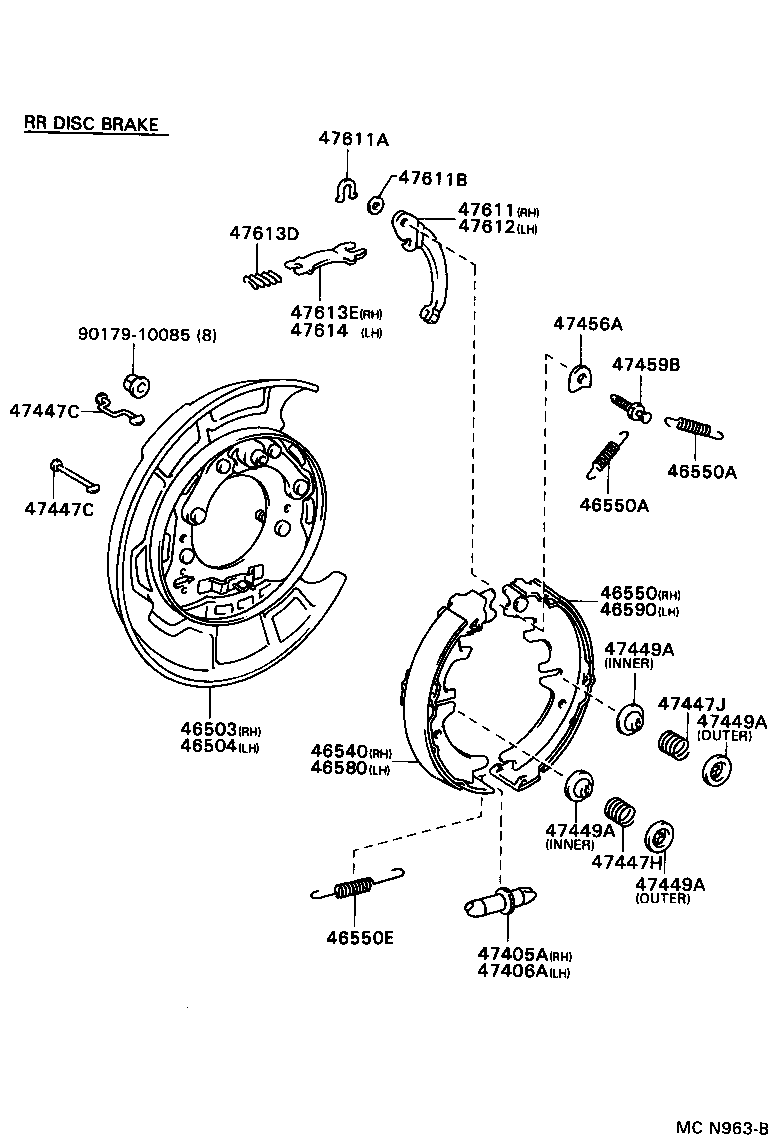

ILLUST NO. 3 OF 3(9210- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46503 - PLATE SUB-ASSY, PARKING BRAKE, RH | ||||
| 46503-22060 |
JZX9#..SLT,SLTG,TOUS |
1 | ||
| 46504 - PLATE SUB-ASSY, PARKING BRAKE, LH | ||||
| 46504-22060 |
JZX9#..SLT,SLTG,TOUS |
1 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| 46540-22040 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46550-22040 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90507-16009 |
GX90,JZX9#,LX90,SX90 |
4 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90507-16009 |
GX90,JZX9#,LX90,SX90 |
4 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-12010 |
GX90,JZX9#,LX90,SX90 |
2 | ||
| 46580 - SHOE ASSY, PARKING BRAKE, LH NO.1 | ||||
| 46540-22040 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 46590 - SHOE ASSY, PARKING BRAKE, LH NO.2 | ||||
| 46590-22040 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 47405A - SCREW SET, SHOE ADJUSTING, RH(FOR PARKING BRAKE) | ||||
| 47405-30040 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 47406A - SCREW SET, SHOE ADJUSTING, LH(FOR PARKING BRAKE) | ||||
| 47406-30040 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 47447C - PIN, SHOE HOLD DOWN SPRING(FOR PARKING BRAKE) | ||||
| 47447-30010 |
GX90,JZX9#,LX90,SX90 FRONT |
2 | ||
| 47447-22030 |
GX90,JZX9#,LX90,SX90 REAR |
2 | ||
| 47447C - PIN, SHOE HOLD DOWN SPRING(FOR PARKING BRAKE) | ||||
| 47447-30010 |
GX90,JZX9#,LX90,SX90 FRONT |
2 | ||
| 47447-22030 |
GX90,JZX9#,LX90,SX90 REAR |
2 | ||
| 47447H - SPRING, COMPRESSION, NO.1(FOR PARKING BRAKE SHOE HOLD D | ||||
| 90501-14049 |
GX90,JZX9#,LX90,SX90 |
2 | ||
| 47447J - SPRING, COMPRESSION, NO.2(FOR PARKING BRAKE SHOE HOLD D | ||||
| 90501-16053 |
GX90,JZX9#,LX90,SX90 |
2 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-30030 |
GX90,JZX9#,LX90,SX90 外側 |
4 | ||
| 47449-32010 |
GX90,JZX9#,LX90,SX90 内側 |
4 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-30030 |
GX90,JZX9#,LX90,SX90 外側 |
4 | ||
| 47449-32010 |
GX90,JZX9#,LX90,SX90 内側 |
4 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-30030 |
GX90,JZX9#,LX90,SX90 外側 |
4 | ||
| 47449-32010 |
GX90,JZX9#,LX90,SX90 内側 |
4 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-30030 |
GX90,JZX9#,LX90,SX90 外側 |
4 | ||
| 47449-32010 |
GX90,JZX9#,LX90,SX90 内側 |
4 | ||
| 47456A - PLATE, SHOE GUIDE(FOR PARKING BRAKE) | ||||
| 47456-20030 |
GX90,JZX9#,LX90,SX90 |
2 | ||
| 47456-33010 |
GX90,JZX9#,LX90,SX90 |
2 | ||
| 47459B - BOLT, SHOE GUIDE PLATE SET(FOR PARKING BRAKE) | ||||
| 47459-30010 |
GX90,JZX9#,LX90,SX90 |
2 | ||
| 47611 - LEVER, PARKING BRAKE SHOE, RH | ||||
| 47611-22040 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 47611A - WASHER, TYPE C(FOR PARKING BRAKE SHOE LEVER) | ||||
| 90213-07018 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 47611B - SHIM(FOR PARKING BRAKE SHOE LEVER) | ||||
| 90564-09186 |
GX90,JZX9#,LX90,SX90 厚さ=0.9 |
1 | ||
| 90564-09184 |
GX90,JZX9#,LX90,SX90 厚さ=0.3 |
1 | ||
| 90564-09185 |
GX90,JZX9#,LX90,SX90 厚さ=0.6 |
1 | ||
| 47612 - LEVER, PARKING BRAKE SHOE, LH | ||||
| 47612-22040 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 47613D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| 90504-14002 |
GX90,JZX9#,LX90,SX90 |
2 | ||
| 47613E - STRUT, PARKING BRAKE SHOE, RH | ||||
| 47613-20040 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 47614 - STRUT, PARKING BRAKE SHOE, LH | ||||
| 47614-20010 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| Common parts | ||||
| 90179-10085 | ||||
