JZX90-CEPVF (1992)

Toyota Cresta

Production Oct 1992 - Sep 1996
Engine 1JZGE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9210- )1JZGE,2JZGE

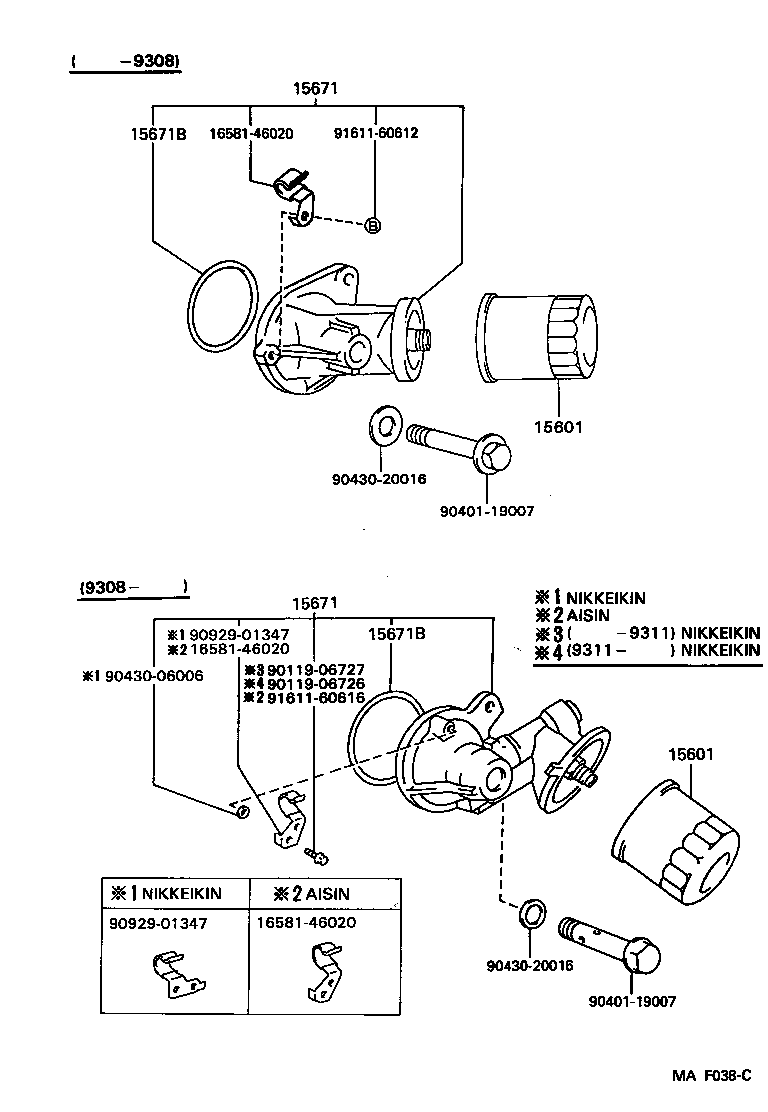

Click highlighted areas on diagram

diagram 15601 15601 15671 15671 15671B 15671B 1658146020 1658146020 1658146020 9011906726 9011906727 9040119007 9040119007 9043006006 9043020016 9043020016 9092901347 9092901347 9161160612 9161160616
Part # Description Qty Price
15601 - FILTER SUB-ASSY, OIL
90915-20001

1JZ#,2JZGE..JZX9#

 1
15601 - FILTER SUB-ASSY, OIL
90915-20001

1JZ#,2JZGE..JZX9#

 1
15671 - BRACKET, OIL FILTER
15670-46010

1JZGE,2JZGE..JZX9#

 1
15670-46052

1JZGE,2JZGE..JZX9#

 1
15670-46070

1JZGE,2JZGE..JZX9#

 1
15670-46070

1JZGE,2JZGE..JZX9#

 1
15671 - BRACKET, OIL FILTER
15670-46010

1JZGE,2JZGE..JZX9#

 1
15670-46052

1JZGE,2JZGE..JZX9#

 1
15670-46070

1JZGE,2JZGE..JZX9#

 1
15670-46070

1JZGE,2JZGE..JZX9#

 1
15671B - GASKET, OIL FILTER BRACKET
90301-68004

1JZ#,2JZGE..JZX9#

 1
90301-68004

1JZGE,2JZGE..JZX9#

 2
90301-68004

1JZ#,2JZGE..JZX9#

 1
15671B - GASKET, OIL FILTER BRACKET
90301-68004

1JZ#,2JZGE..JZX9#

 1
90301-68004

1JZGE,2JZGE..JZX9#

 2
90301-68004

1JZ#,2JZGE..JZX9#

 1
Common parts
16581-46020
90119-06726
90119-06727
90401-19007
90430-06006
90430-20016
90929-01347
91611-60612
91611-60616
