JZX90-CEMVZ (1992)
Toyota Cresta
Production
Oct 1992
-
Sep 1996
Engine
1JZGTE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9210- )JZX90..MTM

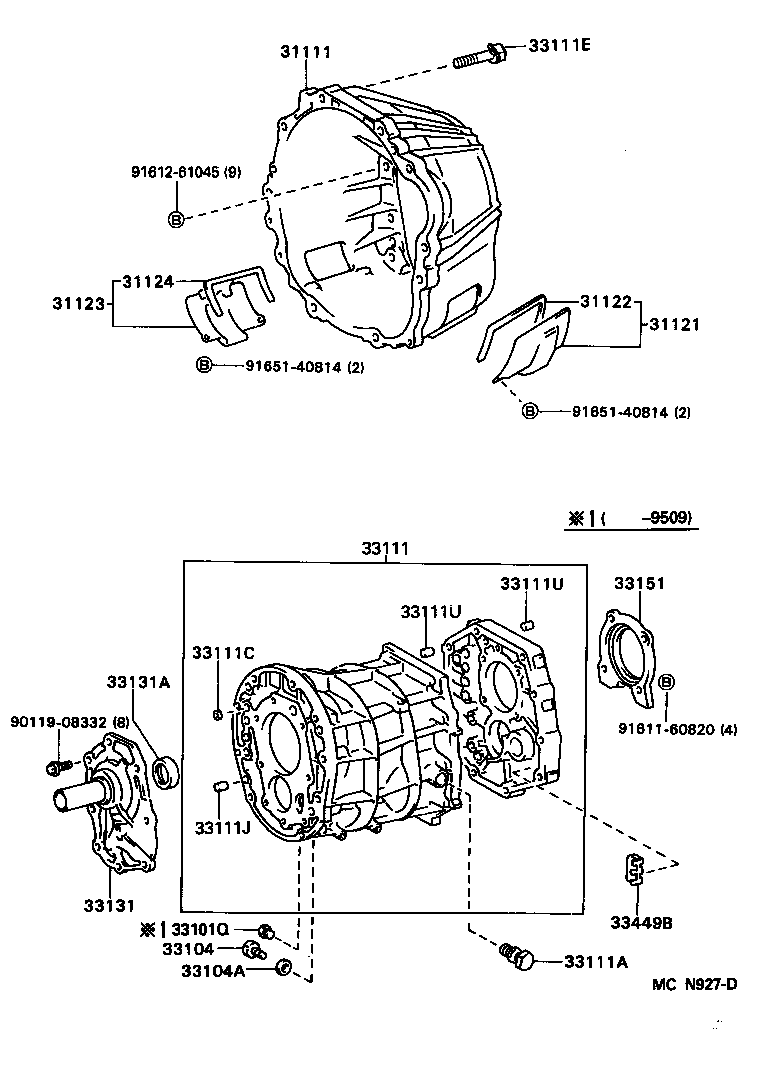

Click highlighted areas on diagram
R154
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31111 - HOUSING, CLUTCH | ||||
| 31111-14110 |
JZX90..MTM |
1 | ||
| 31121 - COVER, CLUTCH HOUSING, NO.1 | ||||
| 31101-14010 |
JZX90..MTM |
1 | ||
| 31122 - GASKET, CLUTCH HOUSING COVER | ||||
| 31122-14010 |
JZX90..MTM |
1 | ||
| 31123 - COVER, CLUTCH HOUSING, NO.2 | ||||
| 31102-14010 |
JZX90..MTM |
1 | ||
| 31124 - GASKET, CLUTCH HOUSING COVER, NO.2 | ||||
| 31124-14010 |
JZX90..MTM |
1 | ||
| 33101Q - PLUG, NO.1(FOR TRANSMISSION CASE) | ||||
| 90341-16013 |
JZX90..MTM |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18006 |
JZX90..MTM |
1 | ||
| 90341-18006 |
GX90,JZX90,LX90,SX90..MTM |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18008 |
GX90,JZX90,LX90,SX90..MTM |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33101-35080 |
JZX90..MTM |
1 | ||
| 33101-35100 |
JZX90..MTM |
1 | ||
| 33101-35031 |
JZX90..MTM |
1 | ||
| 33111A - PLUG, MANUAL TRANSMISSION CASE | ||||
| 90341-18026 |
JZX90..MTM |
1 | ||
| 33111C - PLUG(FOR TRANSMISSION CASE) | ||||
| 90331-14004 |
JZX90..MTM 外径=14 |
4 | ||
| 90331-14004 |
GX90,JZX90,LX90,SX90..MTM 外径=14 |
1 | ||
| 96411-41800 |
JZX90..MTM 外径=18 |
3 | ||
| 90331-14004 |
JZX90..MTM 外径=14 |
1 | ||
| 33111E - BOLT(FOR TRANSMISSION CASE & ENGINE SETTING) | ||||
| 91611-61040 |
JZX90..MTM *10-1.25PX40-30 |
4 | ||
| 91619-61250 |
JZX90..MTM *12-1.25PX50-30 |
5 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
JZX90..MTM 長さ=16,外径=12 |
2 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-15001 |
JZX90..MTM 長さ=14,外径=15 |
4 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-15001 |
JZX90..MTM 長さ=14,外径=15 |
4 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33131-35031 |
JZX90..MTM |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-32012 |
JZX90..MTM |
1 | ||
| 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) | ||||
| 33151-35020 |
JZX90..MTM |
1 | ||
| 33449B - MAGNET, TRANSMISSION | ||||
| 33449-35010 |
JZX90..MTM |
1 | ||
| 33449-35030 |
JZX90..MTM |
1 | ||
| Common parts | ||||
| 90119-08332 | ||||
| 91611-60820 | ||||
| 91612-61045 | ||||
| 91651-40814 | ||||
