JZX90-CEMVZ (1992)
Toyota Cresta

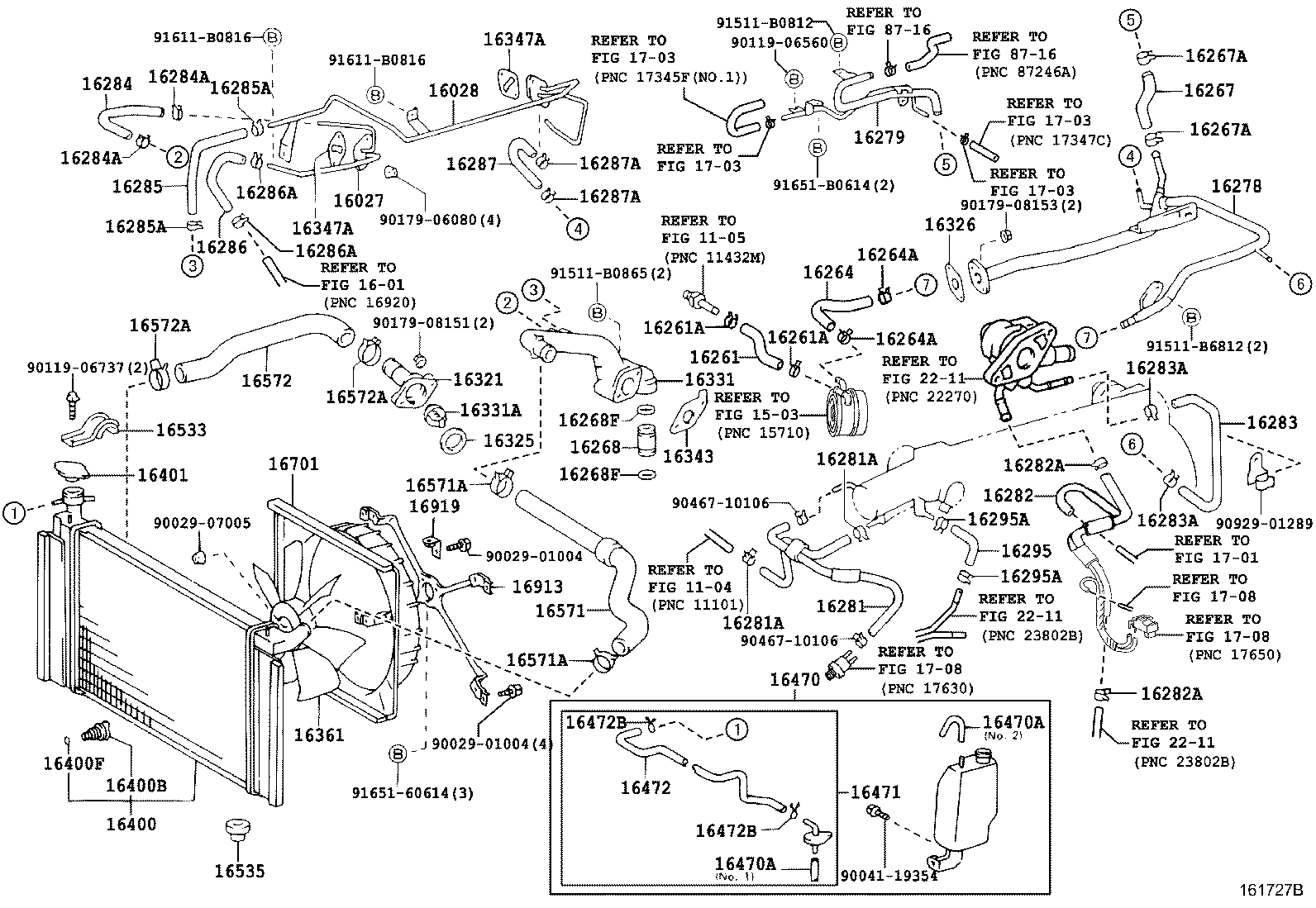

(9210- )1JZGTE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16027 - PIPE SUB-ASSY, TURBO WATER, NO.1 | ||||
| 16027-88400 |
1JZGTE..JZX90 |
1 | ||
| 16028 - PIPE SUB-ASSY, TURBO WATER, NO.2 | ||||
| 16028-88400 |
1JZGTE..JZX90 |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-88401 |
1JZGTE..JZX90 |
1 | ||
| 16261-88400 |
1JZGTE..JZX90 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-20005 |
1JZGTE..JZX90 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-20005 |
1JZGTE..JZX90 |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-88401 |
1JZGTE..JZX90 |
1 | ||
| 16264-88400 |
1JZGTE..JZX90 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-20005 |
1JZGTE..JZX90 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-20005 |
1JZGTE..JZX90 |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-88400 |
1JZGTE..JZX90 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-22003 |
1JZGTE..JZX90 |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-22003 |
1JZGTE..JZX90 |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-88400 |
1JZGTE..JZX90 |
1 | ||
| 16268F - RING, O(FOR WATER BY-PASS PIPE) | ||||
| 96761-24023 |
1JZGTE..JZX90 |
2 | ||
| 16268F - RING, O(FOR WATER BY-PASS PIPE) | ||||
| 96761-24023 |
1JZGTE..JZX90 |
2 | ||
| 16278 - PIPE, WATER BY-PASS, NO.2 | ||||
| 16278-88400 |
1JZGTE..JZX90 |
1 | ||
| 16278-88401 |
1JZGTE..JZX90 |
1 | ||
| 16279 - PIPE, WATER BY-PASS, NO.3 | ||||
| 16279-88400 |
1JZGTE..JZX90 |
1 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-88400 |
1JZGTE..JZX90 |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 90467-13051 |
1JZGTE..JZX90 |
2 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 90467-13051 |
1JZGTE..JZX90 |
2 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-88400 |
1JZGTE..JZX90 |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90467-13051 |
1JZGTE..JZX90 |
2 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90467-13051 |
1JZGTE..JZX90 |
2 | ||
| 16283 - HOSE, WATER BY-PASS, NO.6 | ||||
| 16283-88400 |
1JZGTE..JZX90 |
1 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 90467-13051 |
1JZGTE..JZX90 |
2 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 90467-13051 |
1JZGTE..JZX90 |
2 | ||
| 16284 - HOSE, TURBO WATER, NO.1 | ||||
| 16284-88400 |
1JZGTE..JZX90 |
1 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 90467-15016 |
1JZGTE..JZX90 |
2 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 90467-15016 |
1JZGTE..JZX90 |
2 | ||
| 16285 - HOSE, TURBO WATER, NO.2 | ||||
| 16285-88400 |
1JZGTE..JZX90 |
1 | ||
| 16285A - CLIP(FOR TURBO WATER HOSE NO.2) | ||||
| 90467-15016 |
1JZGTE..JZX90 |
2 | ||
| 16285A - CLIP(FOR TURBO WATER HOSE NO.2) | ||||
| 90467-15016 |
1JZGTE..JZX90 |
2 | ||
| 16286 - HOSE, TURBO WATER, NO.3 | ||||
| 16286-88400 |
1JZGTE..JZX90 |
1 | ||
| 16286A - CLIP(FOR TURBO WATER HOSE NO.3) | ||||
| 90467-15016 |
1JZGTE..JZX90 |
2 | ||
| 16286A - CLIP(FOR TURBO WATER HOSE NO.3) | ||||
| 90467-15016 |
1JZGTE..JZX90 |
2 | ||
| 16287 - HOSE, TURBO WATER, NO.4 | ||||
| 16287-88400 |
1JZGTE..JZX90 |
1 | ||
| 16287A - CLIP(FOR TURBO WATER HOSE NO.4) | ||||
| 90467-15016 |
1JZGTE..JZX90 |
2 | ||
| 16287A - CLIP(FOR TURBO WATER HOSE NO.4) | ||||
| 90467-15016 |
1JZGTE..JZX90 |
2 | ||
| 16295 - HOSE, WATER BY-PASS, NO.7 | ||||
| 16295-88400 |
1JZGTE..JZX90 |
1 | ||
| 16295A - CLIP(FOR WATER BY-PASS HOSE NO.7) | ||||
| 90467-13051 |
1JZGTE..JZX90 |
2 | ||
| 16295A - CLIP(FOR WATER BY-PASS HOSE NO.7) | ||||
| 90467-13051 |
1JZGTE..JZX90 |
2 | ||
| 16321 - INLET, WATER | ||||
| 16321-88401 |
1JZGTE..JZX90 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-62010 |
1JZ#,2JZGE..JZX9# |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16325-46010 |
1JZ#,2JZGE..JZX9# |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16304-88401 |
1JZGTE..JZX90 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03093 |
1JZ#,2JZGE..JZX9# *WAX 82−95 |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-88400 |
1JZGTE..JZX90 |
1 | ||
| 16347A - GASKET(FOR TURBO WATER PIPE) | ||||
| 16347-88380 |
1JZGTE..JZX90 |
2 | ||
| 16347A - GASKET(FOR TURBO WATER PIPE) | ||||
| 16347-88380 |
1JZGTE..JZX90 |
2 | ||
| 16361 - FAN | ||||
| 16911-46030 |
1JZGTE..JZX90 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16041-46250 |
1JZGTE..JZX90..MTM |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
1JZ#,2JZGE..JZX9# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96711-19007 |
1JZ#,2JZGE..JZX9# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-72090 |
1JZ#,2JZGE..JZX9# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-46090 |
1JZGTE..JZX90 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16477-46090 |
1JZGTE..JZX90 NO.2 |
1 | ||
| 90445-12078 |
1JZGTE..JZX90 長さ=600,NO.1 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16477-46090 |
1JZGTE..JZX90 NO.2 |
1 | ||
| 90445-12078 |
1JZGTE..JZX90 長さ=600,NO.1 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-46040 |
1JZGTE..JZX90 |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 16472-46090 |
1JZGTE..JZX90 |
1 | ||
| 16472B - CLIP(FOR BREATHER HOSE) | ||||
| 90467-11085 |
1JZGTE..JZX90 |
2 | ||
| 16472B - CLIP(FOR BREATHER HOSE) | ||||
| 90467-11085 |
1JZGTE..JZX90 |
2 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16505-46030 |
1JZGTE..JZX90 |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90480-40010 |
1JZ#,2JZGE..JZX9# |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-46120 |
1JZGTE..JZX90 |
1 | ||
| 16571-46121 |
1JZGTE..JZX90 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37002 |
1JZ#,2JZGE..JZX9# |
2 | ||
| 90467-37006 |
1JZ#,2JZGE..JZX9# |
2 | ||
| 90467-37006 |
1JZ#,2JZGE..JZX9# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37002 |
1JZ#,2JZGE..JZX9# |
2 | ||
| 90467-37006 |
1JZ#,2JZGE..JZX9# |
2 | ||
| 90467-37006 |
1JZ#,2JZGE..JZX9# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-46140 |
1JZGTE..JZX90 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37002 |
1JZ#,2JZGE..JZX9# ﾗｼﾞｴｰﾀ側 |
1 | ||
| 90467-41007 |
1JZ#,2JZGE..JZX9# INLET SIDE |
1 | ||
| 90467-37006 |
1JZ#,2JZGE..JZX9# ﾗｼﾞｴｰﾀ側 |
1 | ||
| 90467-37006 |
1JZ#,2JZGE..JZX9# ﾗｼﾞｴｰﾀ側 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37002 |
1JZ#,2JZGE..JZX9# ﾗｼﾞｴｰﾀ側 |
1 | ||
| 90467-41007 |
1JZ#,2JZGE..JZX9# INLET SIDE |
1 | ||
| 90467-37006 |
1JZ#,2JZGE..JZX9# ﾗｼﾞｴｰﾀ側 |
1 | ||
| 90467-37006 |
1JZ#,2JZGE..JZX9# ﾗｼﾞｴｰﾀ側 |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16912-46040 |
1JZGTE..JZX90 |
1 | ||
| 16913 - STAY, HYDRAULIC MOTOR FAN SHROUD | ||||
| 16913-46040 |
1JZGTE..JZX90 |
1 | ||
| 16919 - CLAMP, HYDRAULIC MOTOR FAN SHROUD STAY | ||||
| 16919-46040 |
1JZGTE..JZX90 |
1 | ||
| Common parts | ||||
| 90029-01004 | ||||
| 90029-07005 | ||||
| 90041-19354 | ||||
| 90119-06560 | ||||
| 90119-06737 | ||||
| 90179-06080 | ||||
| 90179-08151 | ||||
| 90179-08153 | ||||
| 90467-10106 | ||||
| 90929-01289 | ||||
| 91511-B0812 | ||||
| 91511-B0865 | ||||
| 91511-B6812 | ||||
| 91611-B0816 | ||||
| 91651-60614 | ||||
| 91651-B0614 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1105 | ||||
| 1503 | ||||
| 1601 | ||||
| 1701 | ||||
| 1703 | ||||
| 1708 | ||||
| 2211 | ||||
| 8716 | ||||

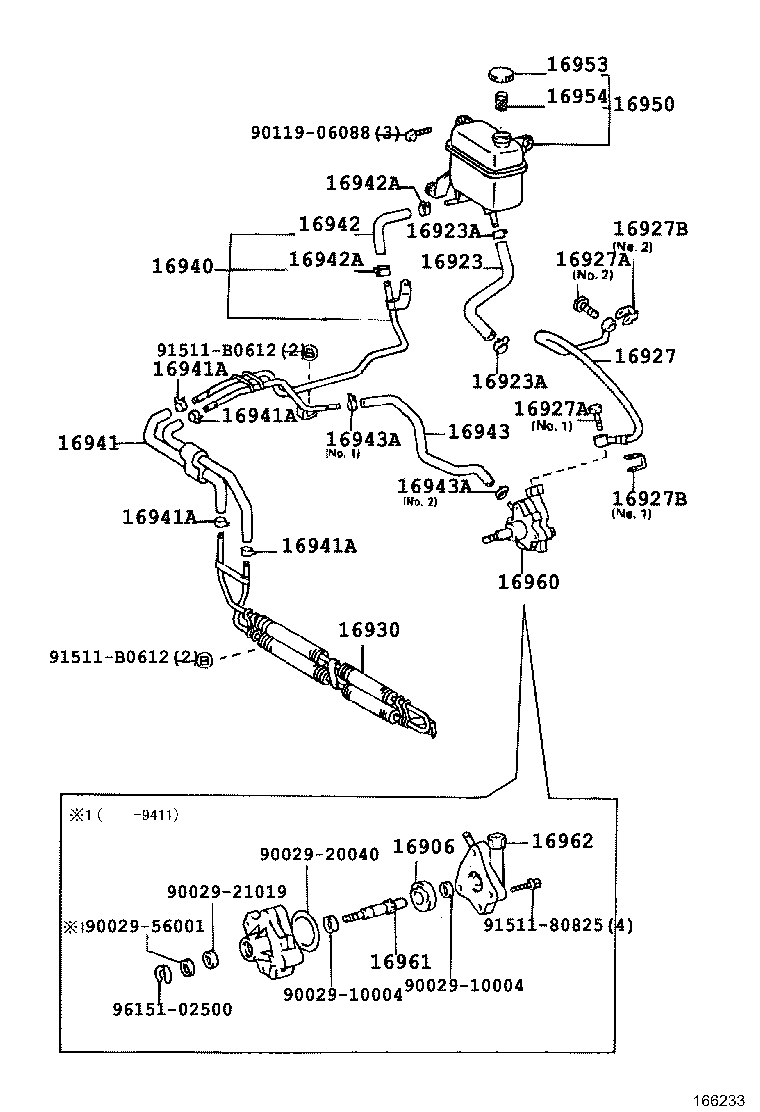

(9210- )1JZGTE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16906 - GEAR SET, HYDRAULIC | ||||
| 16906-46010 |
1JZGTE..JZX90 ﾏｰｸ 1 |
1 | ||
| 16906-46030 |
1JZGTE..JZX90 ﾏｰｸ 3 |
1 | ||
| 16906-46020 |
1JZGTE..JZX90 ﾏｰｸ 2 |
1 | ||
| 16906-46050 |
1JZGTE..JZX90 ﾏｰｸ 5 |
1 | ||
| 16906-46040 |
1JZGTE..JZX90 ﾏｰｸ 4 |
1 | ||
| 16923 - HOSE, HYDRAULIC MOTOR SUCTION, NO.1 | ||||
| 16923-46040 |
1JZGTE..JZX90 |
1 | ||
| 16923A - CLIP(FOR SUCTION HOSE NO.1) | ||||
| 90467-21010 |
1JZGTE..JZX90 |
2 | ||
| 90467-22012 |
1JZGTE..JZX90 |
2 | ||
| 16923A - CLIP(FOR SUCTION HOSE NO.1) | ||||
| 90467-21010 |
1JZGTE..JZX90 |
2 | ||
| 90467-22012 |
1JZGTE..JZX90 |
2 | ||
| 16927 - HOSE, HYDRAULIC MOTOR PRESSURE | ||||
| 16927-46040 |
1JZGTE..JZX90 |
1 | ||
| 16927A - BOLT, UNION(FOR PRESSURE HOSE) | ||||
| 90401-16015 |
1JZGTE..JZX90 |
2 | ||
| 16927A - BOLT, UNION(FOR PRESSURE HOSE) | ||||
| 90401-16015 |
1JZGTE..JZX90 |
2 | ||
| 16927B - GASKET(FOR PRESSURE HOSE) | ||||
| 44327-12010 |
1JZGTE..JZX90 NO.1 |
1 | ||
| 44327-12010 |
1JZGTE..JZX90 |
2 | ||
| 44327-30030 |
1JZGTE..JZX90 NO.2 |
1 | ||
| 16927B - GASKET(FOR PRESSURE HOSE) | ||||
| 44327-12010 |
1JZGTE..JZX90 NO.1 |
1 | ||
| 44327-12010 |
1JZGTE..JZX90 |
2 | ||
| 44327-30030 |
1JZGTE..JZX90 NO.2 |
1 | ||
| 16930 - COOLER ASSY, HYDRAULIC MOTOR OIL | ||||
| 16930-46020 |
1JZGTE..JZX90 |
1 | ||
| 16940 - PIPE ASSY, HYDRAULIC MOTOR RETURN | ||||
| 16940-46030 |
1JZGTE..JZX90 |
1 | ||
| 16941 - HOSE, HYDRAULIC MOTOR RETURN, NO.1 | ||||
| 16941-46040 |
1JZGTE..JZX90 |
1 | ||
| 16941A - CLIP(FOR RETURN NO.1) | ||||
| 90467-16003 |
1JZGTE..JZX90 |
4 | ||
| 16941A - CLIP(FOR RETURN NO.1) | ||||
| 90467-16003 |
1JZGTE..JZX90 |
4 | ||
| 16941A - CLIP(FOR RETURN NO.1) | ||||
| 90467-16003 |
1JZGTE..JZX90 |
4 | ||
| 16941A - CLIP(FOR RETURN NO.1) | ||||
| 90467-16003 |
1JZGTE..JZX90 |
4 | ||
| 16942 - HOSE, HYDRAULIC MOTOR RETURN, NO.2 | ||||
| 16942-46040 |
1JZGTE..JZX90 |
1 | ||
| 16942A - CLIP(FOR RETURN HOSE NO.2) | ||||
| 90467-16003 |
1JZGTE..JZX90 |
2 | ||
| 16942A - CLIP(FOR RETURN HOSE NO.2) | ||||
| 90467-16003 |
1JZGTE..JZX90 |
2 | ||
| 16943 - HOSE, HYDRAULIC MOTOR RETURN, NO.3 | ||||
| 16943-46040 |
1JZGTE..JZX90 |
1 | ||
| 16943A - CLIP(FOR RETURN HOSE NO.3) | ||||
| 90467-16013 |
1JZGTE..JZX90 NO.2 |
1 | ||
| 90467-16008 |
1JZGTE..JZX90 NO.2 |
1 | ||
| 90467-16003 |
1JZGTE..JZX90 NO.1 |
1 | ||
| 16943A - CLIP(FOR RETURN HOSE NO.3) | ||||
| 90467-16013 |
1JZGTE..JZX90 NO.2 |
1 | ||
| 90467-16008 |
1JZGTE..JZX90 NO.2 |
1 | ||
| 90467-16003 |
1JZGTE..JZX90 NO.1 |
1 | ||
| 16950 - TANK ASSY, HYDRAULIC MOTOR RESERVE | ||||
| 16950-46040 |
1JZGTE..JZX90 |
1 | ||
| 16953 - CAP, HYDRAULIC MOTOR RESERVE TANK | ||||
| 16953-50020 |
1JZGTE..JZX90 |
1 | ||
| 16954 - STRAINER, HYDRAULIC MOTOR RESERVE TANK | ||||
| 16954-50010 |
1JZGTE..JZX90 |
1 | ||
| 16960 - MOTOR ASSY, HYDRAULIC GEAR | ||||
| 16960-46030 |
1JZGTE..JZX90 |
1 | ||
| 16961 - SHAFT, HYDRAULIC GEAR MOTOR | ||||
| 16961-46030 |
1JZGTE..JZX90 |
1 | ||
| 16962 - COVER, HYDRAULIC GEAR MOTOR | ||||
| 16962-46030 |
1JZGTE..JZX90 |
1 | ||
| Common parts | ||||
| 90029-10004 | ||||
| 90029-20040 | ||||
| 90029-21019 | ||||
| 90029-56001 | ||||
| 90119-06088 | ||||
| 91511-80825 | ||||
| 91511-B0612 | ||||
| 96151-02500 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
