JZX81-CEPZF (1990)

Toyota Cresta

Production Aug 1990 - Oct 1992
Engine 1JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9008- )

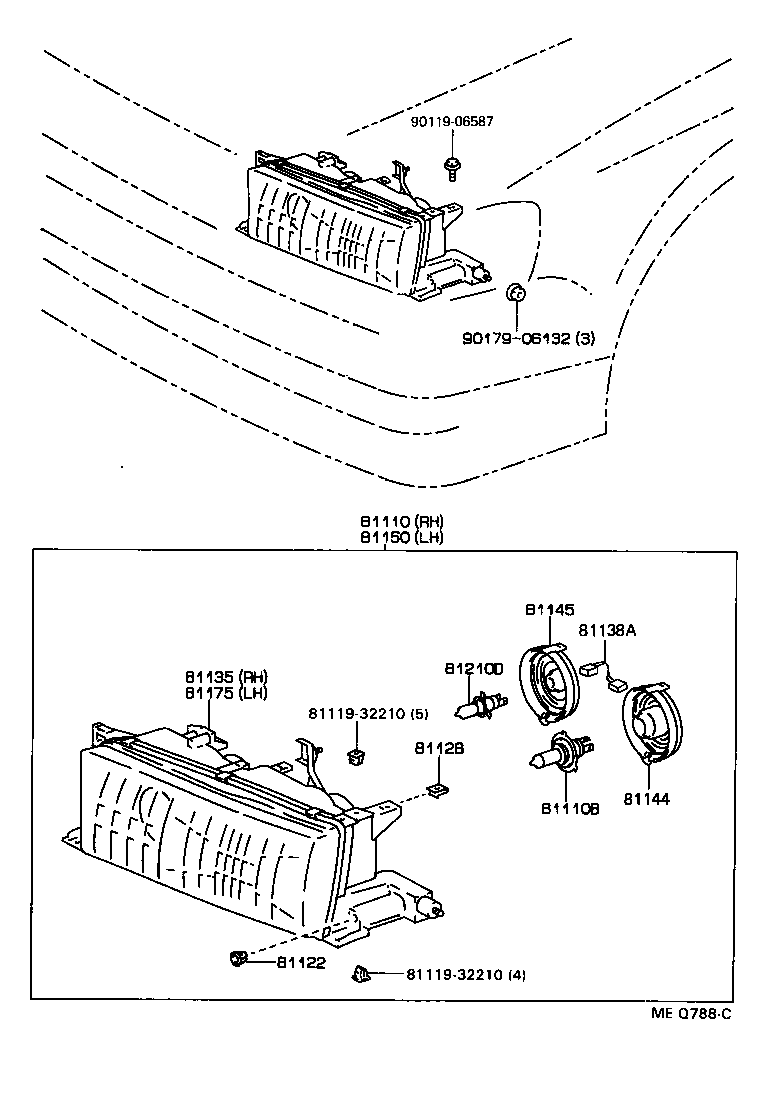

Click highlighted areas on diagram

diagram 81110 81110B 8111932210 8111932210 81122 81128 81135 81138A 81144 81145 81150 81175 81210D 9011906587 9017906132
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-23020

GX81,JZX81,LX80,MX83,SX80,YX80

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13015

GX81,JZX81,LX80,MX83,SX80,YX80

12V 60/55W,*HAL *WH

 2
81122 - HOLDER, HEADLAMP
81122-32210

GX81,JZX81,LX80,MX83,SX80,YX80

 2
81135 - UNIT ASSY, HEADLAMP, RH
81130-23020

GX81,JZX81,LX80,MX83,SX80,YX80

 1
81138A - SOCKET & WIRE, HEADLAMP
81138-23010

GX81,JZX81,LX80,MX83,SX80,YX80

 2
81144 - COVER, HEADLAMP, NO.1
81139-23010

GX81,JZX81,LX80,MX83,SX80,YX80

 2
81145 - COVER, HEADLAMP, NO.2
81139-23020

GX81,JZX81,LX80,MX83,SX80,YX80

 2
81150 - HEADLAMP ASSY, LH
81150-23020

GX81,JZX81,LX80,MX83,SX80,YX80

 1
81175 - UNIT ASSY, HEADLAMP, LH
81170-23020

GX81,JZX81,LX80,MX83,SX80,YX80

 1
81210D - BULB, FOG LAMP
90981-13039

GX81,JZX81,LX80,MX83,SX80,YX80

12V 55W,ﾊﾛｹﾞﾝ

 2
Common parts
81119-32210
90119-06587
90179-06132
