JZX81-CEPZF (1990)
Toyota Cresta
(8808-9210)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64401-91622 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL) | ||||
| 90541-06076 |
GX81,JZX81,LX80,MX83,SX80,YX80 ﾀｲﾌﾟ A |
4 | ||
| 90541-09056 |
GX81,JZX81,LX80,MX83,SX80,YX80 ﾀｲﾌﾟ B |
2 | ||
| 64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR | ||||
| 64461-91606 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 64503 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH | ||||
| 64503-91607 |
GX81,JZX81,MX83..(GT,SLTG)..(TWC,TWT) ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ) |
1 | ||
| 64503-91605 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 64504 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH | ||||
| 64503-91605 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 64503-91607 |
GX81,JZX81,MX83..(GT,SLTG)..(TWC,TWT) ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ) |
1 | ||
| 64511 - SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH | ||||
| 64511-91603 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 64512 - SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH | ||||
| 64512-91603 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH | ||||
| 64531-91614 |
GX81,JZX81,LX80,SX80,YX80..GT,KYO,SCM,SDX,SLT |
1 | ||
| 64531-91620 |
GX81,JZX81,MX83..SLTG |
1 | ||
| 64531-91620 |
GX81,JZX81,LX80,SX80,YX80..GT,KYO,SCM,SDX,SLT ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH | ||||
| 64532-91615 |
GX81,JZX81,LX80,SX80,YX80..GT,KYO,SCM,SDX,SLT |
1 | ||
| 64532-91621 |
GX81,JZX81,MX83..SLTG |
1 | ||
| 64532-91621 |
GX81,JZX81,LX80,SX80,YX80..GT,KYO,SCM,SDX,SLT ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 64559 - PIN, LUGGAGE DOOR HINGE | ||||
| 64559-22020 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
2 | ||
| 64559 - PIN, LUGGAGE DOOR HINGE | ||||
| 64559-22020 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
2 | ||
| 64571 - COVER, LUGGAGE COMPARTMENT DOOR HINGE | ||||
| 64571-30020 |
GX81,JZX81,LX80,SX80,YX80..GT,KYO,SCM,SDX,SLT |
2 | ||
| 64571 - COVER, LUGGAGE COMPARTMENT DOOR HINGE | ||||
| 64571-30020 |
GX81,JZX81,LX80,SX80,YX80..GT,KYO,SCM,SDX,SLT |
2 | ||
| 64573 - PROTECTOR, LUGGAGE DOOR OPENER CABLE, RH | ||||
| 64573-22020 |
GX81,JZX81,LX80,SX80..GT,SCM,SDX,SLT |
1 | ||
| 64573-22010 |
GX81,JZX81,LX80,MX83,SX80,YX80..KYO,SLTG |
1 | ||
| 64573-22010 |
GX81,JZX81,LX80,SX80..GT,SCM,SDX,SLT ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64610-22110 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 64620A - SPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK) | ||||
| 90506-05002 |
GX81,JZX81,LX80,MX83,SX80,YX80 WHITE |
1 | ||
| 90506-06009 |
GX81,JZX81,LX80,MX83,SX80,YX80 GREEN |
1 | ||
| 64620A - SPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK) | ||||
| 90506-05002 |
GX81,JZX81,LX80,MX83,SX80,YX80 WHITE |
1 | ||
| 90506-06009 |
GX81,JZX81,LX80,MX83,SX80,YX80 GREEN |
1 | ||
| 64621B - STRIKER, LUGGAGE COMPARTMENT DOOR LOCK | ||||
| 64621-22040 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 64640 - OPENER ASSY, LUGGAGE DOOR LOCK | ||||
| 64640-2221002 |
GX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG NEW MAROON,TRIM3# |
1 | ||
| 64640-2221006 |
GX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG SABLE,TRIM4# |
1 | ||
| 64640-2221003 |
GX81,JZX81,LX80,MX83,SX80 MEDIUM GRAY,TRIM1# |
1 | ||
| 64658 - BRACKET, LUGGAGE CONTROL CABLE, RH | ||||
| 64658-22010 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| Common parts | ||||
| 90105-06083 | ||||
| 90105-06103 | ||||
| 90164-60022 | ||||
| 90189-06029 | ||||
| 90541-07016 | ||||
| 90950-01759 | ||||
| 90950-06051 | ||||
| 90959-01369 | ||||
| 93315-15010 | ||||

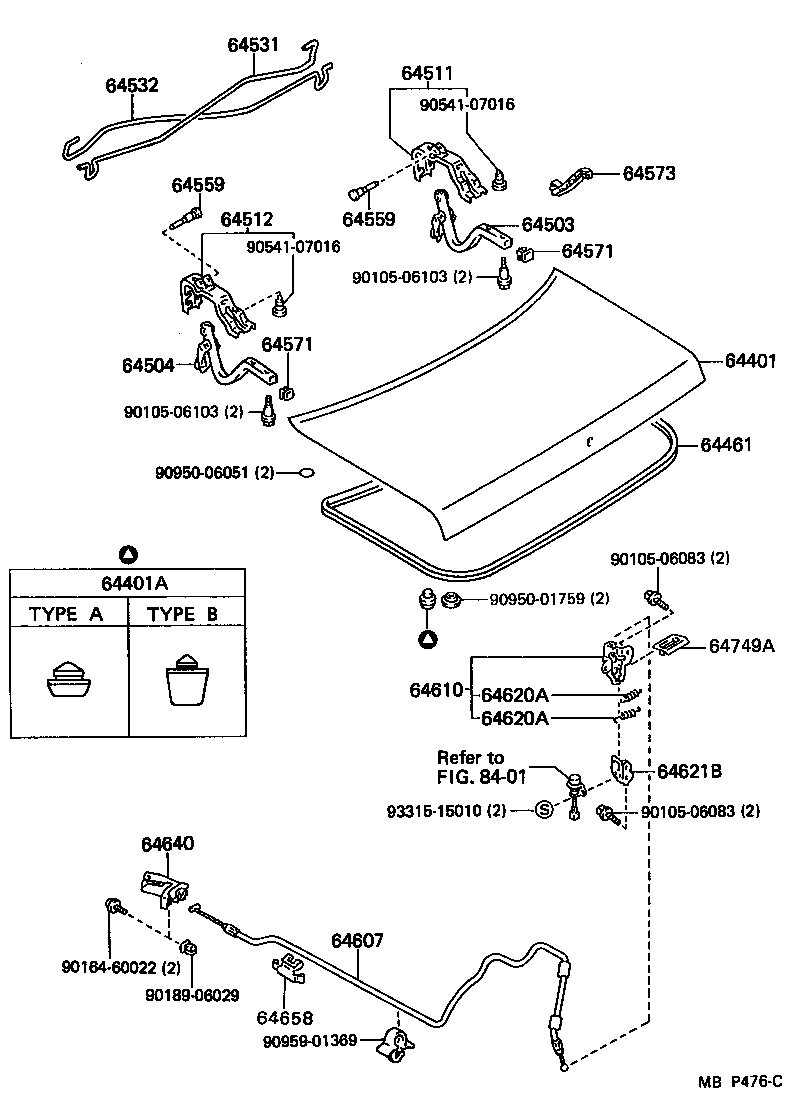

| Linked diagrams | ||||
| 8401 | ||||
