JZX81-CEPZF (1990)

Toyota Cresta

Production Aug 1990 - Oct 1992
Engine 1JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

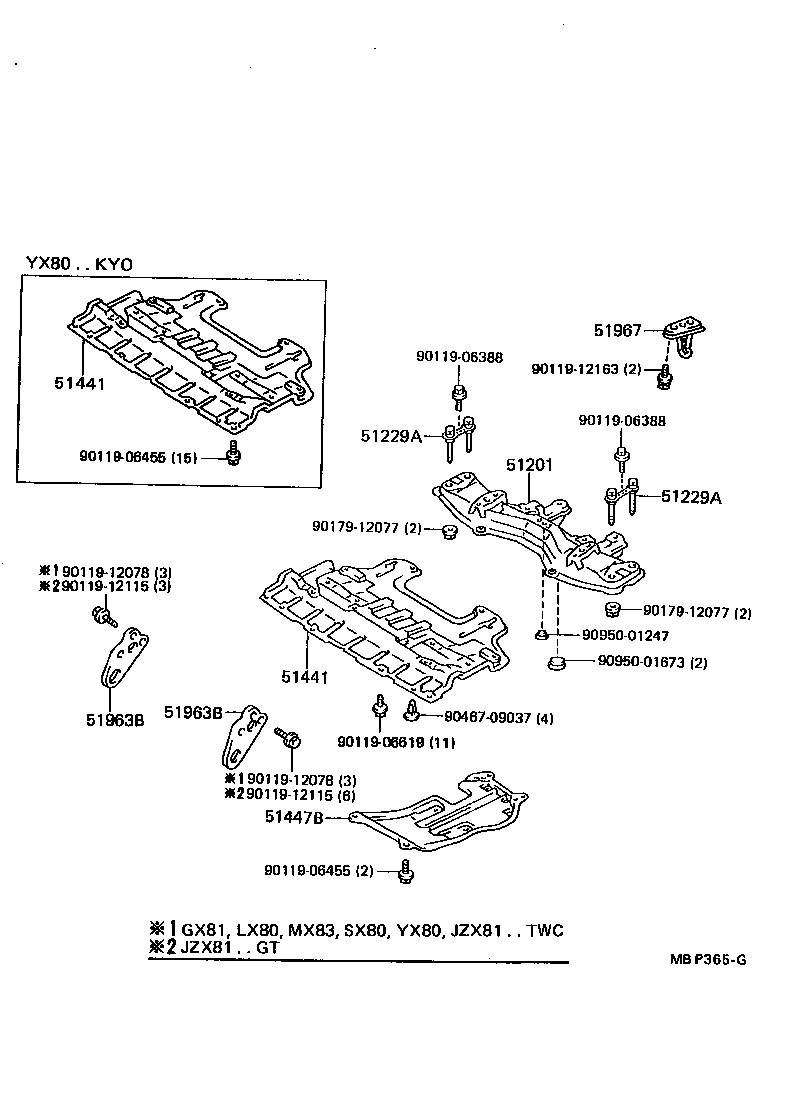

ILLUST NO. 1 OF 2(8808-9210)

Click highlighted areas on diagram

diagram 51201 51229A 51229A 51441 51441 51447B 51963B 51963B 51967 9011906388 9011906388 9011906455 9011906455 9011906619 9011912078 9011912078 9011912115 9011912115 9011912163 9017912077 9017912077 9046709037 9095001247 9095001673
Part # Description Qty Price
51229A - BOLT, FRONT SUSPENSION MEMBER MOUNTING
51229-22050

GX81,JZX81,LX80,MX83,SX80,YX80

 2
51229A - BOLT, FRONT SUSPENSION MEMBER MOUNTING
51229-22050

GX81,JZX81,LX80,MX83,SX80,YX80

 2
51441 - COVER, ENGINE UNDER, NO.1
51441-22170

JZX81..TWC

 1
51441 - COVER, ENGINE UNDER, NO.1
51441-22170

JZX81..TWC

 1
51447B - PROTECTOR, OIL PAN
51447-22040

GX81,JZX81,MX83,SX80,YX80

 1
51963B - HOOK, TRANSPORT, FRONT RH
51963-22040

GX81,JZX81,LX80,MX83,SX80,YX80

 2
51963-22040

GX81,JZX81,LX80,MX83,SX80,YX80..DSL,HTWC,LPG,TD,TWC

 2
51963B - HOOK, TRANSPORT, FRONT RH
51963-22040

GX81,JZX81,LX80,MX83,SX80,YX80

 2
51963-22040

GX81,JZX81,LX80,MX83,SX80,YX80..DSL,HTWC,LPG,TD,TWC

 2
51967 - HOOK, TRANSPORT, REAR
51095-22050

GX81,JZX81,LX80,MX83,SX80,YX80

 1
Common parts
90119-06388
90119-06455
90119-06619
90119-12078
90119-12115
90119-12163
90179-12077
90467-09037
90950-01247
90950-01673

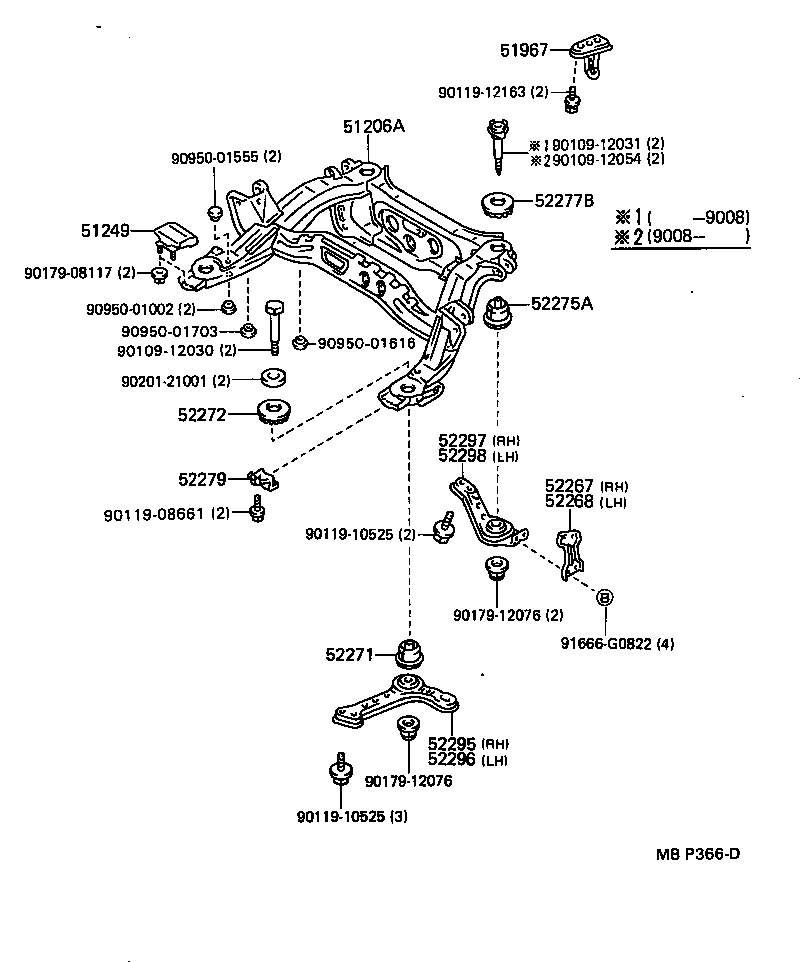

ILLUST NO. 2 OF 2(8808-9210)GX81,JZX81,MX83

Click highlighted areas on diagram

diagram 51206A 51249 51967 52267 52268 52271 52272 52275A 52277B 52279 52295 52296 52297 52298 9010912030 9010912031 9010912054 9011908661 9011910525 9011910525 9011912163 9017908117 9017912076 9017912076 9020121001 9095001002 9095001555 9095001616 9095001703 91666G0822
Part # Description Qty Price
51206A - MEMBER SUB-ASSY, REAR SUSPENSION
51206-22110

GX81,MX83;JZX81..TWC

 1
51249 - DAMPER, REAR SUSPENSION MEMBER
51249-22020

GX81..5F;JZX81,MX83

 2
51967 - HOOK, TRANSPORT, REAR
51095-22050

GX81,JZX81,LX80,MX83,SX80,YX80

 1
52267 - REINFORCE, REAR SUSPENSION MEMBER LOWER STOPPER, RH
52267-22010

GX81,JZX81,MX83..SPC,TWC,TWT

 1
52268 - REINFORCE, REAR SUSPENSION MEMBER LOWER STOPPER, LH
52268-22010

GX81,JZX81,MX83..SPC,TWC,TWT

 1
52271 - CUSHION, REAR SUSPENSION MEMBER
52271-22070

GX81,JZX81,MX83

 2
52272 - STOPPER, REAR SUSPENSION MEMBER, UPPER
52272-22040

GX81,JZX81,MX83

 2
52275A - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR
52275-22011

GX81,JZX81,MX83..HTWC,TWC

 2
52277B - STOPPER, REAR SUSPENSION MEMBER, REAR UPPER
52277-22011

GX81,JZX81,MX83

 2
52279 - RETAINER, REAR SUSPENSION MEMBER CUSHION
52279-22020

GX81,JZX81,MX83

 2
52295 - BRACE, REAR SUSPENSION MEMBER, RH
52295-22010

GX81,JZX81,MX83

 1
52296 - BRACE, REAR SUSPENSION MEMBER, LH
52296-22010

GX81,JZX81,MX83

 1
52297 - BRACE, REAR SUSPENSION MEMBER, REAR LOWER RH
52297-22011

GX81,JZX81,MX83

 1
52298 - BRACE, REAR SUSPENSION MEMBER, REAR LOWER LH
52298-22011

GX81,JZX81,MX83

 1
Common parts
90109-12030
90109-12031
90109-12054
90119-08661
90119-10525
90119-12163
90179-08117
90179-12076
90201-21001
90950-01002
90950-01555
90950-01616
90950-01703
91666-G0822
