JZX81-CEPVZ (1990)

Toyota Cresta

Production Aug 1990 - Oct 1992
Engine 1JZGTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-9210)

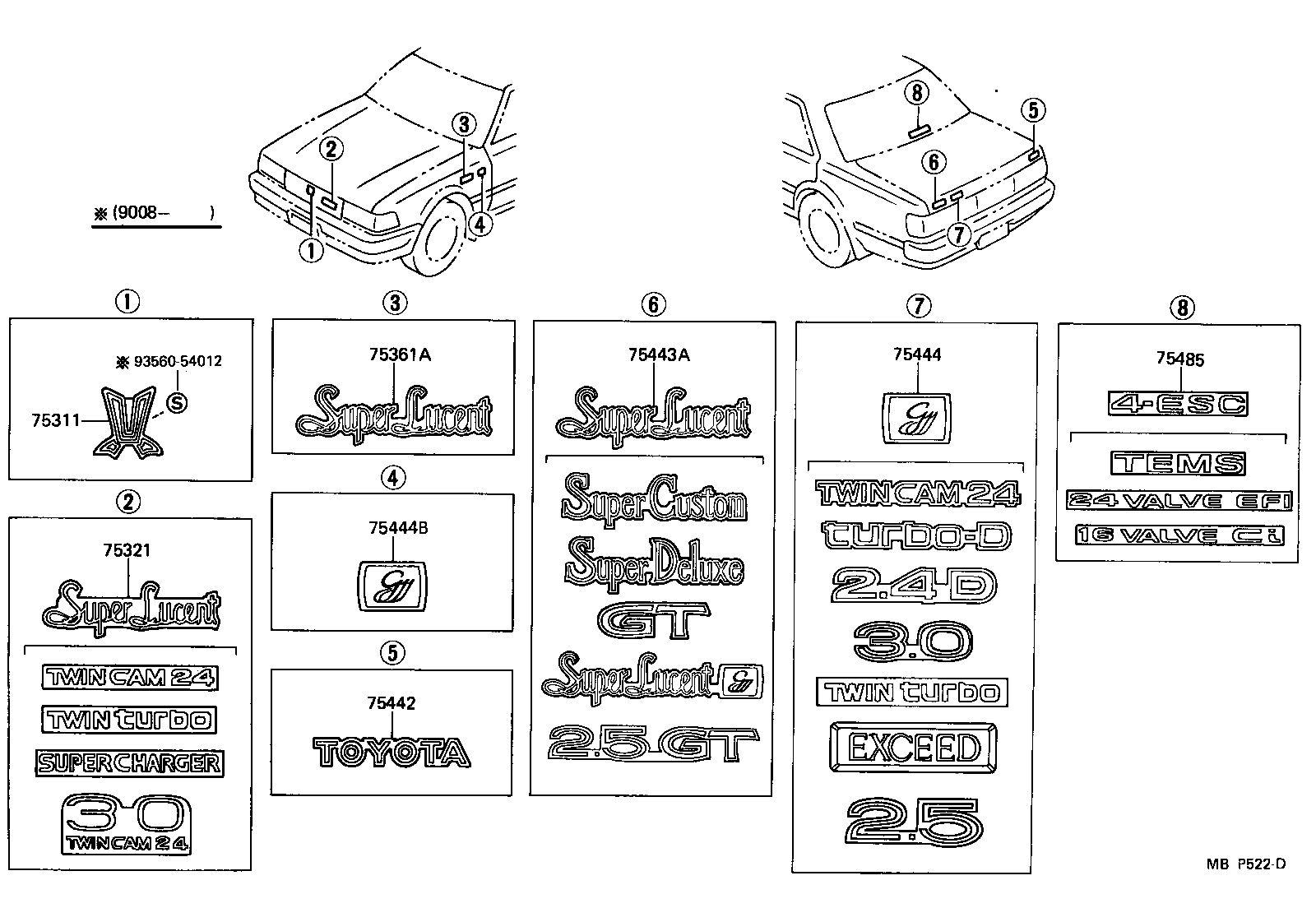

Click highlighted areas on diagram

diagram 75311 75321 75361A 75442 75443A 75444 75444B 75485 9356054012
Part # Description Qty Price
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-23020

GX81,JZX81,LX80,MX83,SX80,YX80

 1
75442 - PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.2
75442-22090

GX81,JZX81,LX80,SX80,YX80..GT,KYO,SCM,SDX,SLT

TOYOTA

 1
75443A - PLATE, LUGGAGE COMPARTMENT DOOR, NO.3
75443-23010

JZX81..TWT

2.5 GT

 1
75444 - PLATE, LUGGAGE COMPARTMENT DOOR, NO.4
75444-22300

JZX81..TWT

TWIN TURBO

 1
Common parts
93560-54012
