JZX81-CEPQF (1990)

Toyota Cresta

Production Aug 1990 - Oct 1992
Engine 1JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-9210)

Click highlighted areas on diagram

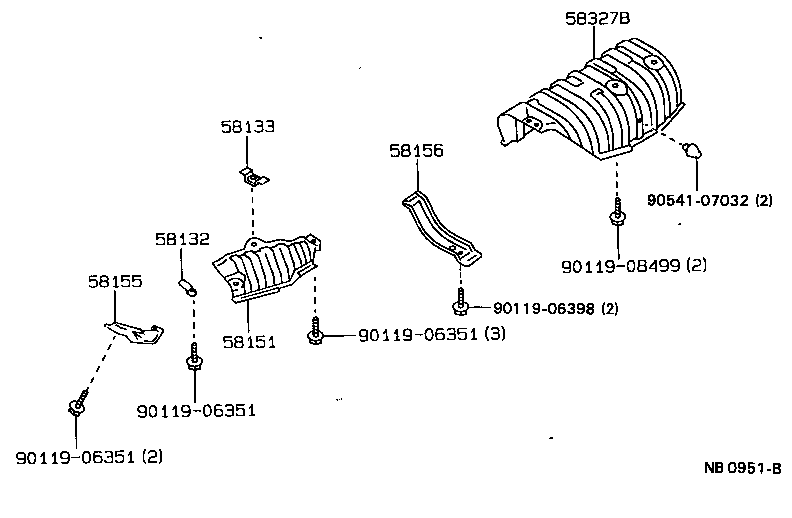

diagram 58132 58133 58151 58155 58156 58327B 9011906351 9011906351 9011906351 9011906398 9011908499 9054107032
Part # Description Qty Price
58132 - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.2
58132-22040

GX81,JZX81,LX80,MX83,SX80,YX80

 1
58133 - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.3
58133-22030

GX81,JZX81,LX80,MX83,SX80,YX80

 1
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-22050

GX81,JZX81,MX83

 1
58156 - INSULATOR, FRONT FLOOR HEAT, NO.4
58156-22010

JZX81;GX81,MX83..SLTG

 1
58327B - INSULATOR, MAIN MUFFLER HEAT
58327-22060

GX81,JZX81,LX80,MX83,SX80,YX80

 1
Common parts
90119-06351
90119-06398
90119-08499
90541-07032
