JZX105-CEPQF (1996)
Toyota Cresta
Production
Sep 1996
-
Jun 2001
Engine
1JZGE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9609- )GX105,JZX105

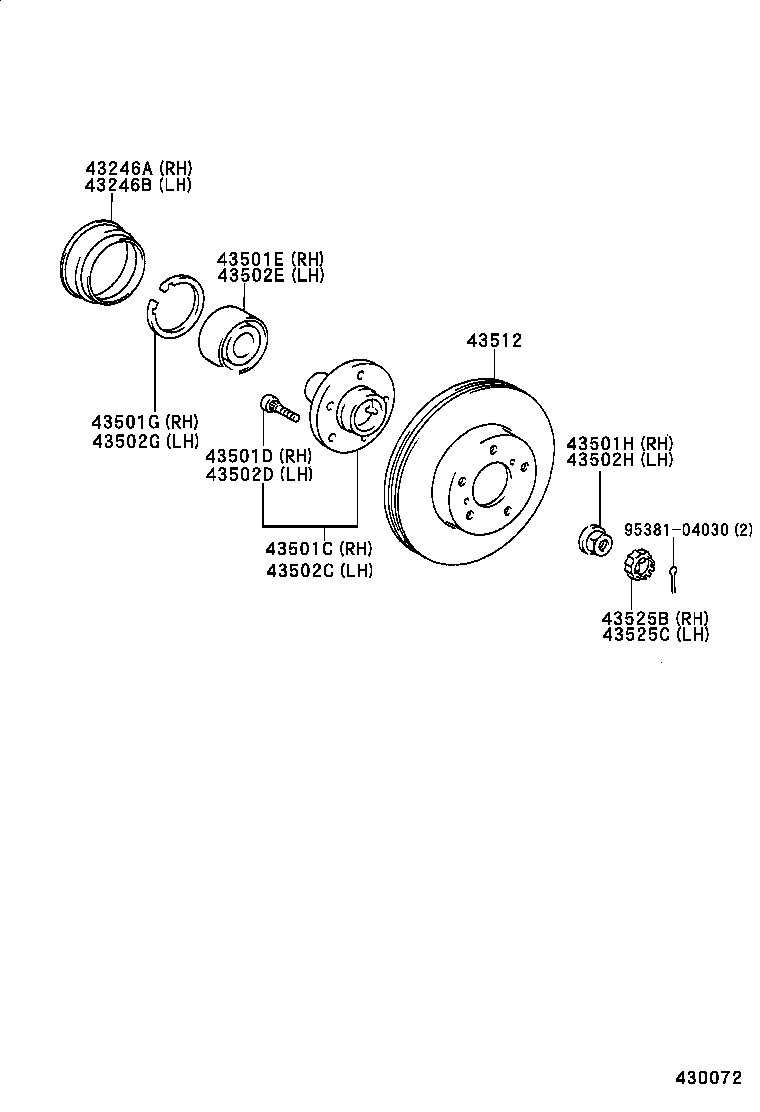

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43246A - DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH | ||||
| 43246-32020 |
GX105,JZX105 |
1 | ||
| 43246B - DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH | ||||
| 43246-32020 |
GX105,JZX105 |
1 | ||
| 43501C - HUB SUB-ASSY, FRONT AXLE, RH | ||||
| 43502-30150 |
GX105,JZX105 |
1 | ||
| 43501D - BOLT, HUB (FOR FRONT AXLE RH) | ||||
| 90942-02070 |
GX10#,JZX10#,LX100 |
5 | ||
| 43501E - BEARING (FOR FRONT AXLE HUB RH) | ||||
| 90369-43008 |
GX105,JZX105 |
1 | ||
| 43501G - RING, HOLE SNAP (FOR FRONT AXLE HUB RH) | ||||
| 90521-88001 |
GX105,JZX105 |
1 | ||
| 43501H - NUT (FOR FRONT AXLE SHAFT RH) | ||||
| 90179-22020 |
GX105,JZX105 |
1 | ||
| 43502C - HUB SUB-ASSY, FRONT AXLE, LH | ||||
| 43502-30150 |
GX105,JZX105 |
1 | ||
| 43502D - BOLT, HUB (FOR FRONT AXLE LH) | ||||
| 90942-02070 |
GX10#,JZX10#,LX100 |
5 | ||
| 43502E - BEARING (FOR FRONT AXLE HUB LH) | ||||
| 90369-43008 |
GX105,JZX105 |
1 | ||
| 43502G - RING, HOLE SNAP (FOR FRONT AXLE HUB LH) | ||||
| 90521-88001 |
GX105,JZX105 |
1 | ||
| 43502H - NUT (FOR FRONT AXLE SHAFT LH) | ||||
| 90179-22020 |
GX105,JZX105 |
1 | ||
| 43512 - DISC, FRONT | ||||
| 43512-22220 |
GX105,JZX10#..EXC,EXCG,ROU,ROUS,SLT |
2 | ||
| 43525B - CAP, FRONT WHEEL ADJUSTING LOCK, RH | ||||
| 43525-20030 |
GX105,JZX105 |
1 | ||
| 43525C - CAP, FRONT WHEEL ADJUSTING LOCK, LH | ||||
| 43525-20030 |
GX105,JZX105 |
1 | ||
| Common parts | ||||
| 95381-04030 | ||||
