JZX105-CEPQF (1996)
Toyota Cresta

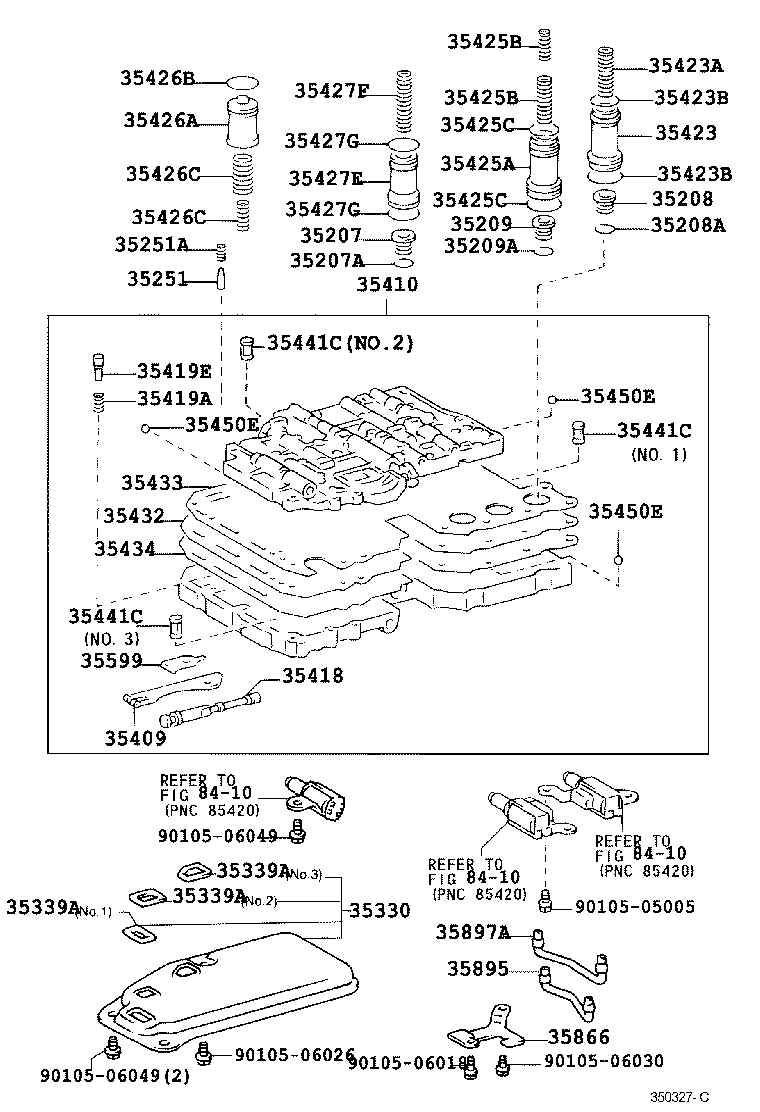

ILLUST NO. 1 OF 4(9609-9808)JZX105
A340H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35207 - SPRING SUB-ASSY, B-0 ACCUMULATOR | ||||
| 35207-22010 |
JZX10#..EXC,EXCG,ROU,SLT |
1 | ||
| 35207-22010 |
JZX100,105..EXC,EXCG,ROUS,SLT |
1 | ||
| 35207A - RING, HOLE SNAP (FOR B-0 ACCUMULATOR SPRING) | ||||
| 90521-22004 |
GX105,JZX10# |
1 | ||
| 35208 - SPRING SUB-ASSY, B-2 ACCUMULATOR | ||||
| 35208-30010 |
JZX10#..EXC,EXCG,ROU,ROUG,SLT |
1 | ||
| 35208A - RING, HOLE SNAP (FOR B-2 ACCUMULATOR SPRING) | ||||
| 90521-22004 |
GX10#,JZX10#..ATM |
1 | ||
| 35209 - SPRING SUB-ASSY, C-2 ACCUMULATOR | ||||
| 35209-24010 |
GX105,JZX100,105..EXC,EXCG,ROU,ROUS,SLT |
1 | ||
| 35209A - RING, HOLE SNAP (FOR C-2 ACCUMULATOR SPRING) | ||||
| 90521-22004 |
GX105,JZX10# |
1 | ||
| 35251 - BODY, CHECK BALL | ||||
| 35251-30020 |
GX105,JZX10# |
1 | ||
| 35251A - SPRING, COMPRESSION (FOR CHECK BALL BODY) | ||||
| 90501-03005 |
GX105,JZX10# |
1 | ||
| 35330 - STRAINER ASSY, VALVE BODY OIL | ||||
| 35330-22020 |
GX105,JZX105 |
1 | ||
| 35339A - GASKET, OIL STRAINER, NO.1 | ||||
| 35339-30090 |
GX105,JZX105 NO.2 |
1 | ||
| 35339-30080 |
GX105,JZX105 NO.1 |
1 | ||
| 35339-30100 |
GX105,JZX105 NO.3 |
1 | ||
| 35339A - GASKET, OIL STRAINER, NO.1 | ||||
| 35339-30090 |
GX105,JZX105 NO.2 |
1 | ||
| 35339-30080 |
GX105,JZX105 NO.1 |
1 | ||
| 35339-30100 |
GX105,JZX105 NO.3 |
1 | ||
| 35339A - GASKET, OIL STRAINER, NO.1 | ||||
| 35339-30090 |
GX105,JZX105 NO.2 |
1 | ||
| 35339-30080 |
GX105,JZX105 NO.1 |
1 | ||
| 35339-30100 |
GX105,JZX105 NO.3 |
1 | ||
| 35409 - SPRING SUB-ASSY, MANUAL DETENT | ||||
| 35409-22020 |
GX105,JZX10#..EXC,EXCG,ROU,ROUG,SLT |
1 | ||
| 35410 - BODY ASSY, TRANSMISSION VALVE | ||||
| 35410-22621 |
JZX105 |
1 | ||
| 35410-22710 |
JZX105 |
1 | ||
| 35418 - VALVE, MANUAL | ||||
| 35418-24010 |
JZX100,105 |
1 | ||
| 35418-24010 |
GX10#,JZX100,105..EXC,EXCG,ROU,ROUG,SLT |
1 | ||
| 35419A - SPRING, COMPRESSION (FOR CHECK VALVE) | ||||
| 90501-09093 |
GX10#,JZX10# |
1 | ||
| 90501-09093 |
JZX10# |
1 | ||
| 35419E - VALVE, CHECK, NO.3 | ||||
| 35419-50010 |
GX105,JZX10# |
1 | ||
| 35423 - PISTON, B-2 ACCUMULATOR | ||||
| 35423-30030 |
GX105,JZX10# |
1 | ||
| 35423A - SPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90501-24015 |
JZX100,105..EXC,EXCG,ROU,SLT |
1 | ||
| 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90301-23194 |
JZX10# 上側 |
1 | ||
| 90301-31002 |
JZX10# 下側 |
1 | ||
| 90301-31010 |
GX105,JZX10# 下側 |
1 | ||
| 90301-23010 |
GX10#,JZX10# 上側 |
1 | ||
| 90301-23010 |
JZX10# 上側 |
1 | ||
| 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90301-23194 |
JZX10# 上側 |
1 | ||
| 90301-31002 |
JZX10# 下側 |
1 | ||
| 90301-31010 |
GX105,JZX10# 下側 |
1 | ||
| 90301-23010 |
GX10#,JZX10# 上側 |
1 | ||
| 90301-23010 |
JZX10# 上側 |
1 | ||
| 35425A - PISTON, C-2 ACCUMULATOR | ||||
| 35425-30020 |
GX105,JZX10#..EXC,EXCG,ROU,ROUG,SLT |
1 | ||
| 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90501-25027 |
GX105,JZX100,105..EXC,EXCG,ROU,ROUG,SLT 内側 |
1 | ||
| 90501-22016 |
GX105,JZX10#..EXC,EXCG,ROU,SLT 外側 |
1 | ||
| 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90501-25027 |
GX105,JZX100,105..EXC,EXCG,ROU,ROUG,SLT 内側 |
1 | ||
| 90501-22016 |
GX105,JZX10#..EXC,EXCG,ROU,SLT 外側 |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-25003 |
JZX10# 上側 |
1 | ||
| 90301-31010 |
GX105,JZX10#..EXC,EXCG,ROU,ROUG,SLT 下側 |
1 | ||
| 90301-31002 |
JZX10# 下側 |
1 | ||
| 90301-25010 |
GX105,JZX10#..EXC,EXCG,ROU,ROUG,SLT 上側 |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-25003 |
JZX10# 上側 |
1 | ||
| 90301-31010 |
GX105,JZX10#..EXC,EXCG,ROU,ROUG,SLT 下側 |
1 | ||
| 90301-31002 |
JZX10# 下側 |
1 | ||
| 90301-25010 |
GX105,JZX10#..EXC,EXCG,ROU,ROUG,SLT 上側 |
1 | ||
| 35426A - PISTON, C-0 ACCUMULATOR | ||||
| 35426-40010 |
GX105,JZX100,105..EXC,EXCG,ROU,ROUG,SLT |
1 | ||
| 35426B - RING, O (FOR C-0 ACCUMULATOR PISTON) | ||||
| 90301-24010 |
GX105,JZX100,105 |
1 | ||
| 90301-24001 |
JZX100,105 |
1 | ||
| 35426C - SPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON) | ||||
| 90501-22008 |
GX105,JZX100,105..EXC,EXCG,ROU,ROUG,SLT 内側 |
1 | ||
| 90501-23073 |
GX105,JZX100,105..EXC,EXCG,ROU,ROUG,SLT 外側 |
1 | ||
| 35426C - SPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON) | ||||
| 90501-22008 |
GX105,JZX100,105..EXC,EXCG,ROU,ROUG,SLT 内側 |
1 | ||
| 90501-23073 |
GX105,JZX100,105..EXC,EXCG,ROU,ROUG,SLT 外側 |
1 | ||
| 35427E - PISTON, B-0 ACCUMULATOR | ||||
| 35427-30040 |
GX105,JZX10# |
1 | ||
| 35427F - SPRING, COMPRESSION (FOR B-0 ACCUMULATOR PISTON) | ||||
| 90501-23095 |
GX105,JZX105 |
1 | ||
| 35427G - RING, O (FOR B-0 ACCUMULATOR PISTON) | ||||
| 90301-20002 |
JZX10# 上側 |
1 | ||
| 90301-20008 |
GX105,JZX10# 上側 |
1 | ||
| 90301-26011 |
GX105,JZX10# 下側 |
1 | ||
| 90301-26002 |
JZX10# 下側 |
1 | ||
| 35427G - RING, O (FOR B-0 ACCUMULATOR PISTON) | ||||
| 90301-20002 |
JZX10# 上側 |
1 | ||
| 90301-20008 |
GX105,JZX10# 上側 |
1 | ||
| 90301-26011 |
GX105,JZX10# 下側 |
1 | ||
| 90301-26002 |
JZX10# 下側 |
1 | ||
| 35432 - PLATE, VALVE BODY, NO.1 | ||||
| 35432-22271 |
JZX105 |
1 | ||
| 35432-22350 |
JZX105 |
1 | ||
| 35433 - GASKET, VALVE BODY, NO.1 | ||||
| 35433-24012 |
GX105,JZX100,105..EXC,EXCG,ROU,ROUG,SLT |
1 | ||
| 35433-24011 |
JZX100,105 |
1 | ||
| 35434 - GASKET, VALVE BODY, NO.2 | ||||
| 35434-24012 |
GX105,JZX100,105..EXC,EXCG,ROU,ROUG,SLT |
1 | ||
| 35434-24011 |
JZX100,105 |
1 | ||
| 35441C - STRAINER, SOLENOID OIL | ||||
| 35441-24020 |
GX105,JZX100,105 NO.3 |
1 | ||
| 35441-50030 |
GX105,JZX100,105..EXC,EXCG,ROU,ROUG,SLT NO.1 |
1 | ||
| 35441-24010 |
GX105,JZX100,105..EXC,EXCG,ROU,ROUG,SLT NO.2 |
1 | ||
| 35441C - STRAINER, SOLENOID OIL | ||||
| 35441-24020 |
GX105,JZX100,105 NO.3 |
1 | ||
| 35441-50030 |
GX105,JZX100,105..EXC,EXCG,ROU,ROUG,SLT NO.1 |
1 | ||
| 35441-24010 |
GX105,JZX100,105..EXC,EXCG,ROU,ROUG,SLT NO.2 |
1 | ||
| 35441C - STRAINER, SOLENOID OIL | ||||
| 35441-24020 |
GX105,JZX100,105 NO.3 |
1 | ||
| 35441-50030 |
GX105,JZX100,105..EXC,EXCG,ROU,ROUG,SLT NO.1 |
1 | ||
| 35441-24010 |
GX105,JZX100,105..EXC,EXCG,ROU,ROUG,SLT NO.2 |
1 | ||
| 35450E - BALL (FOR UPPER VALVE BODY) | ||||
| 35496-22030 |
GX105,JZX10#..EXC,EXCG,ROU,ROUG,SLT 外径=6.35,ﾗﾊﾞｰ |
2 | ||
| 35495-22020 |
JZX100,105 外径=5.535,ﾗﾊﾞｰ |
12 | ||
| 35495-22020 |
JZX10#..EXC,EXCG,SLT 外径=5.535,ﾗﾊﾞｰ |
12 | ||
| 35450E - BALL (FOR UPPER VALVE BODY) | ||||
| 35496-22030 |
GX105,JZX10#..EXC,EXCG,ROU,ROUG,SLT 外径=6.35,ﾗﾊﾞｰ |
2 | ||
| 35495-22020 |
JZX100,105 外径=5.535,ﾗﾊﾞｰ |
12 | ||
| 35495-22020 |
JZX10#..EXC,EXCG,SLT 外径=5.535,ﾗﾊﾞｰ |
12 | ||
| 35450E - BALL (FOR UPPER VALVE BODY) | ||||
| 35496-22030 |
GX105,JZX10#..EXC,EXCG,ROU,ROUG,SLT 外径=6.35,ﾗﾊﾞｰ |
2 | ||
| 35495-22020 |
JZX100,105 外径=5.535,ﾗﾊﾞｰ |
12 | ||
| 35495-22020 |
JZX10#..EXC,EXCG,SLT 外径=5.535,ﾗﾊﾞｰ |
12 | ||
| 35599 - COVER, MANUAL DETENT SPRING | ||||
| 35599-22020 |
GX105,JZX10# |
1 | ||
| 35866 - BRACKET, TRANSFER APPLY TUBE | ||||
| 35866-22020 |
GX105,JZX105 |
1 | ||
| 35895 - TUBE, FRONT CLUTCH APPLY | ||||
| 35895-22010 |
GX105,JZX105 |
1 | ||
| 35897A - TUBE, 1ST & REVERSE BRAKE, NO.1 | ||||
| 35897-30020 |
GX105,JZX105 |
1 | ||
| Common parts | ||||
| 90105-05005 | ||||
| 90105-06018 | ||||
| 90105-06026 | ||||
| 90105-06030 | ||||
| 90105-06049 | ||||
| Linked diagrams | ||||
| 8410 | ||||

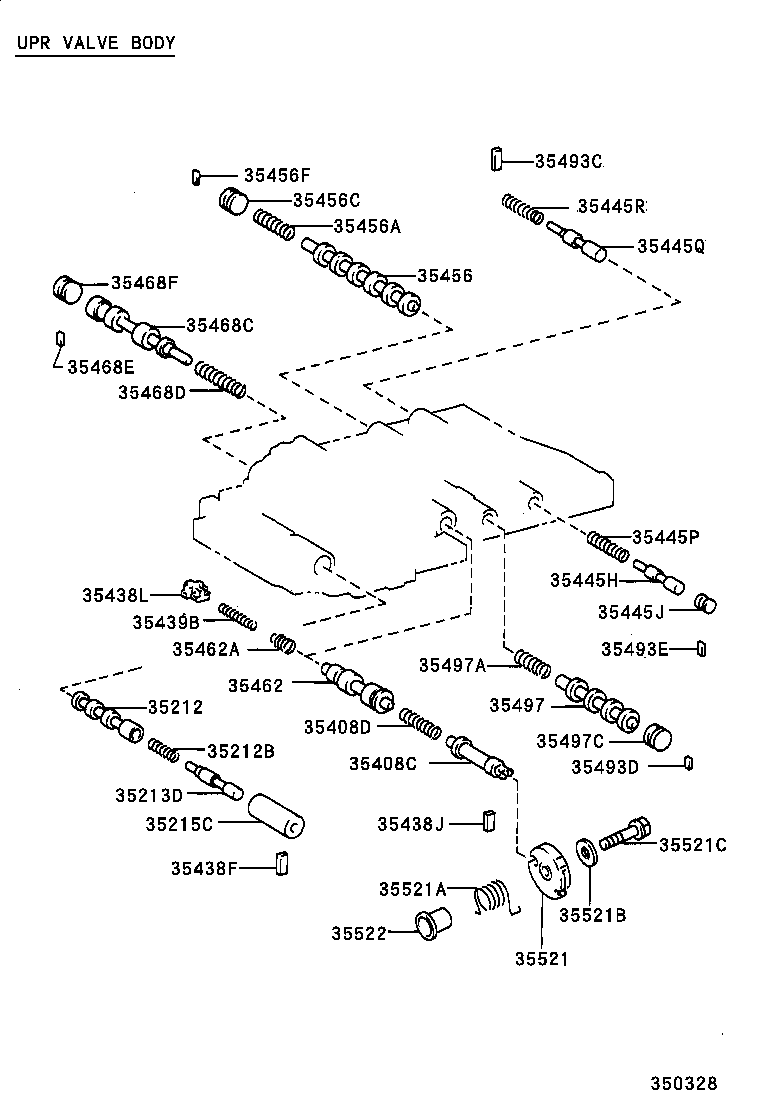

ILLUST NO. 2 OF 4(9609- )JZX100,105..EXC,EXCG,ROU,SLT
A340E,A340H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35212 - VALVE, LOCK UP RELAY | ||||
| 35212-24010 |
GX105,JZX100,105 |
1 | ||
| 35212B - SPRING, COMPRESSION (FOR LOCK UP RELAY VALVE) | ||||
| 90501-06057 |
JZX10# |
1 | ||
| 90501-06057 |
GX10#,JZX10# |
1 | ||
| 35213D - PLUNGER, LOCK UP RELAY VALVE | ||||
| 35213-24010 |
GX105,JZX100,105 |
1 | ||
| 35215C - SLEEVE, LOCK UP RELAY VALVE, NO.1 | ||||
| 35215-24010 |
GX105,JZX100,105 |
1 | ||
| 35408C - PLUG SUB-ASSY, THROTTLE VALVE | ||||
| 35408-22050 |
JZX100,105..EXC,EXCG,ROU,SLT |
1 | ||
| 35408D - SPRING, COMPRESSION (FOR THROTTLE VALVE PLUG) | ||||
| 90501-10119 |
JZX100,105..EXC,EXCG,SLT |
1 | ||
| 90501-10119 |
JZX10#..EXC,EXCG,ROU,SLT |
1 | ||
| 35438F - SEAT, DETENT SPRING | ||||
| 35493-22020 |
GX105,JZX100,105..EXC,EXCG,ROU,ROUG,SLT |
1 | ||
| 35438J - SEAT, THROTTLE VALVE SPRING | ||||
| 35493-50050 |
JZX10#..EXC,EXCG,SLT |
1 | ||
| 35493-50050 |
JZX100,105..EXC,EXCG,ROU,SLT |
1 | ||
| 35438L - RETAINER, THROTTLE VALVE | ||||
| 35438-50010 |
JZX100,105..EXC,EXCG,ROU,SLT |
1 | ||
| 35439B - SCREW, THROTTLE VALVE | ||||
| 35439-50010 |
JZX10#..EXC,EXCG,ROU,SLT |
1 | ||
| 35439-50010 |
JZX100,105..EXC,EXCG,SLT |
1 | ||
| 35445H - VALVE, 2ND COAST MODULATOR | ||||
| 35445-50010 |
GX10#,JZX10#..EXC,EXCG,ROU,ROUG,SLT |
1 | ||
| 35445-50010 |
JZX10# |
1 | ||
| 35445J - PLUG (FOR 2ND COAST MODULATOR VALVE) | ||||
| 90339-04002 |
GX105,JZX100,105..EXC,EXCG,ROU,ROUG,SLT |
1 | ||
| 35445P - SPRING, COMPRESSION (FOR 2ND COAST MODULATOR VALVE) | ||||
| 90501-10140 |
JZX100,105..EXC,EXCG,ROU,SLT |
1 | ||
| 90501-10140 |
GX10#,JZX100,105..EXC,EXCG,SLT |
1 | ||
| 35445Q - VALVE, LOW COAST MODULATOR | ||||
| 35445-50010 |
GX10#,JZX10#..EXC,EXCG,ROU,ROUG,SLT |
1 | ||
| 35445-50010 |
JZX10# |
1 | ||
| 35445R - SPRING, COMPRESSION (FOR LOW COAST MODULATOR VALVE) | ||||
| 90501-08066 |
GX105,JZX100,105..EXC,EXCG,ROU,SLT |
1 | ||
| 35456 - VALVE, 2-3 SHIFT | ||||
| 35456-30060 |
GX105,JZX10#..EXC,EXCG,ROU,ROUG,SLT |
1 | ||
| 35456A - SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE) | ||||
| 90501-09053 |
GX105,JZX10#..EXC,EXCG,ROU,ROUG,SLT |
1 | ||
| 35456C - PLUG (FOR 2-3 SHIFT VALVE) | ||||
| 90339-05014 |
GX100,JZX10#..ATM |
1 | ||
| 90339-05014 |
GX105,JZX10#..EXC,EXCG,ROUG,SLT |
1 | ||
| 35456F - KEY, STRAIGHT (FOR 2-3 SHIFT VALVE) | ||||
| 35493-22020 |
GX105,JZX100,105..EXC,EXCG,ROU,ROUG,SLT |
1 | ||
| 35462 - VALVE, THROTTLE | ||||
| 35462-50010 |
JZX10#..EXC,EXCG,ROU,SLT |
1 | ||
| 35462-50010 |
JZX100,105..EXC,EXCG,SLT |
1 | ||
| 35462A - SPRING, COMPRESSION (FOR THROTTLE VALVE) | ||||
| 90504-06002 |
JZX10#..EXC,EXCG,ROU,SLT |
1 | ||
| 90504-06002 |
JZX100,105..EXC,EXCG,SLT |
1 | ||
| 35468C - VALVE, SECONDARY REGULATOR | ||||
| 35468-24010 |
JZX100,105 |
1 | ||
| 35468-24010 |
GX10#,JZX100,105..EXC,EXCG,ROU,ROUG,SLT |
1 | ||
| 35468D - SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE) | ||||
| 90501-12170 |
JZX100,105 |
1 | ||
| 90501-12170 |
GX10#,JZX100,105..EXC,EXCG,ROU,ROUG,SLT |
1 | ||
| 35468E - KEY, STRAIGHT (FOR SECONDARY REGULATOR VALVE) | ||||
| 35493-30030 |
GX105,JZX100,105..EXC,EXCG,ROU,ROUG,SLT |
1 | ||
| 35468F - PLUG (FOR SECONDARY REGULATOR VALVE) | ||||
| 90339-05020 |
GX10#,JZX10# |
1 | ||
| 90339-05020 |
JZX10# |
1 | ||
| 35493C - SEAT, RELEASE CONTROL VALVE PLUG | ||||
| 35493-24010 |
GX105,JZX100,105..EXC,EXCG,ROU,ROUG,SLT |
1 | ||
| 35493D - SEAT, 3-4 SHIFT VALVE PLUG | ||||
| 35493-30090 |
GX105,JZX100,105..EXC,EXCG,ROU,ROUG,SLT |
1 | ||
| 35493E - SEAT, 2ND COAST MODULATOR VALVE PLUG | ||||
| 35493-30090 |
GX105,JZX100,105..EXC,EXCG,ROU,ROUG,SLT |
1 | ||
| 35497 - VALVE, 3-4 SHIFT | ||||
| 35497-30040 |
GX105,JZX10#..EXC,EXCG,ROU,ROUG,SLT |
1 | ||
| 35497A - SPRING, COMPRESSION (FOR 3-4 SHIFT VALVE) | ||||
| 90501-09053 |
GX105,JZX10#..EXC,EXCG,ROU,ROUG,SLT |
1 | ||
| 35497C - PLUG (FOR 3-4 SHIFT VALVE) | ||||
| 90339-05014 |
GX105,JZX10#..EXC,EXCG,ROUG,SLT |
1 | ||
| 90339-05014 |
GX100,JZX10#..ATM |
1 | ||
| 35521 - CAM, THROTTLE VALVE | ||||
| 35521-30060 |
GX100,JZX100,105..ATM..(EXC,EXCG,ROU,SLT) |
1 | ||
| 35521-30060 |
JZX100,105..EXC,EXCG,SLT |
1 | ||
| 35521A - SPRING (FOR THROTTLE VALVE CAM RETURN) | ||||
| 90508-11007 |
JZX10#..EXC,EXCG,ROU,SLT |
1 | ||
| 90508-11007 |
JZX100,105..EXC,EXCG,SLT |
1 | ||
| 35521B - WASHER (FOR THROTTLE VALVE CAM SET) | ||||
| 90201-06472 |
JZX100,105,LX100..EXC,EXCG,SLT |
1 | ||
| 90201-06472 |
GX100,JZX10#,LX100..ATM..(EXC,EXCG,ROU,SC,SLT) |
1 | ||
| 35521C - BOLT (FOR THROTTLE VALVE CAM SET) | ||||
| 90105-06018 |
JZX100,105..EXC,EXCG,SLT |
1 | ||
| 90105-06018 |
JZX10#..EXC,EXCG,ROU,SLT |
1 | ||
| 35522 - PIN, THROTTLE VALVE CAM | ||||
| 35522-22020 |
JZX100,105..EXC,EXCG,ROU,SLT |
1 | ||

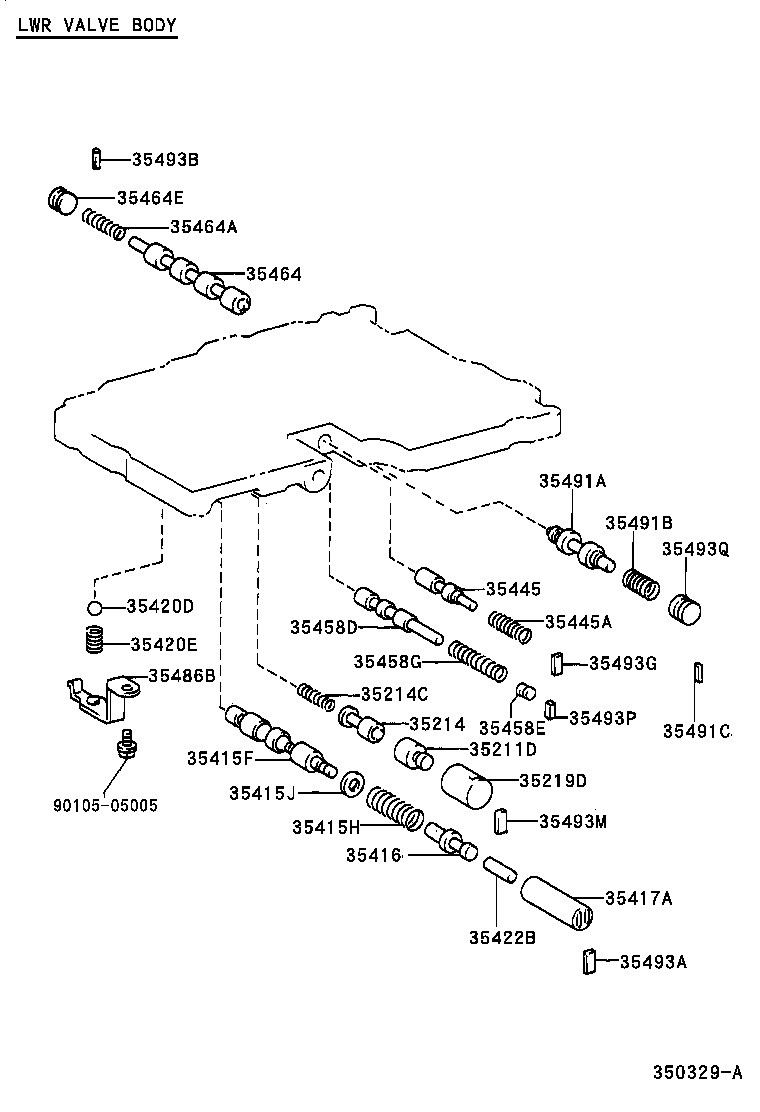

ILLUST NO. 3 OF 4(9609-9808)JZX100..EXC,EXCG,ROU,SLT ; (9808-)GX105,JZX100,105..EXC,EXCG,SLT
A340E,A340H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35211D - SLEEVE, LOCK UP CONTROL VALVE | ||||
| 35211-50010 |
GX105,JZX10# |
1 | ||
| 35214 - VALVE, LOCK UP CONTROL | ||||
| 35214-50010 |
GX10#,JZX10# |
1 | ||
| 35214C - SPRING, COMPRESSION (FOR LOCK UP CONTROL VALVE) | ||||
| 90501-07111 |
GX10#,JZX10# |
1 | ||
| 35219D - PLUNGER, LOCK UP CONTROL VALVE | ||||
| 35219-50010 |
GX10#,JZX10# |
1 | ||
| 35415F - VALVE, PRIMARY REGULATOR | ||||
| 35415-30050 |
GX105,JZX10#..EXC,EXCG,ROUG,SLT |
1 | ||
| 35415-30050 |
JZX100,105 |
1 | ||
| 35415H - SPRING, COMPRESSION (FOR PRIMARY REGULATOR VALVE) | ||||
| 90501-14117 |
JZX10#..EXC,EXCG,ROU,SLT |
1 | ||
| 35415J - WASHER (FOR PRIMARY REGULATOR VALVE) | ||||
| 90201-08067 |
GX105,JZX10#..EXC,EXCG,ROU,ROUG,SLT |
1 | ||
| 35416 - PLUNGER, PRIMARY REGULATOR VALVE, NO.1 | ||||
| 35416-50010 |
JZX10#..EXC,EXCG,ROU,SLT |
1 | ||
| 35417A - SLEEVE, PRIMARY REGULATOR VALVE | ||||
| 35417-50010 |
JZX100,105..EXC,EXCG,ROU,SLT |
1 | ||
| 35420D - BALL (FOR LOWER VALVE BODY) | ||||
| 90360-08003 |
GX105,JZX10# 外径=8.00,ｽﾁｰﾙ |
1 | ||
| 35420E - SPRING (FOR LOWER VALVE BODY) | ||||
| 90501-12142 |
GX105,JZX100,105..EXC,EXCG,ROU,SLT |
1 | ||
| 35422B - PLUNGER, PRIMARY REGULATOR VALVE, NO.2 | ||||
| 35422-50010 |
JZX100,105..EXC,EXCG,ROU,SLT |
1 | ||
| 35445 - VALVE, LOW MODULATOR | ||||
| 35445-50010 |
GX105,JZX100,105..EXC,EXCG,ROUG,SLT |
1 | ||
| 35445A - SPRING, COMPRESSION (FOR LOW MODULATOR VALVE) | ||||
| 90501-12158 |
GX105,JZX100,105..EXC,EXCG,ROUG,SLT |
1 | ||
| 35458D - VALVE, CUT BACK | ||||
| 35458-24010 |
GX105,JZX100,105..EXC,EXCG,ROU,ROUG,SLT |
1 | ||
| 35458E - PLUG (FOR CUT BACK VALVE) | ||||
| 90339-04056 |
GX105,JZX100,105..EXC,EXCG,ROU,ROUG,SLT |
1 | ||
| 35458G - SPRING, COMPRESSION (FOR CUT BACK VALVE) | ||||
| 90501-07113 |
GX105,JZX100,105..EXC,EXCG,ROU,ROUG,SLT |
1 | ||
| 35464 - VALVE, 1-2 SHIFT | ||||
| 35464-12030 |
GX105,JZX10#..EXC,EXCG,ROU,ROUG,SLT |
1 | ||
| 35464A - SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE) | ||||
| 90501-09053 |
GX105,JZX10#..EXC,EXCG,ROU,ROUG,SLT |
1 | ||
| 35464E - PLUG (FOR 1-2 SHIFT VALVE) | ||||
| 90339-05014 |
GX105,JZX10#..EXC,EXCG,ROU,ROUG,SLT |
1 | ||
| 35486B - SEAT, PRESSURE RELIEF VALVE SPRING | ||||
| 35486-30020 |
GX105,JZX100,105..EXC,EXCG,ROU,ROUG,SLT |
1 | ||
| 35491A - VALVE, ACCUMULATOR CONTROL, NO.1 | ||||
| 35491-24010 |
JZX100,105..EXC,EXCG,ROU,ROUG,SLT |
1 | ||
| 35491B - SPRING, COMPRESSION (FOR ACCUMULATOR CONTROL VALVE NO.1 | ||||
| 90501-08166 |
JZX100,105..EXC,EXCG,ROU,SLT |
1 | ||
| 35491C - KEY, STRAIGHT (FOR ACCUMULATOR CONTROL VALVE NO.1) | ||||
| 90282-03016 |
GX105,JZX100,105..EXC,EXCG,ROU,ROUG,SLT |
1 | ||
| 35493A - SEAT, PRIMARY REGULATOR VALVE PLUG | ||||
| 35493-50010 |
JZX10# |
1 | ||
| 35493-50010 |
GX10#,JZX10# |
1 | ||
| 35493B - SEAT, 1-2 SHIFT VALVE PLUG | ||||
| 35493-30090 |
GX105,JZX100,105..EXC,EXCG,ROU,ROUG,SLT |
1 | ||
| 35493G - SEAT, LOW COAST MODULATOR VALVE PLUG | ||||
| 35493-24010 |
GX105,JZX100,105..EXC,EXCG,ROUG,SLT |
1 | ||
| 35493M - SEAT, LOCK UP CONTROL VALVE PLUG | ||||
| 35493-30080 |
GX105,JZX10#..EXC,EXCG,ROUG,SLT |
1 | ||
| 35493P - SEAT, CUT BACK VALVE PLUG | ||||
| 35493-30100 |
GX105,JZX100,105..EXC,EXCG,ROU,ROUG,SLT |
1 | ||
| 35493Q - SEAT, ACCUMULATOR CONTROL VALVE PLUG, NO.1 | ||||
| 90339-05028 |
GX105,JZX100,105..EXC,EXCG,ROU,ROUG,SLT |
1 | ||
| Common parts | ||||
| 90105-05005 | ||||

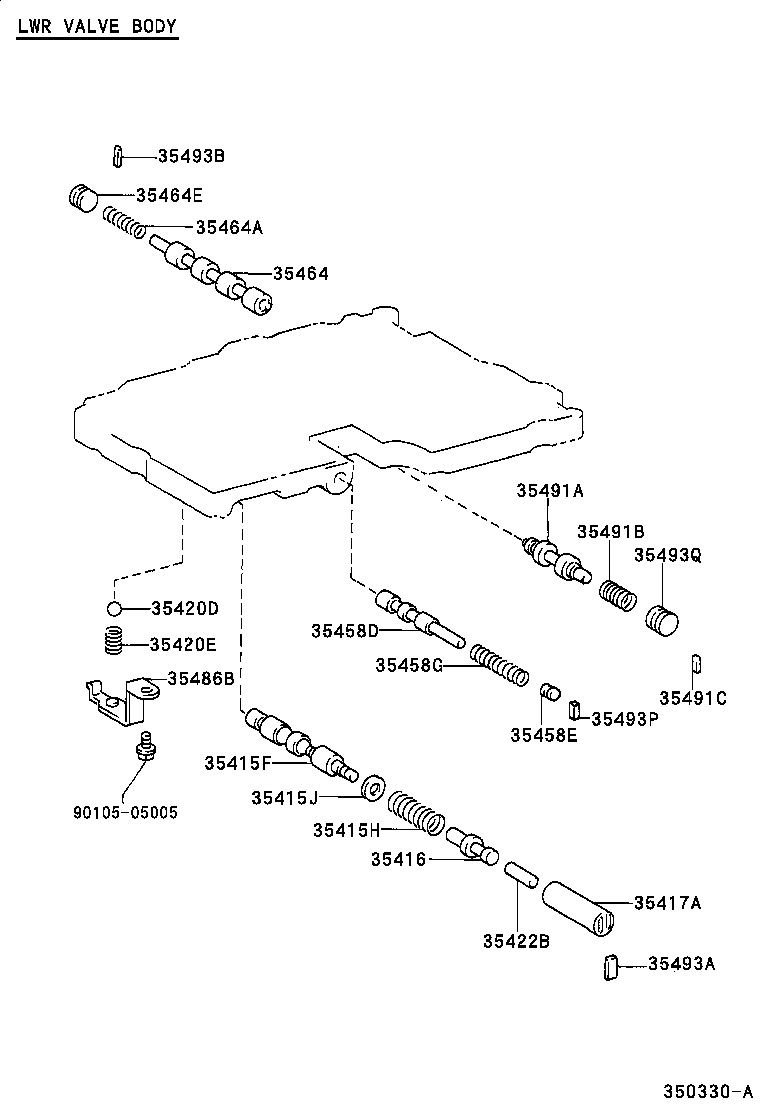

ILLUST NO. 3 OF 4(9609-9808)JZX105
A340H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35415F - VALVE, PRIMARY REGULATOR | ||||
| 35415-30050 |
GX105,JZX10#..EXC,EXCG,ROUG,SLT |
1 | ||
| 35415-30050 |
JZX100,105 |
1 | ||
| 35415H - SPRING, COMPRESSION (FOR PRIMARY REGULATOR VALVE) | ||||
| 90501-14117 |
JZX10#..EXC,EXCG,ROU,SLT |
1 | ||
| 35415J - WASHER (FOR PRIMARY REGULATOR VALVE) | ||||
| 90201-08067 |
GX105,JZX10#..EXC,EXCG,ROU,ROUG,SLT |
1 | ||
| 35416 - PLUNGER, PRIMARY REGULATOR VALVE, NO.1 | ||||
| 35416-50010 |
JZX10#..EXC,EXCG,ROU,SLT |
1 | ||
| 35417A - SLEEVE, PRIMARY REGULATOR VALVE | ||||
| 35417-50010 |
JZX100,105..EXC,EXCG,ROU,SLT |
1 | ||
| 35420D - BALL (FOR LOWER VALVE BODY) | ||||
| 90360-08003 |
GX105,JZX10# 外径=8.00,ｽﾁｰﾙ |
1 | ||
| 35420E - SPRING (FOR LOWER VALVE BODY) | ||||
| 90501-12142 |
GX105,JZX100,105..EXC,EXCG,ROU,SLT |
1 | ||
| 35422B - PLUNGER, PRIMARY REGULATOR VALVE, NO.2 | ||||
| 35422-50010 |
JZX100,105..EXC,EXCG,ROU,SLT |
1 | ||
| 35458D - VALVE, CUT BACK | ||||
| 35458-24010 |
GX105,JZX100,105..EXC,EXCG,ROU,ROUG,SLT |
1 | ||
| 35458E - PLUG (FOR CUT BACK VALVE) | ||||
| 90339-04056 |
GX105,JZX100,105..EXC,EXCG,ROU,ROUG,SLT |
1 | ||
| 35458G - SPRING, COMPRESSION (FOR CUT BACK VALVE) | ||||
| 90501-07113 |
GX105,JZX100,105..EXC,EXCG,ROU,ROUG,SLT |
1 | ||
| 35464 - VALVE, 1-2 SHIFT | ||||
| 35464-12030 |
GX105,JZX10#..EXC,EXCG,ROU,ROUG,SLT |
1 | ||
| 35464A - SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE) | ||||
| 90501-09053 |
GX105,JZX10#..EXC,EXCG,ROU,ROUG,SLT |
1 | ||
| 35464E - PLUG (FOR 1-2 SHIFT VALVE) | ||||
| 90339-05014 |
GX105,JZX10#..EXC,EXCG,ROU,ROUG,SLT |
1 | ||
| 35486B - SEAT, PRESSURE RELIEF VALVE SPRING | ||||
| 35486-30020 |
GX105,JZX100,105..EXC,EXCG,ROU,ROUG,SLT |
1 | ||
| 35491A - VALVE, ACCUMULATOR CONTROL, NO.1 | ||||
| 35491-24010 |
JZX100,105..EXC,EXCG,ROU,ROUG,SLT |
1 | ||
| 35491B - SPRING, COMPRESSION (FOR ACCUMULATOR CONTROL VALVE NO.1 | ||||
| 90501-08166 |
JZX100,105..EXC,EXCG,ROU,SLT |
1 | ||
| 35491C - KEY, STRAIGHT (FOR ACCUMULATOR CONTROL VALVE NO.1) | ||||
| 90282-03016 |
GX105,JZX100,105..EXC,EXCG,ROU,ROUG,SLT |
1 | ||
| 35493A - SEAT, PRIMARY REGULATOR VALVE PLUG | ||||
| 35493-50010 |
JZX10# |
1 | ||
| 35493-50010 |
GX10#,JZX10# |
1 | ||
| 35493B - SEAT, 1-2 SHIFT VALVE PLUG | ||||
| 35493-30090 |
GX105,JZX100,105..EXC,EXCG,ROU,ROUG,SLT |
1 | ||
| 35493P - SEAT, CUT BACK VALVE PLUG | ||||
| 35493-30100 |
GX105,JZX100,105..EXC,EXCG,ROU,ROUG,SLT |
1 | ||
| 35493Q - SEAT, ACCUMULATOR CONTROL VALVE PLUG, NO.1 | ||||
| 90339-05028 |
GX105,JZX100,105..EXC,EXCG,ROU,ROUG,SLT |
1 | ||
| Common parts | ||||
| 90105-05005 | ||||

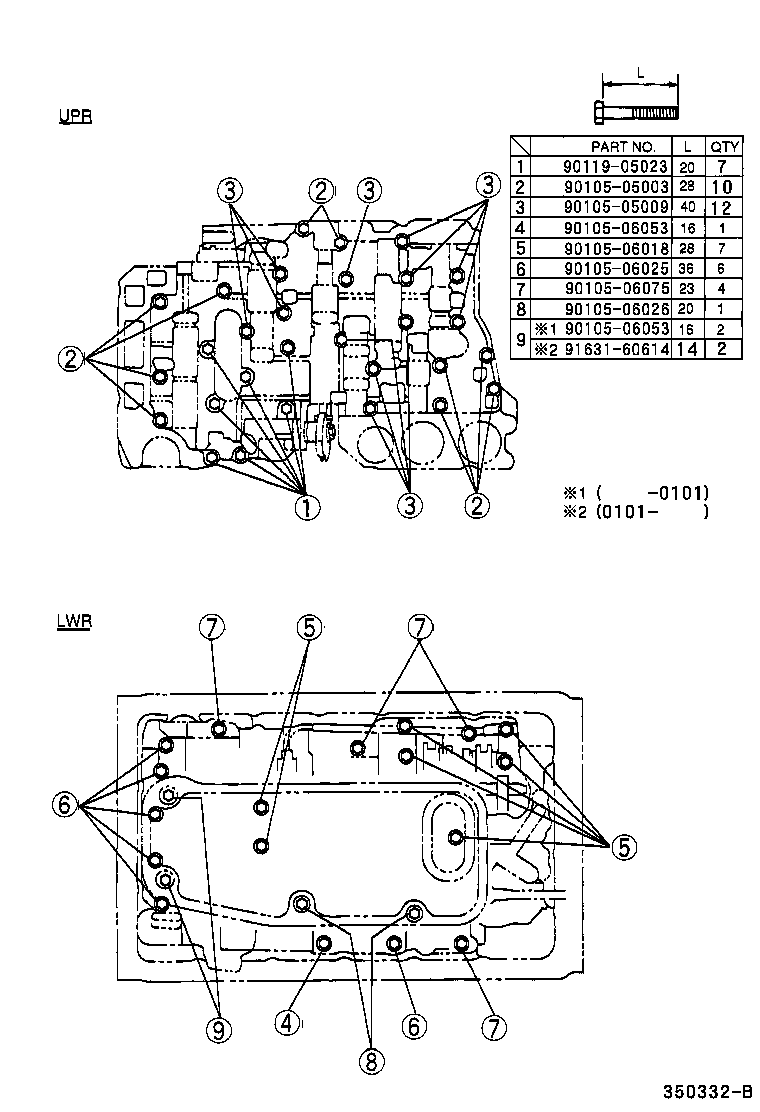

ILLUST NO. 4 OF 4(9609- )GX105,JZX105
A340H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-05003 | ||||
| 90105-05009 | ||||
| 90105-06018 | ||||
| 90105-06025 | ||||
| 90105-06026 | ||||
| 90105-06053 | ||||
| 90105-06075 | ||||
| 90119-05023 | ||||
| 91631-60614 | ||||

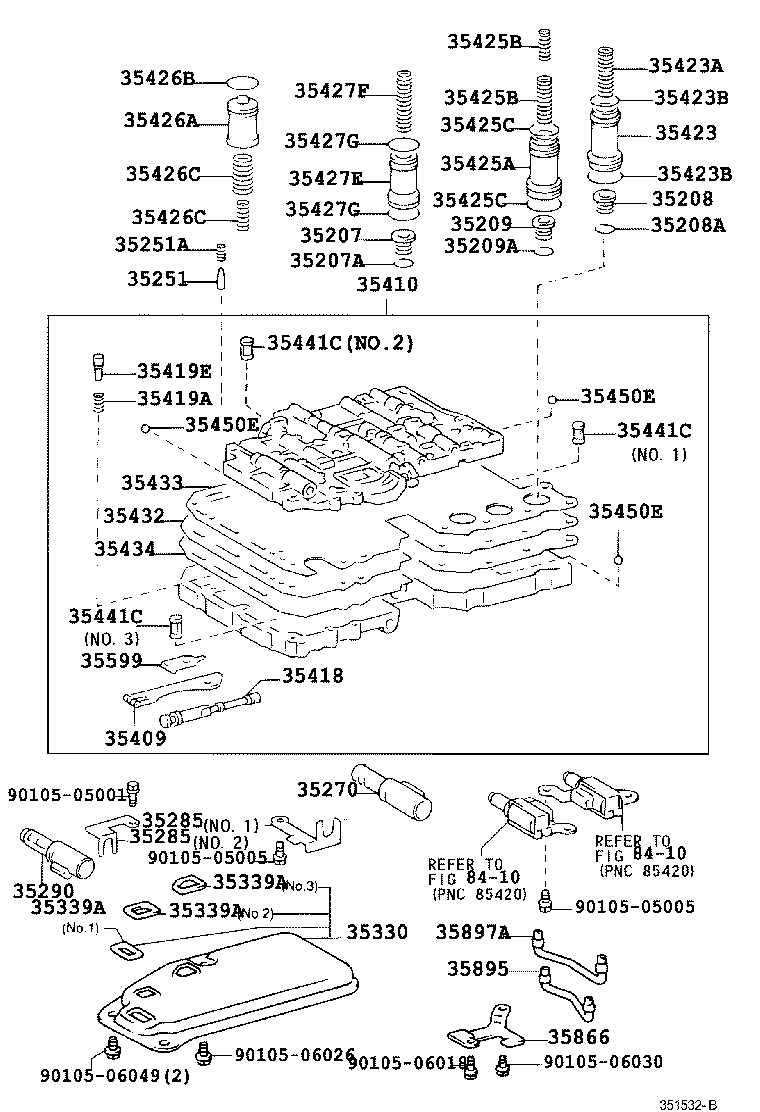

ILLUST NO. 1 OF 4(9808- )GX105,JZX105
A340H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35207 - SPRING SUB-ASSY, B-0 ACCUMULATOR | ||||
| 35207-22010 |
JZX10#..EXC,EXCG,ROU,SLT |
1 | ||
| 35207-22010 |
JZX100,105..EXC,EXCG,ROUS,SLT |
1 | ||
| 35207A - RING, HOLE SNAP (FOR B-0 ACCUMULATOR SPRING) | ||||
| 90521-22004 |
GX105,JZX10# |
1 | ||
| 35208 - SPRING SUB-ASSY, B-2 ACCUMULATOR | ||||
| 35208-30010 |
JZX10#..EXC,EXCG,ROU,ROUG,SLT |
1 | ||
| 35208A - RING, HOLE SNAP (FOR B-2 ACCUMULATOR SPRING) | ||||
| 90521-22004 |
GX10#,JZX10#..ATM |
1 | ||
| 35209 - SPRING SUB-ASSY, C-2 ACCUMULATOR | ||||
| 35209-24010 |
GX105,JZX100,105..EXC,EXCG,ROU,ROUS,SLT |
1 | ||
| 35209A - RING, HOLE SNAP (FOR C-2 ACCUMULATOR SPRING) | ||||
| 90521-22004 |
GX105,JZX10# |
1 | ||
| 35251 - BODY, CHECK BALL | ||||
| 35251-30020 |
GX105,JZX10# |
1 | ||
| 35251A - SPRING, COMPRESSION (FOR CHECK BALL BODY) | ||||
| 90501-03005 |
GX105,JZX10# |
1 | ||
| 35270 - SOLENOID ASSY, SHIFT CONTROL | ||||
| 35270-14010 |
GX105,JZX10#..EXC,EXCG,ROUG,SLT |
1 | ||
| 35285 - PLATE, SOLENOID LOCK | ||||
| 35285-24010 |
JZX105 |
1 | ||
| 35285-24010 |
JZX100,105..EXC,EXCG,SLT |
1 | ||
| 35285 - PLATE, SOLENOID LOCK | ||||
| 35285-24010 |
JZX105 |
1 | ||
| 35285-24010 |
JZX100,105..EXC,EXCG,SLT |
1 | ||
| 35330 - STRAINER ASSY, VALVE BODY OIL | ||||
| 35330-22020 |
GX105,JZX105 |
1 | ||
| 35339A - GASKET, OIL STRAINER, NO.1 | ||||
| 35339-30090 |
GX105,JZX105 NO.2 |
1 | ||
| 35339-30080 |
GX105,JZX105 NO.1 |
1 | ||
| 35339-30100 |
GX105,JZX105 NO.3 |
1 | ||
| 35339A - GASKET, OIL STRAINER, NO.1 | ||||
| 35339-30090 |
GX105,JZX105 NO.2 |
1 | ||
| 35339-30080 |
GX105,JZX105 NO.1 |
1 | ||
| 35339-30100 |
GX105,JZX105 NO.3 |
1 | ||
| 35339A - GASKET, OIL STRAINER, NO.1 | ||||
| 35339-30090 |
GX105,JZX105 NO.2 |
1 | ||
| 35339-30080 |
GX105,JZX105 NO.1 |
1 | ||
| 35339-30100 |
GX105,JZX105 NO.3 |
1 | ||
| 35409 - SPRING SUB-ASSY, MANUAL DETENT | ||||
| 35409-22020 |
GX105,JZX10#..EXC,EXCG,ROU,ROUG,SLT |
1 | ||
| 35410 - BODY ASSY, TRANSMISSION VALVE | ||||
| 35410-22621 |
JZX105 |
1 | ||
| 35410-22710 |
JZX105 |
1 | ||
| 35418 - VALVE, MANUAL | ||||
| 35418-24010 |
JZX100,105 |
1 | ||
| 35418-24010 |
GX10#,JZX100,105..EXC,EXCG,ROU,ROUG,SLT |
1 | ||
| 35419A - SPRING, COMPRESSION (FOR CHECK VALVE) | ||||
| 90501-09093 |
GX10#,JZX10# |
1 | ||
| 90501-09093 |
JZX10# |
1 | ||
| 35419E - VALVE, CHECK, NO.3 | ||||
| 35419-50010 |
GX105,JZX10# |
1 | ||
| 35423 - PISTON, B-2 ACCUMULATOR | ||||
| 35423-30030 |
GX105,JZX10# |
1 | ||
| 35423A - SPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90501-24015 |
JZX100,105..EXC,EXCG,ROU,SLT |
1 | ||
| 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90301-23194 |
JZX10# 上側 |
1 | ||
| 90301-31002 |
JZX10# 下側 |
1 | ||
| 90301-31010 |
GX105,JZX10# 下側 |
1 | ||
| 90301-23010 |
GX10#,JZX10# 上側 |
1 | ||
| 90301-23010 |
JZX10# 上側 |
1 | ||
| 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90301-23194 |
JZX10# 上側 |
1 | ||
| 90301-31002 |
JZX10# 下側 |
1 | ||
| 90301-31010 |
GX105,JZX10# 下側 |
1 | ||
| 90301-23010 |
GX10#,JZX10# 上側 |
1 | ||
| 90301-23010 |
JZX10# 上側 |
1 | ||
| 35425A - PISTON, C-2 ACCUMULATOR | ||||
| 35425-30020 |
GX105,JZX10#..EXC,EXCG,ROU,ROUG,SLT |
1 | ||
| 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90501-25027 |
GX105,JZX100,105..EXC,EXCG,ROU,ROUG,SLT 内側 |
1 | ||
| 90501-22016 |
GX105,JZX10#..EXC,EXCG,ROU,SLT 外側 |
1 | ||
| 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90501-25027 |
GX105,JZX100,105..EXC,EXCG,ROU,ROUG,SLT 内側 |
1 | ||
| 90501-22016 |
GX105,JZX10#..EXC,EXCG,ROU,SLT 外側 |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-25003 |
JZX10# 上側 |
1 | ||
| 90301-31010 |
GX105,JZX10#..EXC,EXCG,ROU,ROUG,SLT 下側 |
1 | ||
| 90301-31002 |
JZX10# 下側 |
1 | ||
| 90301-25010 |
GX105,JZX10#..EXC,EXCG,ROU,ROUG,SLT 上側 |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-25003 |
JZX10# 上側 |
1 | ||
| 90301-31010 |
GX105,JZX10#..EXC,EXCG,ROU,ROUG,SLT 下側 |
1 | ||
| 90301-31002 |
JZX10# 下側 |
1 | ||
| 90301-25010 |
GX105,JZX10#..EXC,EXCG,ROU,ROUG,SLT 上側 |
1 | ||
| 35426A - PISTON, C-0 ACCUMULATOR | ||||
| 35426-40010 |
GX105,JZX100,105..EXC,EXCG,ROU,ROUG,SLT |
1 | ||
| 35426B - RING, O (FOR C-0 ACCUMULATOR PISTON) | ||||
| 90301-24010 |
GX105,JZX100,105 |
1 | ||
| 90301-24001 |
JZX100,105 |
1 | ||
| 35426C - SPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON) | ||||
| 90501-22008 |
GX105,JZX100,105..EXC,EXCG,ROU,ROUG,SLT 内側 |
1 | ||
| 90501-23073 |
GX105,JZX100,105..EXC,EXCG,ROU,ROUG,SLT 外側 |
1 | ||
| 35426C - SPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON) | ||||
| 90501-22008 |
GX105,JZX100,105..EXC,EXCG,ROU,ROUG,SLT 内側 |
1 | ||
| 90501-23073 |
GX105,JZX100,105..EXC,EXCG,ROU,ROUG,SLT 外側 |
1 | ||
| 35427E - PISTON, B-0 ACCUMULATOR | ||||
| 35427-30040 |
GX105,JZX10# |
1 | ||
| 35427F - SPRING, COMPRESSION (FOR B-0 ACCUMULATOR PISTON) | ||||
| 90501-23095 |
GX105,JZX105 |
1 | ||
| 35427G - RING, O (FOR B-0 ACCUMULATOR PISTON) | ||||
| 90301-20002 |
JZX10# 上側 |
1 | ||
| 90301-20008 |
GX105,JZX10# 上側 |
1 | ||
| 90301-26011 |
GX105,JZX10# 下側 |
1 | ||
| 90301-26002 |
JZX10# 下側 |
1 | ||
| 35427G - RING, O (FOR B-0 ACCUMULATOR PISTON) | ||||
| 90301-20002 |
JZX10# 上側 |
1 | ||
| 90301-20008 |
GX105,JZX10# 上側 |
1 | ||
| 90301-26011 |
GX105,JZX10# 下側 |
1 | ||
| 90301-26002 |
JZX10# 下側 |
1 | ||
| 35432 - PLATE, VALVE BODY, NO.1 | ||||
| 35432-22271 |
JZX105 |
1 | ||
| 35432-22350 |
JZX105 |
1 | ||
| 35433 - GASKET, VALVE BODY, NO.1 | ||||
| 35433-24012 |
GX105,JZX100,105..EXC,EXCG,ROU,ROUG,SLT |
1 | ||
| 35433-24011 |
JZX100,105 |
1 | ||
| 35434 - GASKET, VALVE BODY, NO.2 | ||||
| 35434-24012 |
GX105,JZX100,105..EXC,EXCG,ROU,ROUG,SLT |
1 | ||
| 35434-24011 |
JZX100,105 |
1 | ||
| 35441C - STRAINER, SOLENOID OIL | ||||
| 35441-24020 |
GX105,JZX100,105 NO.3 |
1 | ||
| 35441-50030 |
GX105,JZX100,105..EXC,EXCG,ROU,ROUG,SLT NO.1 |
1 | ||
| 35441-24010 |
GX105,JZX100,105..EXC,EXCG,ROU,ROUG,SLT NO.2 |
1 | ||
| 35441C - STRAINER, SOLENOID OIL | ||||
| 35441-24020 |
GX105,JZX100,105 NO.3 |
1 | ||
| 35441-50030 |
GX105,JZX100,105..EXC,EXCG,ROU,ROUG,SLT NO.1 |
1 | ||
| 35441-24010 |
GX105,JZX100,105..EXC,EXCG,ROU,ROUG,SLT NO.2 |
1 | ||
| 35441C - STRAINER, SOLENOID OIL | ||||
| 35441-24020 |
GX105,JZX100,105 NO.3 |
1 | ||
| 35441-50030 |
GX105,JZX100,105..EXC,EXCG,ROU,ROUG,SLT NO.1 |
1 | ||
| 35441-24010 |
GX105,JZX100,105..EXC,EXCG,ROU,ROUG,SLT NO.2 |
1 | ||
| 35450E - BALL (FOR UPPER VALVE BODY) | ||||
| 35496-22030 |
GX105,JZX10#..EXC,EXCG,ROU,ROUG,SLT 外径=6.35,ﾗﾊﾞｰ |
2 | ||
| 35495-22020 |
JZX100,105 外径=5.535,ﾗﾊﾞｰ |
12 | ||
| 35495-22020 |
JZX10#..EXC,EXCG,SLT 外径=5.535,ﾗﾊﾞｰ |
12 | ||
| 35450E - BALL (FOR UPPER VALVE BODY) | ||||
| 35496-22030 |
GX105,JZX10#..EXC,EXCG,ROU,ROUG,SLT 外径=6.35,ﾗﾊﾞｰ |
2 | ||
| 35495-22020 |
JZX100,105 外径=5.535,ﾗﾊﾞｰ |
12 | ||
| 35495-22020 |
JZX10#..EXC,EXCG,SLT 外径=5.535,ﾗﾊﾞｰ |
12 | ||
| 35450E - BALL (FOR UPPER VALVE BODY) | ||||
| 35496-22030 |
GX105,JZX10#..EXC,EXCG,ROU,ROUG,SLT 外径=6.35,ﾗﾊﾞｰ |
2 | ||
| 35495-22020 |
JZX100,105 外径=5.535,ﾗﾊﾞｰ |
12 | ||
| 35495-22020 |
JZX10#..EXC,EXCG,SLT 外径=5.535,ﾗﾊﾞｰ |
12 | ||
| 35599 - COVER, MANUAL DETENT SPRING | ||||
| 35599-22020 |
GX105,JZX10# |
1 | ||
| 35866 - BRACKET, TRANSFER APPLY TUBE | ||||
| 35866-22020 |
GX105,JZX105 |
1 | ||
| 35895 - TUBE, FRONT CLUTCH APPLY | ||||
| 35895-22010 |
GX105,JZX105 |
1 | ||
| 35897A - TUBE, 1ST & REVERSE BRAKE, NO.1 | ||||
| 35897-30020 |
GX105,JZX105 |
1 | ||
| Common parts | ||||
| 90105-05001 | ||||
| 90105-05005 | ||||
| 90105-06018 | ||||
| 90105-06026 | ||||
| 90105-06030 | ||||
| 90105-06049 | ||||
| Linked diagrams | ||||
| 8410 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
