JZX101-CEPZF (1996)
Toyota Cresta

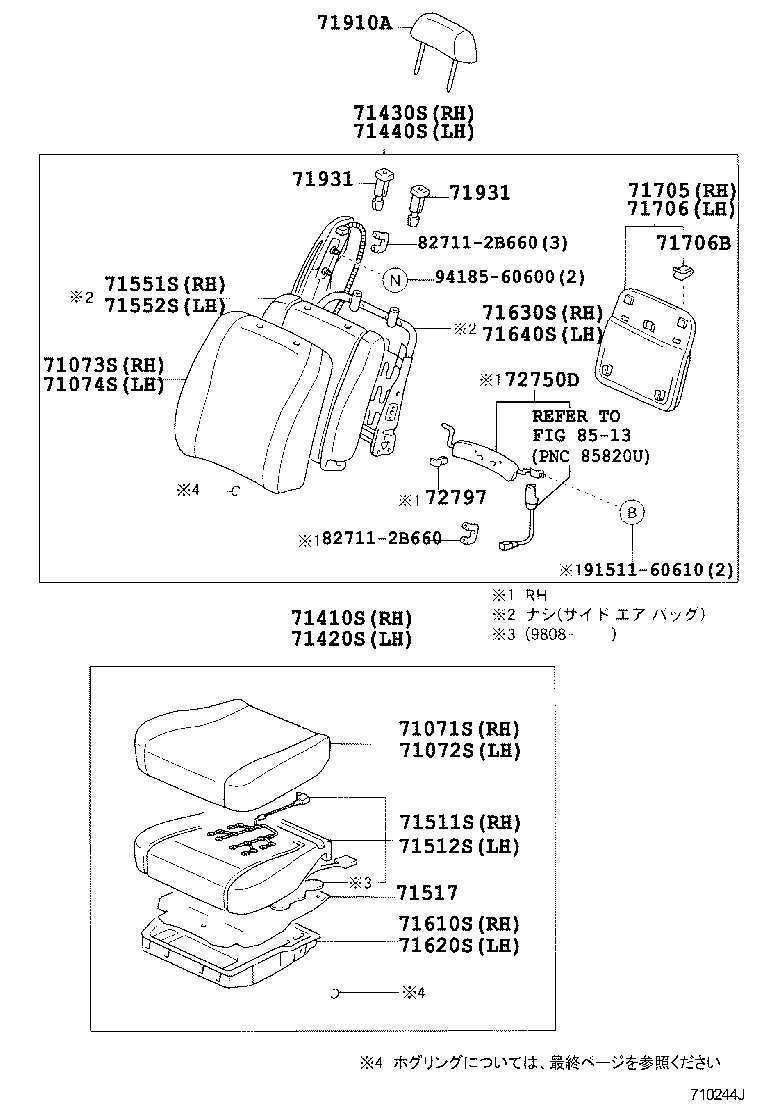

ILLUST NO. 1 OF 2(9609- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-2C110E0 |
GX100,JZX100,101..EXC,EXCG ORCHID,TRIM4# |
1 | ||
| 71071-2C110G0 |
GX100,JZX100,101..EXC,EXCG SAGE,TRIM6# |
1 | ||
| 71071-2C210E0 |
JZX105;GX100,JZX100,101..EXC,EXCG ｼ-ﾄ = TYPE A-*104 & G ﾊﾟﾂｹ-ｼﾞ,ORCHID BROWN,TRIM4# |
1 | ||
| 71071-2C210G0 |
JZX105;GX100,JZX100,101..EXC,EXCG ｼ-ﾄ = TYPE A-*104,DK.SAGE,TRIM6# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-2A440E0 |
GX100,JZX100,101..EXC,EXCG ORCHID,TRIM4# |
1 | ||
| 71072-2A440G0 |
GX100,JZX100,101..EXC,EXCG SAGE,TRIM6# |
1 | ||
| 71072-2A510E0 |
JZX105;GX100,JZX100,101..EXC,EXCG ｼ-ﾄ = TYPE A-*104,ORCHID BROWN,TRIM4# |
1 | ||
| 71072-2A510G0 |
JZX105;GX100,JZX100,101..EXC,EXCG ｼ-ﾄ = TYPE A-*104,DK.SAGE,TRIM6# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-2C341G0 |
JZX105;GX100,JZX100,101..EXC,EXCG G ﾊﾟﾂｹ-ｼﾞ *(G),SAGE,TRIM6# |
1 | ||
| 71073-2C341E0 |
JZX105;GX100,JZX100,101..EXC,EXCG G ﾊﾟﾂｹ-ｼﾞ *(G),ORCHID,TRIM4# |
1 | ||
| 71073-2C340G0 |
GX100,JZX100,101..EXC,EXCG SAGE,TRIM6# |
1 | ||
| 71073-2C440G0 |
JZX105;GX100,JZX100,101..EXC,EXCG ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,DK.SAGE,TRIM6# |
1 | ||
| 71073-2C340E0 |
GX100,JZX100,101..EXC,EXCG ORCHID,TRIM4# |
1 | ||
| 71073-2C440E0 |
JZX105;GX100,JZX100,101..EXC,EXCG ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,ORCHID BROWN,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-2A541G0 |
JZX105;GX100,JZX100,101..EXC,EXCG G ﾊﾟﾂｹ-ｼﾞ *(G),SAGE,TRIM6# |
1 | ||
| 71074-2A540E0 |
GX100,JZX100,101..EXC,EXCG ORCHID,TRIM4# |
1 | ||
| 71074-2A540G0 |
GX100,JZX100,101..EXC,EXCG SAGE,TRIM6# |
1 | ||
| 71074-2A541E0 |
JZX105;GX100,JZX100,101..EXC,EXCG G ﾊﾟﾂｹ-ｼﾞ *(G),ORCHID,TRIM4# |
1 | ||
| 71074-2A640G0 |
JZX105;GX100,JZX100,101..EXC,EXCG ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,DK.SAGE,TRIM6# |
1 | ||
| 71074-2A640E0 |
JZX105;GX100,JZX100,101..EXC,EXCG ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,ORCHID BROWN,TRIM4# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-2C390G0 |
GX100,JZX100,101..EXC,EXCG ***,SAGE,TRIM6# |
1 | ||
| 71410-2C391G0 |
JZX105;GX100,JZX100,101..EXC,EXCG ***,G ﾊﾟﾂｹ-ｼﾞ *(G),SAGE,TRIM6# |
1 | ||
| 71410-2C390E0 |
GX100,JZX100,101..EXC,EXCG ***,ORCHID,TRIM4# |
1 | ||
| 71410-2C391E0 |
JZX105;GX100,JZX100,101..EXC,EXCG ***,G ﾊﾟﾂｹ-ｼﾞ *(G),ORCHID,TRIM4# |
1 | ||
| 71410-2C490E0 |
JZX105;GX100,JZX100,101..EXC,EXCG ***,ｼ-ﾄ = TYPE A-*104,ORCHID BROWN,TRIM4# |
1 | ||
| 71410-2C490G0 |
JZX105;GX100,JZX100,101..EXC,EXCG ***,ｼ-ﾄ = TYPE A-*104,DK.SAGE,TRIM6# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-2A700E0 |
GX100,JZX100,101..EXC,EXCG ***,ORCHID,TRIM4# |
1 | ||
| 71420-2A701E0 |
JZX105;GX100,JZX100,101..EXC,EXCG ***,G ﾊﾟﾂｹ-ｼﾞ *(G),ORCHID,TRIM4# |
1 | ||
| 71420-2A701G0 |
JZX105;GX100,JZX100,101..EXC,EXCG ***,G ﾊﾟﾂｹ-ｼﾞ *(G),SAGE,TRIM6# |
1 | ||
| 71420-2A750E0 |
JZX105;GX100,JZX100,101..EXC,EXCG ***,ｼ-ﾄ = TYPE A-*104,ORCHID BROWN,TRIM4# |
1 | ||
| 71420-2A700G0 |
GX100,JZX100,101..EXC,EXCG ***,SAGE,TRIM6# |
1 | ||
| 71420-2A750G0 |
JZX105;GX100,JZX100,101..EXC,EXCG ***,ｼ-ﾄ = TYPE A-*104,DK.SAGE,TRIM6# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-2C840G0 |
JZX105;GX100,JZX100,101..EXC,EXCG G ﾊﾟﾂｹ-ｼﾞ,SAGE,TRIM6# |
1 | ||
| 71430-2C840E0 |
JZX105;GX100,JZX100,101..EXC,EXCG G ﾊﾟﾂｹ-ｼﾞ,ORCHID,TRIM4# |
1 | ||
| 71040-22210E0 |
JZX105;GX100,JZX100,101..EXC,EXCG ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,ORCHID BROWN,TRIM4# |
1 | ||
| 71040-22210G0 |
JZX105;GX100,JZX100,101..EXC,EXCG ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,DK.SAGE,TRIM6# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-2C540G0 |
JZX105;GX100,JZX100,101..EXC,EXCG G ﾊﾟﾂｹ-ｼﾞ,SAGE,TRIM6# |
1 | ||
| 71440-2C540E0 |
JZX105;GX100,JZX100,101..EXC,EXCG G ﾊﾟﾂｹ-ｼﾞ,ORCHID,TRIM4# |
1 | ||
| 71070-22120G0 |
JZX105;GX100,JZX100,101..EXC,EXCG ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,DK.SAGE,TRIM6# |
1 | ||
| 71070-22120E0 |
JZX105;GX100,JZX100,101..EXC,EXCG ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,ORCHID BROWN,TRIM4# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-22550 |
GX100,JZX10#,LX100..EXC,EXCG,SLT |
1 | ||
| 71511-22580 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71052-22020 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT |
1 | ||
| 71512-22170 |
GX100,JZX10#,LX100..EXC,EXCG,SLT |
1 | ||
| 71517 - CLOTH, FRONT SEAT CUSHION UNDER | ||||
| 71517-22170 |
GX100,JZX10#,LX100..EXC,EXCG,SC,SLT |
2 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-22440 |
GX100,JZX10#,LX100..EXC,EXCG,SLT |
1 | ||
| 71610-22441 |
GX100,JZX10#,LX100..EXC,EXCG,SLT |
1 | ||
| 71610-22460 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-22210 |
GX10#,JZX10#,LX100 |
1 | ||
| 71620-22200 |
GX100,JZX10#,LX100 |
1 | ||
| 71620-22201 |
GX100,JZX10#,LX100 |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-22701 |
GX10#,JZX10#,LX100 |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-22461 |
GX10#,JZX10#,LX100 |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-22540E0 |
GX100,JZX100,101..EXC,EXCG ORCHID,TRIM4# |
1 | ||
| 71705-22540G0 |
GX100,JZX100,101..EXC,EXCG SAGE,TRIM6# |
1 | ||
| 71705-22550E0 |
JZX105;GX100,JZX100,101..EXC,EXCG ｼ-ﾄ = TYPE A-*104,ORCHID,TRIM4# |
1 | ||
| 71705-22550G0 |
JZX105;GX100,JZX100,101..EXC,EXCG ｼ-ﾄ = TYPE A-*104,SAGE,TRIM6# |
1 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71705-22540E0 |
GX100,JZX100,101..EXC,EXCG ORCHID,TRIM4# |
1 | ||
| 71705-22540G0 |
GX100,JZX100,101..EXC,EXCG SAGE,TRIM6# |
1 | ||
| 71705-22550E0 |
JZX105;GX100,JZX100,101..EXC,EXCG ｼ-ﾄ = TYPE A-*104,ORCHID,TRIM4# |
1 | ||
| 71705-22550G0 |
JZX105;GX100,JZX100,101..EXC,EXCG ｼ-ﾄ = TYPE A-*104,SAGE,TRIM6# |
1 | ||
| 71706B - CLIP, FRONT SEAT BACK BOARD | ||||
| 71769-60020 |
JZX105;GX100,JZX100,101..EXC,EXCG |
4 | ||
| 71769-60020 |
GX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUG,ROUS,SLT |
4 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2A110E1 |
GX100,JZX100,101..EXC,EXCG ORCHID,TRIM4# |
2 | ||
| 71910-2A110G1 |
GX100,JZX100,101..EXC,EXCG SAGE,TRIM6# |
2 | ||
| 71910-2A140E0 |
GX100,JZX100,101..EXC,EXCG ORCHID,TRIM4# |
2 | ||
| 71910-2A140G0 |
GX100,JZX100,101..EXC,EXCG SAGE,TRIM6# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-10020G3 |
GX100,JZX10#,LX100..EXC,EXCG,SC,SLT ﾛｯｸ無,DK. SAGE,TRIM6# |
2 | ||
| 71930-44010E2 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT ﾛｯｸ付,ORCHID,TRIM4# |
2 | ||
| 71931-10020L3 |
GX100,JZX10#,LX100..EXC,EXCG,SLT ﾛｯｸ無,ORCHID,TRIM4# |
2 | ||
| 71930-10070L4 |
GX100,JZX10#,LX100..EXC,EXCG,SLT ﾛｯｸ付,ORCHID,TRIM4# |
2 | ||
| 71930-10070G4 |
GX100,JZX10#,LX100..EXC,EXCG,SC,SLT ﾛｯｸ付,DK. SAGE,TRIM6# |
2 | ||
| 71930-44010G0 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT ﾛｯｸ付,SAGE,TRIM6# |
2 | ||
| 71931-32020G2 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT ﾛｯｸ無,SAGE,TRIM6# |
2 | ||
| 71931-32020E8 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT ﾛｯｸ無,ORCHID,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-10020G3 |
GX100,JZX10#,LX100..EXC,EXCG,SC,SLT ﾛｯｸ無,DK. SAGE,TRIM6# |
2 | ||
| 71930-44010E2 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT ﾛｯｸ付,ORCHID,TRIM4# |
2 | ||
| 71931-10020L3 |
GX100,JZX10#,LX100..EXC,EXCG,SLT ﾛｯｸ無,ORCHID,TRIM4# |
2 | ||
| 71930-10070L4 |
GX100,JZX10#,LX100..EXC,EXCG,SLT ﾛｯｸ付,ORCHID,TRIM4# |
2 | ||
| 71930-10070G4 |
GX100,JZX10#,LX100..EXC,EXCG,SC,SLT ﾛｯｸ付,DK. SAGE,TRIM6# |
2 | ||
| 71930-44010G0 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT ﾛｯｸ付,SAGE,TRIM6# |
2 | ||
| 71931-32020G2 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT ﾛｯｸ無,SAGE,TRIM6# |
2 | ||
| 71931-32020E8 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT ﾛｯｸ無,ORCHID,TRIM4# |
2 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-22120 |
GX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUG,ROUS,SLT |
1 | ||
| 72797 - SPACER, LUMBAR SUPPORT | ||||
| 72797-50010 |
GX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUG,ROUS,SLT |
1 | ||
| Common parts | ||||
| 82711-2B660 | ||||
| 91511-60610 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 8513 | ||||

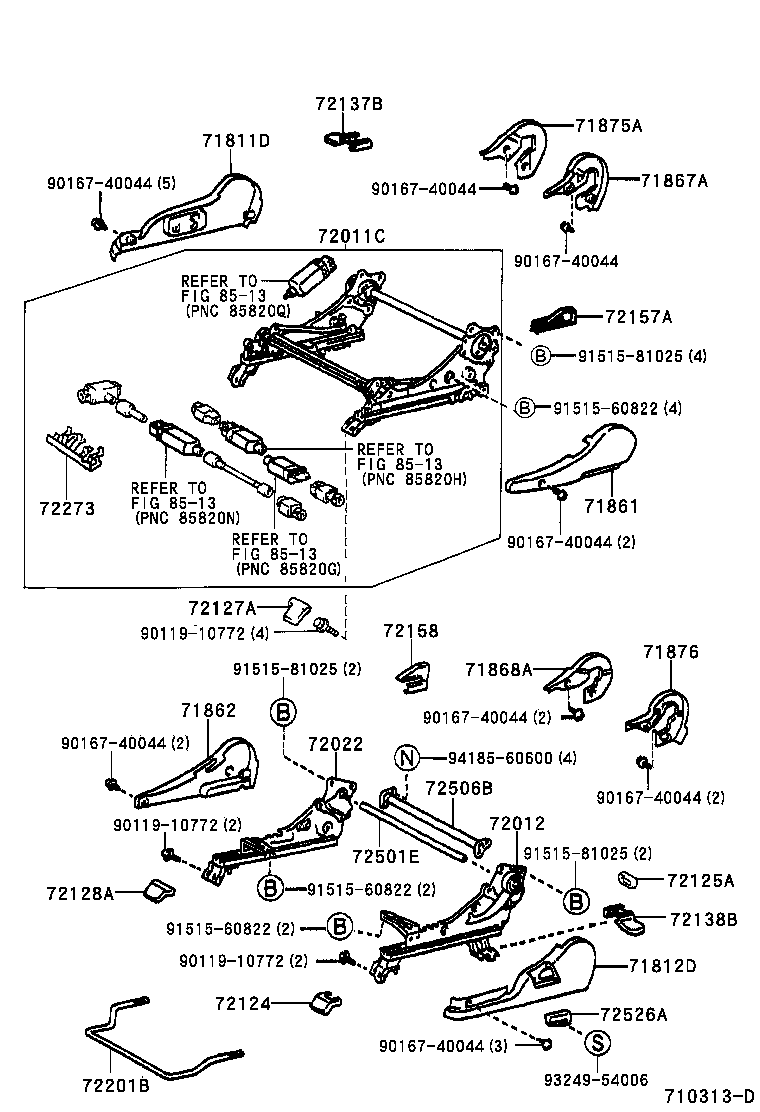

ILLUST NO. 2 OF 2(9609- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-22280E0 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ & ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ),ORCHID,TRIM4# |
1 | ||
| 71811-22280G0 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ & ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ),SAGE,TRIM6# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-22220E0 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ),ORCHID,TRIM4# |
1 | ||
| 71812-22220G0 |
GX10#,JZX10#,LX100..EXC,EXCG,SC,SLT ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ),SAGE,TRIM6# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-32090G0 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT SAGE,TRIM6# |
1 | ||
| 71861-32090E1 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT ORCHID,TRIM4# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-32080G0 |
GX100,JZX100,101,LX100..EXC,EXCG,SC,SLT SAGE,TRIM6# |
1 | ||
| 71862-32080E1 |
GX100,JZX100,101,LX100..EXC,EXCG,SLT ORCHID,TRIM4# |
1 | ||
| 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-32030E1 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT ORCHID,TRIM4# |
1 | ||
| 71867-32030G0 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT SAGE,TRIM6# |
1 | ||
| 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH | ||||
| 71875-32030G0 |
GX100,JZX100,101,LX100..EXC,EXCG,SC,SLT SAGE,TRIM6# |
1 | ||
| 71875-32030E1 |
GX100,JZX100,101,LX100..EXC,EXCG,SLT ORCHID,TRIM4# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-32040E1 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),ORCHID,TRIM4# |
1 | ||
| 71875-32040G0 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),SAGE,TRIM6# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-32030E1 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT ORCHID,TRIM4# |
1 | ||
| 71876-32030G0 |
GX10#,JZX10#,LX100..EXC,EXCG,SC,SLT SAGE,TRIM6# |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72012-22050 |
GX10#,JZX10#,LX100 |
1 | ||
| 72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH | ||||
| 72022-22050 |
GX100,JZX100,101,LX100 |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-22020G0 |
GX10#,JZX10#,LX100..EXC,EXCG,SC,SLT SAGE,TRIM6# |
1 | ||
| 72124-22020E0 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT ORCHID,TRIM4# |
1 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-33010 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT NO.2 |
2 | ||
| 72125-16020 |
JZX100..EXC,EXCG,SLT;GX10#,JZX101,105,LX100..EXCG,SLT NO.1 |
2 | ||
| 72125-16020 |
GX100,JZX10#,LX100..EXC,EXCG,SLT |
2 | ||
| 72125-16020 |
GX100,JZX10#,LX100..EXC,EXCG,SLT NO.1 |
2 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-22070G0 |
GX10#,JZX10#,LX100..EXC,EXCG,SC,SLT SAGE,TRIM6# |
1 | ||
| 72127-22070E0 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT ORCHID,TRIM4# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72127-22070E0 |
GX100,JZX100,101,LX100..EXC,EXCG,SLT ORCHID,TRIM4# |
1 | ||
| 72127-22070G0 |
GX100,JZX100,101,LX100..EXC,EXCG,SC,SLT SAGE,TRIM6# |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-22070G0 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),SAGE,TRIM6# |
1 | ||
| 72137-22070E0 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),ORCHID,TRIM4# |
1 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-22070G0 |
GX10#,JZX10#,LX100..EXC,EXCG,SC,SLT SAGE,TRIM6# |
1 | ||
| 72138-22070E0 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT ORCHID,TRIM4# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-22060E0 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),ORCHID,TRIM4# |
1 | ||
| 72157-22060G0 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),SAGE,TRIM6# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-22030E0 |
GX100,JZX100,101,LX100..EXC,EXCG,SLT ORCHID,TRIM4# |
1 | ||
| 72158-22030G0 |
GX100,JZX100,101,LX100..EXC,EXCG,SC,SLT SAGE,TRIM6# |
1 | ||
| 72201B - HANDLE SUB-ASSY, SEAT TRACK LH | ||||
| 72201-32010 |
GX100,JZX100,101,LX100 |
1 | ||
| 72201-22030 |
GX100,JZX100,101 |
1 | ||
| 72501E - PIPE SUB-ASSY, RECLINING CONNECTING, LH | ||||
| 72345-22040 |
GX10#,JZX10#,LX100 |
1 | ||
| 72506A - ROD SUB-ASSY, RECLINING CONNECTING, RH | ||||
| 72506-22020 |
GX10#,JZX10#,LX100 |
1 | ||
| 72506B - ROD SUB-ASSY, RECLINING CONNECTING, LH | ||||
| 72506-22020 |
GX10#,JZX10#,LX100 |
1 | ||
| 72506-22010 |
GX100,JZX10#,LX100 |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-32020E1 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT ORCHID,TRIM4# |
1 | ||
| 72526-32020G0 |
GX10#,JZX10#,LX100..EXC,EXCG,SC,SLT SAGE,TRIM6# |
1 | ||
| Common parts | ||||
| 90119-10772 | ||||
| 90167-40044 | ||||
| 90520-01006 | ||||
| 91515-60822 | ||||
| 91515-81025 | ||||
| 93249-54006 | ||||
| 94185-60600 | ||||
| 96160-00600 | ||||
| 96160-00800 | ||||
ILLUST NO. 2 OF 2(9609- )
ｱﾘ(ﾊﾟﾜｰｼ-ﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-22280E0 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ & ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ),ORCHID,TRIM4# |
1 | ||
| 71811-22280G0 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ & ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ),SAGE,TRIM6# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-22220E0 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ),ORCHID,TRIM4# |
1 | ||
| 71812-22220G0 |
GX10#,JZX10#,LX100..EXC,EXCG,SC,SLT ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ),SAGE,TRIM6# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-32090G0 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT SAGE,TRIM6# |
1 | ||
| 71861-32090E1 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT ORCHID,TRIM4# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-32080G0 |
GX100,JZX100,101,LX100..EXC,EXCG,SC,SLT SAGE,TRIM6# |
1 | ||
| 71862-32080E1 |
GX100,JZX100,101,LX100..EXC,EXCG,SLT ORCHID,TRIM4# |
1 | ||
| 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-32030E1 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT ORCHID,TRIM4# |
1 | ||
| 71867-32030G0 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT SAGE,TRIM6# |
1 | ||
| 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH | ||||
| 71875-32030G0 |
GX100,JZX100,101,LX100..EXC,EXCG,SC,SLT SAGE,TRIM6# |
1 | ||
| 71875-32030E1 |
GX100,JZX100,101,LX100..EXC,EXCG,SLT ORCHID,TRIM4# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-32040E1 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),ORCHID,TRIM4# |
1 | ||
| 71875-32040G0 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),SAGE,TRIM6# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-32030E1 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT ORCHID,TRIM4# |
1 | ||
| 71876-32030G0 |
GX10#,JZX10#,LX100..EXC,EXCG,SC,SLT SAGE,TRIM6# |
1 | ||
| 72011C - ADJUSTER SUB-ASSY, FRONT SEAT, RH | ||||
| 72010-22300 |
GX100,JZX10#,LX100..EXC,EXCG,SLT |
1 | ||
| 72010-22310 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72012-22050 |
GX10#,JZX10#,LX100 |
1 | ||
| 72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH | ||||
| 72022-22050 |
GX100,JZX100,101,LX100 |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-22020G0 |
GX10#,JZX10#,LX100..EXC,EXCG,SC,SLT SAGE,TRIM6# |
1 | ||
| 72124-22020E0 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT ORCHID,TRIM4# |
1 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-16020 |
GX100,JZX10#,LX100..EXC,EXCG,SLT NO.1 |
2 | ||
| 72125-33010 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT NO.2 |
2 | ||
| 72125-16020 |
JZX100..EXC,EXCG,SLT;GX10#,JZX101,105,LX100..EXCG,SLT NO.1 |
2 | ||
| 72125-16020 |
GX100,JZX10#,LX100..EXC,EXCG,SLT |
2 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-22070G0 |
GX10#,JZX10#,LX100..EXC,EXCG,SC,SLT SAGE,TRIM6# |
1 | ||
| 72127-22070E0 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT ORCHID,TRIM4# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72127-22070E0 |
GX100,JZX100,101,LX100..EXC,EXCG,SLT ORCHID,TRIM4# |
1 | ||
| 72127-22070G0 |
GX100,JZX100,101,LX100..EXC,EXCG,SC,SLT SAGE,TRIM6# |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-22070G0 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),SAGE,TRIM6# |
1 | ||
| 72137-22070E0 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),ORCHID,TRIM4# |
1 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-22070G0 |
GX10#,JZX10#,LX100..EXC,EXCG,SC,SLT SAGE,TRIM6# |
1 | ||
| 72138-22070E0 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT ORCHID,TRIM4# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-22060E0 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),ORCHID,TRIM4# |
1 | ||
| 72157-22060G0 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ),SAGE,TRIM6# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-22030E0 |
GX100,JZX100,101,LX100..EXC,EXCG,SLT ORCHID,TRIM4# |
1 | ||
| 72158-22030G0 |
GX100,JZX100,101,LX100..EXC,EXCG,SC,SLT SAGE,TRIM6# |
1 | ||
| 72201B - HANDLE SUB-ASSY, SEAT TRACK LH | ||||
| 72201-32010 |
GX100,JZX100,101,LX100 |
1 | ||
| 72201-22030 |
GX100,JZX100,101 |
1 | ||
| 72273 - SUPPORT, SEAT TRACK CONTROL CABLE | ||||
| 72273-22020 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT |
1 | ||
| 72501E - PIPE SUB-ASSY, RECLINING CONNECTING, LH | ||||
| 72345-22040 |
GX10#,JZX10#,LX100 |
1 | ||
| 72506B - ROD SUB-ASSY, RECLINING CONNECTING, LH | ||||
| 72506-22020 |
GX10#,JZX10#,LX100 |
1 | ||
| 72506-22010 |
GX100,JZX10#,LX100 |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-32020E1 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT ORCHID,TRIM4# |
1 | ||
| 72526-32020G0 |
GX10#,JZX10#,LX100..EXC,EXCG,SC,SLT SAGE,TRIM6# |
1 | ||
| Common parts | ||||
| 90119-10772 | ||||
| 90167-40044 | ||||
| 91515-60822 | ||||
| 91515-81025 | ||||
| 93249-54006 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 8513 | ||||
(9609- )
ﾎｸﾞﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
