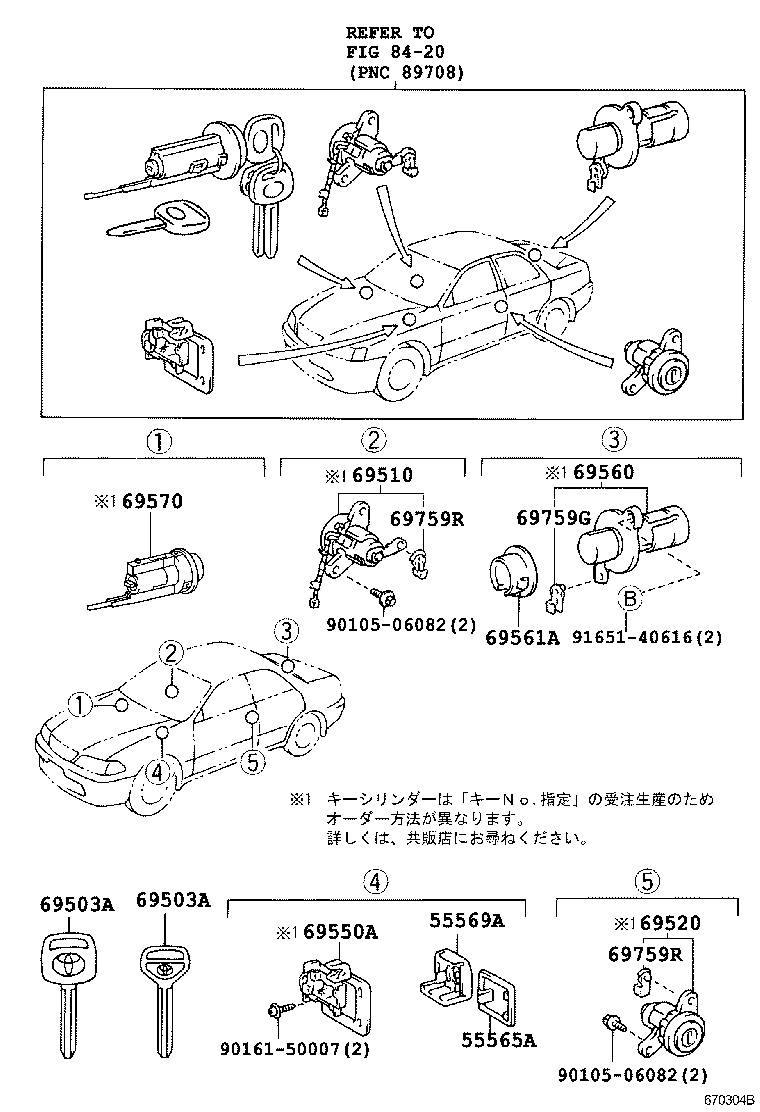

JZX101-CEPZF (1996)
Toyota Cresta
(9609- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55565A - HANDLE, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55565-22020G1 |
GX10#,JZX10#,LX100..EXC,EXCG,SC,SLT SAGE,TRIM6# |
1 | ||
| 55565-22020E5 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT ORCHID,TRIM4# |
1 | ||
| 55569A - COVER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55569-22030E5 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT ORCHID,TRIM4# |
1 | ||
| 55569-22030G1 |
GX10#,JZX10#,LX100..EXC,EXCG,SC,SLT SAGE,TRIM6# |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00185 |
JZX100..EXC,EXCG,ROU,ROUG,SLT;GX10#,JZX101,105,LX100..EXC,EXCG,SLT ﾏｽﾀｰｷｰ,*68付き |
1 | ||
| 90999-00188 |
GX10#,JZX10#,LX100 ｻﾌﾞｷｰ |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00185 |
JZX100..EXC,EXCG,ROU,ROUG,SLT;GX10#,JZX101,105,LX100..EXC,EXCG,SLT ﾏｽﾀｰｷｰ,*68付き |
1 | ||
| 90999-00188 |
GX10#,JZX10#,LX100 ｻﾌﾞｷｰ |
1 | ||
| 69510 - CYLINDER ASSY, FRONT DOOR LOCK, RH | ||||
| 69510-22270 |
GX10#,JZX10#,LX100 |
1 | ||
| 69510-22270 |
GX100,JZX10#,LX100 |
1 | ||
| 69520 - CYLINDER ASSY, FRONT DOOR LOCK, LH | ||||
| 69520-22230 |
GX10#,JZX10#,LX100 |
1 | ||
| 69520-22230 |
GX100,JZX10#,LX100 |
1 | ||
| 69550A - CYLINDER ASSY, GLOVE COMPARTMENT DOOR LOCK | ||||
| 69550-22090 |
GX10#,JZX10#,LX100 |
1 | ||
| 69550-22090 |
GX100,JZX10#,LX100 |
1 | ||
| 69560 - CYLINDER ASSY, BACK DOOR LOCK | ||||
| 69560-22390 |
GX10#,JZX10#,LX100 |
1 | ||
| 69560-22390 |
GX100,JZX10#,LX100 |
1 | ||
| 69561A - RETAINER, LUGGAGE COMPARTMENT LOCK CYLINDER | ||||
| 69561-30070B0 |
GX100,JZX10#,LX100 SILVER ME,199 |
1 | ||
| 69561-30070A2 |
GX100,JZX10#,LX100..EXC,EXCG,ROU,ROUG,SLT WHITE PM.,057 ,2CG |
1 | ||
| 69561-30070C1 |
GX100,JZX10#,LX100 BLACK ME,205 |
1 | ||
| 69561-30070D1 |
GX100,JZX10#,LX100..EXC,EXCG,ROU,ROUG,SLT WINE RED MC.,3L4 |
1 | ||
| 69561-30070G1 |
GX100,JZX10#,LX100 GRAYISH GREEN M.M.,6N0 |
1 | ||
| 69561-30070J1 |
GX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUG,ROUS,SLT DK.BLUE MC.,8L4 |
1 | ||
| 69561-30070A1 |
GX10#,JZX10#,LX100 SUPER WHITE 2,040 |
1 | ||
| 69561-30070A2 |
GX10#,JZX10#,LX100 WHITE PM.,057 ,2CF |
1 | ||
| 69561-30070G0 |
GX10#,JZX10#,LX100 DK.GREEN MC.P.I.O.,2FF ,6N9 |
1 | ||
| 69561-30070B1 |
GX10#,JZX10#,LX100 SILVER ME.,1C0 |
1 | ||
| 69570 - CYLINDER ASSY, IGNITION SWITCH LOCK | ||||
| 69570-22110 |
GX10#,JZX10#,LX100 |
1 | ||
| 69570-22110 |
GX100,JZX10#,LX100 |
1 | ||
| 69759G - SNAP, LUGGAGE DOOR LOCK CYLINDER | ||||
| 69759-22150 |
GX10#,JZX10#,LX100 |
1 | ||
| 69759R - SNAP, FRONT DOOR LOCK CYLINDER | ||||
| 69759-24110 |
GX10#,JZX10#,LX100 左側 |
1 | ||
| 69759-24100 |
GX10#,JZX10#,LX100 右側 |
1 | ||
| 69759R - SNAP, FRONT DOOR LOCK CYLINDER | ||||
| 69759-24110 |
GX10#,JZX10#,LX100 左側 |
1 | ||
| 69759-24100 |
GX10#,JZX10#,LX100 右側 |
1 | ||
| Common parts | ||||
| 90105-06082 | ||||
| 90161-50007 | ||||
| 91651-40616 | ||||

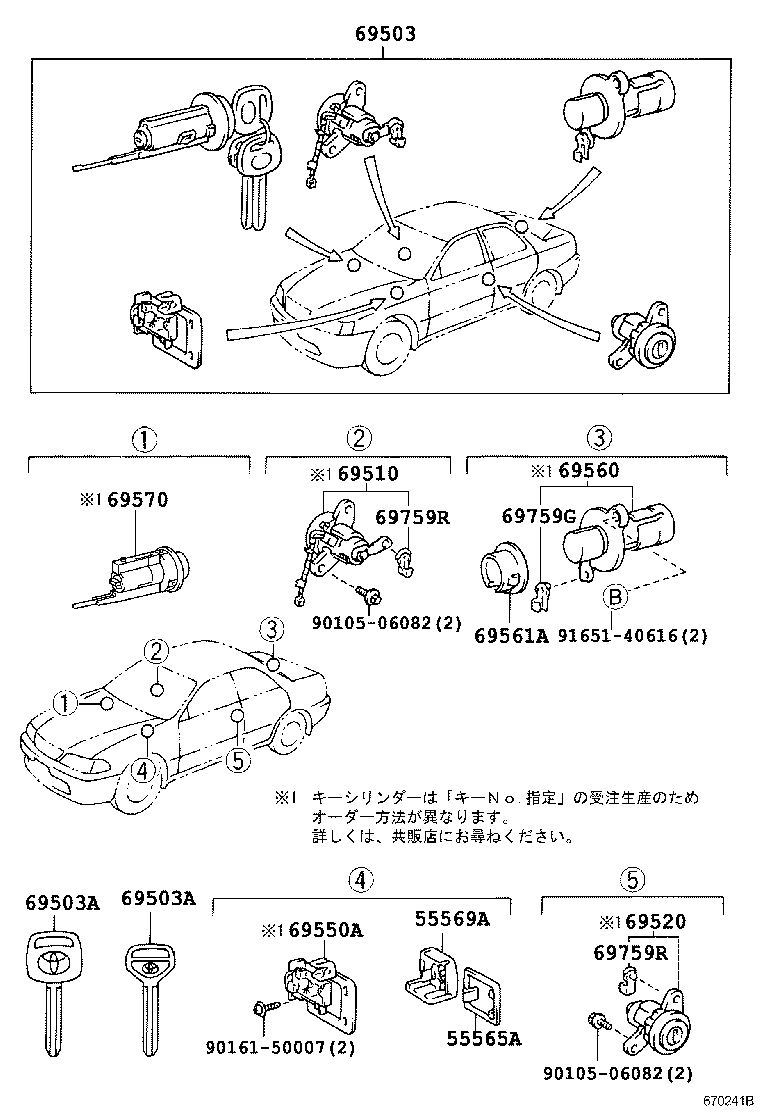

(9609- )
ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55565A - HANDLE, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55565-22020G1 |
GX10#,JZX10#,LX100..EXC,EXCG,SC,SLT SAGE,TRIM6# |
1 | ||
| 55565-22020E5 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT ORCHID,TRIM4# |
1 | ||
| 55569A - COVER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55569-22030E5 |
GX10#,JZX10#,LX100..EXC,EXCG,SLT ORCHID,TRIM4# |
1 | ||
| 55569-22030G1 |
GX10#,JZX10#,LX100..EXC,EXCG,SC,SLT SAGE,TRIM6# |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00185 |
JZX100..EXC,EXCG,ROU,ROUG,SLT;GX10#,JZX101,105,LX100..EXC,EXCG,SLT ﾏｽﾀｰｷｰ,*68付き |
1 | ||
| 90999-00188 |
GX10#,JZX10#,LX100 ｻﾌﾞｷｰ |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00185 |
JZX100..EXC,EXCG,ROU,ROUG,SLT;GX10#,JZX101,105,LX100..EXC,EXCG,SLT ﾏｽﾀｰｷｰ,*68付き |
1 | ||
| 90999-00188 |
GX10#,JZX10#,LX100 ｻﾌﾞｷｰ |
1 | ||
| 69510 - CYLINDER ASSY, FRONT DOOR LOCK, RH | ||||
| 69510-22270 |
GX10#,JZX10#,LX100 |
1 | ||
| 69510-22270 |
GX100,JZX10#,LX100 |
1 | ||
| 69520 - CYLINDER ASSY, FRONT DOOR LOCK, LH | ||||
| 69520-22230 |
GX10#,JZX10#,LX100 |
1 | ||
| 69520-22230 |
GX100,JZX10#,LX100 |
1 | ||
| 69550A - CYLINDER ASSY, GLOVE COMPARTMENT DOOR LOCK | ||||
| 69550-22090 |
GX10#,JZX10#,LX100 |
1 | ||
| 69550-22090 |
GX100,JZX10#,LX100 |
1 | ||
| 69560 - CYLINDER ASSY, BACK DOOR LOCK | ||||
| 69560-22390 |
GX10#,JZX10#,LX100 |
1 | ||
| 69560-22390 |
GX100,JZX10#,LX100 |
1 | ||
| 69561A - RETAINER, LUGGAGE COMPARTMENT LOCK CYLINDER | ||||
| 69561-30070B0 |
GX100,JZX10#,LX100 SILVER ME,199 |
1 | ||
| 69561-30070A2 |
GX100,JZX10#,LX100..EXC,EXCG,ROU,ROUG,SLT WHITE PM.,057 ,2CG |
1 | ||
| 69561-30070C1 |
GX100,JZX10#,LX100 BLACK ME,205 |
1 | ||
| 69561-30070D1 |
GX100,JZX10#,LX100..EXC,EXCG,ROU,ROUG,SLT WINE RED MC.,3L4 |
1 | ||
| 69561-30070G1 |
GX100,JZX10#,LX100 GRAYISH GREEN M.M.,6N0 |
1 | ||
| 69561-30070J1 |
GX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUG,ROUS,SLT DK.BLUE MC.,8L4 |
1 | ||
| 69561-30070A1 |
GX10#,JZX10#,LX100 SUPER WHITE 2,040 |
1 | ||
| 69561-30070A2 |
GX10#,JZX10#,LX100 WHITE PM.,057 ,2CF |
1 | ||
| 69561-30070G0 |
GX10#,JZX10#,LX100 DK.GREEN MC.P.I.O.,2FF ,6N9 |
1 | ||
| 69561-30070B1 |
GX10#,JZX10#,LX100 SILVER ME.,1C0 |
1 | ||
| 69570 - CYLINDER ASSY, IGNITION SWITCH LOCK | ||||
| 69570-22110 |
GX10#,JZX10#,LX100 |
1 | ||
| 69570-22110 |
GX100,JZX10#,LX100 |
1 | ||
| 69759G - SNAP, LUGGAGE DOOR LOCK CYLINDER | ||||
| 69759-22150 |
GX10#,JZX10#,LX100 |
1 | ||
| 69759R - SNAP, FRONT DOOR LOCK CYLINDER | ||||
| 69759-24110 |
GX10#,JZX10#,LX100 左側 |
1 | ||
| 69759-24100 |
GX10#,JZX10#,LX100 右側 |
1 | ||
| 69759R - SNAP, FRONT DOOR LOCK CYLINDER | ||||
| 69759-24110 |
GX10#,JZX10#,LX100 左側 |
1 | ||
| 69759-24100 |
GX10#,JZX10#,LX100 右側 |
1 | ||
| Common parts | ||||
| 90105-06082 | ||||
| 90161-50007 | ||||
| 91651-40616 | ||||
| Linked diagrams | ||||
| 8420 | ||||
