JZX100-CEPZF (1996)
Toyota Cresta
Production
Sep 1996
-
Jun 2001
Engine
1JZGE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9609- )GX100,JZX100,101,LX100

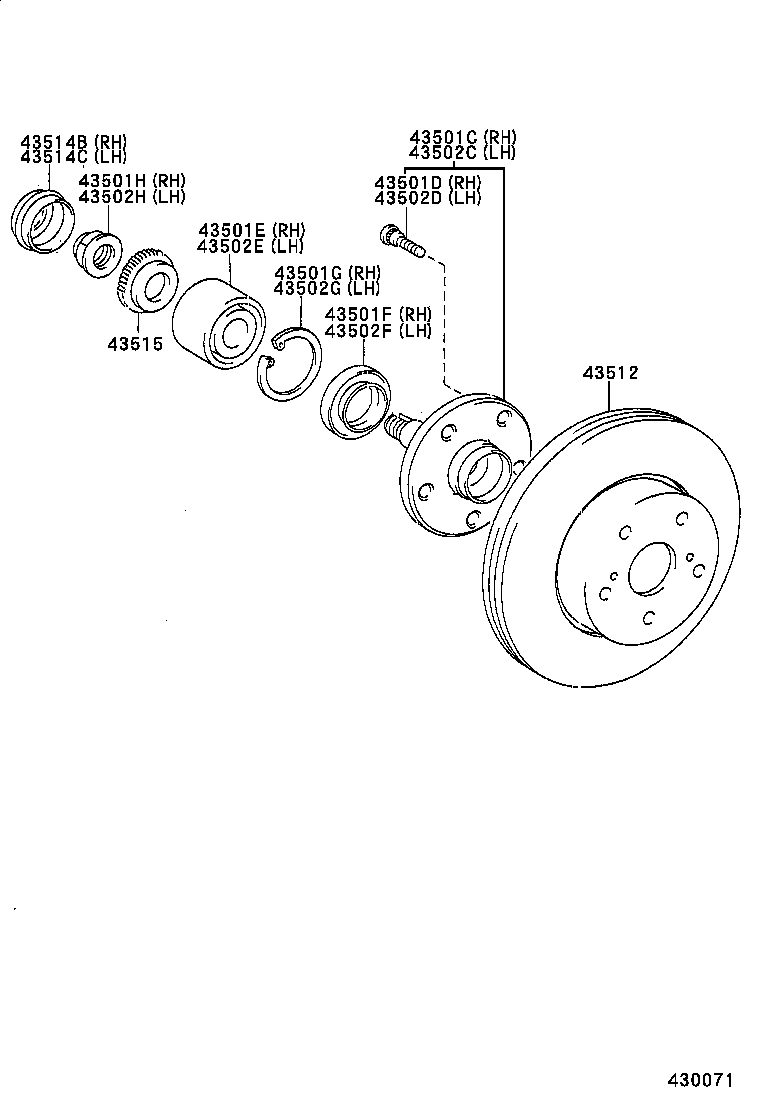

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43501C - HUB SUB-ASSY, FRONT AXLE, RH | ||||
| 43502-22080 |
GX100,JZX100,101,LX100 |
1 | ||
| 43501D - BOLT, HUB (FOR FRONT AXLE RH) | ||||
| 90942-02070 |
GX10#,JZX10#,LX100 |
5 | ||
| 43501E - BEARING (FOR FRONT AXLE HUB RH) | ||||
| 90363-32035 |
GX100,JZX100,101,LX100 |
1 | ||
| 43501F - SEAL, OIL (FOR FRONT AXLE HUB RH) | ||||
| 90311-48013 |
GX100,JZX100,101,LX100 |
1 | ||
| 43501G - RING, HOLE SNAP (FOR FRONT AXLE HUB RH) | ||||
| 90521-77001 |
GX100,JZX100,101,LX100 |
1 | ||
| 43501H - NUT (FOR FRONT AXLE SHAFT RH) | ||||
| 90179-22022 |
GX100,JZX100,101,LX100 |
1 | ||
| 43502C - HUB SUB-ASSY, FRONT AXLE, LH | ||||
| 43502-22080 |
GX100,JZX100,101,LX100 |
1 | ||
| 43502D - BOLT, HUB (FOR FRONT AXLE LH) | ||||
| 90942-02070 |
GX10#,JZX10#,LX100 |
5 | ||
| 43502E - BEARING (FOR FRONT AXLE HUB LH) | ||||
| 90363-32035 |
GX100,JZX100,101,LX100 |
1 | ||
| 43502F - SEAL, OIL (FOR FRONT AXLE HUB LH) | ||||
| 90311-48013 |
GX100,JZX100,101,LX100 |
1 | ||
| 43502G - RING, HOLE SNAP (FOR FRONT AXLE HUB LH) | ||||
| 90521-77001 |
GX100,JZX100,101,LX100 |
1 | ||
| 43502H - NUT (FOR FRONT AXLE SHAFT LH) | ||||
| 90179-22022 |
GX100,JZX100,101,LX100 |
1 | ||
| 43512 - DISC, FRONT | ||||
| 43512-22220 |
GX105,JZX10#..EXC,EXCG,ROU,ROUS,SLT |
2 | ||
| 43514B - CAP, FRONT AXLE HUB GREASE, RH | ||||
| 43514-22040 |
GX100,JZX100,101,LX100 |
1 | ||
| 43514C - CAP, FRONT AXLE HUB GREASE, LH | ||||
| 43514-22040 |
GX100,JZX100,101,LX100 |
1 | ||
| 43515 - ROTOR, SKID CONTROL, FRONT | ||||
| 43515-22030 |
GX100,JZX100,101,LX100 |
2 | ||
