JZX100-CEPVZ (1996)

Toyota Cresta

Production Sep 1996 - Jun 2001
Engine 1JZGTE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9609- )

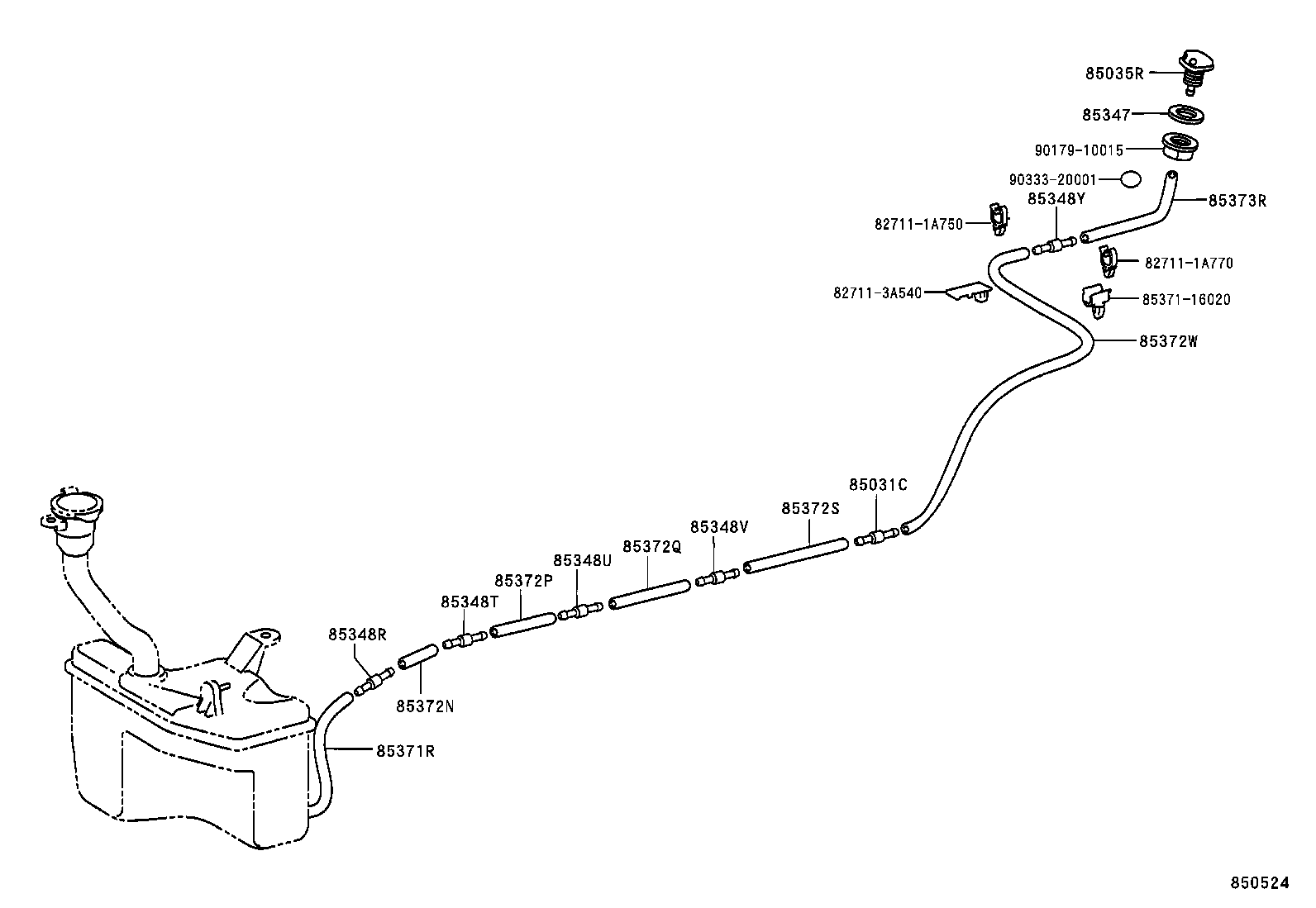

Click highlighted areas on diagram

diagram 827111A750 827111A770 827113A540 85031C 85035R 85347 85348R 85348T 85348U 85348V 85348Y 8537116020 85371R 85372N 85372P 85372Q 85372S 85372W 85373R 9017910015 9033320001
Part # Description Qty Price
85031C - VALVE SUB-ASSY, WASHER
85375-12520

GX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUG,ROUS,SLT

 1
85035R - NOZZLE SUB-ASSY, REAR WASHER
85391-22010

GX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUG,ROUS,SLT

 1
85347 - PACKING, REAR WASHER
85347-12010

GX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUG,ROUS,SLT

 1
85348R - JOINT, REAR WASHER HOSE, NO.1
85349-89122

GX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUG,ROUS,SLT

 1
85348T - JOINT, REAR WASHER HOSE, NO.2
85349-89122

GX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUG,ROUS,SLT

 1
85348U - JOINT, REAR WASHER HOSE, NO.3
85349-89122

GX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUG,ROUS,SLT

 1
85348V - JOINT, REAR WASHER HOSE, NO.4
85349-89122

GX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUG,ROUS,SLT

 1
85348Y - JOINT, REAR WASHER HOSE, NO.5
85349-89122

GX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUG,ROUS,SLT

 1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90446-07001

GX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUG,ROUS,SLT

*H,L=350

 1
85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
90099-33299

GX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUG,ROUS,SLT

*H,L=30

 1
85372P - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
90446-07001

GX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUG,ROUS,SLT

*H,L=1300

 1
85372Q - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
90099-33299

GX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUG,ROUS,SLT

*H,L=40

 1
85372S - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
90446-07001

GX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUG,ROUS,SLT

*H,L=1150

 1
85372W - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5
90446-07001

GX100,JZX100,105,LX100..EXC,ROU,SLT

 1
90446-07001

GX10#,JZX10#,LX100

 1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
85374-22040

GX10#,JZX10#,LX100..EXC,EXCG,ROU,ROUG,ROUS,SLT

長さ=190

 1
Common parts
82711-1A750
82711-1A770
82711-3A540
85371-16020
90179-10015
90333-20001
